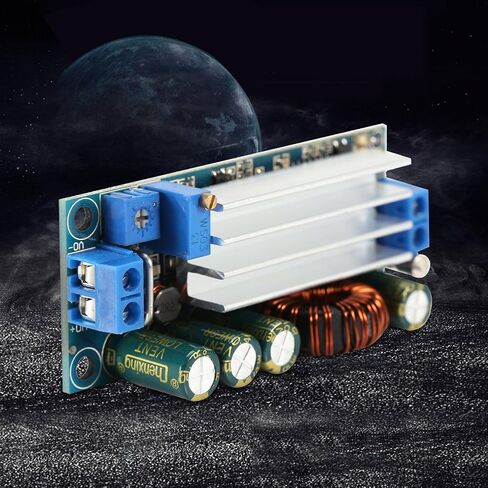

35W 3A CC CV Boost/Buck Adjustable Step Up/Down Converter DC-DC 5V-30V to 0.5V-30V Supply Module in Saudi Arabia 35W 3A CC CV Boost/Buck Adjustable Step Up/Down Converter DC-DC 5V-30V to 0.5V-30V Supply Module in Saudi Arabia 35W 3A CC CV Boost/Buck Adjustable Step Up/Down Converter DC-DC 5V-30V to 0.5V-30V Supply Module in Saudi Arabia 35W 3A CC CV Boost/Buck Adjustable Step Up/Down Converter DC-DC 5V-30V to 0.5V-30V Supply Module in Saudi Arabia 35W 3A CC CV Boost/Buck Adjustable Step Up/Down Converter DC-DC 5V-30V to 0.5V-30V Supply Module in Saudi Arabia 35W 3A CC CV Boost/Buck Adjustable Step Up/Down Converter DC-DC 5V-30V to 0.5V-30V Supply Module in Saudi Arabia 35W 3A CC CV Boost/Buck Adjustable Step Up/Down Converter DC-DC 5V-30V to 0.5V-30V Supply Module in Saudi Arabia 35W 3A CC CV Boost/Buck Adjustable Step Up/Down Converter DC-DC 5V-30V to 0.5V-30V Supply Module in Saudi Arabia 35W 3A CC CV Boost/Buck Adjustable Step Up/Down Converter DC-DC 5V-30V to 0.5V-30V Supply Module in Saudi Arabia

35w 3a Cc Cv Boost/Buck Adjustable Step Up/Down Converter Dc-Dc 5v-30v to 0.5v-30v Supply Module Step up Down Converter, Buck-Boost Converter Voltage Regulator

SAR 59
Brand
ZJchao
Weight
33 g
– 1 +

Special Features

  • CAN BOOST AND BUCK: This boost/buck module can step up or step down voltage and maintain a stable output voltage.

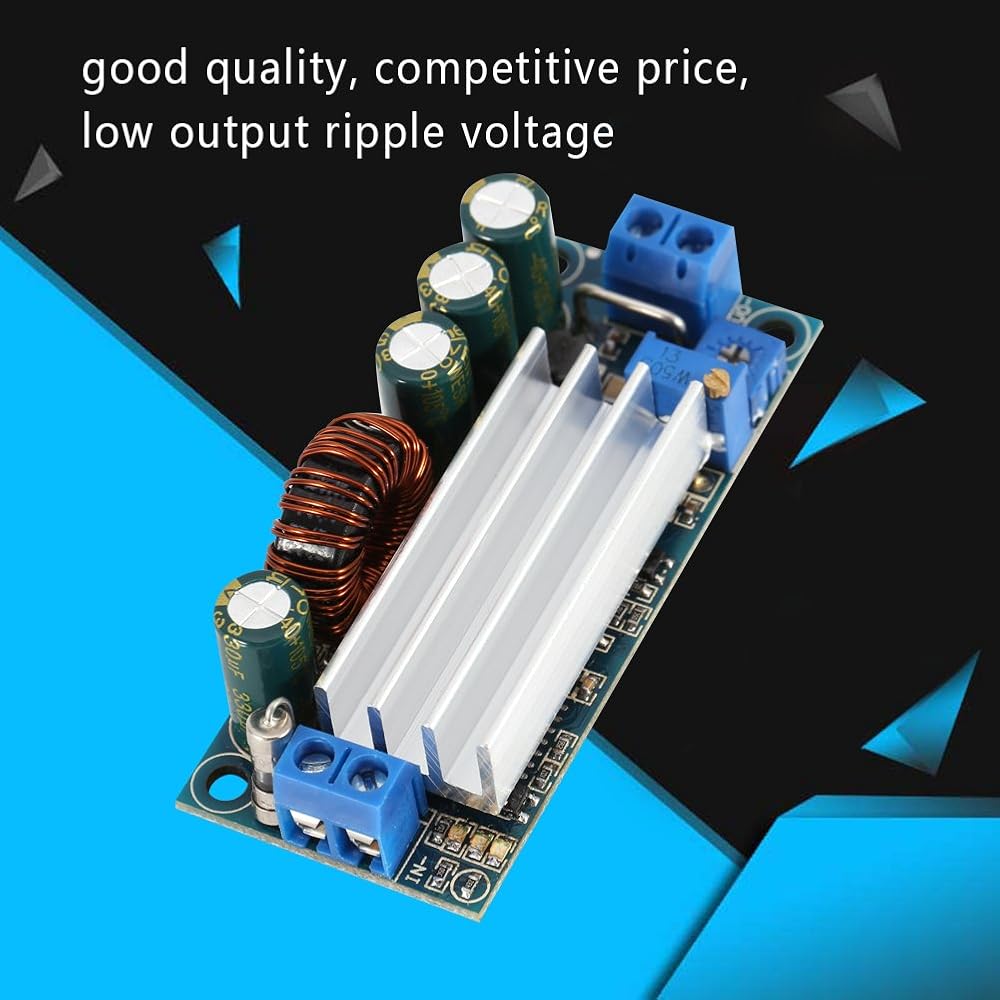

  • ULTRA LOW OUTPUT RIPPLE VOLTAGE: It has quite low output ripple voltage, for example, 20mV when output is 12V 3A, which is great for powering speaker, audio amplifier, artificial circuit, etc.
  • FUNCTION: It supports input over-current , input under-voltage and MOS input anti-reverse .

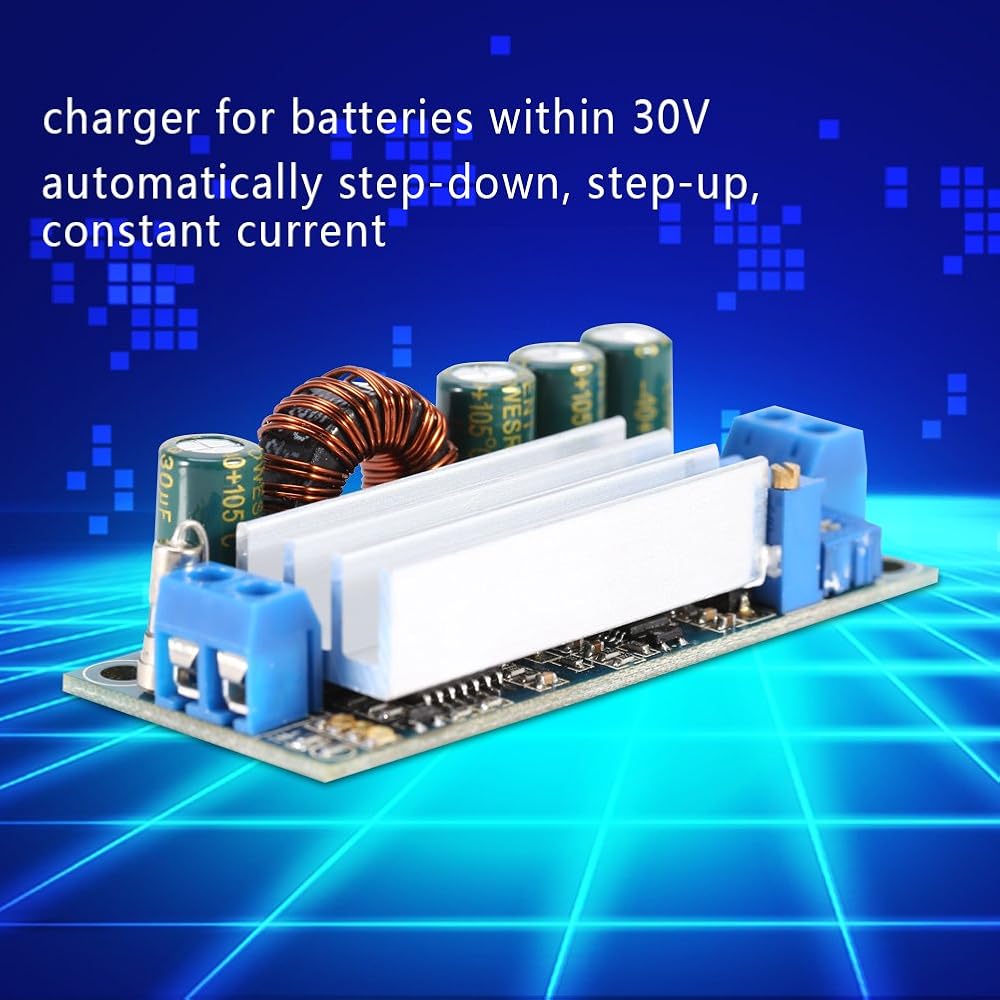

  • CONSTANT CURRENT FUNCTION: Input 5V to 30V and it can storage battery, lithium battery, AA rechargeable battery, or adjust constant current LED brightness. 商品特性 1

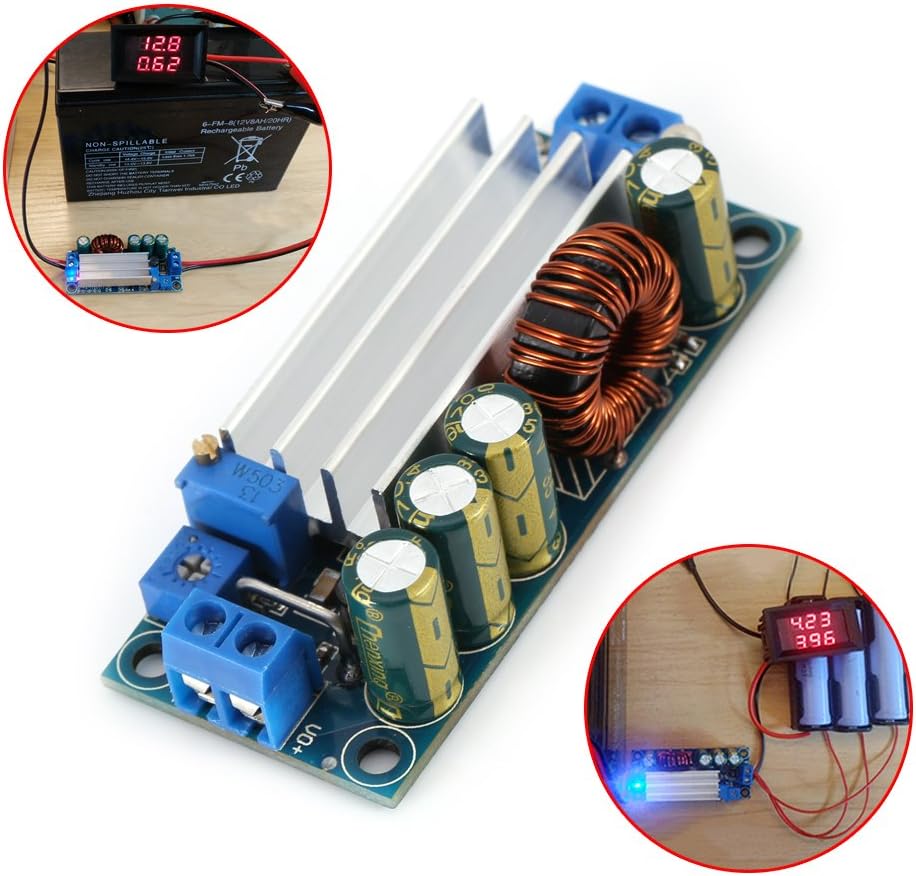

  • FULL TURN LAMP FUNCTION: Red and blue light on when constant current charging, blue light on only when constant voltage charging, blue&green light on when almost fully charged, green light on only when fully charged.

Description

Description:

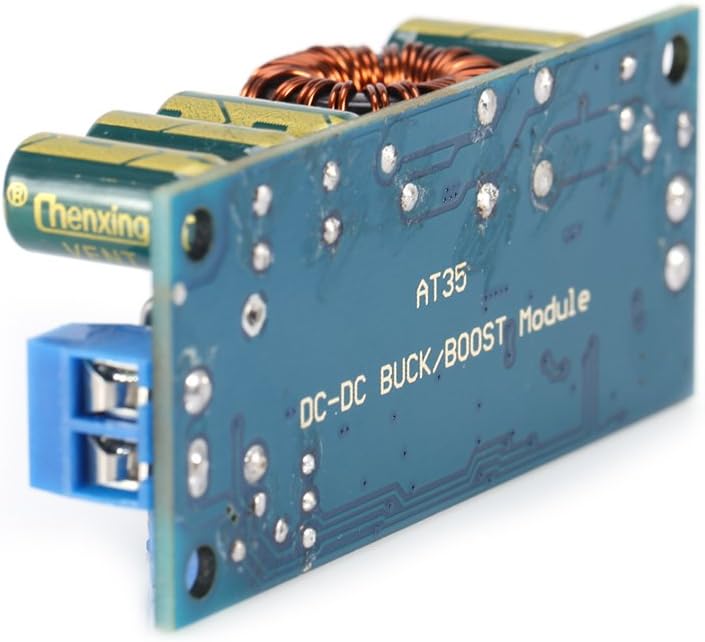

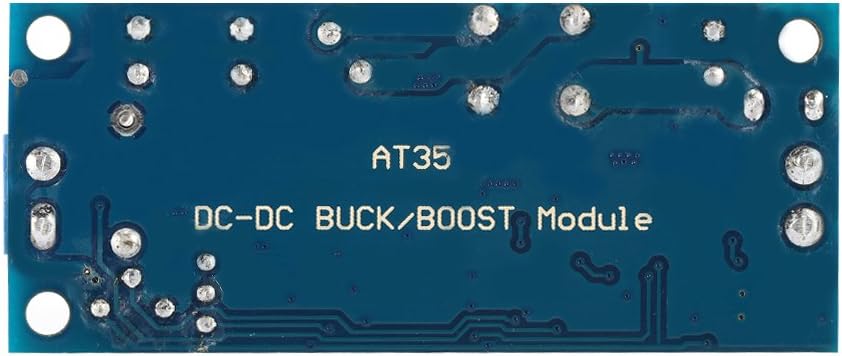

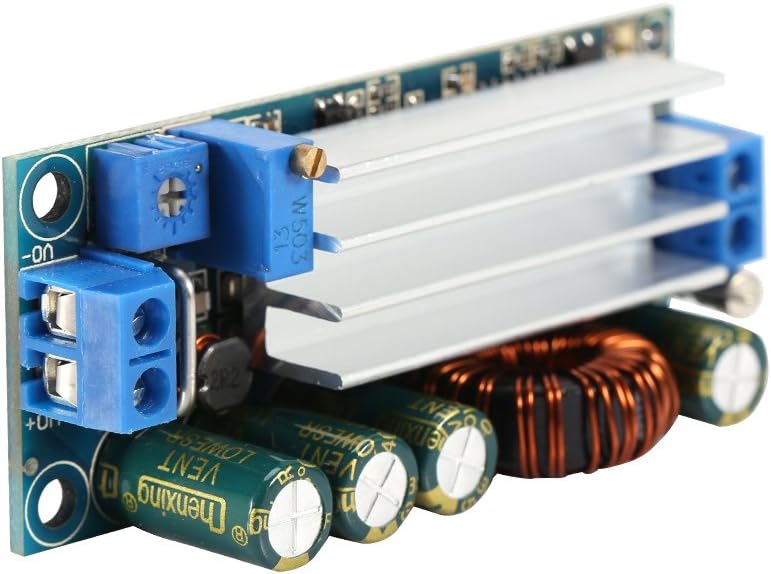

This DC-DC converter module is a buck (step-down) converter combined with a boost (step-up) converter, of which output voltage can be lower or higher than the input. It features small size, high power, high efficiency and stable performance. It would maintain output voltage stability when input voltage is higher, lower than output voltage.

Specifications:
Input Voltage: 5V~30V
Output Voltage: 0.5V~30V
Output Current: heat dissipation is 3A,enhanced heat dissipation is 4A
Output Power: heat dissipation is 35W,enhanced heat dissipation is 60W
Output Ripple: when output 12 volts,3A,the output ripple is 20mV
Conversion Efficiency: 87~91%(step up); 87~89%(step down)
Input Over-current : 10A
Input Anti-reverse : High efficiency MOS
Input Under-voltage : Yes
Output Over-current : Yes
Frequency: 180kHz

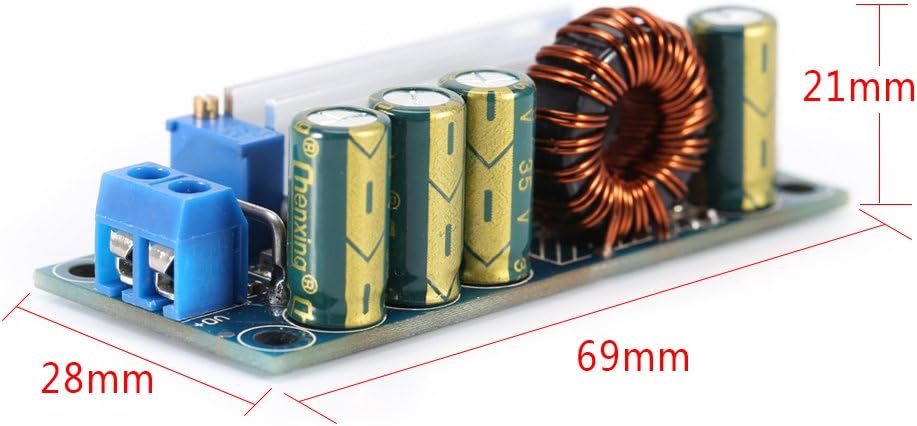

Size: 69*28*21mm / 2.71*1.1*0.82"

Package Includes:
1 x Module
