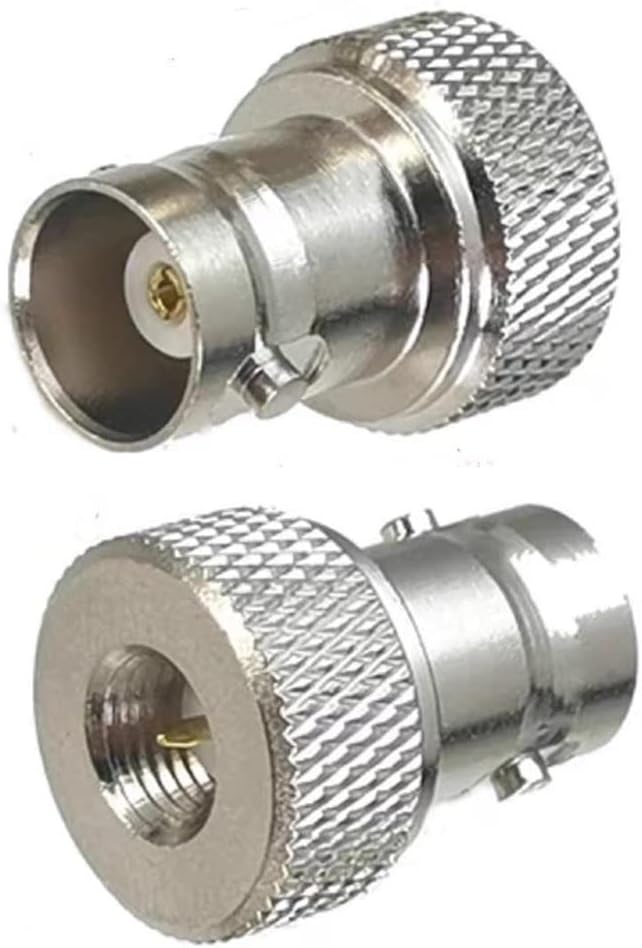

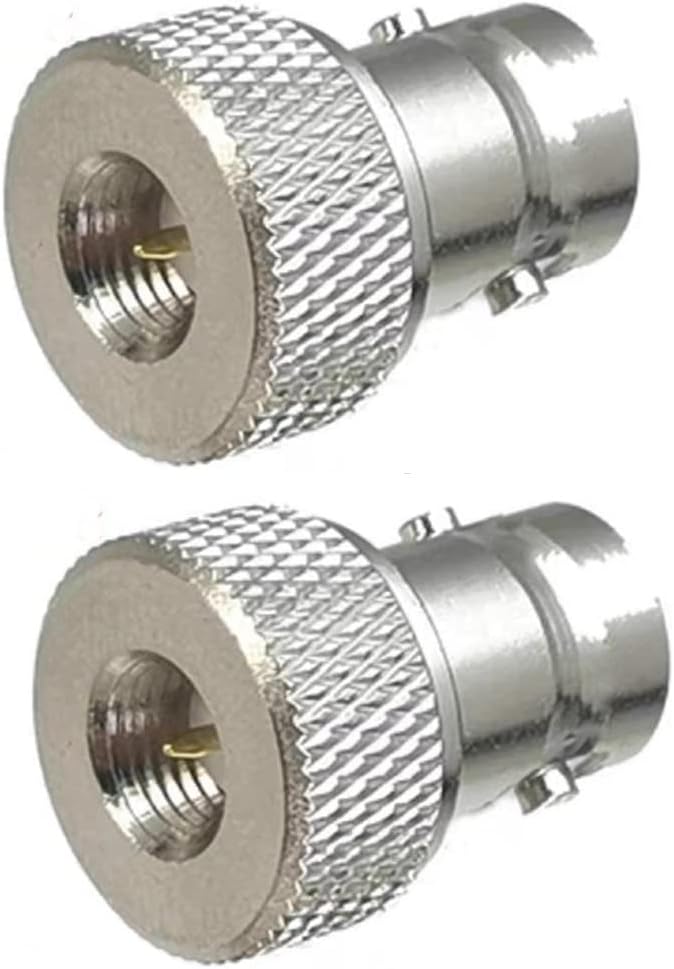

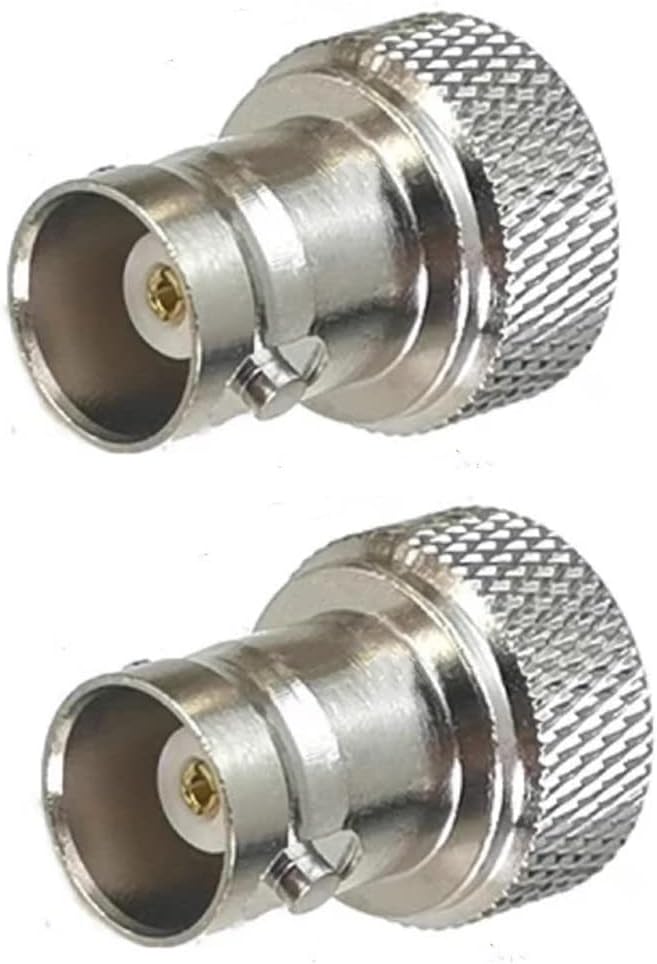

Product Name : BNC Female to SMA Male coaxial connector.
Color: gold and silver; Material: brass & nickel plated; Helping you to connect BNC to SMA devices.
Feature: Application for RF, Microwave Applications, Lighting, Security Cameras, Extension cable, Coaxial cable, CCTV, Wifi Radios, Telecom, Antenna, Digital Communication System, Broadcast, Wireless devices, LMR and so on.
Work for Vertex Icom Kenwood Baofeng Wouxun Two-way Radio, Impedance: 50 ohm
Package Content : 8Pcs of BNC Female to SMA Male coaxial connector(Connector1: BNC Female connector, Connector 2: SMA Male connector)

وصف

Specifications of BNC Female to SMA Male RF Coaxial Connector

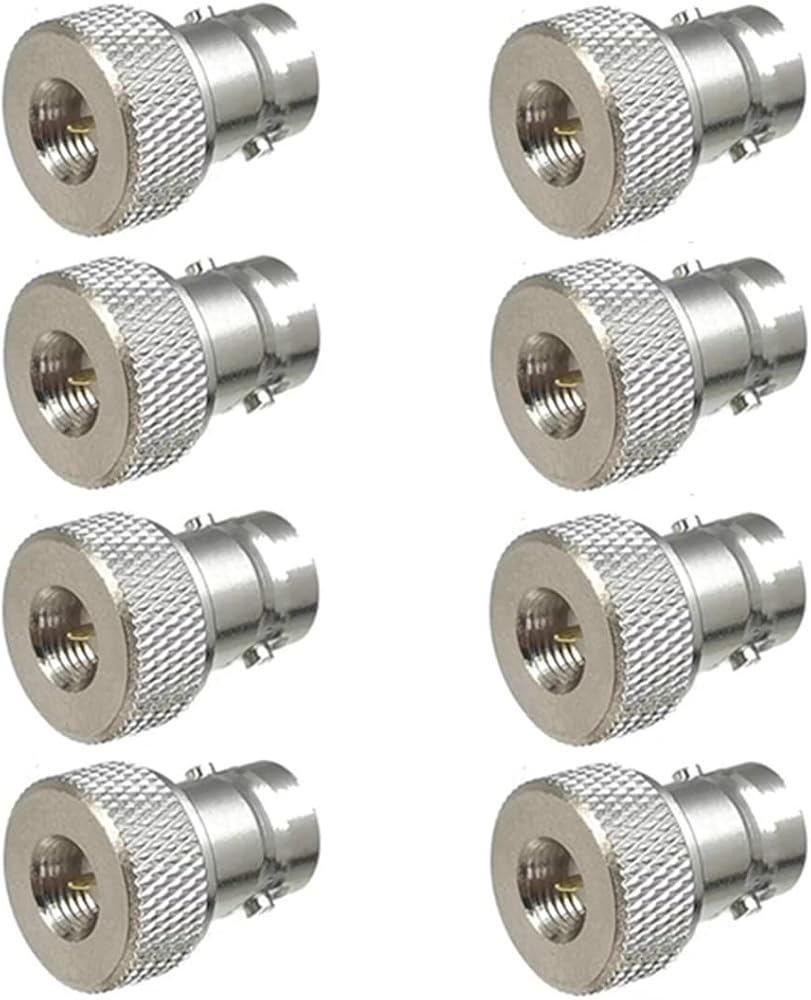

8Pcs of BNC Female to SMA Male coaxial connector
1. BNC Female connector
2. SMA Male connector
3. Materials: brass & nickel plated
4. Impedance: 50 ohm, Low-loss
5. Frequency Range: DC – 11GHz
6. Temperature Range: -55~+155°C (PE Cable -40~+85°C)
7. Working Voltage: 1000V r.m.s at sea level
8. Break-down Voltage: 2000V rms
9. Insulation resistance: ≥5000MΩ
10. Center Conductor retention force: ≥0.56N
12.Durability(mating): ≥500times(cycles)
13. Average power: 3KW max
14. Insertion Loss: ≤0.10dB
15. Insulators: PTFE
16. VSWR: ≤1.15
Packaging Includes:
8Pcs of BNC Female to SMA Male RF Coaxial Connector
