DONGKER XY-FZ35 Electronic Load Detector Module,35W DC 5A Electronic Load Tester LCD Voltage Current Power Display

Sorry, this product is not available
Brand
DONGKER

Special Features

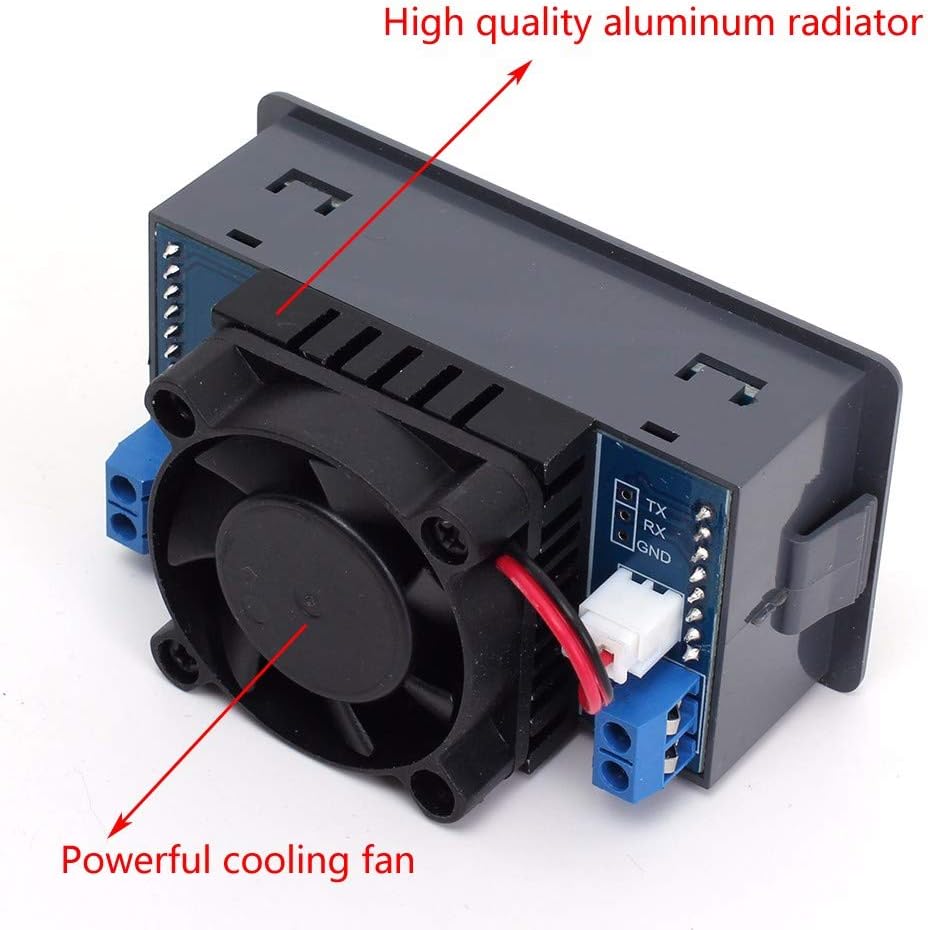

  • The Industrial-grade Long-life Electronic Load Tester Adopts Long-life Ball Fan Which Has Fast Rotating Speed and Strong Wind.It Supports Continuous Discharging For Non-stop Work and Suitable For Long-period Discharge Or the Factory Do Aging Test For Products.It Is Suitable For Testing the Charger's Output Current Capability, Charger Batch Aging Test, Measuring Battery Load Capacity, Etc.
  • FZ35 Supports Reverse Protection For Input Terminal. FZ35 Supports Reverse Protection For Output Terminal. OVP Over Voltage Protection.The Default Protection Value Is 25.2V.But User Can Modify the Values as Required.Screen Will Display OVP and Flashing after Start Over Voltage Protection.
  • OCP Over Current Protection.The Default Protection Value Is 5.10A.But User Can Modify the Values as Required.Screen Will Display OCP and Flashing after Start Over Current Protection. OPP Over Power Protection.The Default Protection Value Is 35.5W.But User Can Modify the Values as Required.Screen Will Display OPP and Flashing after Start Over Power Protection.
  • OTP Over Temperature Protection.The Default Protection Value Is 80℃.It Can Not Be Modified!Screen Will Display OTP and Flashing after Start Over Temperature Protection.

Description

Features:
1>.With outer casing
2>.LCD high definition display
3>.Support UART
4>.High precision 0.01A
5>.Support over-voltage protection
6>.Support over-current protection
7>.Support under-voltage protection
8>.Support over temperature protection
9>.Multiple parameters are displayed simultaneously
10>.Automatically count working hours

Parameters:
1>.Product name: FZ35 5A 35W Electronic Load Tester
2>.Model: FZ35

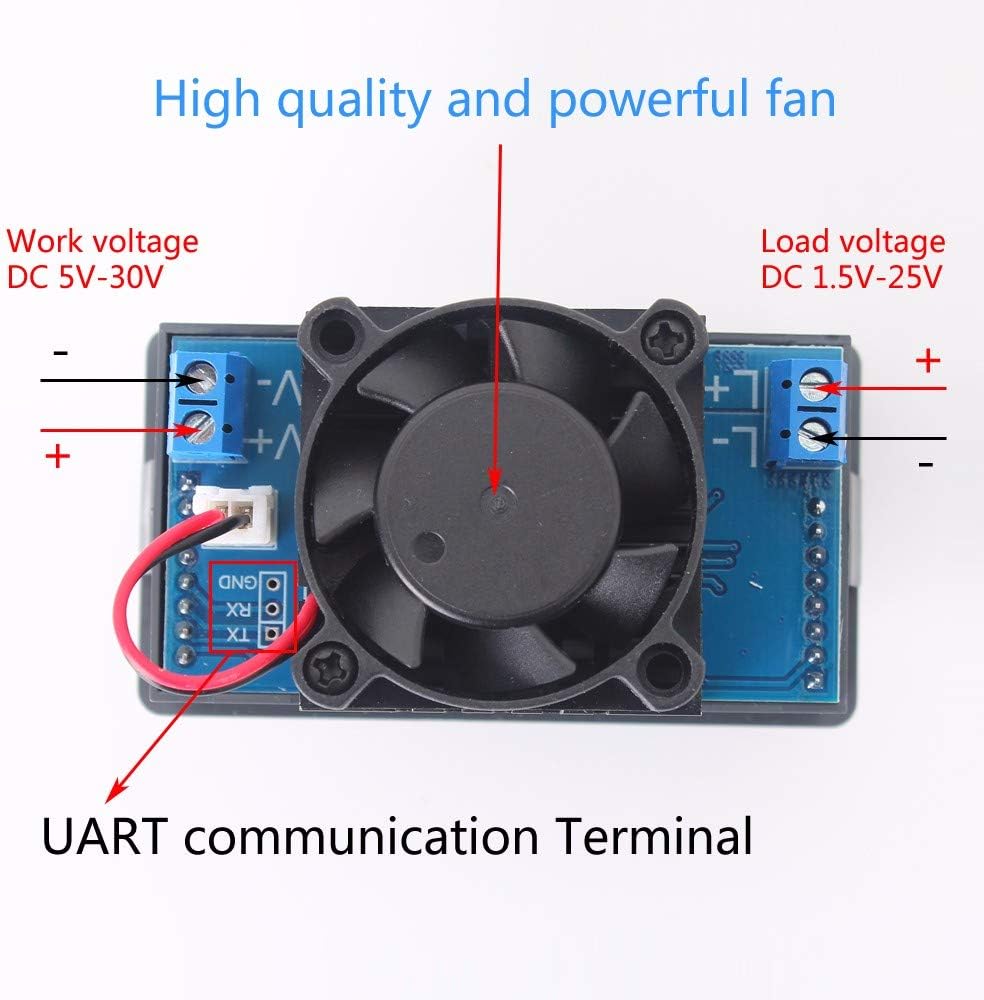

3>.Work voltage:DC 5.0V-30V
4>.Rated load voltage:DC 1.5V-25V
5>.Rated load current:5A
6>.Power:35W
7>.Current accuracy:1%
8>.Voltage accuracy:0.5%

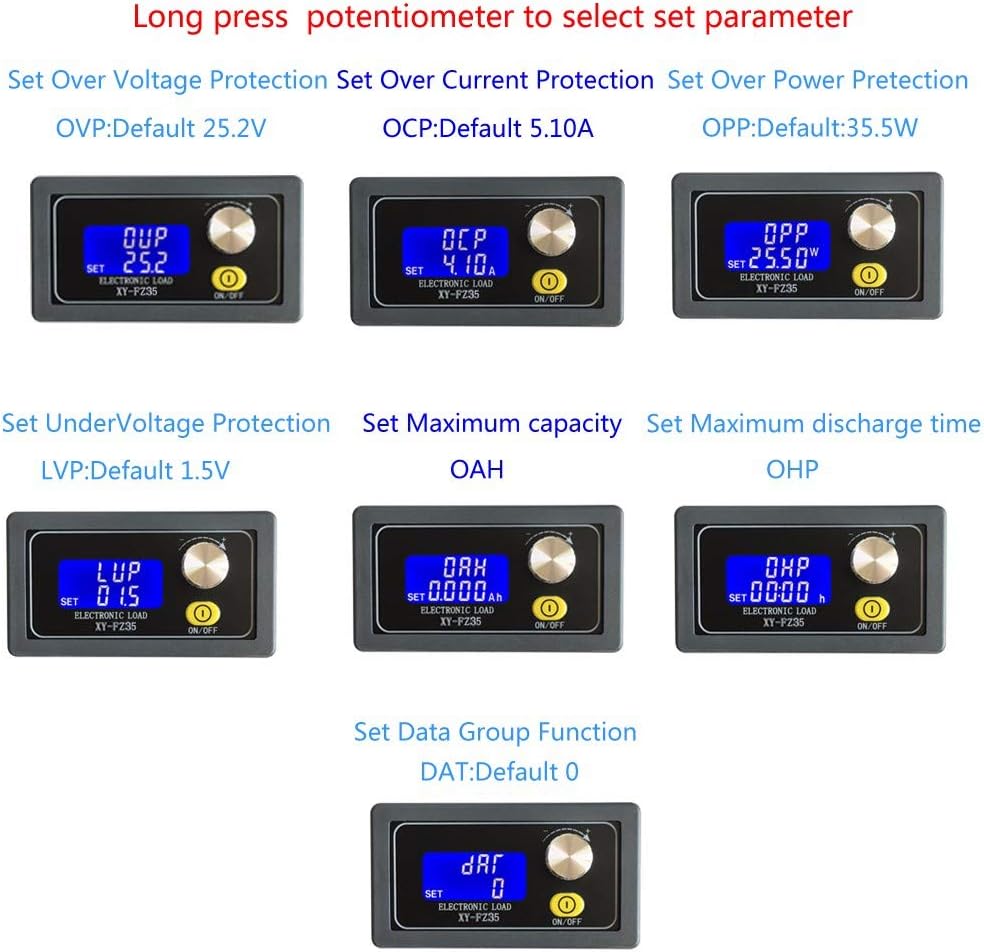

9>.Over voltage protection:Default 25.2V(Adjustable)
10>.Over current protection:Default 5.10A(Adjustable)
11>.Over power protection:Default 35.5W(Adjustable)
12>.Under voltage protection:Default 1.5V(Adjustable)
13>.Over temperature protection:About 80℃(Unadjustable)
14>.Fan speed:8000RPM+/-10%
15>.Work Temperature:-40℃~85℃

Function:

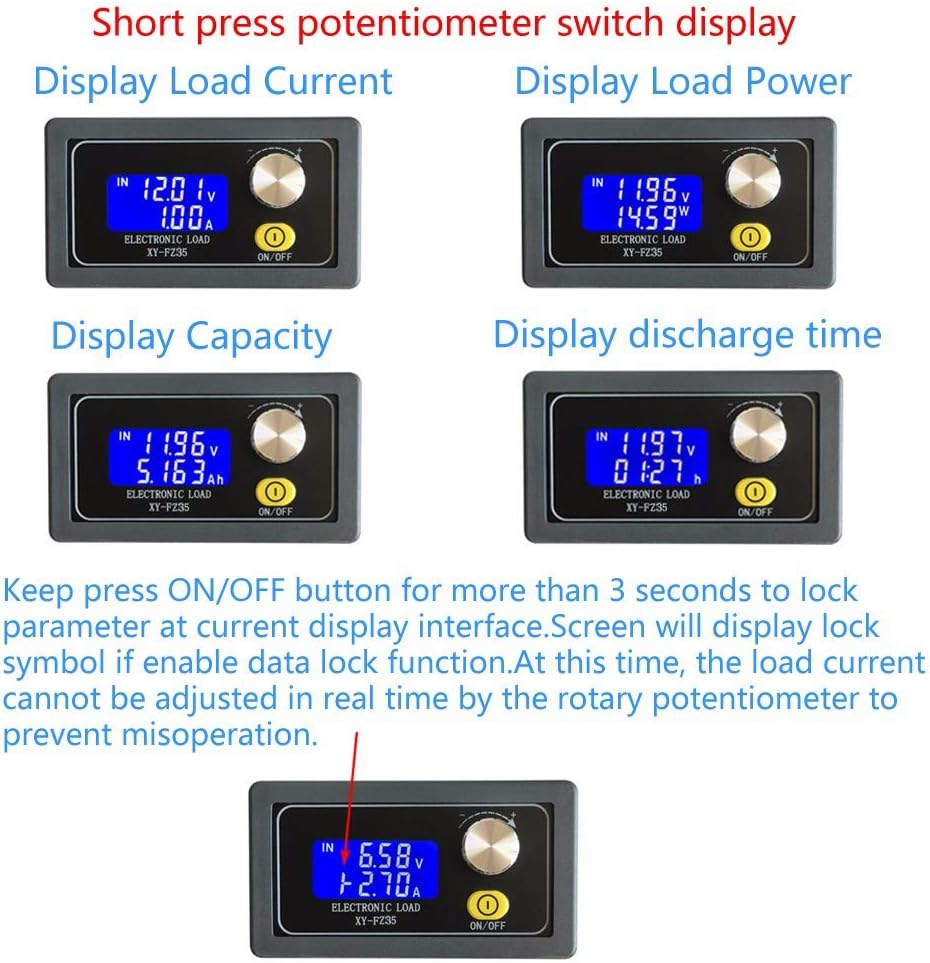

1>.Display current A,voltage V,power W,capacity Ah and Discharge time
2>.Perfect protection mechanism
3>.Automatically count discharge capacity and discharge time
4>.Supports setting maximum discharge capacity (OAH) and maximum discharge time (OHP).(Achieve unattended for power aging test)
