مميزات خاصة

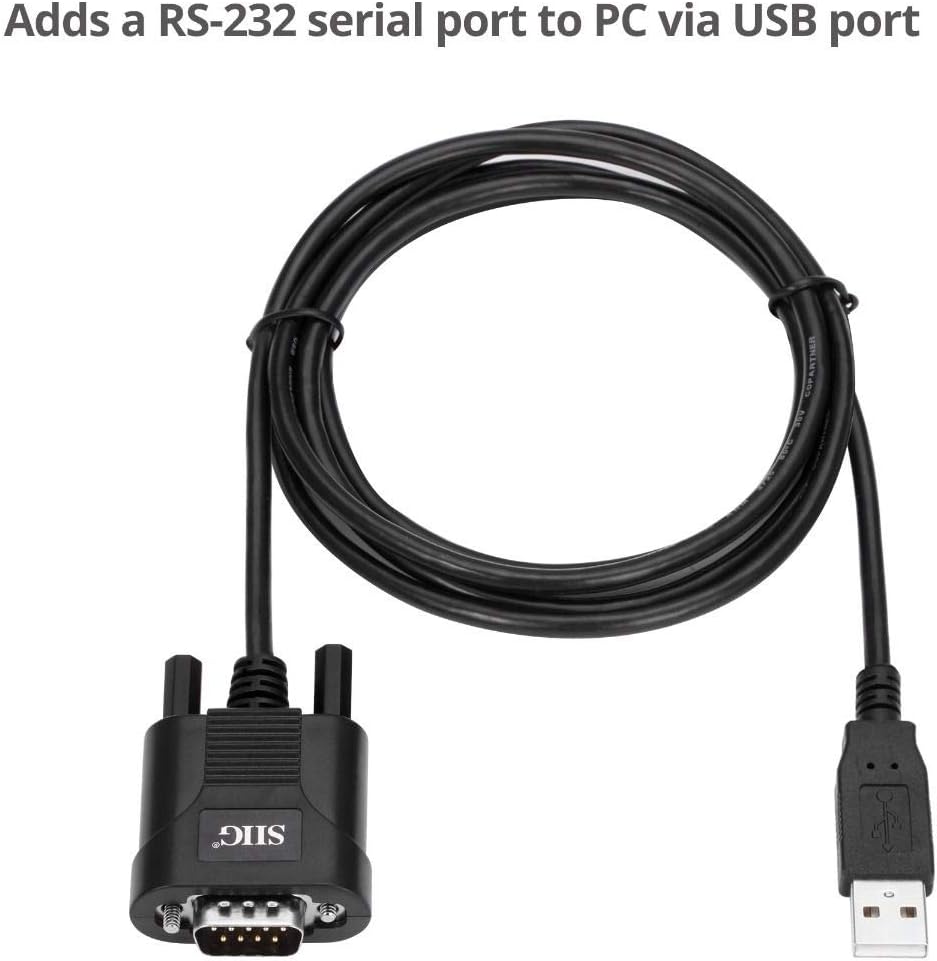

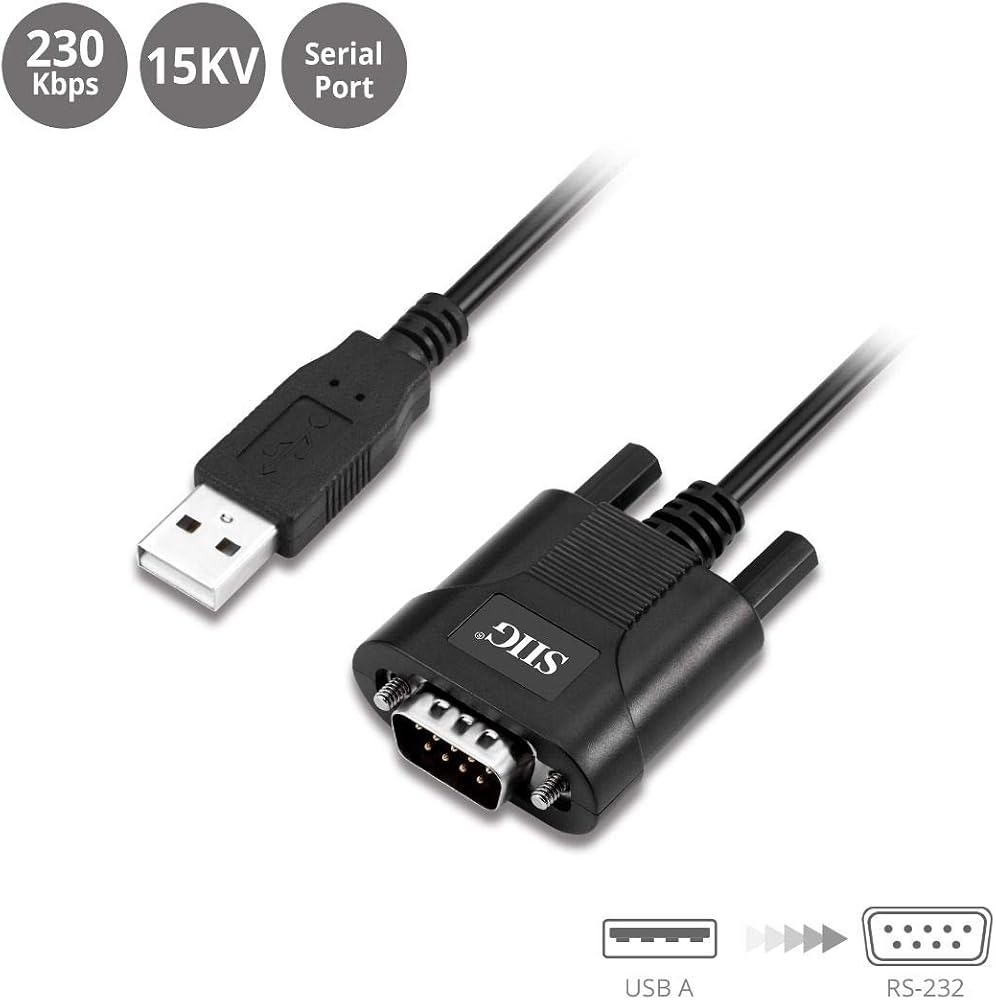

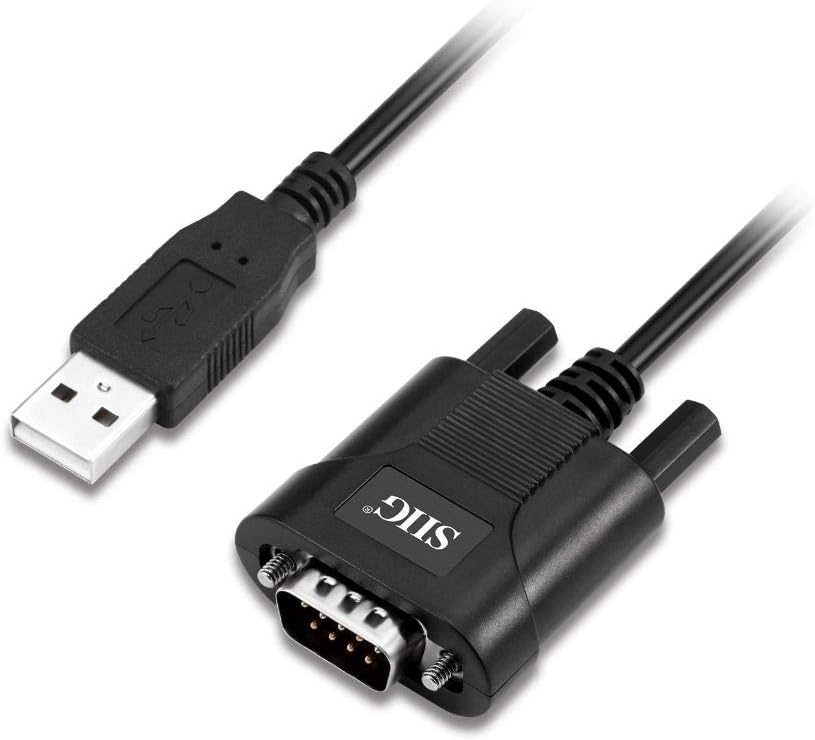

Converts one USB Type-A port into one 9-Pin RS-232 serial port on a Windows desktop or notebook computer
Supports USB 1.1 specifications with serial port data transfer rates up to 230Kbps

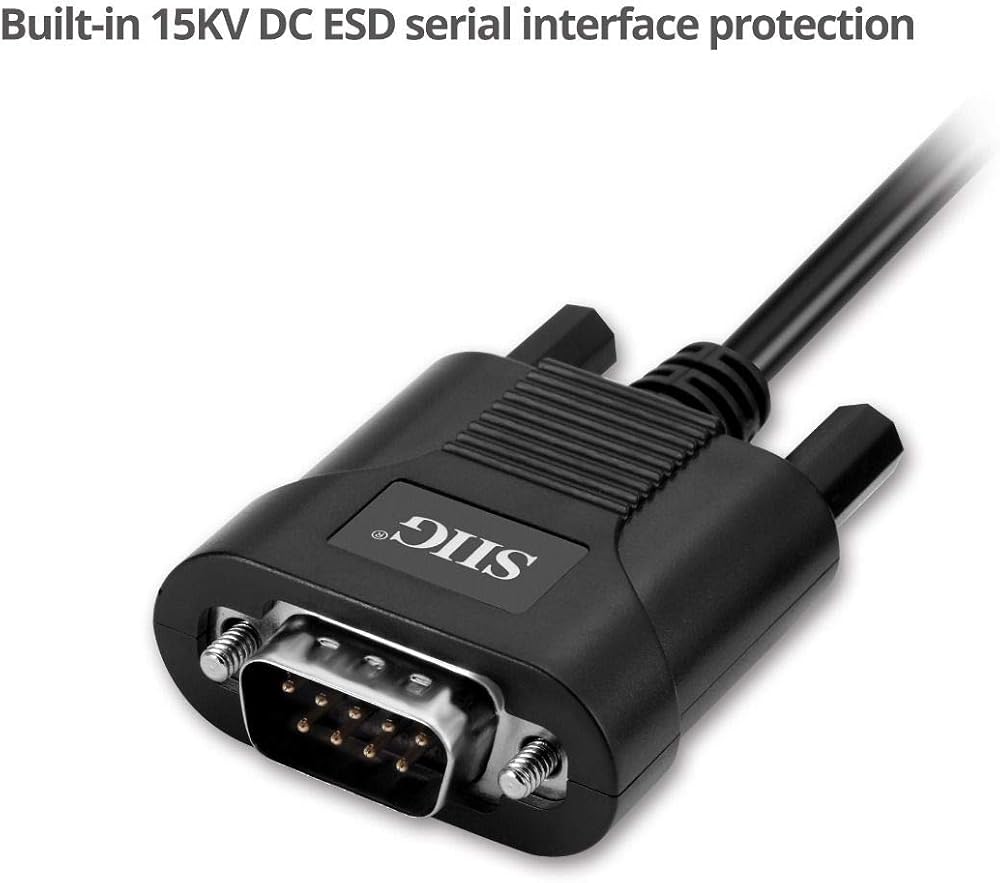

Features built-in 512 byte FIFO buffers, 15KV DC ESD serial interface protection with software flow control

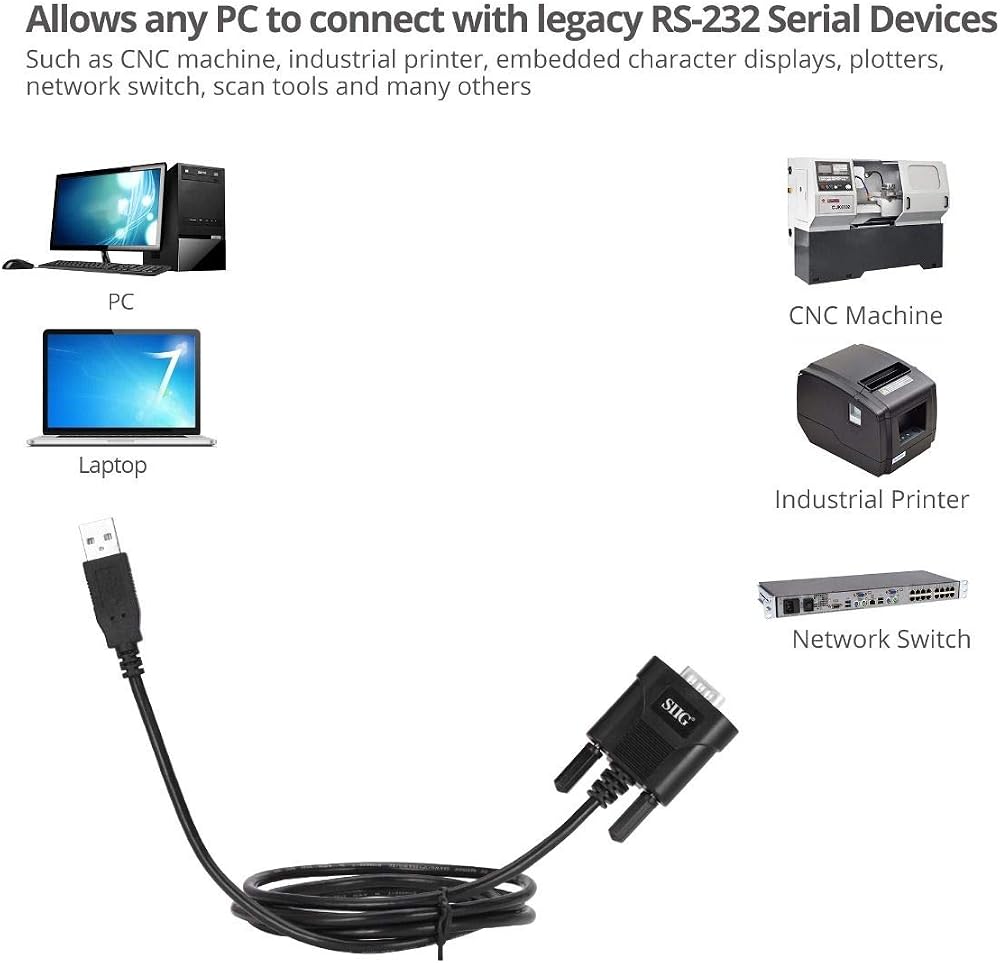

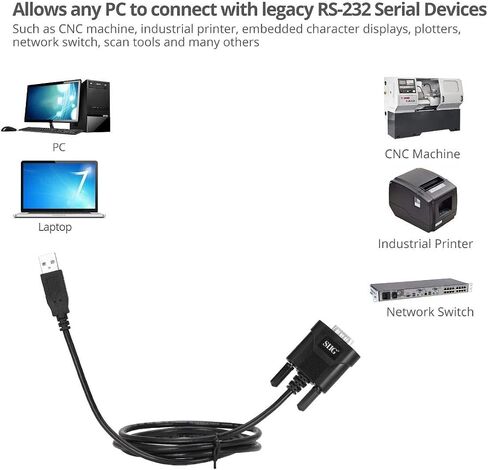

Works flawlessly with RS-232 serial devices such as modems, ISDN terminal adapters, PDAs, bar code scanners, label printers, and many more
Plug-and-play and powered by the USB bus, no external power adapter is needed

وصف

Specifications

Chipset: Prolific PL2303HXD
Compliant with USB specification, revision 1.1
Data transfer rate: 230Kb/s (max)
Support 15KV DC ESD serial interface protection
Product:
Overall length (including USB cable): 60.63" (150mm)
Dimensions (RS-232 housing only): 1.57" (L) x 1.65" (W) x 0.67" (D)
Weight: 0.16 lbs
Color: Black
Housing material: Plastic
Connectors:

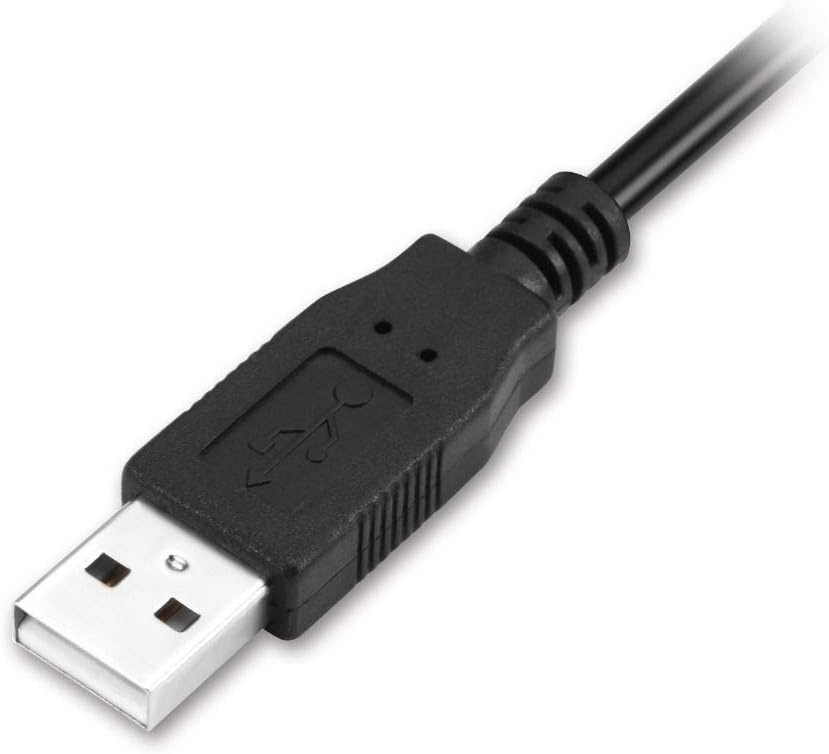

1x USB 4-Port, Type-A, Male
1x 9-pin, D-Sub, RS-232, Serial port, Male
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 140 degrees F
Relative humidity: 5 to 85% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: China

System Requirements

Desktop or notebook computer with an available USB type-A port
Windows® 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
Windows® Server 2012 / 2008 R2 / 2008 / 2003 (32-/64-bit)

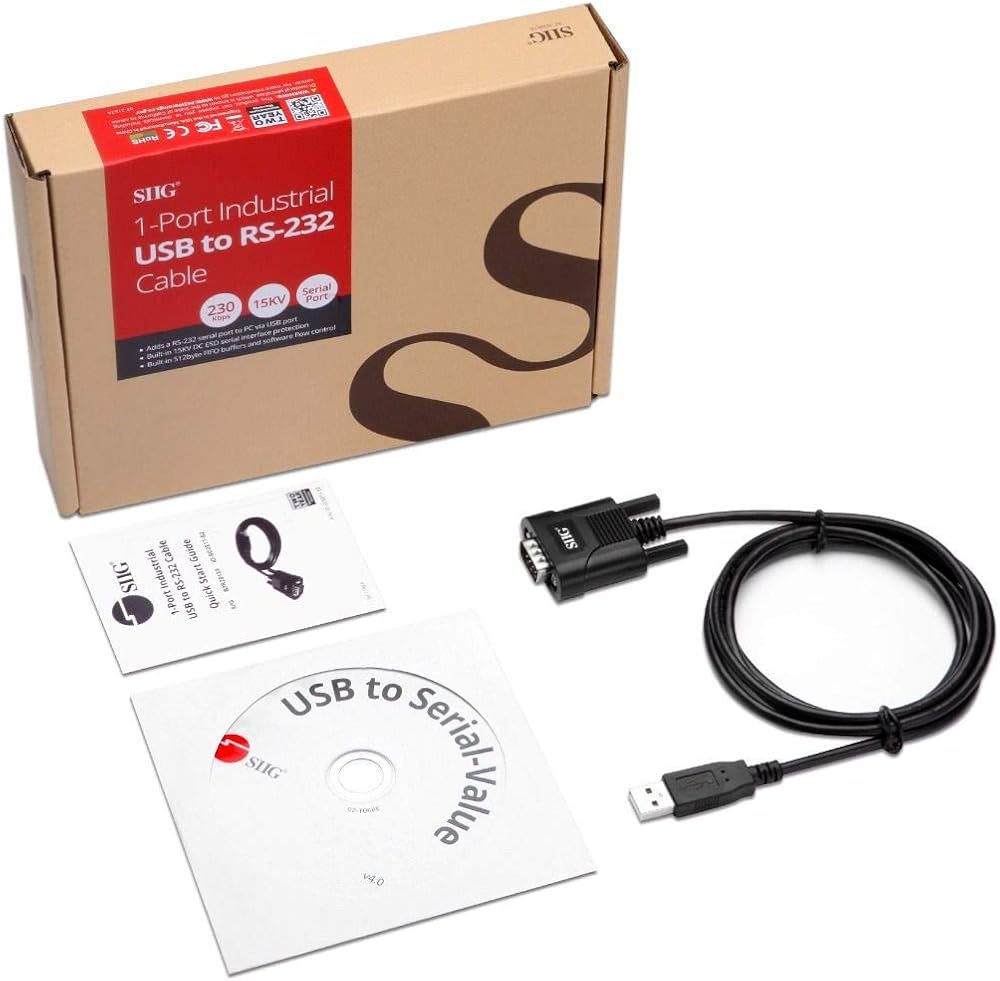

Package contents
1-Port Industrial USB to RS-232 Serial Adapter Cable
Driver CD
Quick Start Guide
