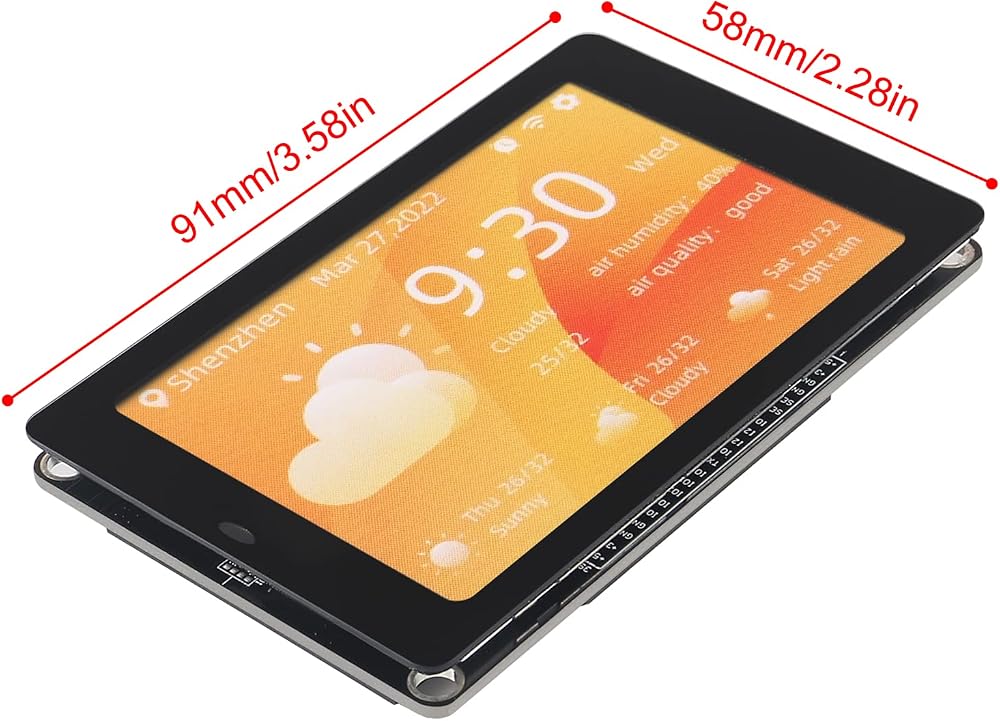

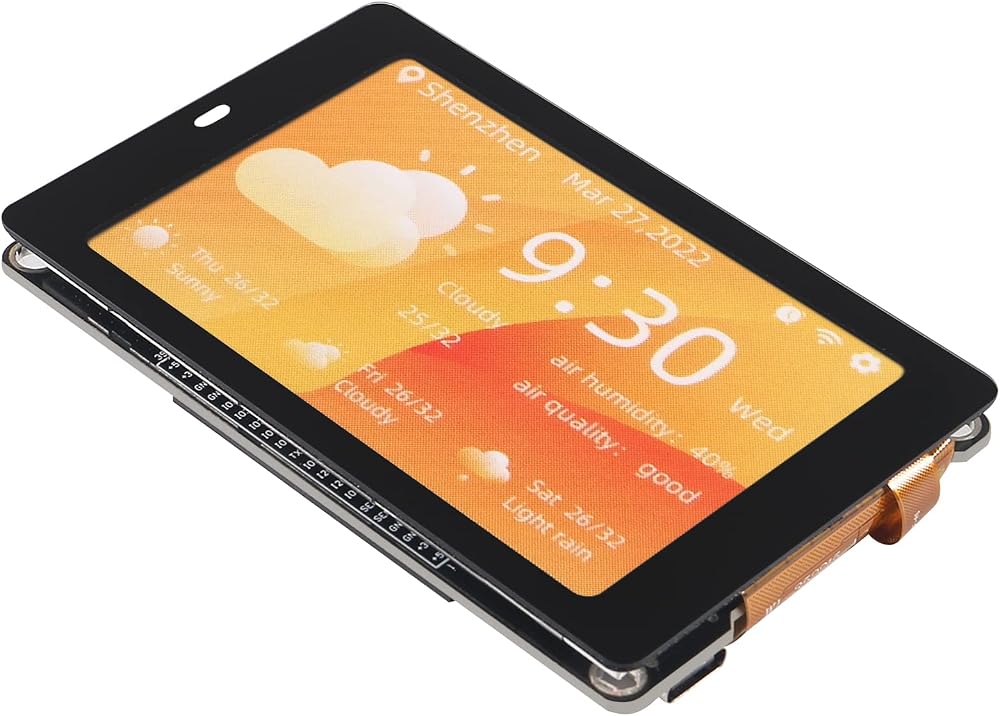

WT32-SC01 is an ESP32 Development board with a 3.5-inch color touch screen. The touch screen enables a new way of interacting with the ESP32. The board is equipped with a graphical user interface (GUI) firmware, which supports graphical drag-and-drop programming and helps users develop a customized control platform

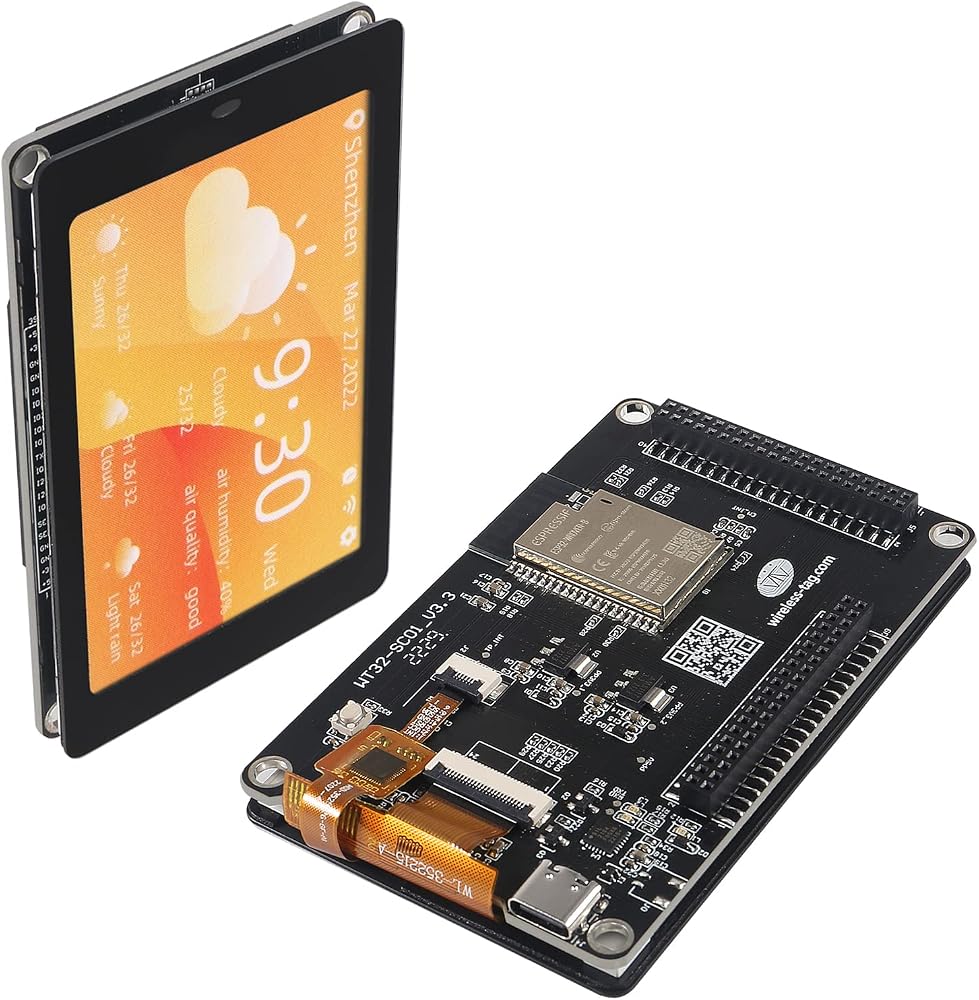

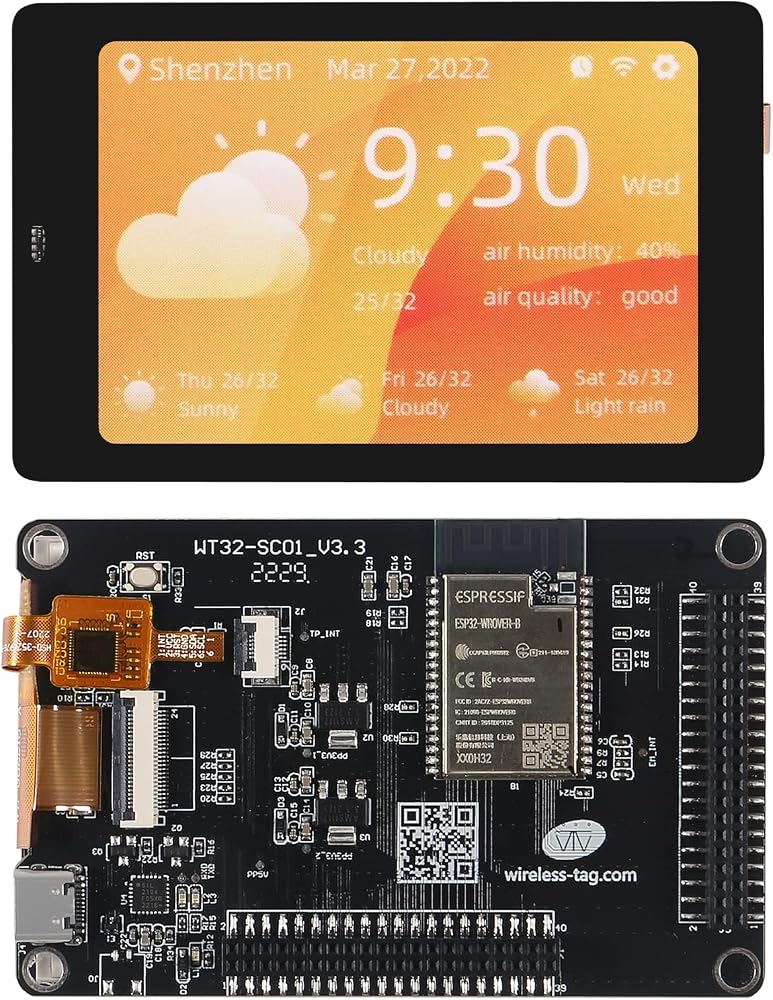

WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 4MB SPI Flash and 8MB PSRAM.
CPU: Dual-core Xtensa 32-bit LX6 MCU; 2-point touch, Capacitive touch screen; Size3.5 inches; resolution-320*480; power supply:DC 5V /2A; operating temperature:–20 ~ 85 °C
Users can quickly develop through our GUI platform firmware-8ms platform developed independently. support graphic drag and drop programming to help users complete the development of customized control platform. And the technical sources of esp32 and ssd201 /202 are opened in 8ms platform.
Application: home automation, smart home control panel, 86 box, wearable electronics, gateway with screen

وصف

Features 1:

1、Highly integrated ESP32-WROVER-B module with low power consumption

2、3.5-inch 320x480 capacitive 2-point multi-touch screen for easy interactions

3、Easy to program using the graphical drag-and-drop programming

4、Wireless connectivity with Wi-Fi and BLE

5、Customize functions such as button operation, voice control, and camera operation through the expansion interfaces

Features 2:
SoC:ESP32-WROVER-B module
CPU:Dual-core Xtensa@ 32-bit LX6 MCU
Connectivity:802.11 b/g/n 2.4GHz Wi-Fi, Bluetooth v4.2 BR/EDR and Bluetooth LE standards
Storage:4MB SPI Flash and 8MB PSRAM
Display:3.5 inch, LCD @320x480, Capacitive with 2-point multitouch
Power Supply:DC 5V/2A. 5V/1A
Operating Temperature:-20 to +85 °C

Package:

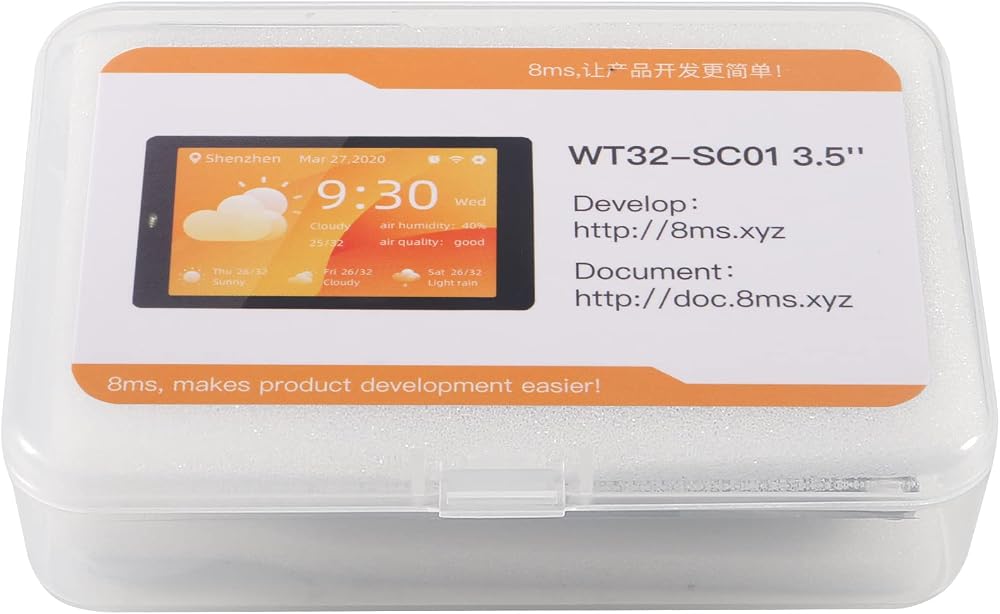

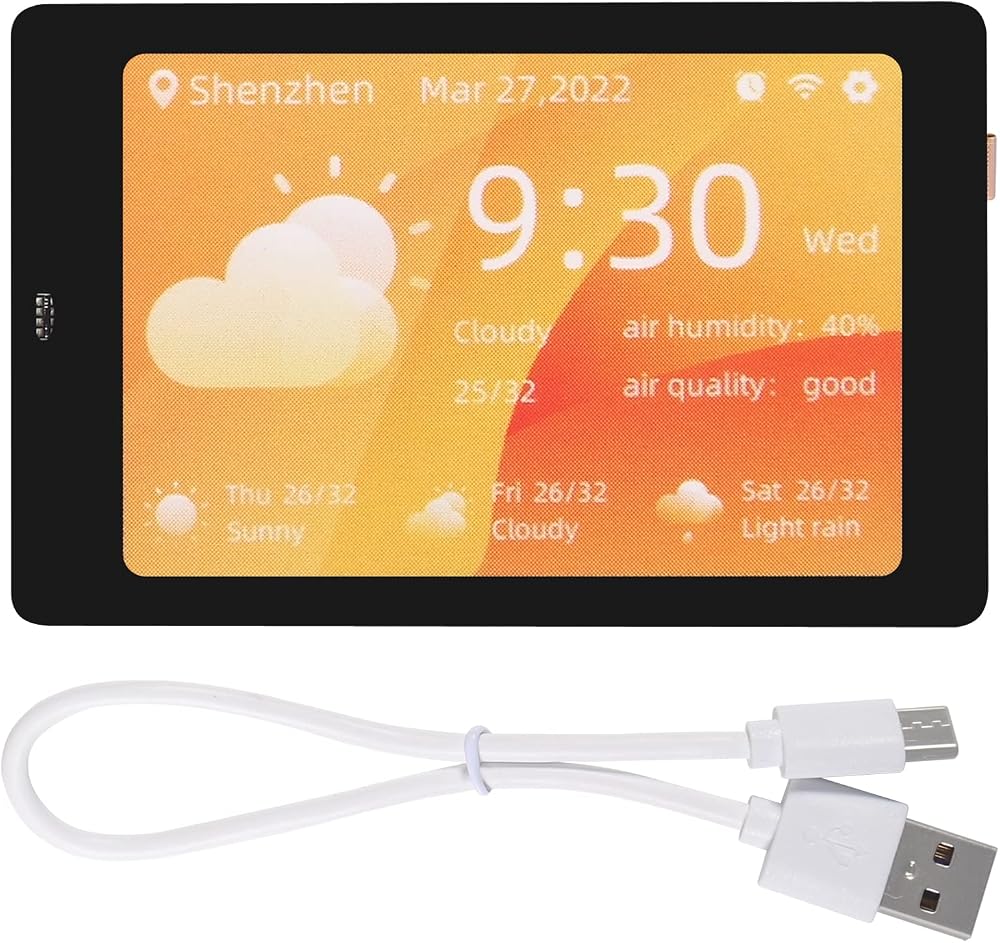

1 x ESP32 Development board - WT32-SC01 with 320x480 capacitive multi-touch screen

1 x USB Type-C cable
