مميزات خاصة

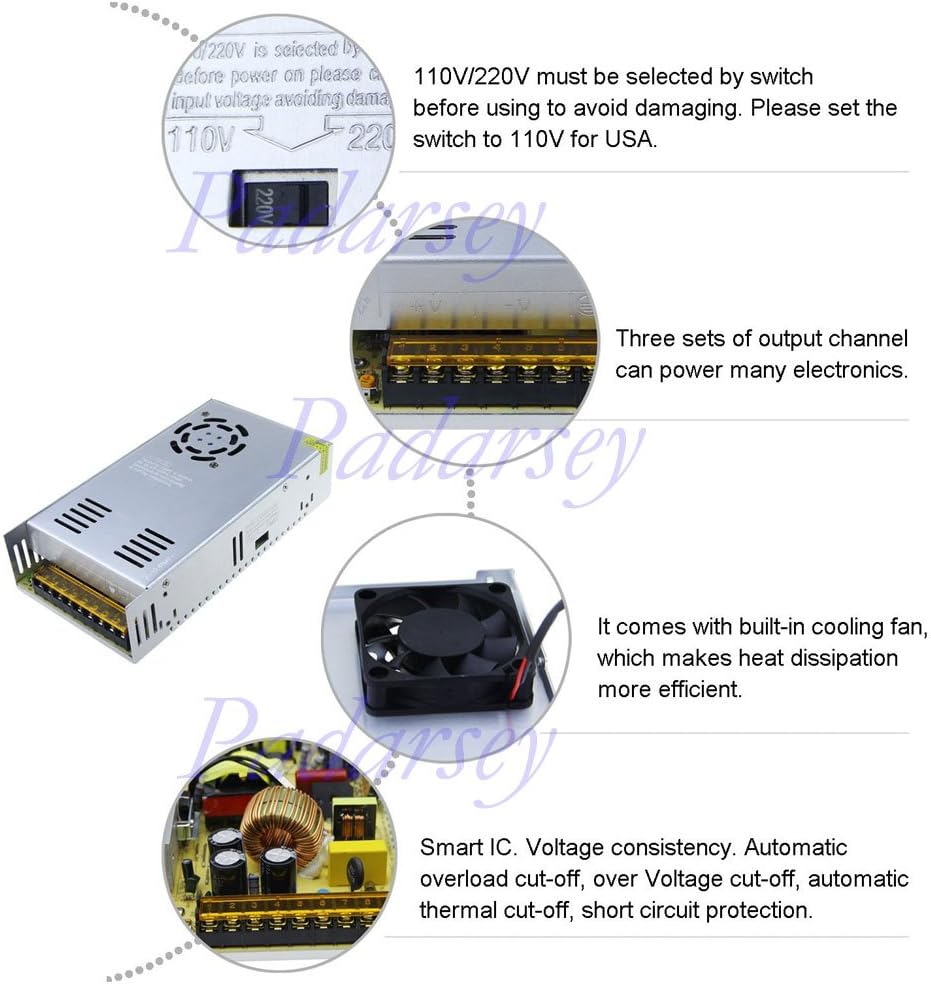

1) Input:110V/220V AC; Output: DC 24V 15A max. Output voltage is adjustable 15%. Three sets of output Channel
2) Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
3) Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
4) It comes with built-in cooling fan and many holes on the metal case, which makes heat dissipation more efficient.
5) Compact small size, high efficiency, high reliability and stable performance. Indoor use only!

وصف

Parameter
Input: AC110V/220V 50/60Hz
Output : DC 24V 15A 360W max
Fix Screw Hole Diameter: 2.5mm (0.1inch)
Working temperature: -10 to 50 degree Celsius
Storage temperature: -20 to 60 degree Celsius
Environmental humidity: 10-95%
Material: Metal, Electronic Parts
Safety Compliance: CCC/ FCC / CE

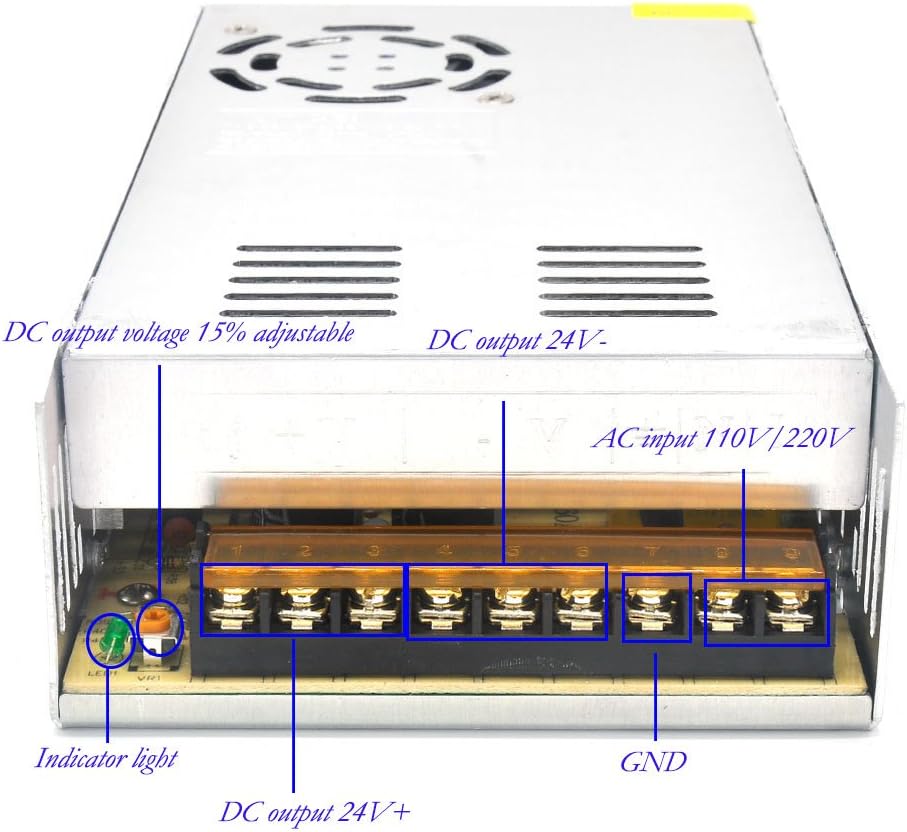

Connection instruction
L/N: AC power input
+V: DC power output “+”
COM: DC power output “-“
+V ADJ: Adjust the output voltage (15%)

Kindly note
1) High Voltage inside, do not remove the cover.

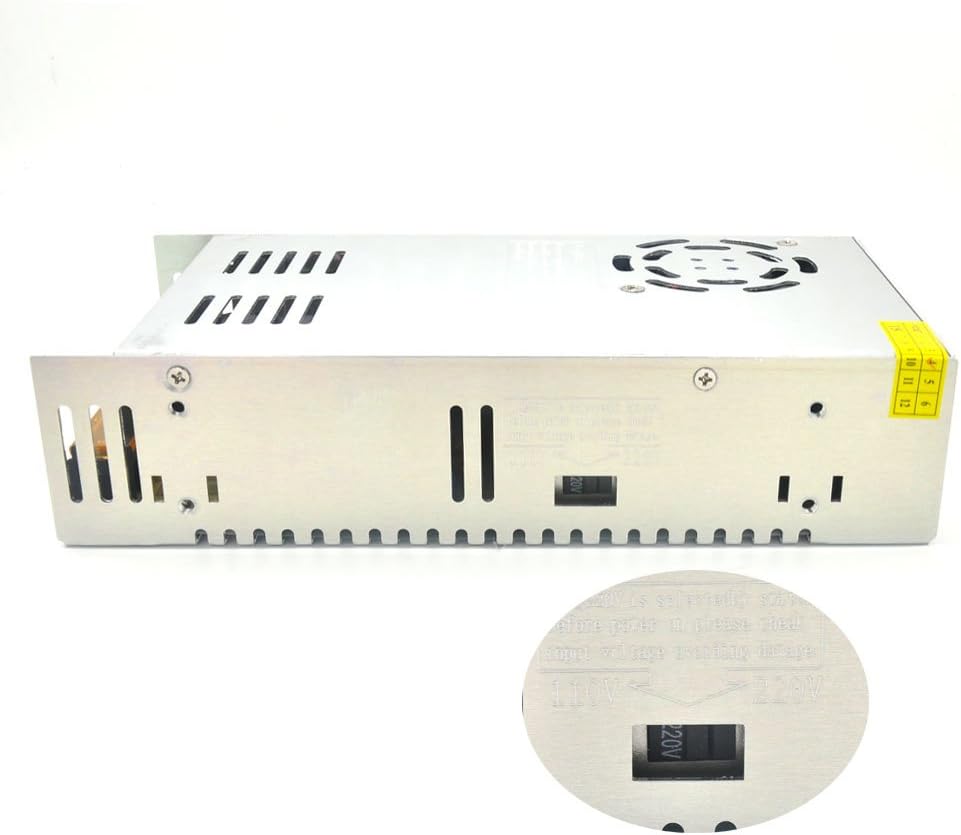

2) 110V/220V must be selected by switch before using to avoid damaging. Please set the switch to 110V for USA.
3) It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified
electrician is highly recommended.
4) The power supply fan does make a noise and the speed of the fan is load based. So the higher the load, the faster the fan
runs, the louder the noise.

Package included
1 x LED Switching Power Supply

مرحبًا،

بحث

تيار مستمر 24 فولت 15 أمبير 360 واط مزود طاقة عالمي منظم محول محول سائق 110 فولت/220 فولت مدخل تيار متردد لشريط LED CCTV راديو مشروع الكمبيوتر
