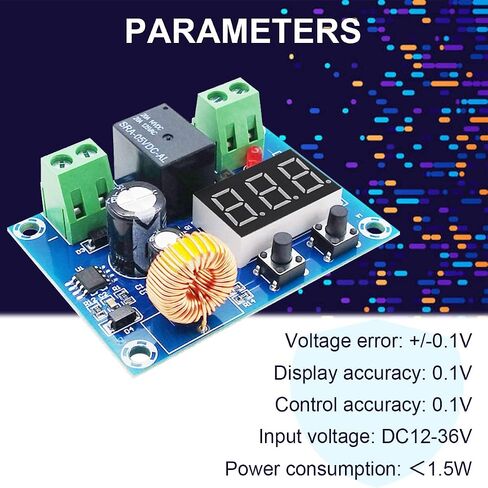

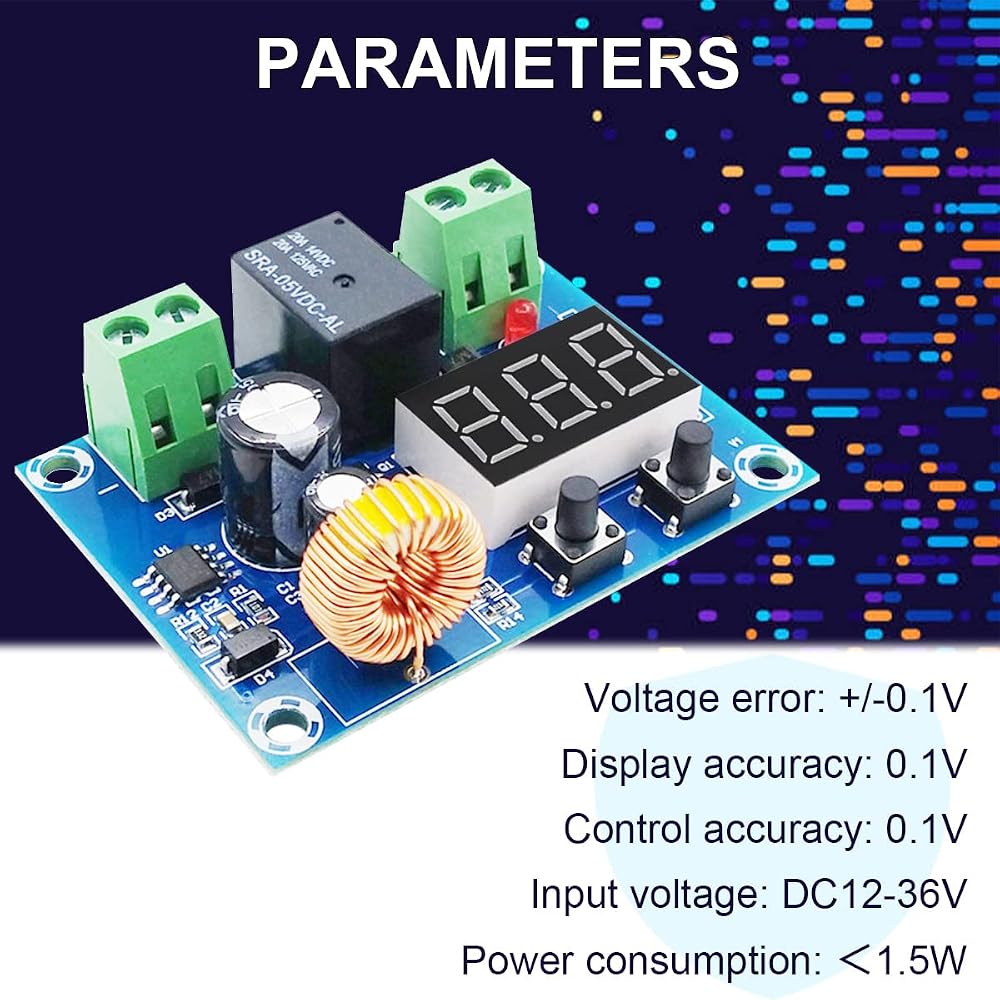

Product parameters:
Input voltage: DC12-36V
Display accuracy: 0.1V
Control accuracy: 0.1V
Voltage error: +/-0.1V
Adaptation range: 12-36 lithium battery, accumulator

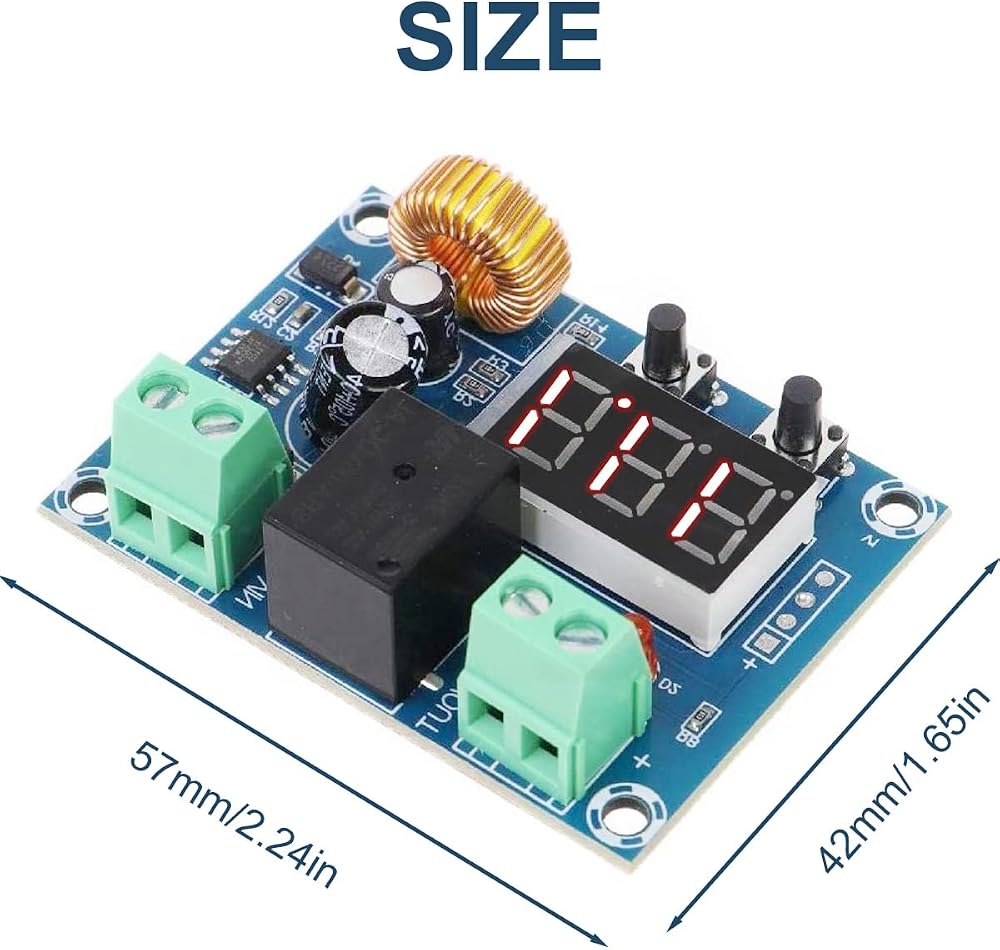

Product size: 57x42x19mm/2.24x1.65x0.75in
Reference formula: charging voltage = rated voltage x1.2, charging current = rated current x0.2

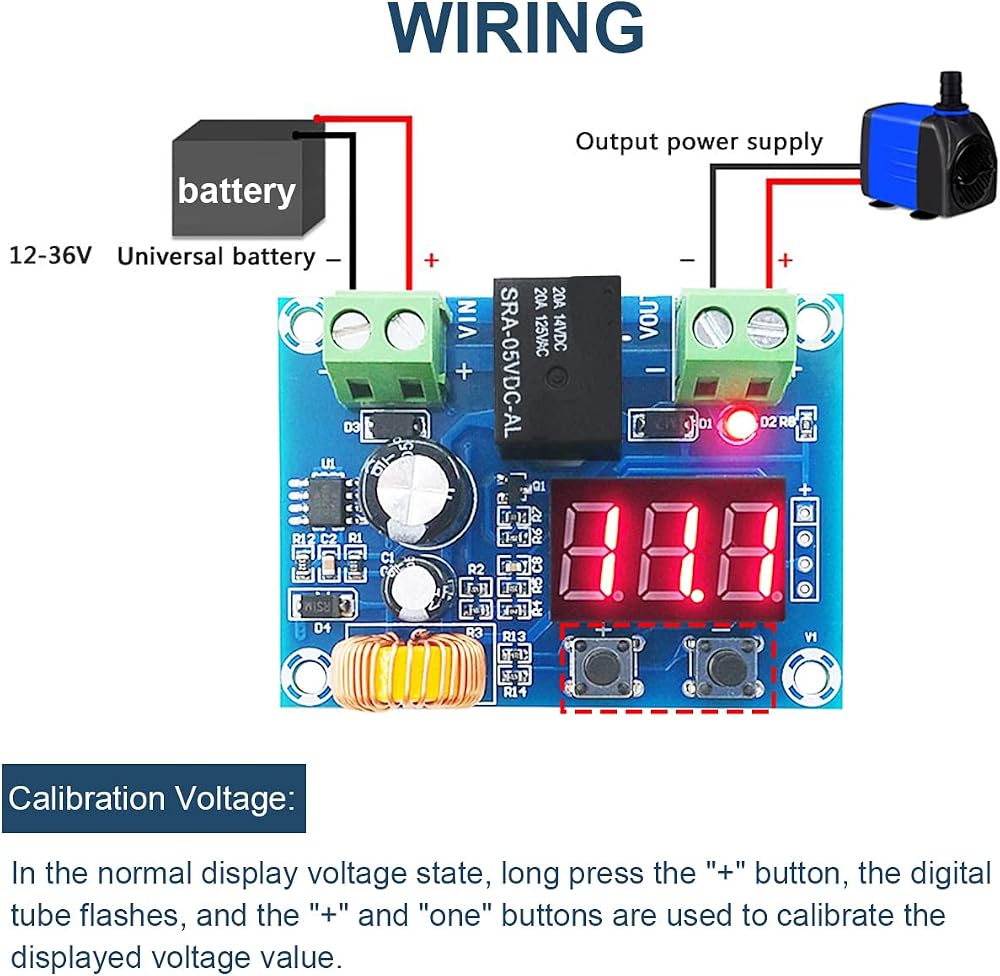

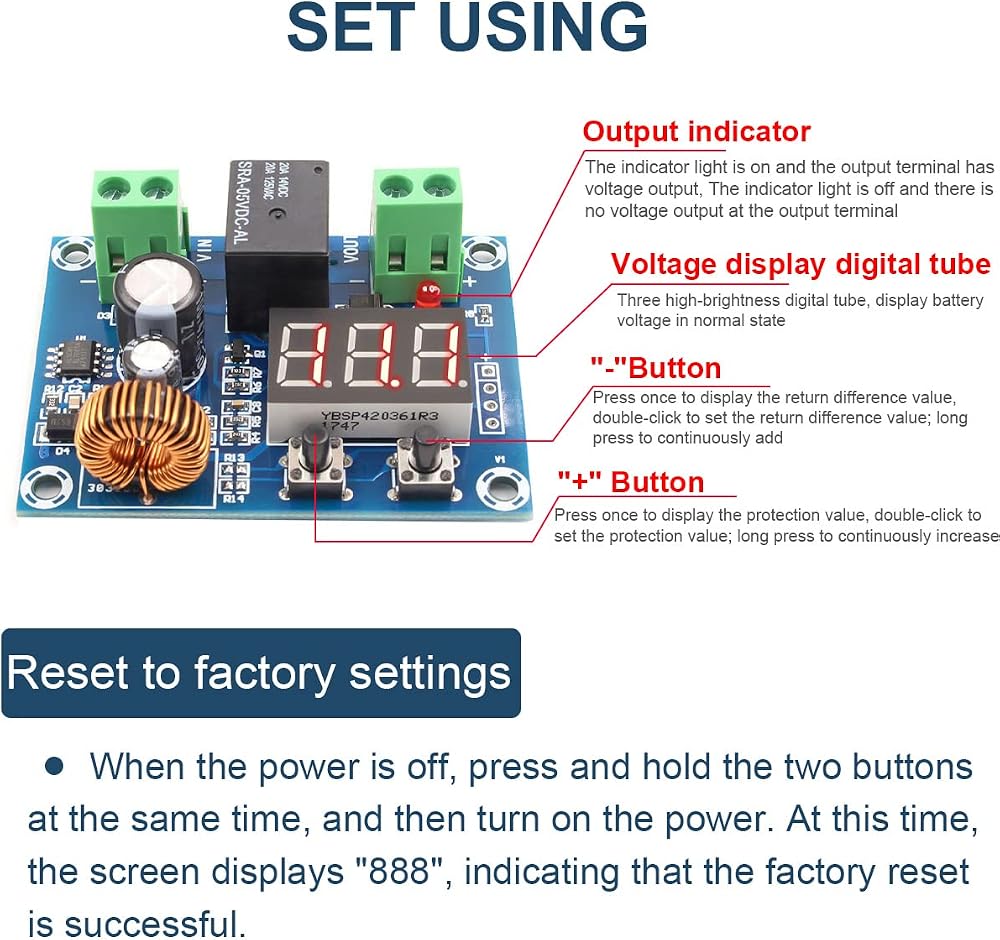

Usage:
1.Set shut off voltage: Press button “+” for 3 seconds and the LED digital display will flash. Press button “+” or “-” to set the value when it flash. After that, release the button until the screen no longer flickers, the setting is saved successfully
2.Set guard voltage: Press button “-” for 3 seconds and the LED digital display will flash. Press button “+” or “-” to set the value when it flash. After that, release the button until the screen no longer flickers, the setting is saved successfully.

Instructions:
1. When a new battery is used for the first time, the rated voltage value is close to the actual value. When judging the stop discharge voltage, a reasonable discharge voltage value can be obtained according to the general voltage calculation method of the battery.
2. When the old battery is used, the actual voltage value differs greatly from the rated voltage value, so you need to measure the termination voltage value in actual use.
3. Slow charging is usually used for battery charging (the voltage and current of fast charging can be relatively large, but it is easy to damage the battery.) The charging voltage of slow charging is 1.2 times the rated voltage, and the charging current is adjusted to be about 2/10 of the rated capacity current of the battery . For example: The charging voltage of a 6V 50Ah battery is about 7.2V, and the charging current is adjusted to 10A.

Package includes:

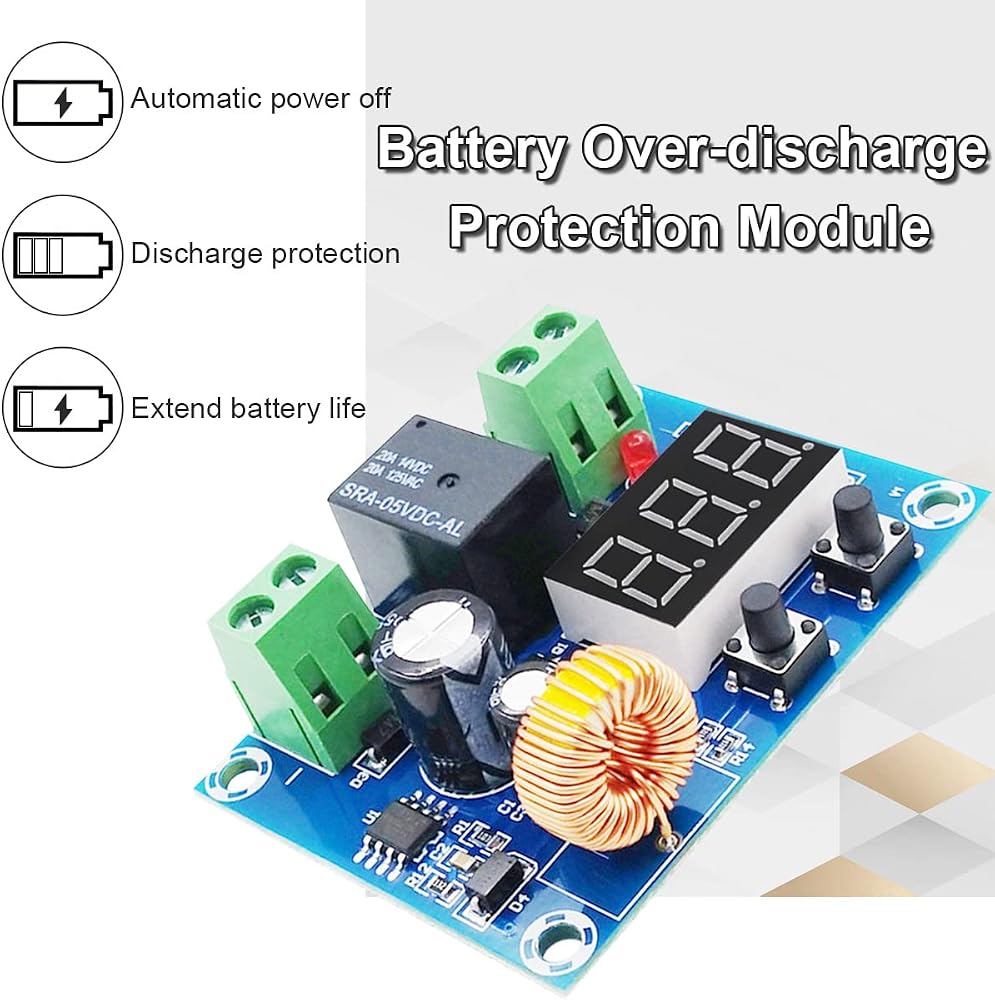

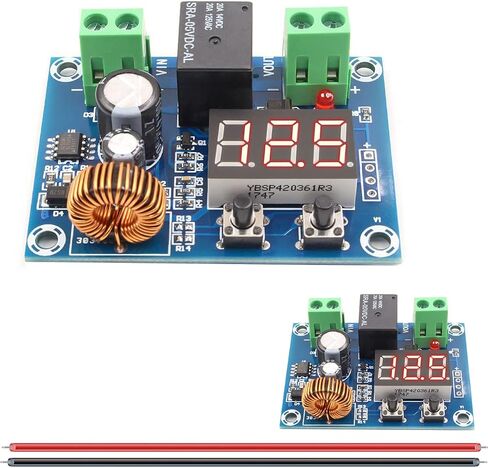

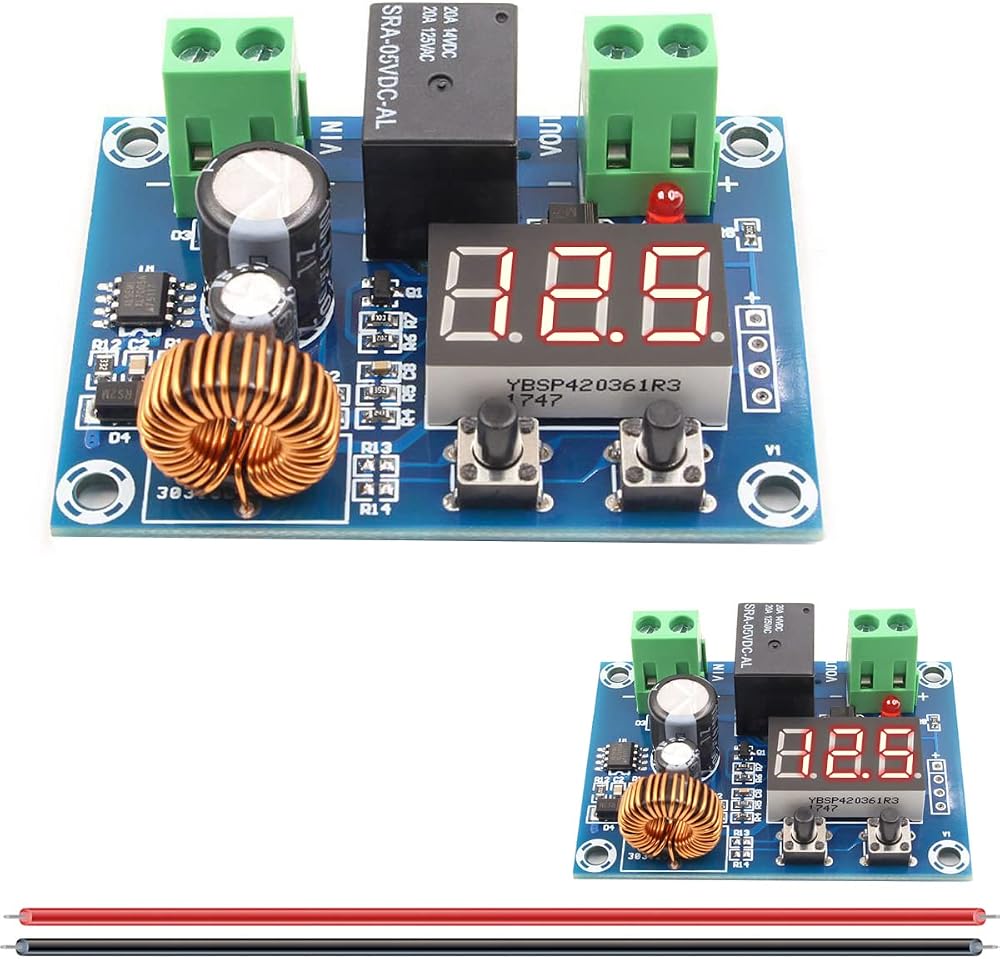

2 x Battery Low Voltage Disconnect Module
2 x 50cm/19.68inch 24AWG Cable
