مميزات خاصة

CMOS MAC, Baseband PHY, and RF in a single chip for 802.11b/g/n, compatible WLAN, Complete 802.11n solution for 2.4GHz band Standards Supported, 802.11b/g/n compatible WLAN, 802.11e QoS Enhancement (WMM), 802.11i (WPA, WPA2). Open, shared key, and pair-wise key authentication services
WIFI Direct support, Light Weight TCP/IP protocol WLAN PHY Features, 802.11n OFDM, One Transmit and one Receive path (1T1R)
20MHz & 40MHz bandwidth transmission, Short Guard Interval (400ns), DSSS with DBPSK and DQPSK, CCK modulation with long and short preamble
OFDM with BPSK, QPSK, 16QAM, and 640QAM modulation. Convolutional Coding Rate: 1/2, 2/3, 3/4, and 5/6, Maximum data rate 54Mbps in 802.11g and 150Mbps in 802.11n Peripheral Interfaces
1 high speed UART interface with baud rate up to 4MHz; 1 low speed UART interface; 1 log UART with standard baud rate support; 1 I2C interface; 1 SPI supported with baud rate up to 10.4MHz (master); Maximum 16 GPIO pins

وصف

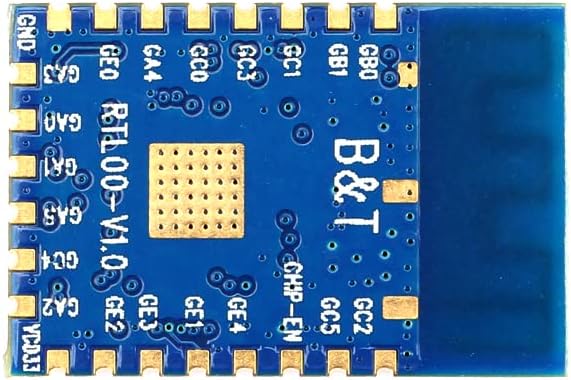

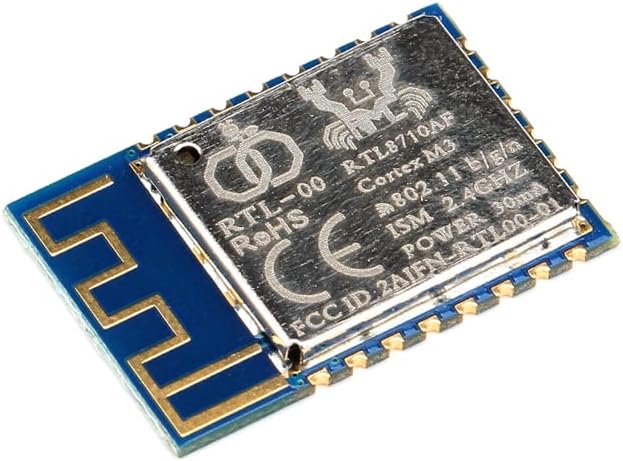

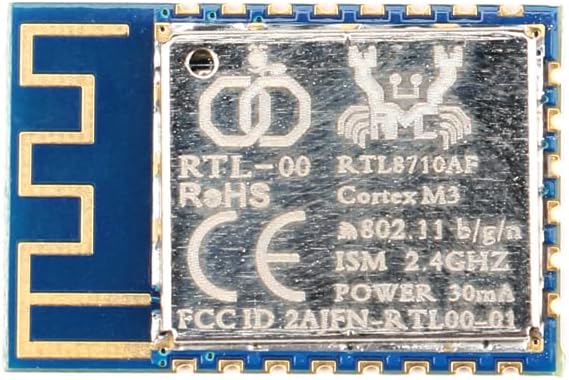

The RTL-00-V1.0 is a highly integrated Wi-Fi SOC module ,Main chip is RTL8710AFis a highly integrated single-chip low power 802.11n Wireless LAN (WLAN) network controller. It combines an ARM-CM3 MCU, WLAN MAC, a 1T1R capable WLAN baseband, and RF in a single chip. It also provides a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.
RTL-00-V1.0 integrates internal memories for complete WIFI protocol functions. The embedded memory configuration also provides simple application developments.

مرحبًا،

بحث

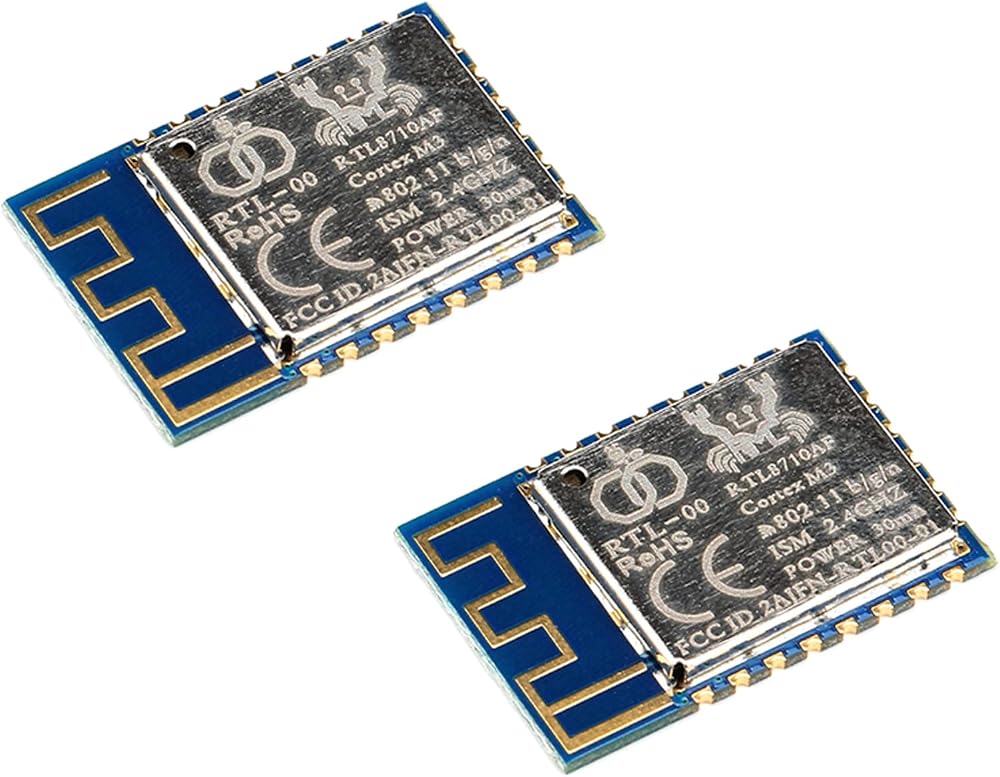

2 قطعة RTL8710AF واي فاي وحدة RTL-00 واي فاي وحدة لاسلكية مجلس IOT 17dB انخفاض استهلاك الطاقة قوية التحمل واي فاي وحدة
