Package included:
1 x DC 12V/24V TO 36V 3A Converter (Allow 10~32V Voltage Range Input)

Specifications:
Product model: 12V/24V to 36V 3A Max Converter
Module model: DC-DC non-isolated module.
Input voltage: DC12V/24V (10~32V Range)
Output voltage: DC36V±0.2V
Output current: 0~3A MAX(Adaptive)
Output power: 0~108W MAX(Adaptive)

Features：
Certificates: CE/RoHS

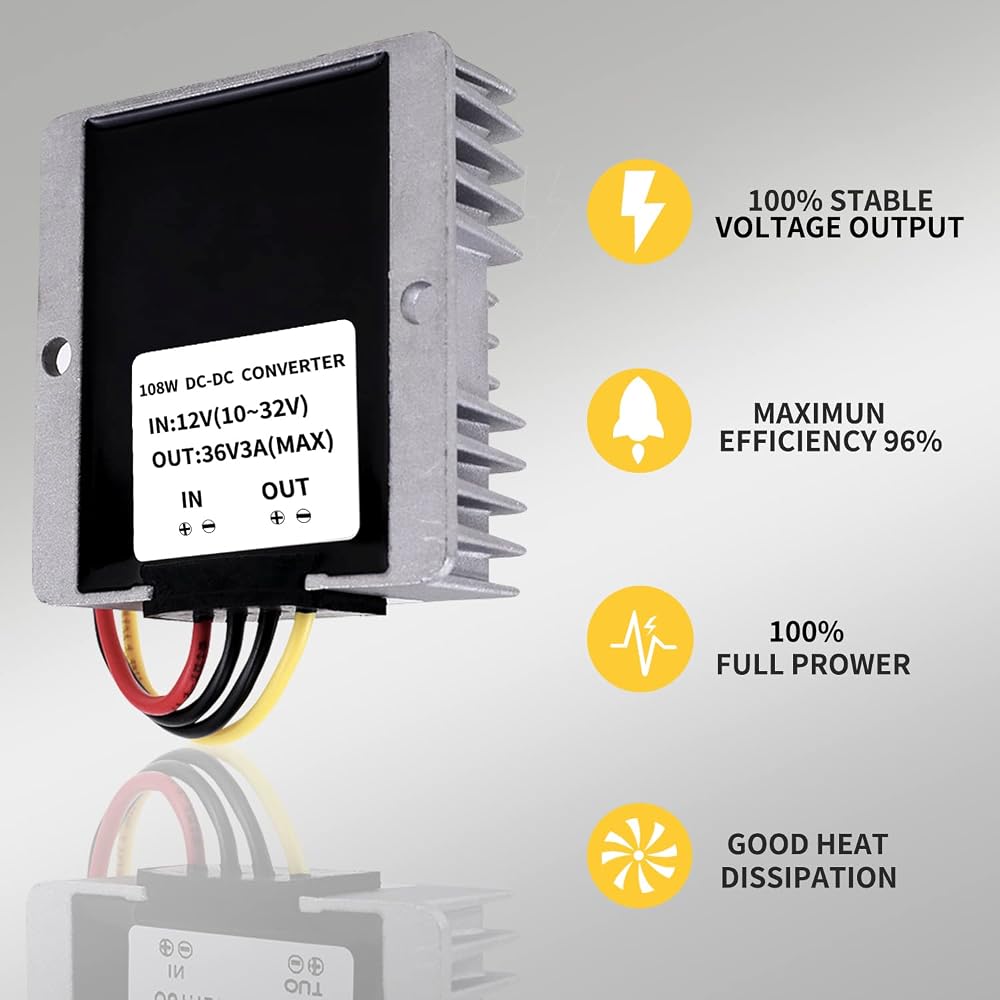

Conversion efficiency: up to 96%
Working temperature: -40°C~+80°C

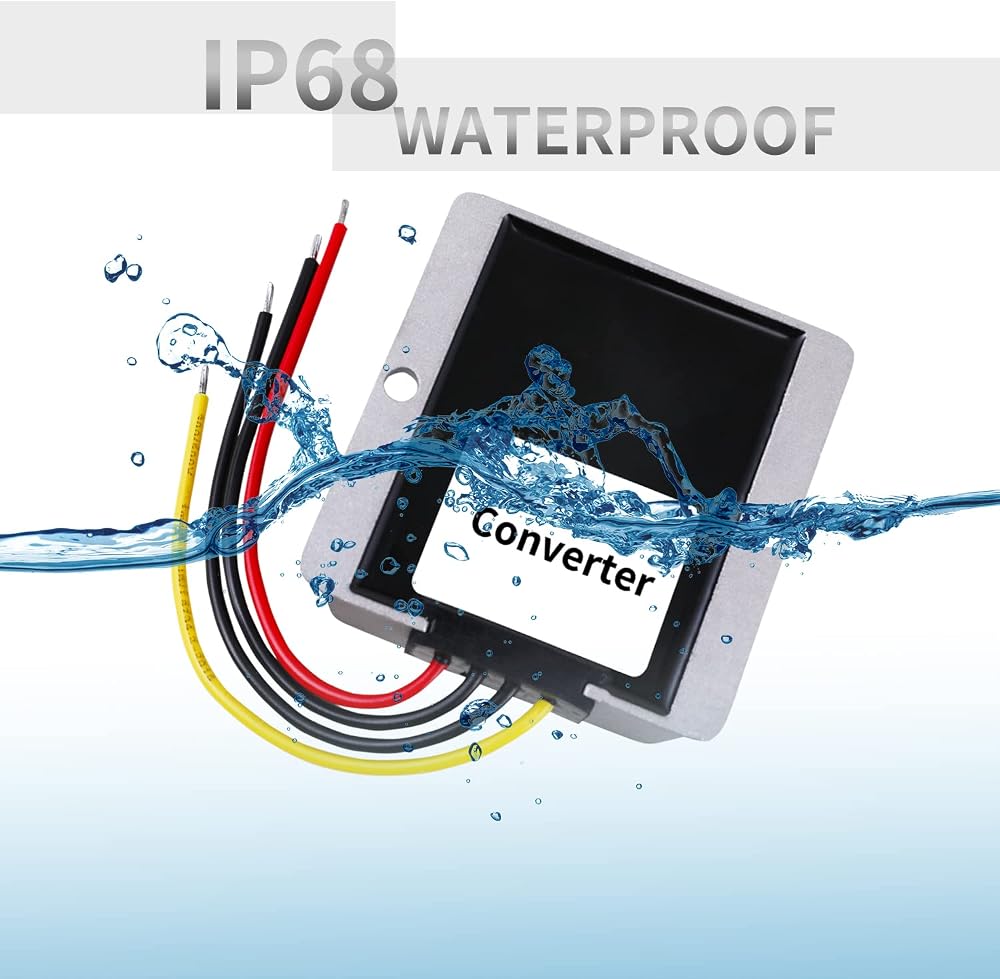

Waterproof rating: IP68
lifetime: up to 100,000 hours.
Stable current：100% full power and stable current output
Industry grade DC to DC 12V/24V to 36V Step-up Converter

Suggestions on choosing the correct current for the load equipment:
For example, if the maximum current of your load device is 5A, then according to the standard, for resistive loads, choose at least 5A/0.8=6.25A.
It is recommended to choose a converter with a slightly larger output current, such as a converter with a Max output of 10A.
Because our converter is adaptive output (according to the demand of the load equipment), so choosing a converter with a larger nominal current will also help improve the heat dissipation performance.
The more space left for the converter, the better the heat dissipation and lifespan .
If the load equipment is a compressor or a motor, then you need choose at least 5A/0.5=10A based on the actual test results
(because the starting current of some equipment may be 2-3 times the nominal current.)

Note:
The larger the input current, the better, the greater the current the converter bears, the smaller the load, and the lower the heat output. (Input large current will not attack the module)

If you have any questions, please feel free to contact us.
