【Application】: Low Power Medical Instrumentation, Transducer Interface, Thermocouple Amplifier, Industrial Process Controls, Difference Amplifier, Low Power Data Acquisition.
【Advantages】: High-end dedicated instrumentation amplifier AD623 core, high precision, good linearity
【Easy to deal with】: Integrated negative voltage generation module, dual power supply operation, easy to deal with negative signal/AC signal
【Signal stability】: Power input LC filter, pure and stable, to ensure stable signal amplification
【Simplified design】: Built-in negative voltage generation module, only a single power supply can achieve double power operation, simplified system design

وصف

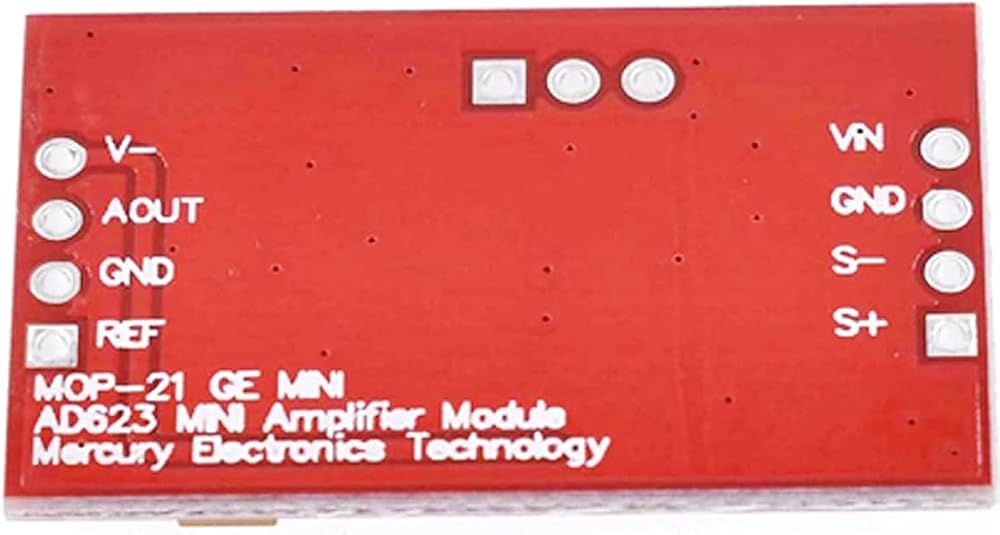

Product description:
Specifications:
Input Range: 0.5VCC(i.e.the voltage between S+/S- is less than half of the power supply voltage)
Output Range: + - VCC (rail to rail)
Magnification: 2-1000 times(adjustable with potentiometer)
Power Consumption: 150uA(typical)/650uA(maximum)
Power Supply: 3-5.5V
Gain Accuracy: 0.35% (G>2) 0.10% (G=2)
Input Offset Voltage: 100-200uV
Input Offset Drift: 1uv/℃
Common Mode Rejection Ratio: 90db
Gain Bandwidth: 800KHZ

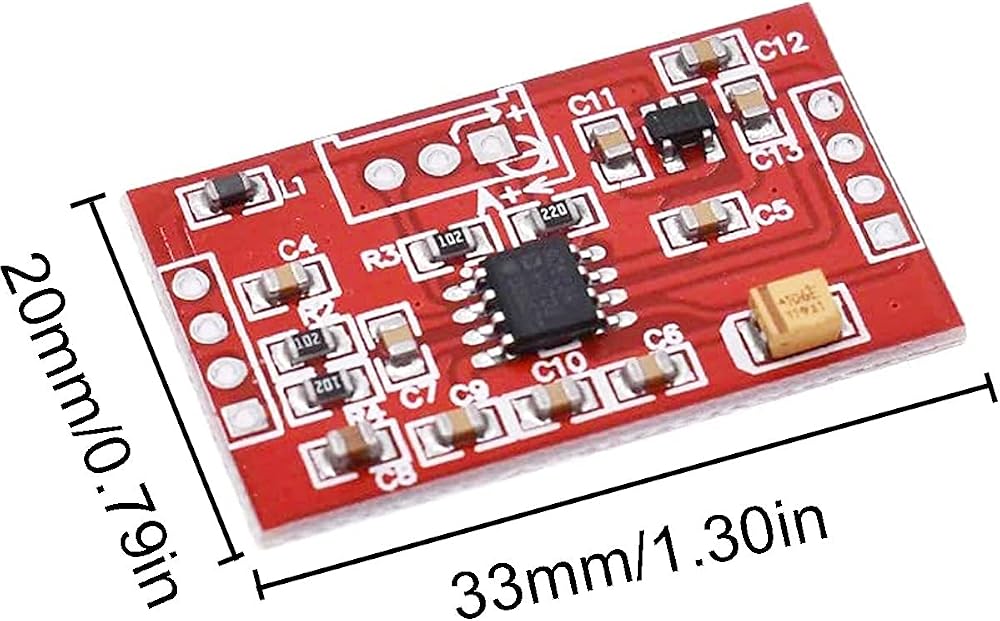

PCB Size: 40*23mm/1.57*0.9in

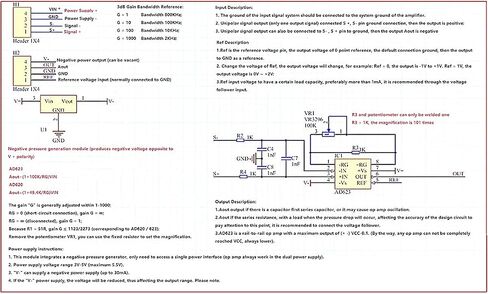

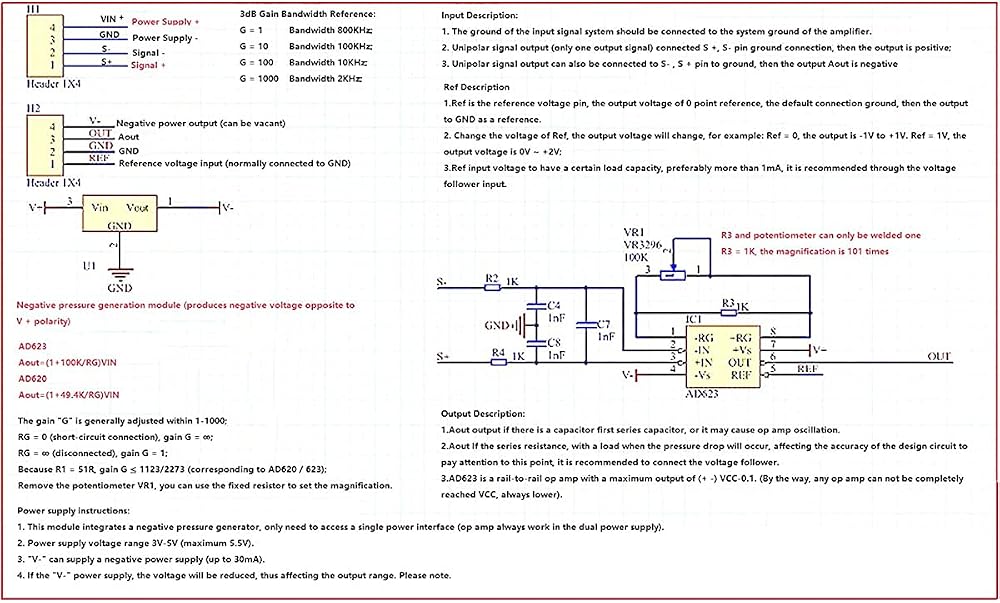

Note:

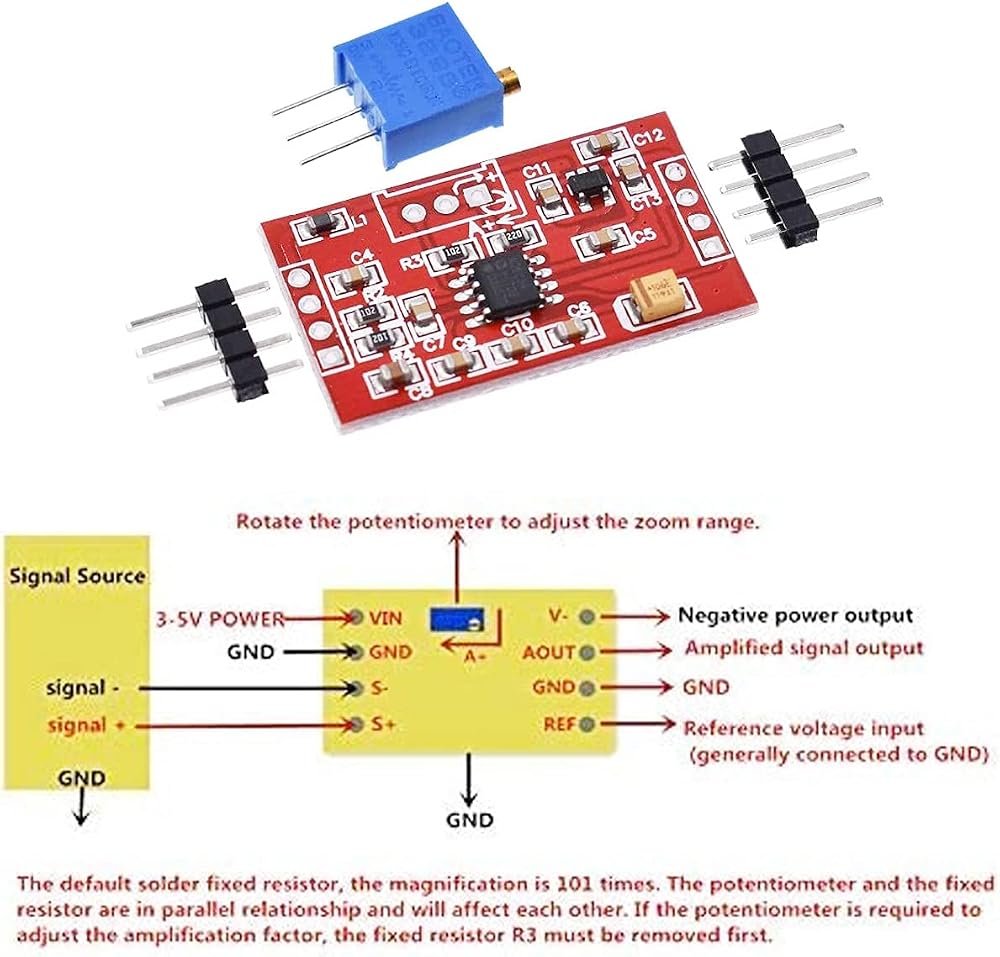

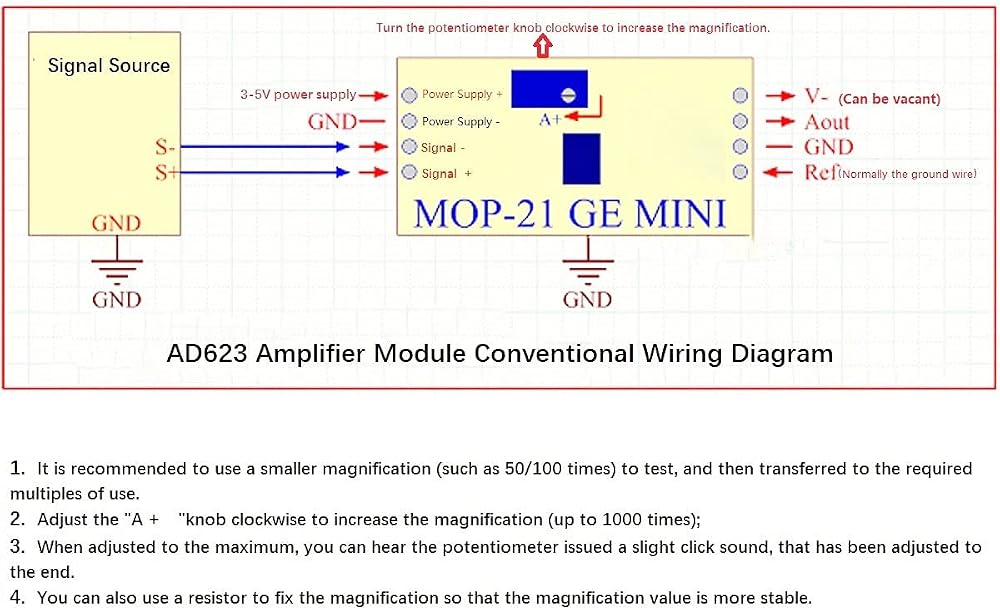

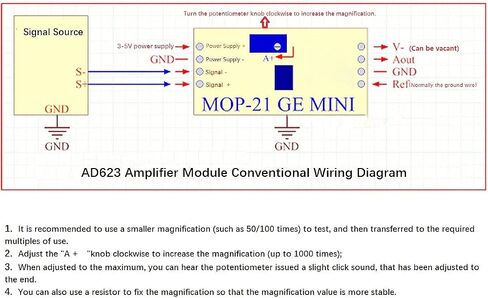

The default magnification is 101 times with R3 resistor. If welding potentiometer, it will be adjustable, Aout=(1+100K/RG)VIN. Please remove R3 resistor when welding potentiometer.

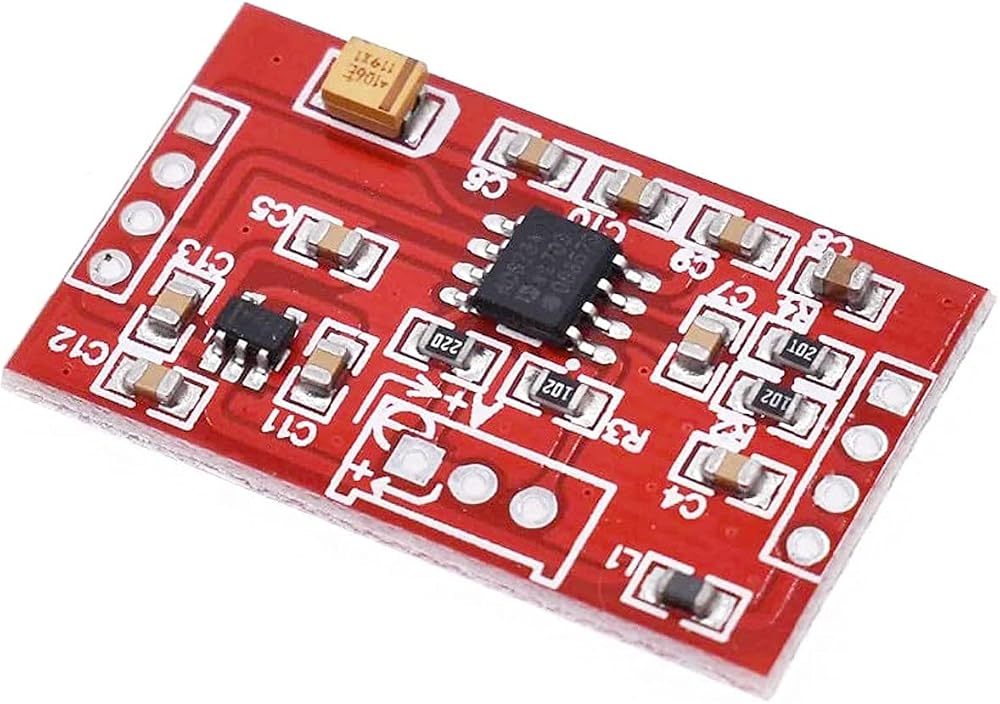

Package includes:

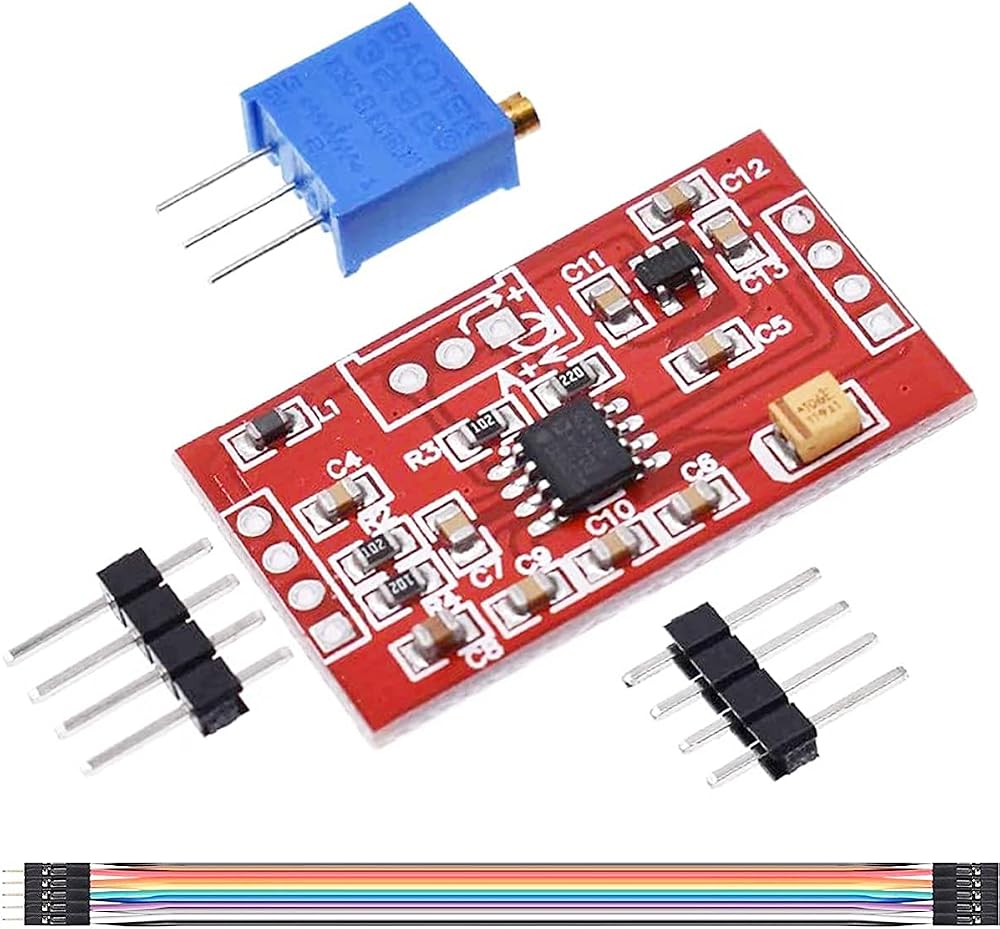

1 x AD623 Millivolt Voltage Amplifier Module
2 x 4PIN Headers
1 x 8PIN male and female DuPont cable
