Features:
Excellent accessibility, stable performance, practical and convenient
Multi-place use of gasket design
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and equipment.
Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.
Specification

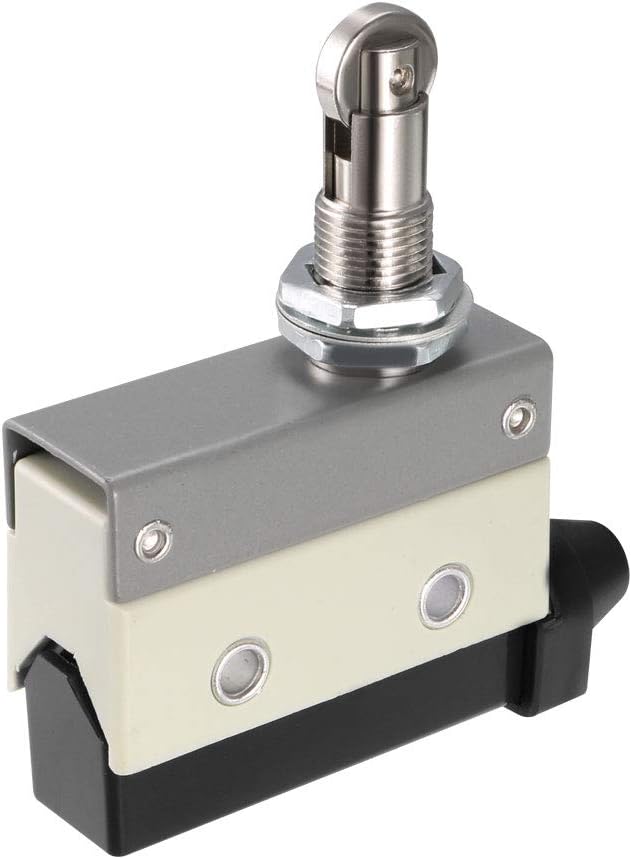

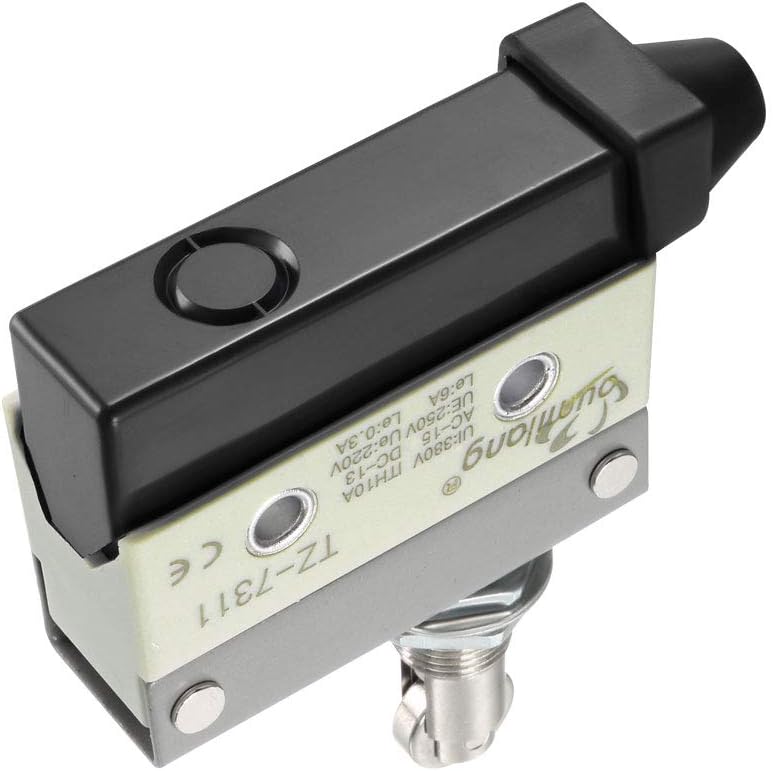

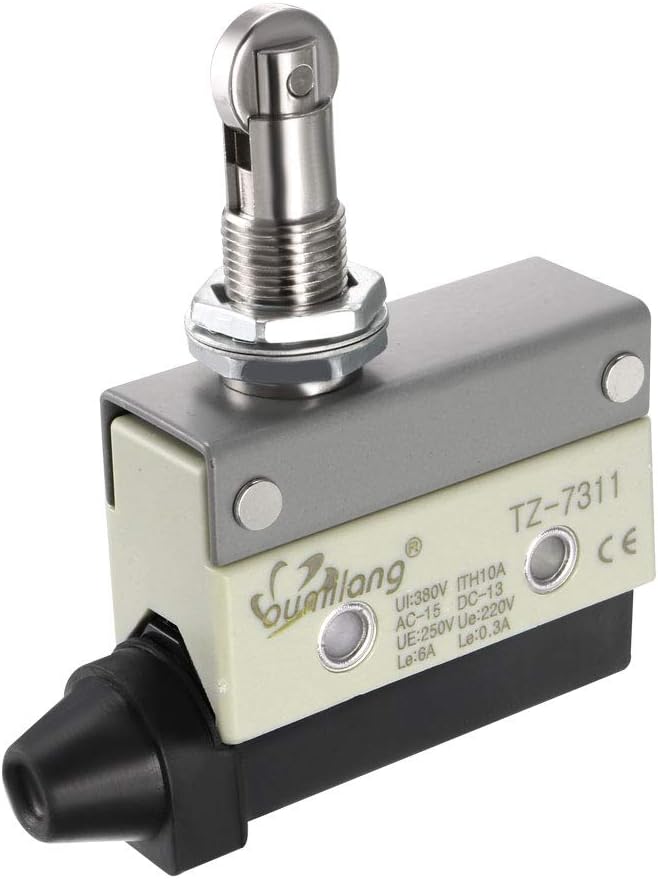

Product Name: Micro Switch;
Model No.: TZ-7311;
OF max.: 600g
RF max.: 100g
PT max.: 2.0mm
MD max.: 0.8mm
OT min.: 6.0mm
OP: 33.3+/-1.2mm
Contact Form: SPDT NO+NC
Termination Style: Screw Terminal;
Terminal Number: 3
Rating: Ui: 380V Ith:10A; AC-15 Ue: 250V Ie: 6A; DC-13 Ue: 220V Ie: 0.3A;
Protection degree: IP62

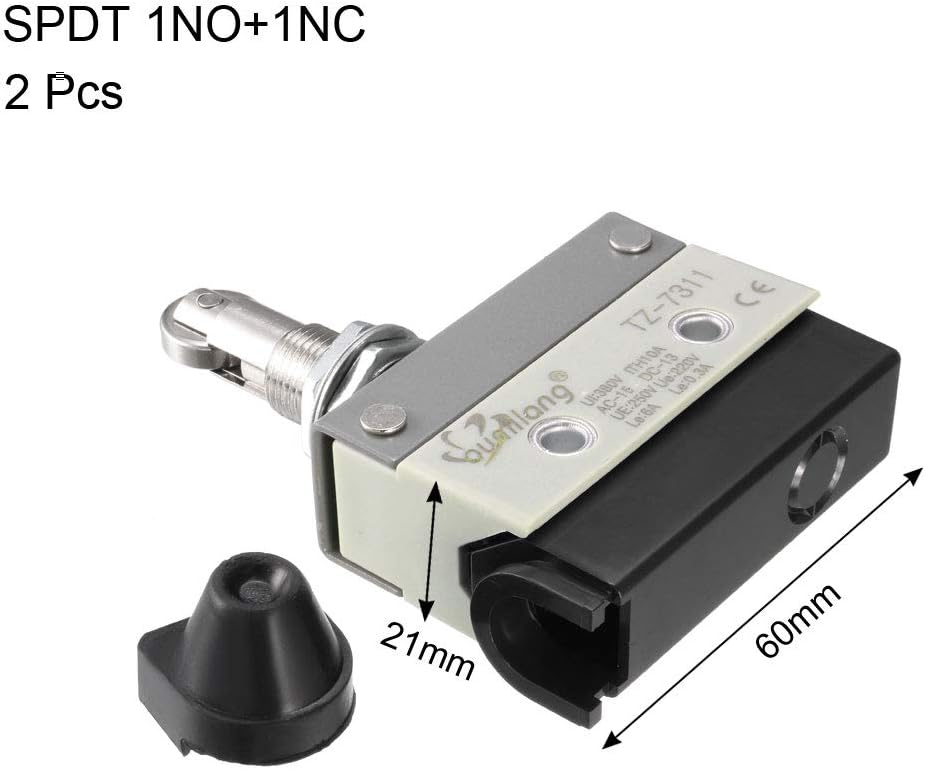

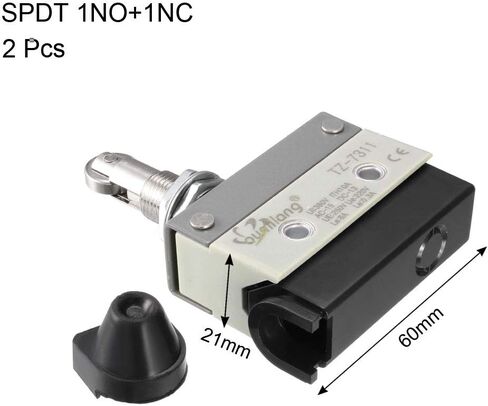

Overall Size: 79x60x21mm/3.11x2.36x0.83inch(L*W*H)
Fixing Holes Dia.: 4mm/0.16inch;
Thread Diameter: 12mm/0.47inch;
Net Weight : 163g;
Package Content

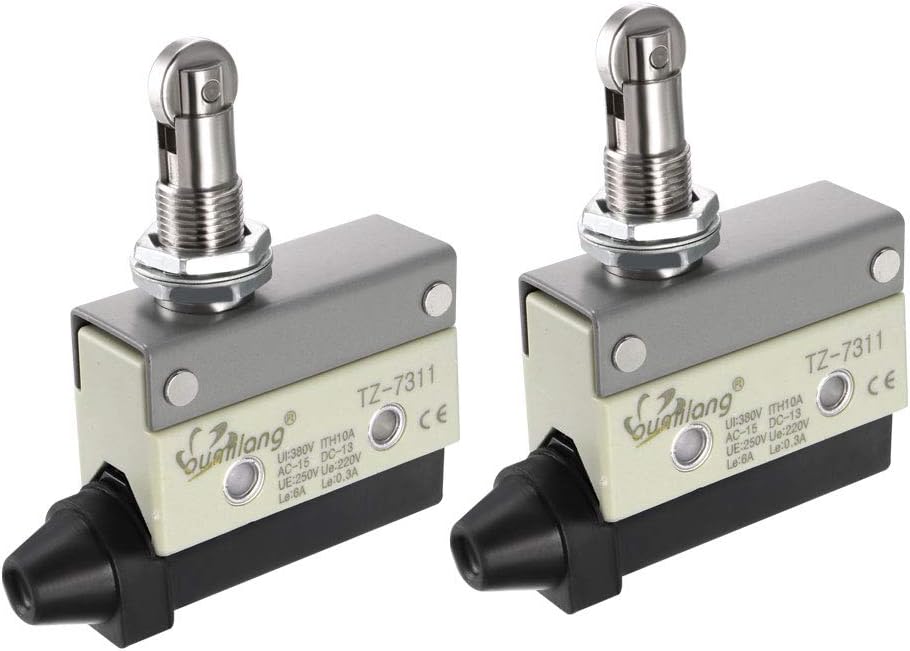

2 x Microswitch
