Parameter:
1. Working voltage: 6.5 ~100VDC
2. Test voltage: 6.5 ~100VDC
3. Rated power: 100A/10000W
Functions:
1. Electrical parameter measurement function (voltage, current, active power, energy)
2. Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing to alarm).

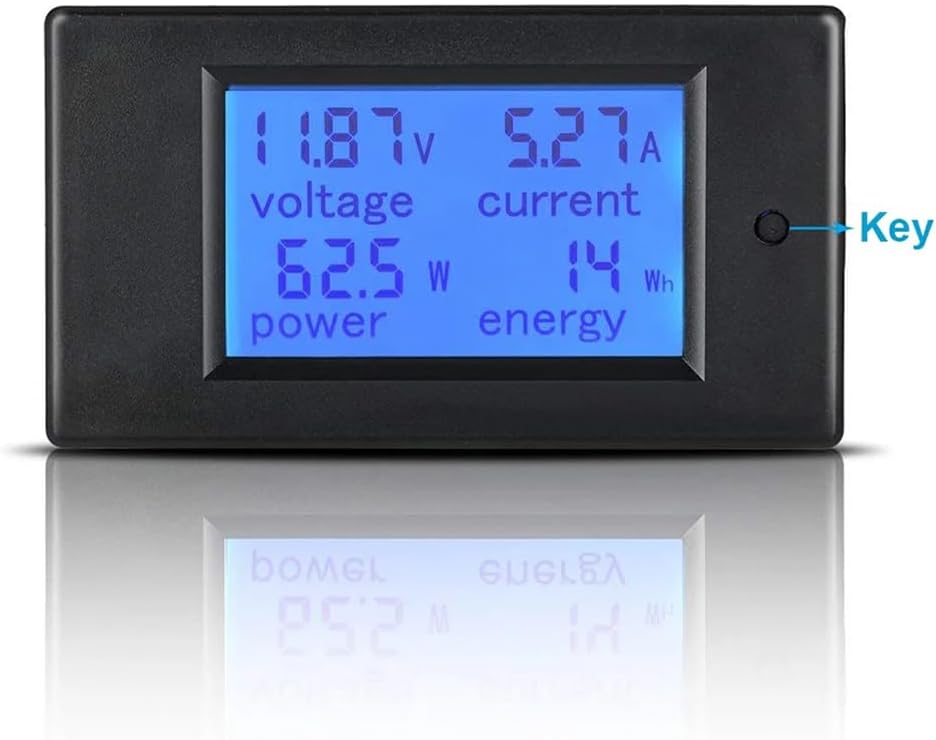

3. The reset function of energy key.
4. Store data when power off.

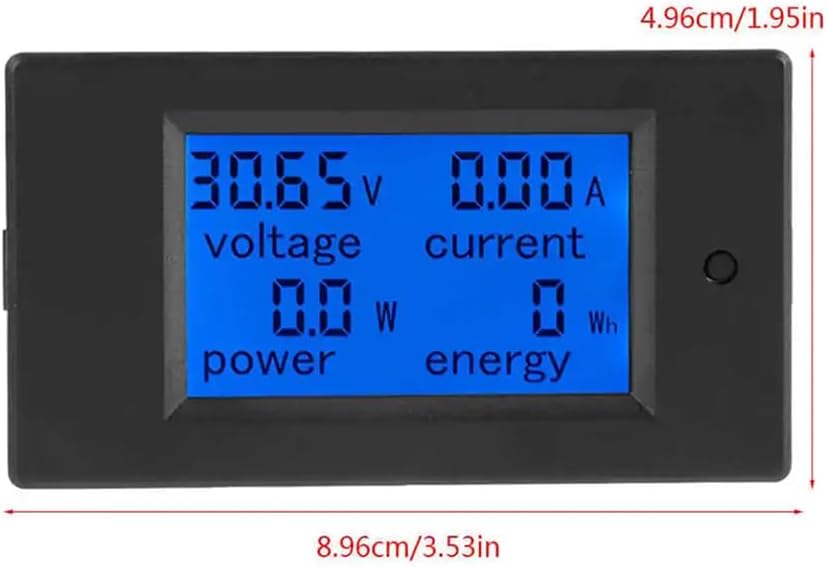

5. Large-screen LCD (display voltage, current, active power, energy at the same time)
6. Backlight function.
Test range and display format:
1. Power:
Test range: 0~10kW
Within 1KW, the display format is 0.0~999.9W
1KW and above, the display format is 1000~9999W.
2. Energy:
Test range: 0~9999kWh
Within 10KWh, the display format is 0~9999Wh
10kWh and above, the display format is 10~9999kWh.
3. Voltage:
Test range: 6.5~100V
Display format: 6.5~99.99V
4. Current:
Test range: 0~100A
Display format: 0.00~99.99A
Note:
1. This module is suitable for indoor, please do not use it outdoor.
2. Applied load should not exceed the rated voltage and current.

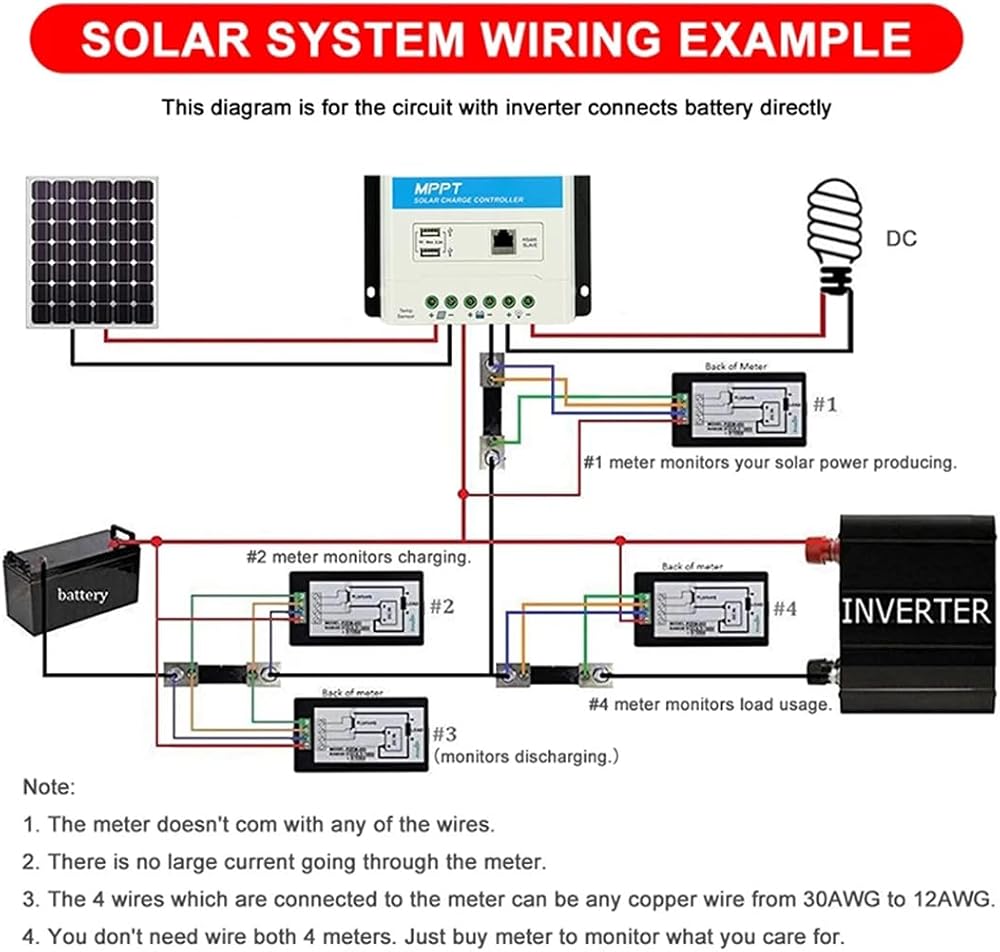

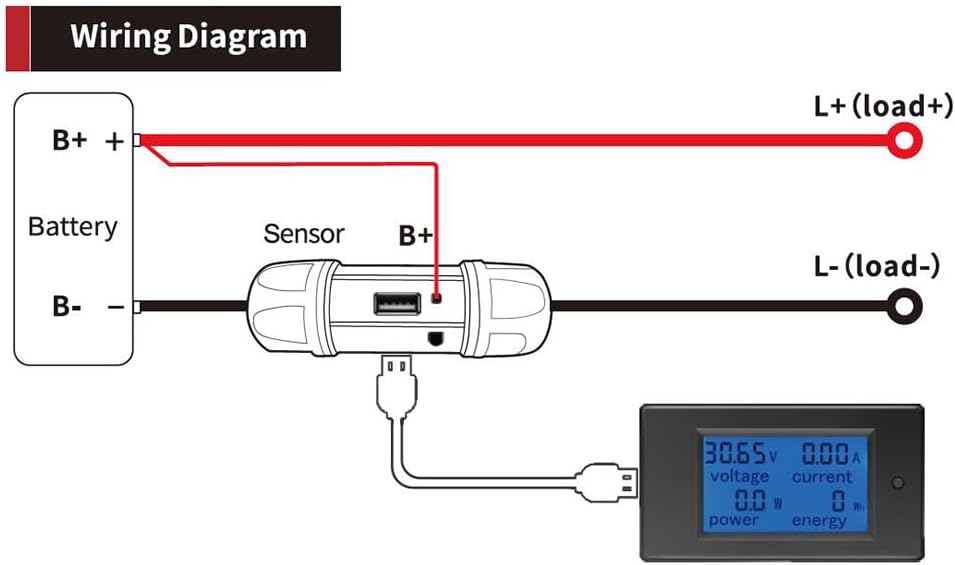

3. Wiring should be correct.
4. Please contact us for the user manual in english if need.

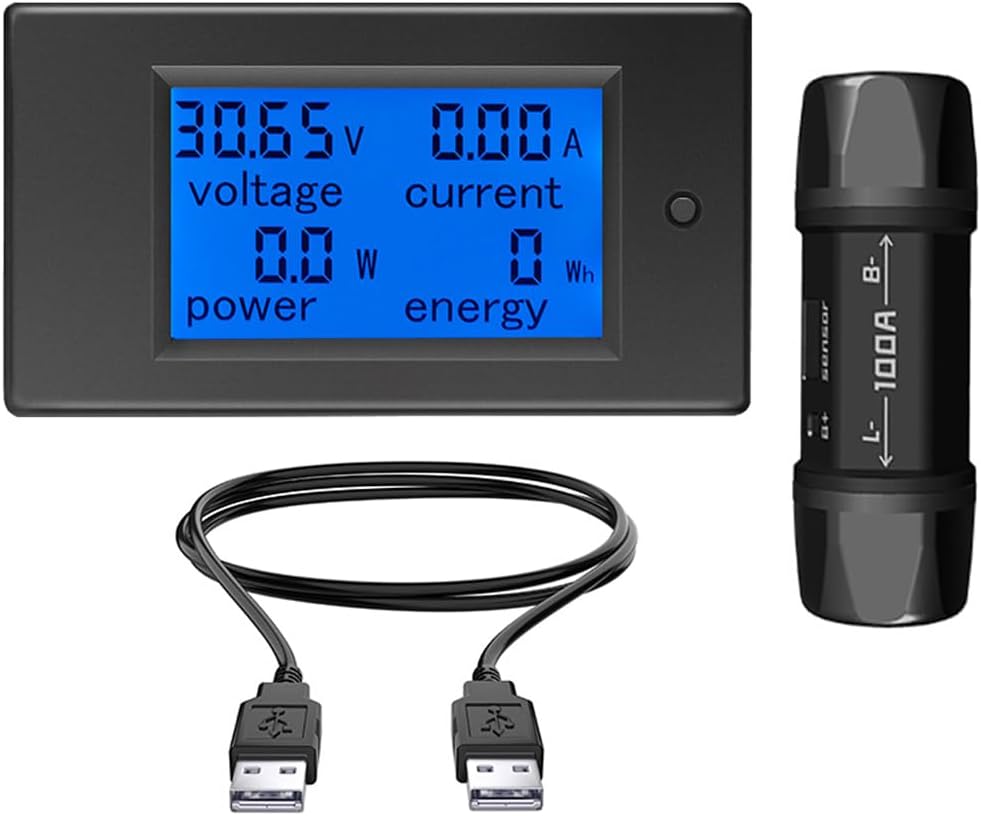

Package included:

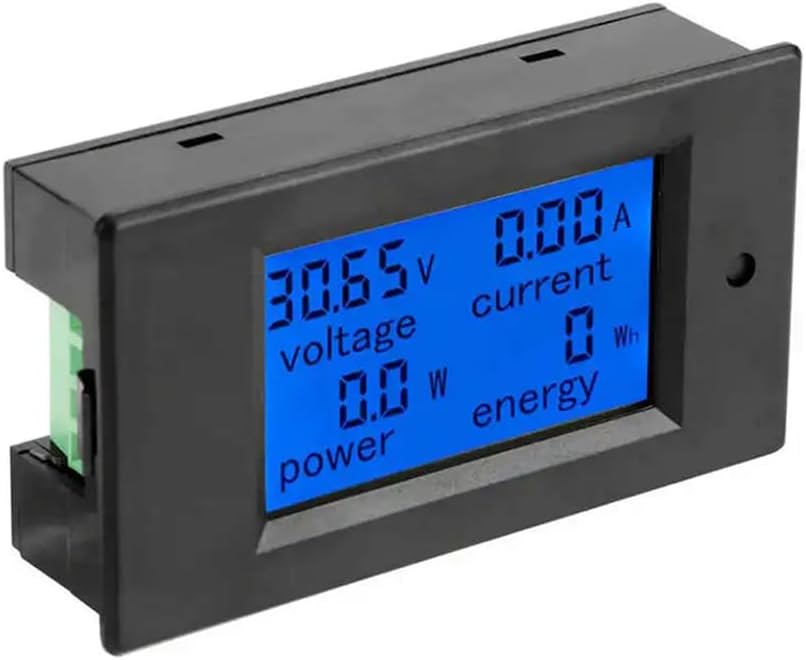

1 x PZEM-051 DC Digital Ammeter Voltmeter DC6.5-100V 0-100A
1 x 100A USB Shunt
1 x Dual USB Cable Length 1M
