BestParts 2X 100MHz Oscilloscope Scope Analyzer Clip Probe Test Leads Kit Compatible with HP Tektronix

Sorry, this product is not available
Brand
BestParts

Special Features

  • Usable with scopes having Bandwidth up to 100 MHz
  • Interchangeable Probe Tip.Coaxial Reed Switch.Modular Construction
  • High Input Impedance (X10 Range)
  • Low power consumption and energy-saving
  • High sensitivity, excellent performance and reliable function

Description

Product Description

Usable with scopes having Bandwidth up to 100 MHz
Interchangeable Probe Tip
Coaxial Reed Switch
Modular Construction
Compensation range: 10 to 35 pF
Input Capacitance: 1X: 85pF-135pF; 10X: 16pF-20pF
Input Resistance: 1X: 1Mohm; 10X: 10Mohm;
Bandwidth: 1X: DC-6MHZ, 10X: 100MHz
Attenuation Ration: 1:10
Cable Length: 120cm
Operating Temp: -10C-+50C
Operating Humidity: Maximum Input Voltage: 1X: 300 VDC+Peak AC, 10X: 600 VDC+Peak AC

package includes:

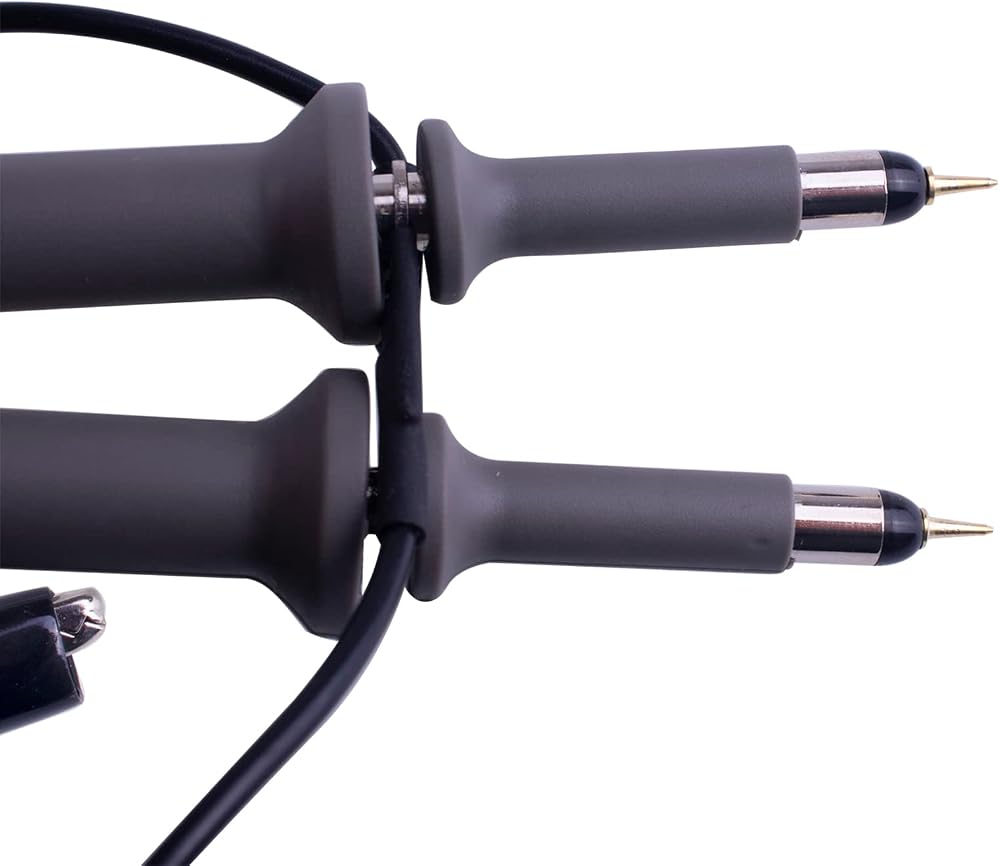

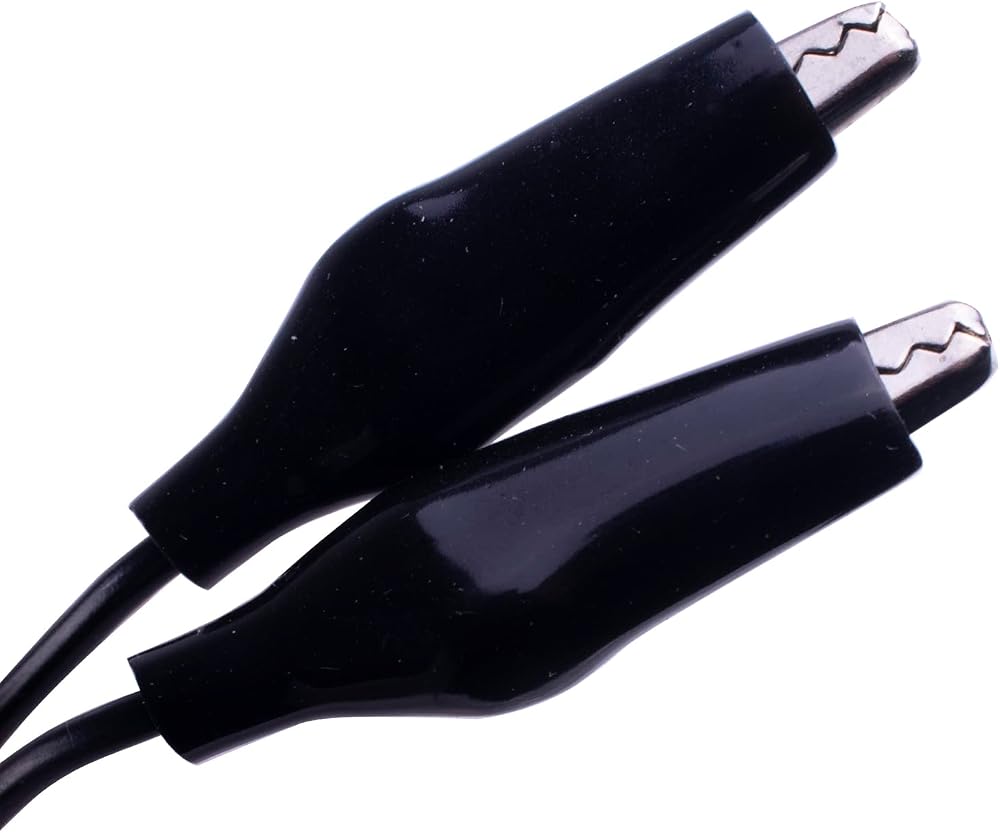

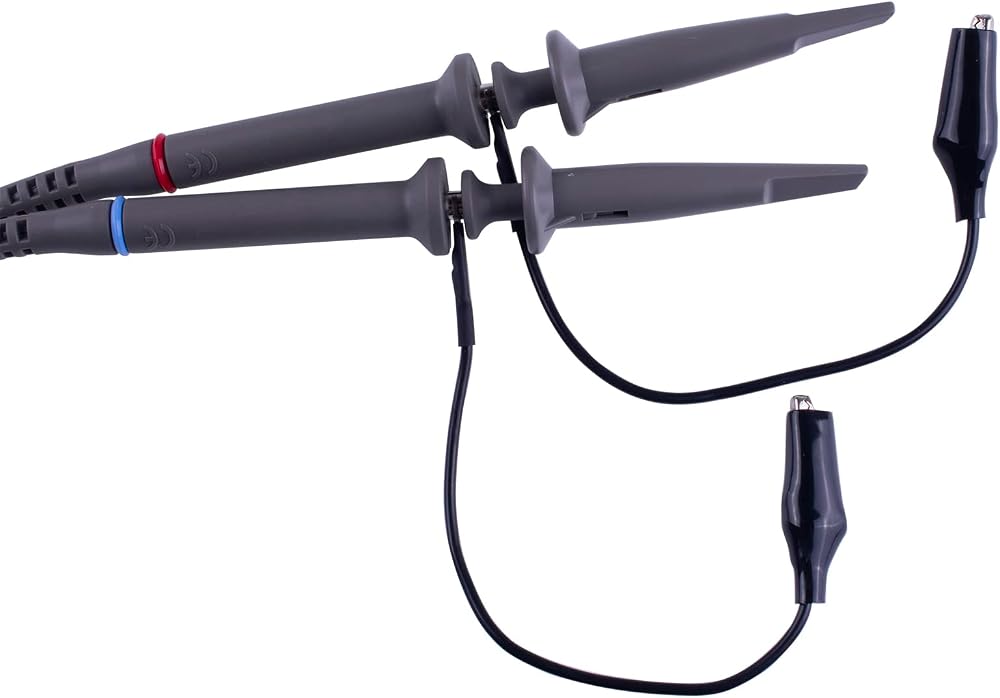

1) Two 100MHZ Oscilloscope probes with Mini Alligator Clip and ground lead;
2) 1 Screwdrivers;
3) 4 marker bands;
4) 2 tip locating sleeves.
5) Manual
