AITIAO MPU9250 GY-9250 9-Axis 9 DOF 16 Bit Gyroscope Acceleration Magnetic Sensor 9-Axis Attitude +Gyro+Accelerator+Magnetometer Sensor Module IIC/SPI
Features:

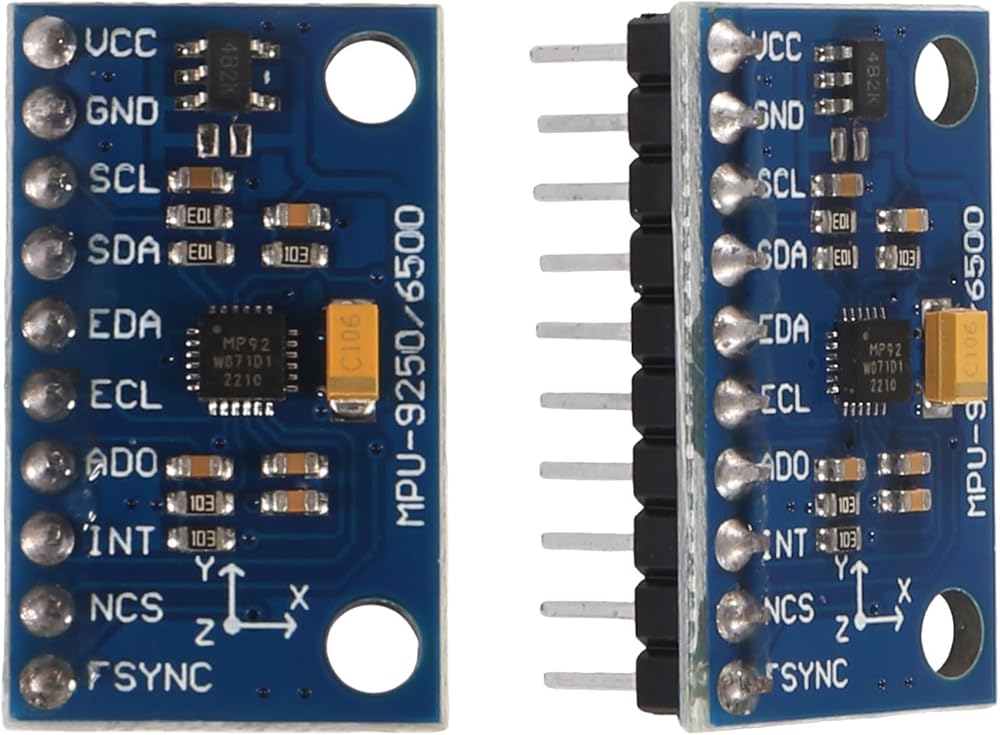

This module integrates gyroscope, accelerometer and magnetometer into a single QFN package.
The 9-axis sensor module features the immersion gold PCB, which uses the machine connecting process to make it work fine.
Compared to previous generation, the MPU-9250 has its size smaller and its sensitivity improved to 0.15 μT/ LSB.
Specifications:
Module model: GY-9250
Chip: MPU-9250
Acceleration range: ±2 ±4 ±8 ±16 g
Sensitivity: up to 16,384 LSB/g
Gyroscope range: ±250 500 1000 2000 °/s
Sensitivity: up to 131 LSB/deg/sec
Magnetic Field Range: ± 4800 μT
Supply Voltage: 4.4 to 6.5 V or 3.3V if you connect the jumper near the on-board voltage regulator
Interface: I2C
2C Address: 0x68 by default, 0x69 if AD0 is pulled high

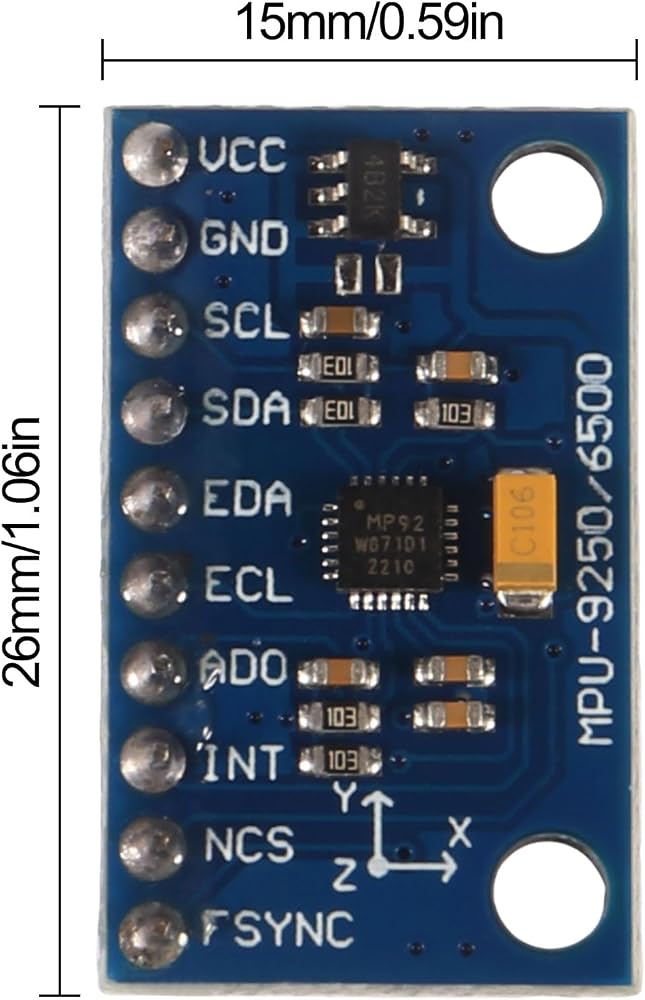

Module size: approx. 15 x 25 mm/ 0.59 x 0.98 inch

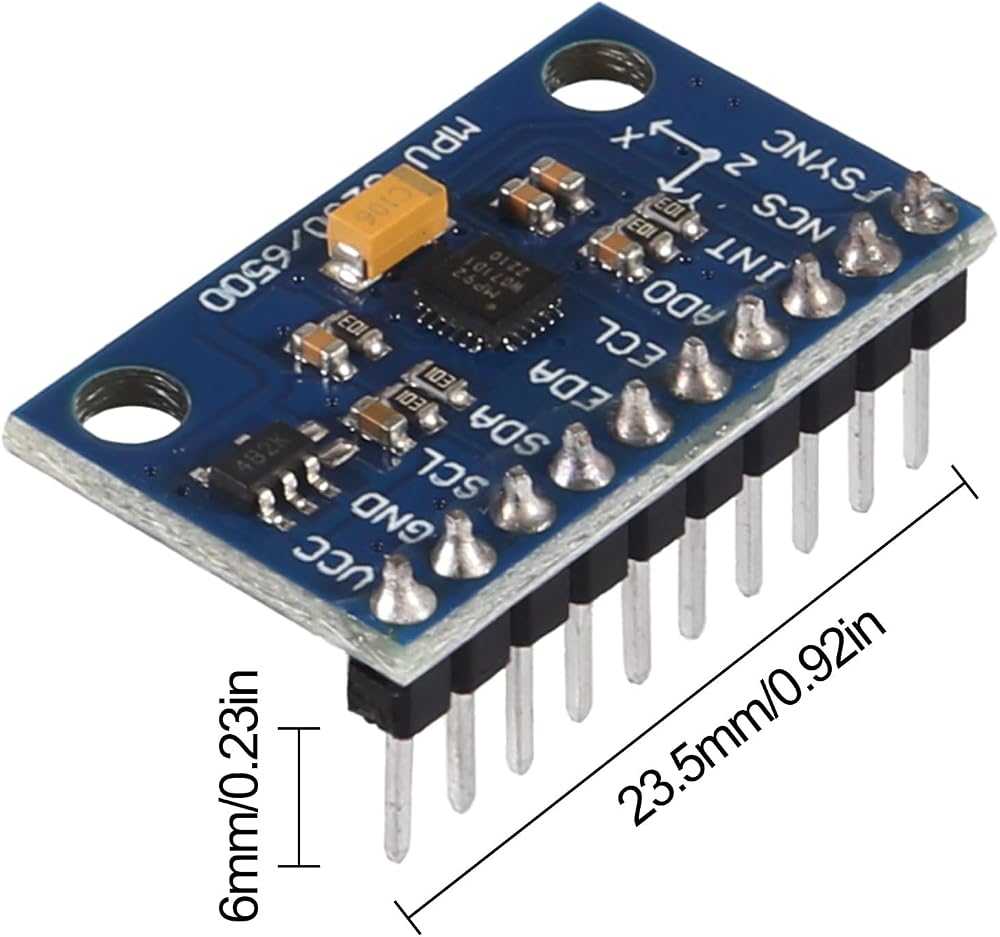

Pin spacing: approx. 2.54 mm/ 0.1 inch

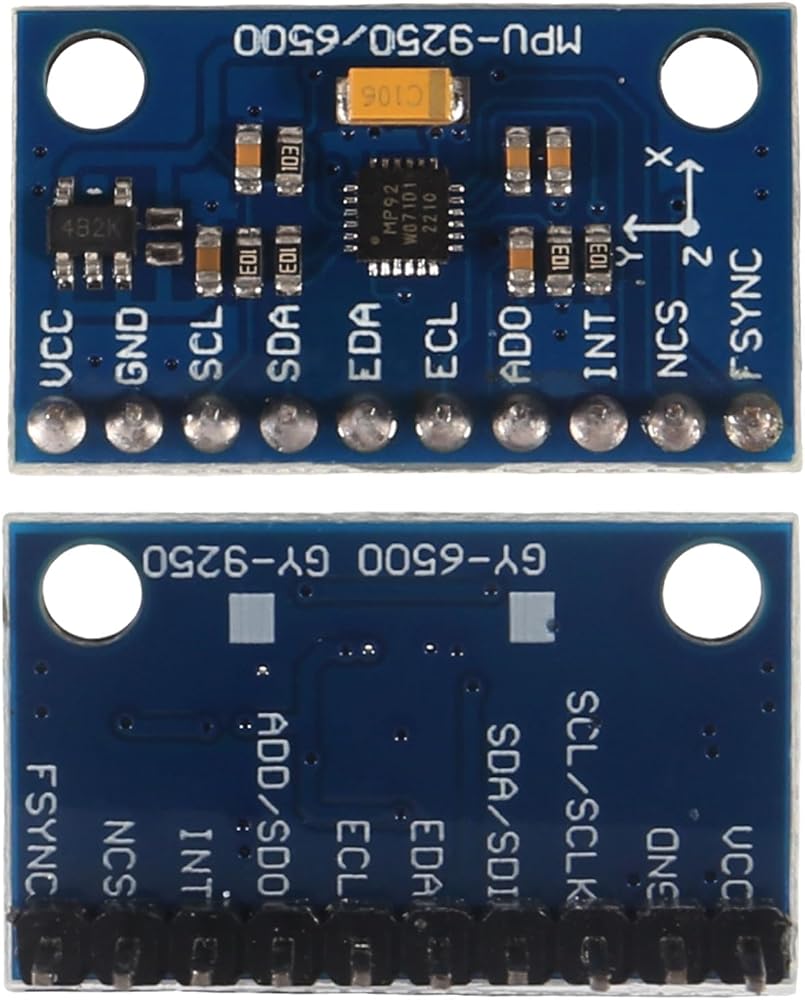

On-board pull-up resistors on SDA, SCL, and nCS
On-board pull-down resistors on FSYNC and AD0

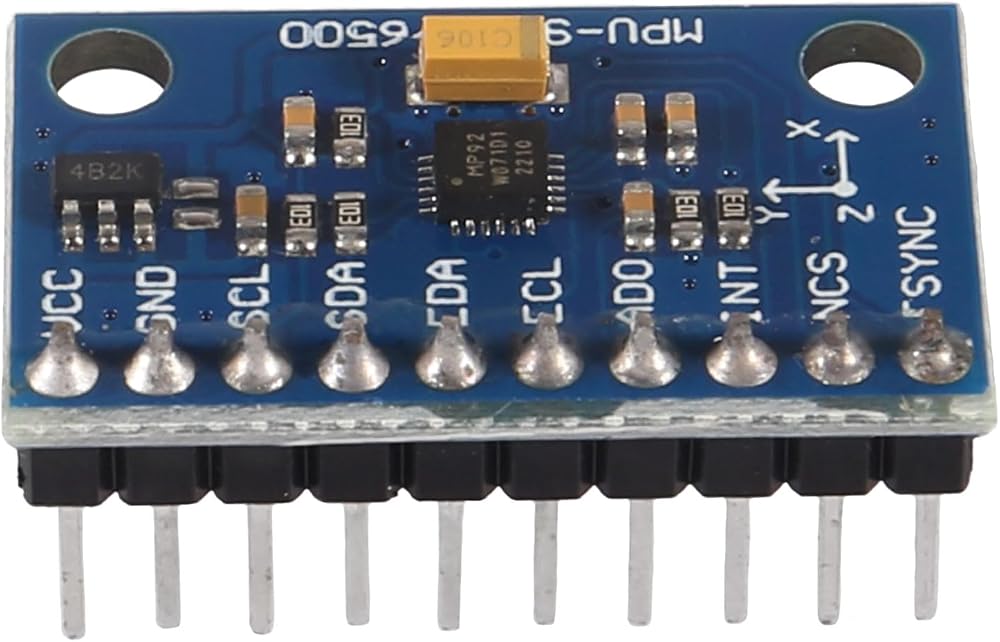

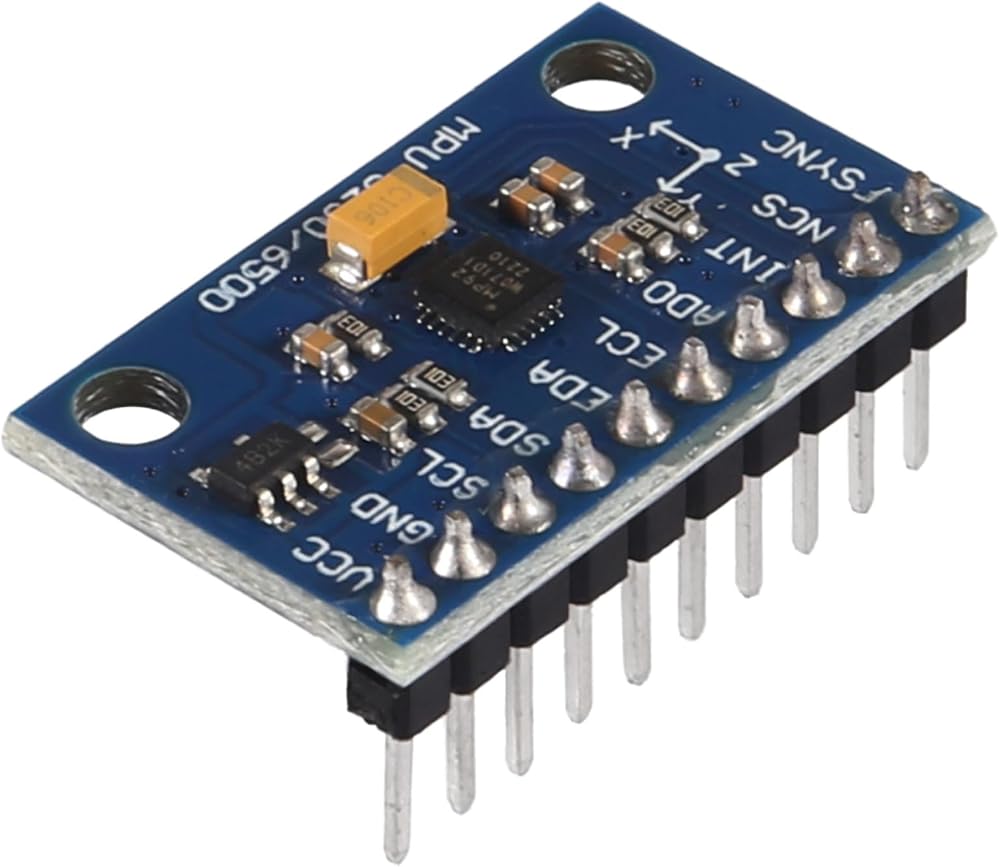

TIPS: This MPU9250 GY-9250 module is ready to be plugged in. No soldering is needed. No dangerous and save time.
Package Included：
1PCS MPU9250 9-Axis 9 DOF 16 Bit Gyroscope Acceleration Magnetic Sensor
