Specifications:
Model D8-MOTOR80
Drive voltage 12V DC (drive: 16219)
Current per phase 800 ma/phase
Coil resistance 15 10%Ω/phase
Step angle 18 ./step
Excitation method 1-2 phase excitation
Drive mode Bipolar drive
Pull-out thrust 500g above at 125pps
Max response frequency 1600 pps above
Max starting frequency 1100 pps above
Insulation class Class E
Insulation strength 100vac one second
Insulation resistance 50M DC 500V
Operating temperature 0~+55℃
Motor surface temperature 80℃
Thread Rod Diameter 3mm Thread
Rod Length 90mm
Slide Block Stroke
80mm Thread
Rod Pitch ±0.5mm

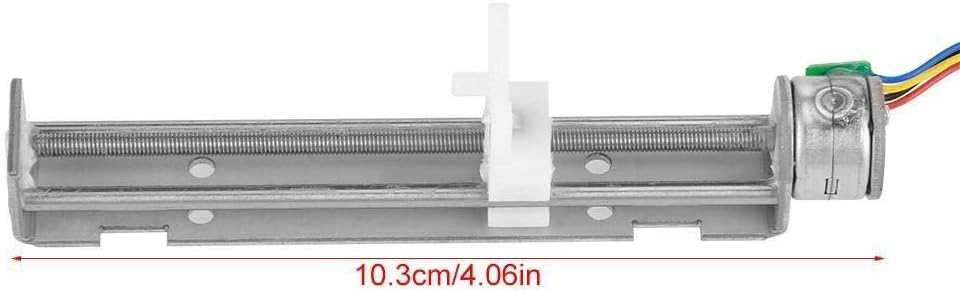

Length 10.3cm/4.1in
Weight 50g (approx.)

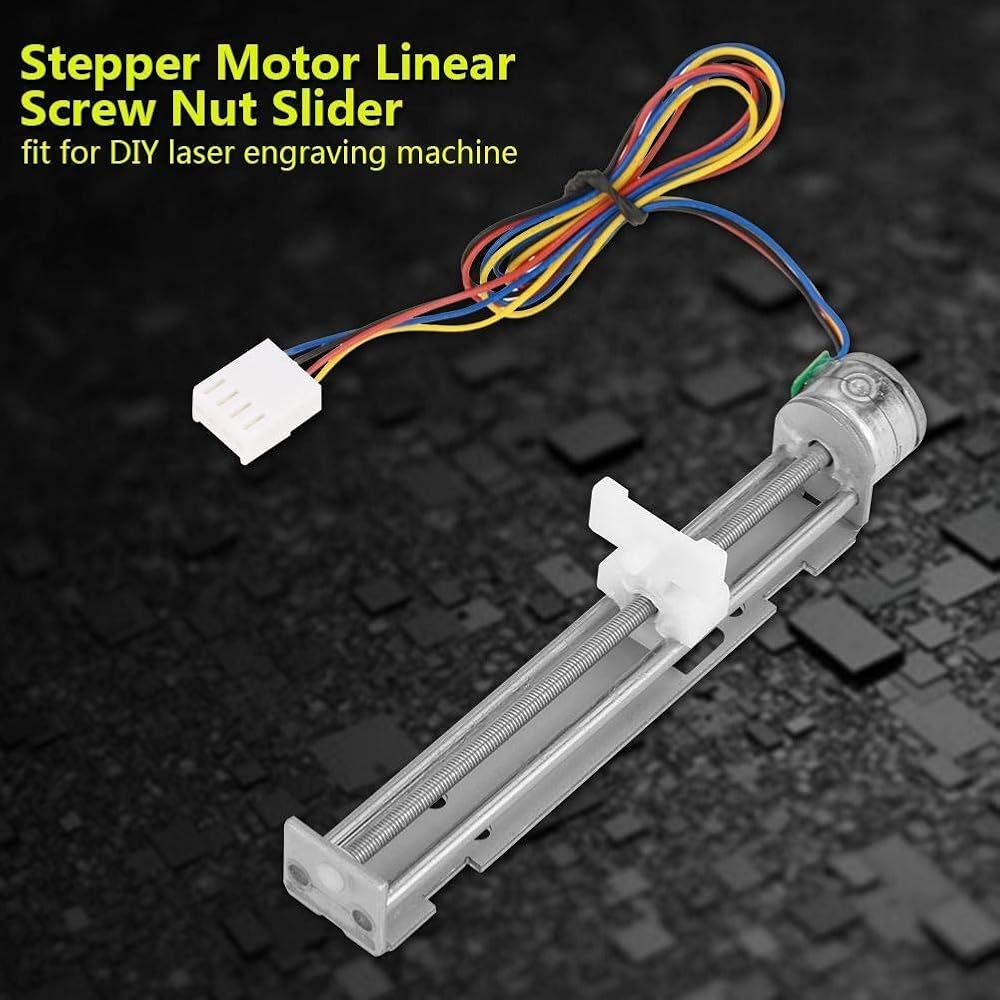

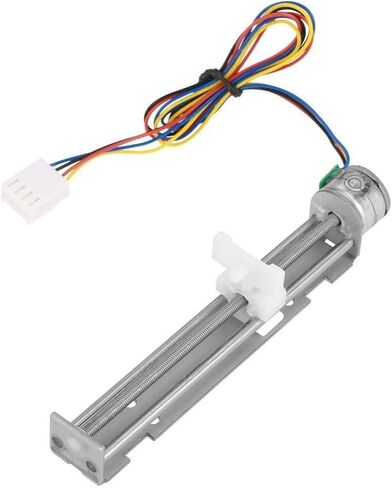

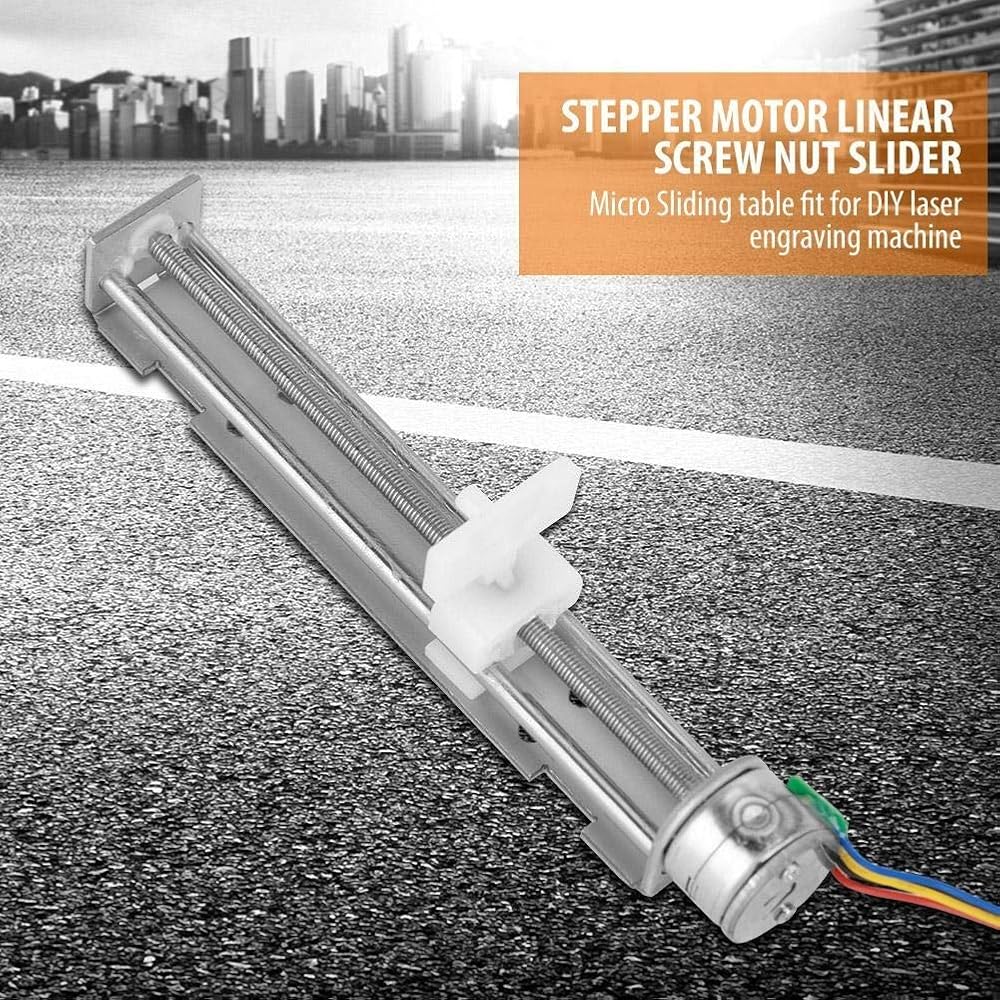

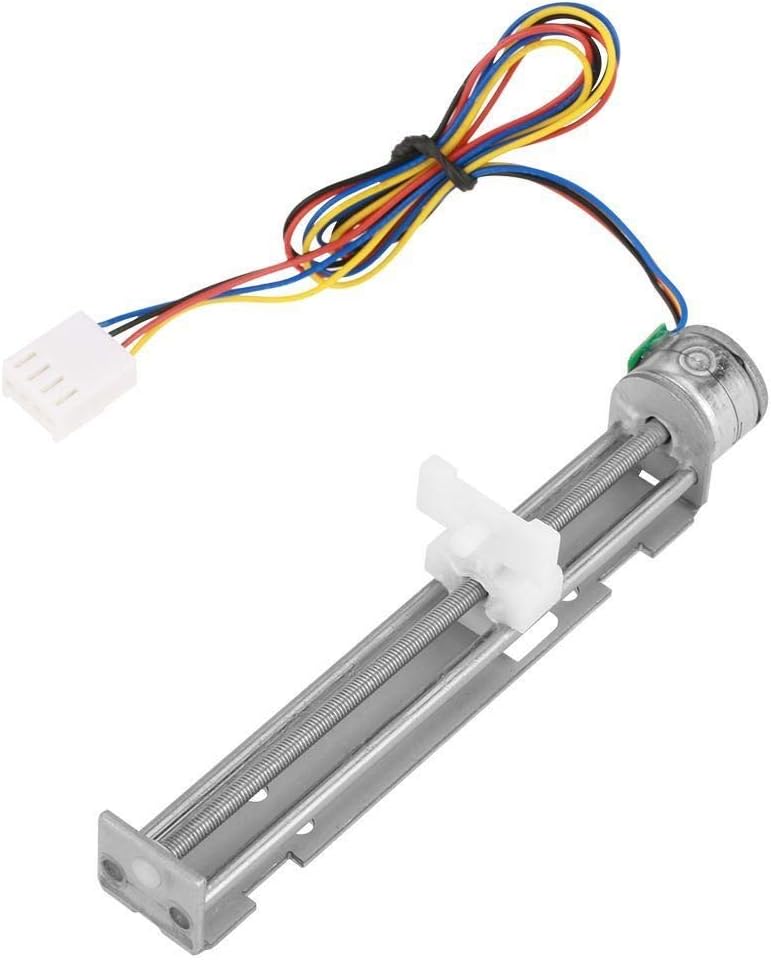

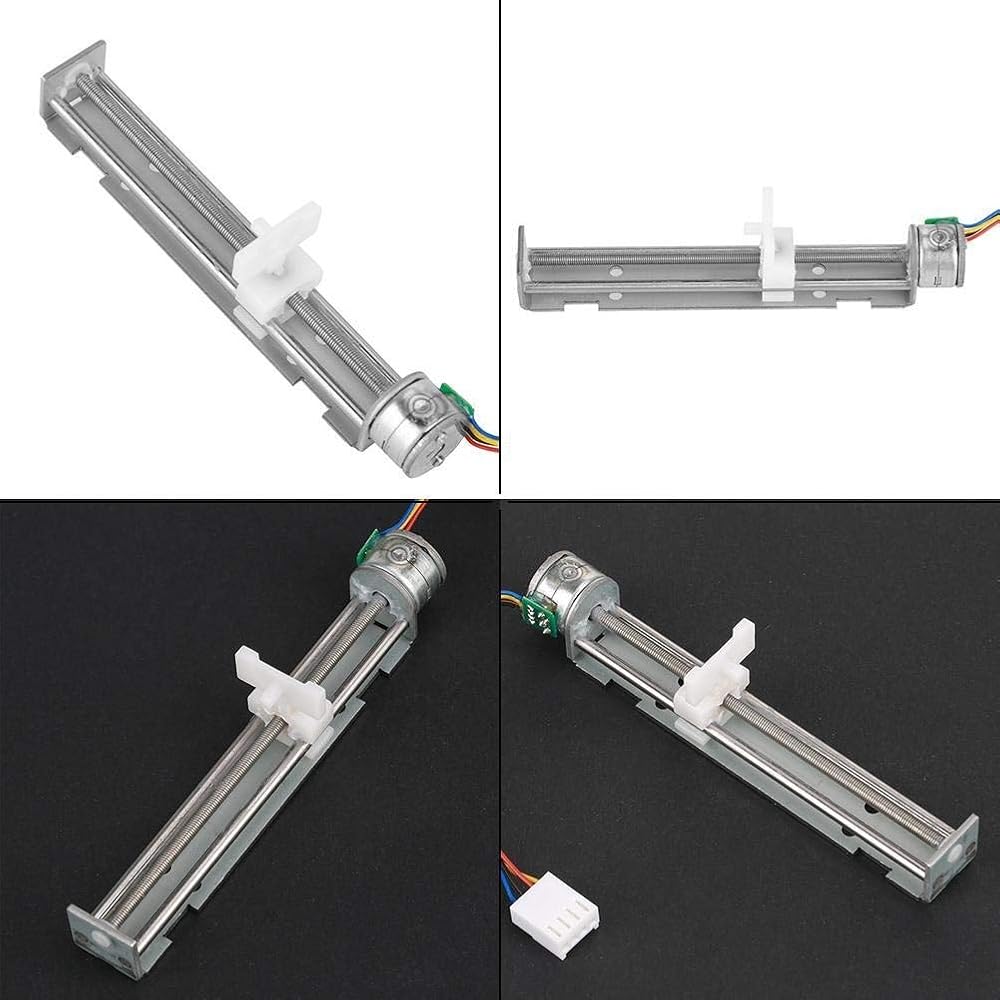

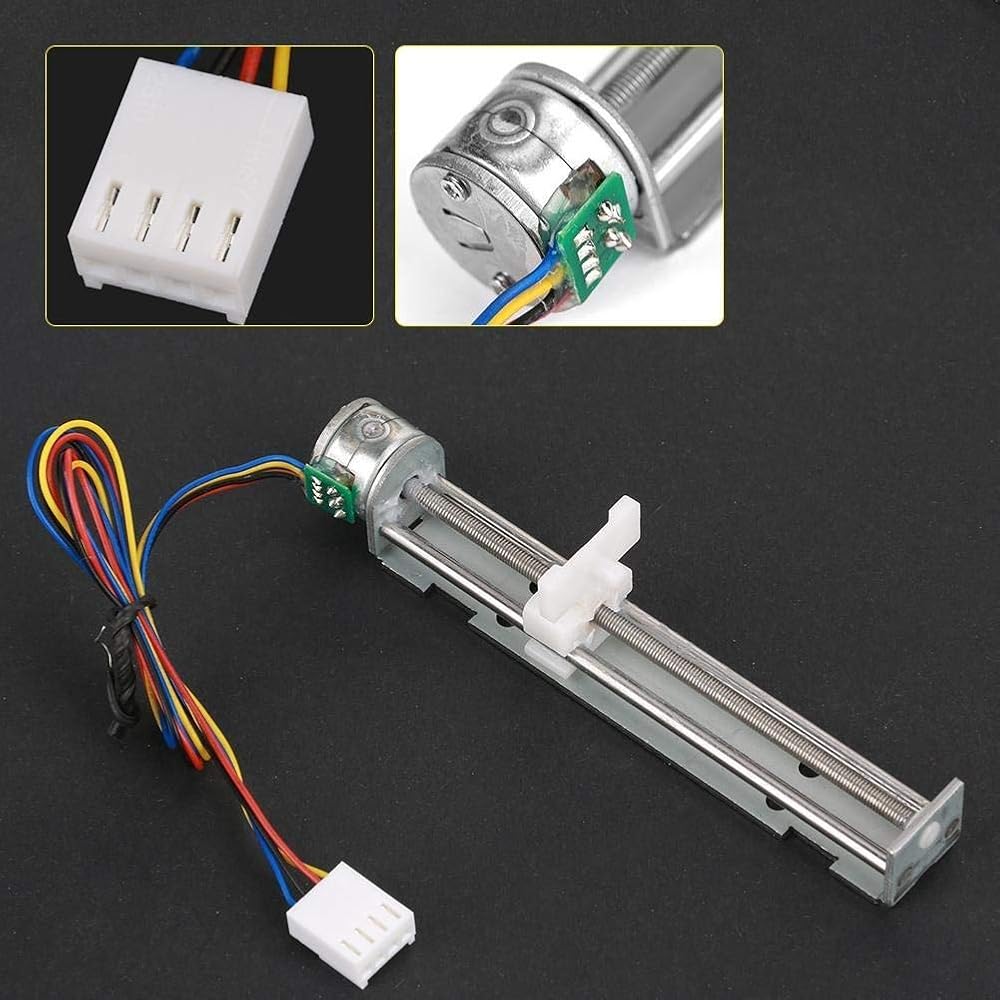

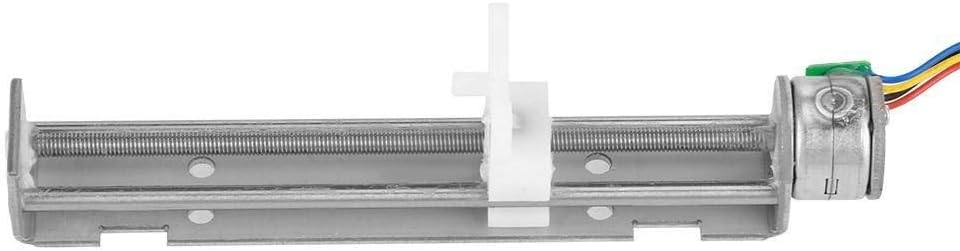

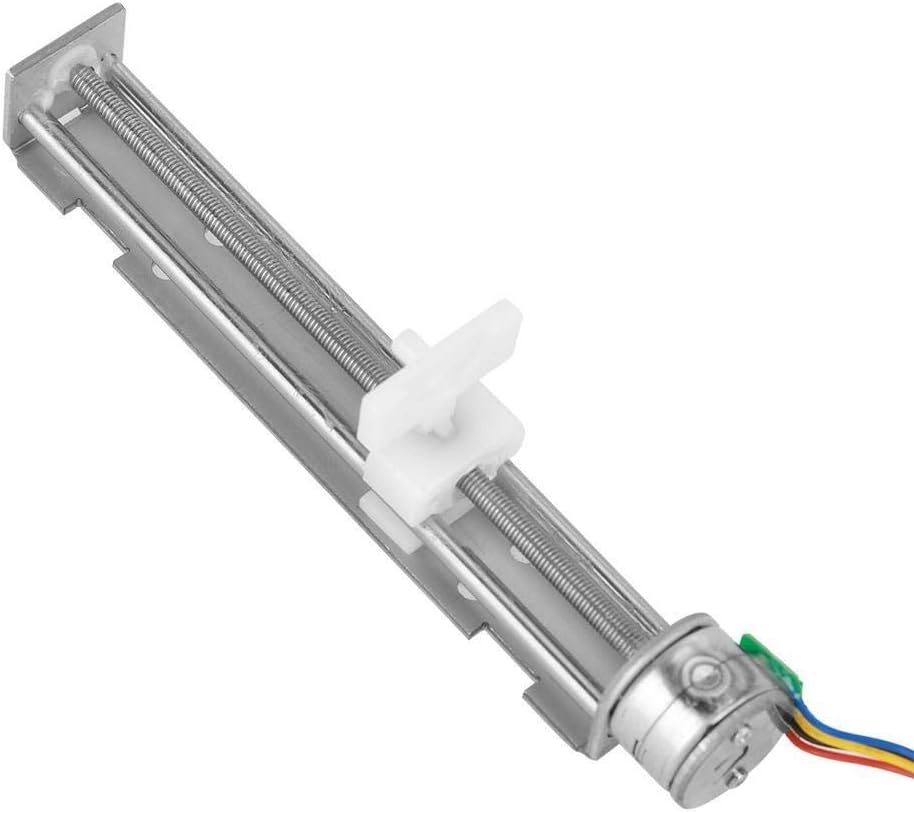

Package Includes: 1 x Motor with Linear Slide

Features:
Quality: Linear stepper motor, the guide and linear slider are small and lightweight, with easy-to-use tools that are strong and durable. The sliding screw stepper motor is made of high quality material, sturdy and durable, working voltage DC 9-12V.
Moving: Stepper motor with lead screw moving 0.25mm for one step, can use microstep driver if need smaller.
Technical Parameters: Line voltage 12V DC; Current per phase 800 ma/phase; Temperature 0 ~ + 55 °C; Slider stroke 80mm. Step actuator motor The maximum linear speed is 25mm per second.
Widely Use: Micro stepper motor actuator widely used in automation equipment, engraving machines, medical equipment, precision measuring instruments, and other small linear slide devices.
Note: Linear stepper motor requires the use of the A4988 controller (not included) and cannot be connected directly to the power supply. Maximum linear speed is 25 mm per second. A microstep controller can be used for 0.25 mm per step movement, in case a smaller microstep controller is required.
