2 pcs Adjustable LED Driver Board DC 6-25V 30-900mA 20W PWM Controller DC-DC Step-Down Constant Current Converter with red and Black Cable Screwdriver

Sorry, this product is not available
Brand
DKARDU

Special Features

  • 【High Brightness】: The LD24AJTA LED driver has 6-25V 900mA step-down which has the feature of high brightness and the LED PWM controller is a LED driver with 5000:1 dimming that can meet your needs
  • 【High Efficiency】: The LED constant current converter has inherent open-circuit LED protection and the LED constant current converter is up to 97% high efficiency.
  • 【DC Voltage or PWM】: The LED constant current converter has single pin on/off which controls the brightness by DC voltage or PWM.
  • 【Current Accuracy】: The LED constant current converter has typical 5% output current accuracy and the switching frequency of the LED constant current converter reaches 1MHz
  • 【Maximum Current & Output Power】: By changing the RCS resistance, the maximum current of the LED constant current converter can reach 1200mA and the maximum output power the LED constant current converter is 20W

Description

Product Description
Scope of application: It is used for LEDs
Feature:
1. 6-25V 900mA step-down, high brightness, LED driver with 5000:1 dimming.
2. By changing the RCS resistance, the maximum current can reach 1200mA, the maximum output power is 20W.
3. Typical 5% output current accuracy and the switching frequency reaches 1MHz.

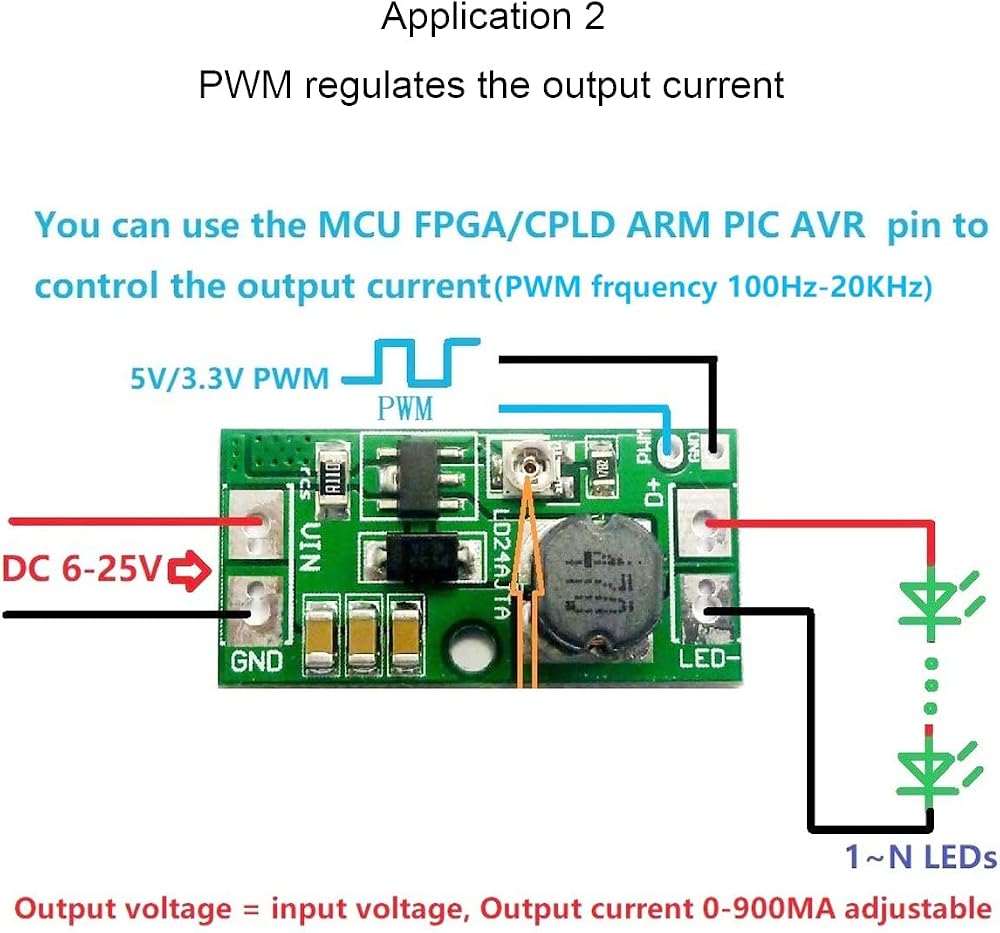

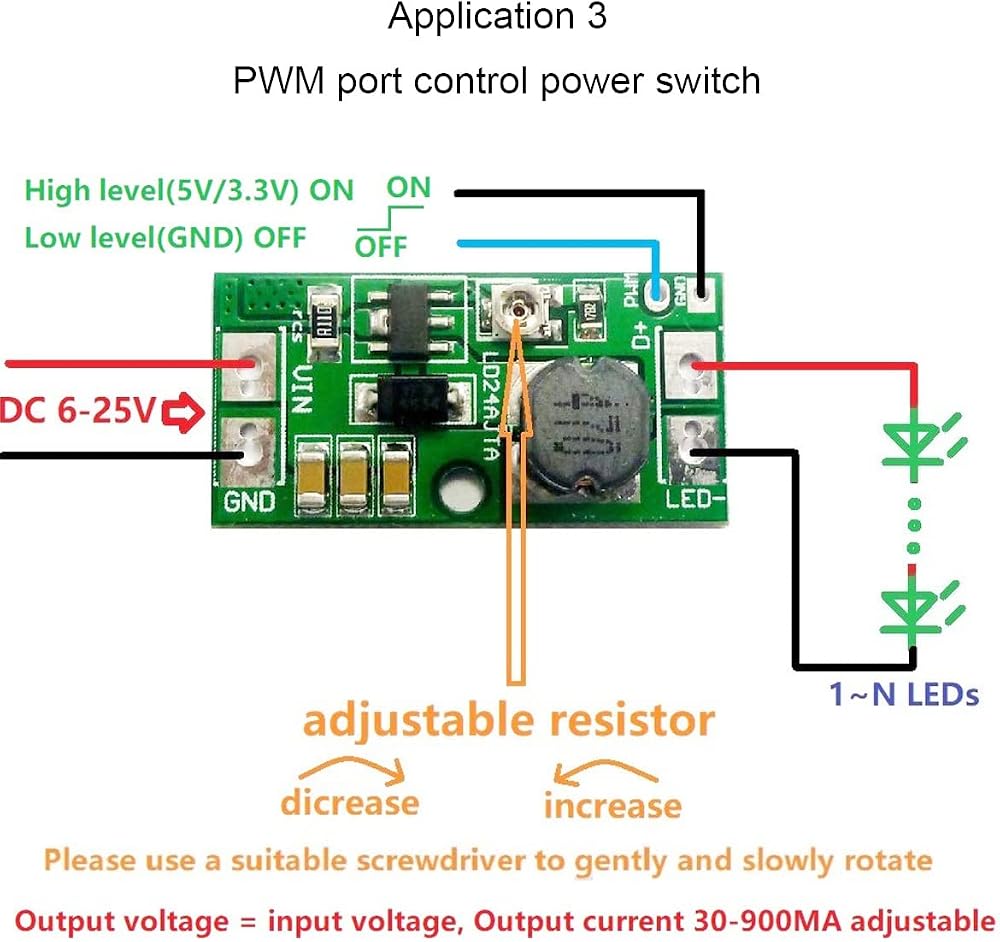

4. Single pin on/off and brightness control by DC voltage or PWM.
5. Inherent open - circuit LED protection with up to 97% high efficiency.

Specification:
Item Type:LED Driver
Dimming Function:5000:1
Working Voltage:DC6~25V(For 6V 9V 12V 18V 24V 24V LED or Light Strip)

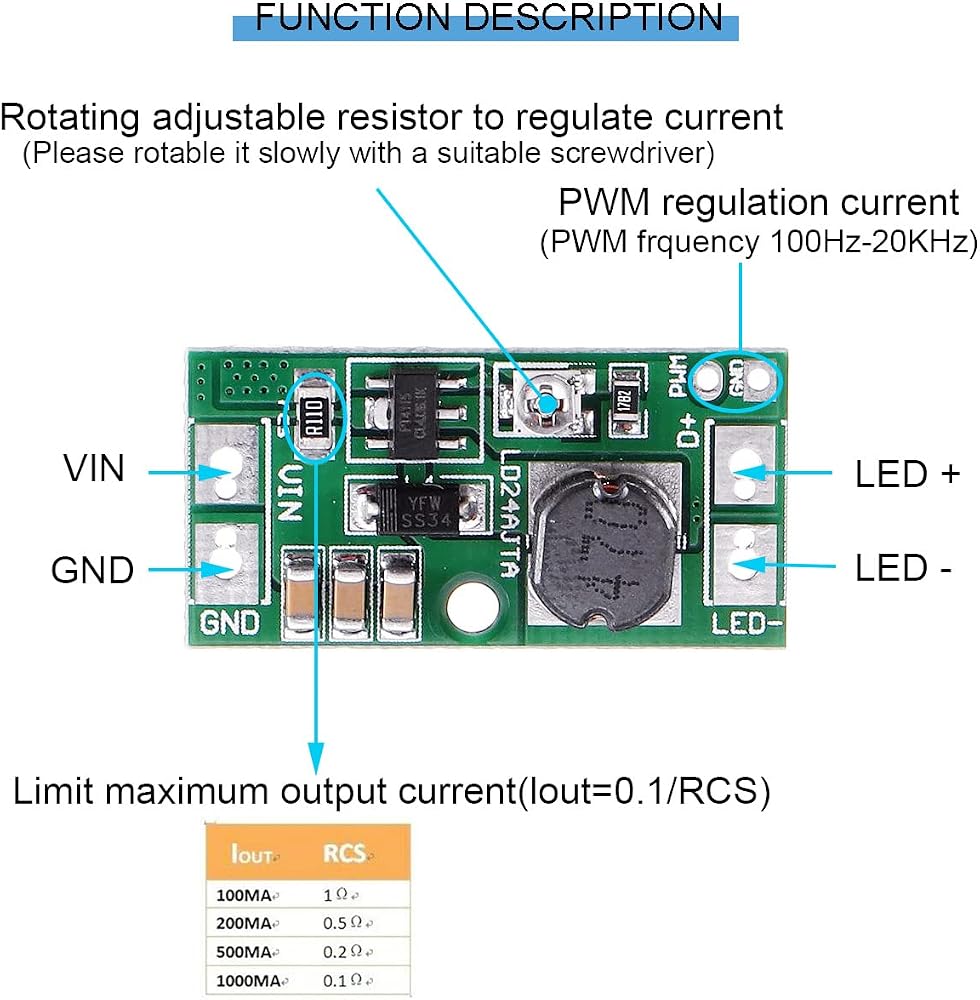

Output Current:30~900mA(By changing the resistance of the RCS, the maximum current can reach 1200mA)
Maximum Output Power:20W

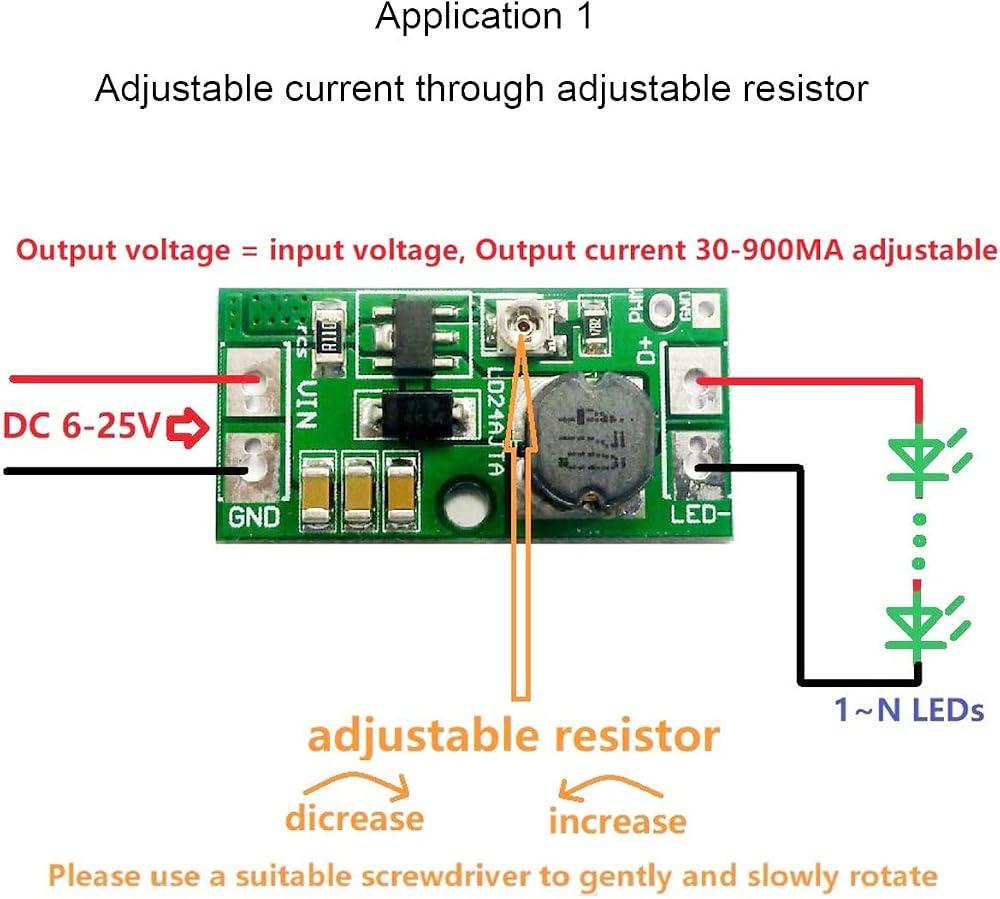

Current Regulation: 1 Through Adjustable Resistance; 2 Through PWM Control
Hysteresis Control: No Compensation

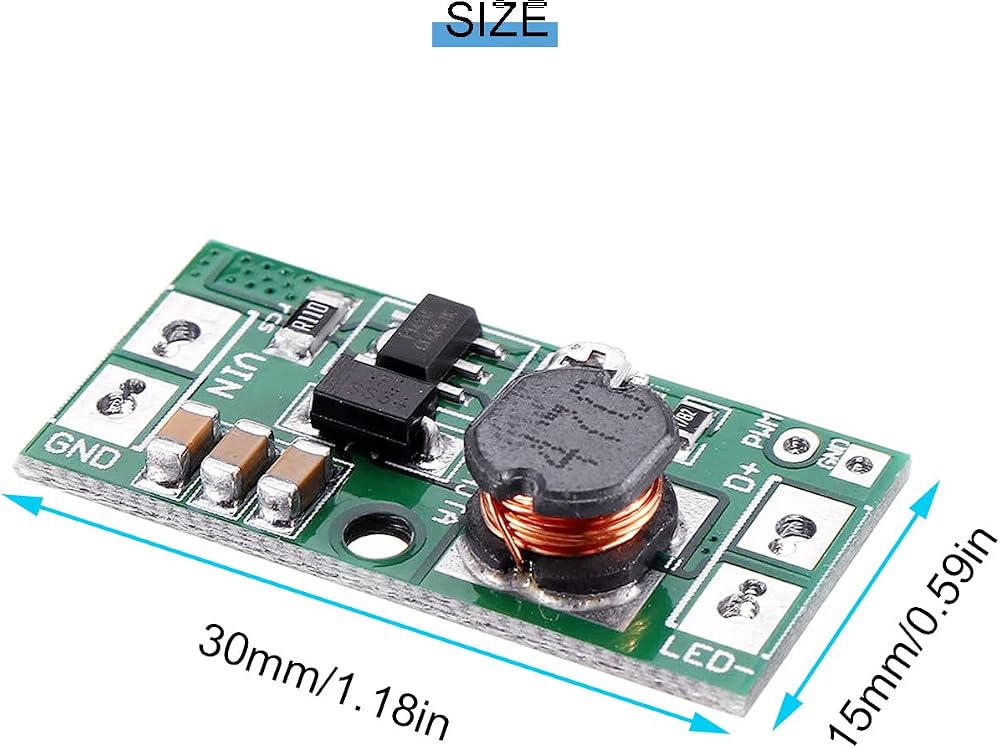

Size:30 x 15 x 6.3mm / 1.18 x 0.59 x 0.25in

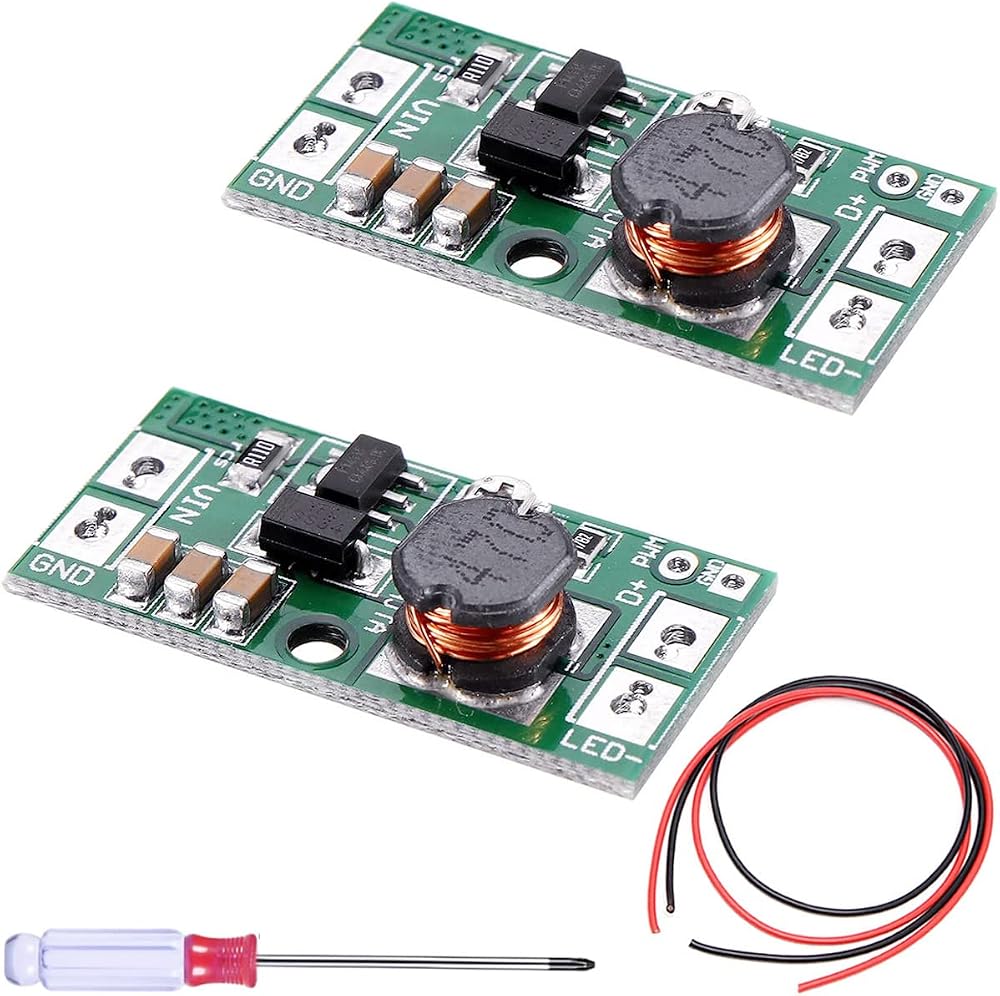

Package includes:
2 x LED Driver Board
1 x red and black cable
1 x Screwdriver
