مميزات خاصة

APPLICATION: Made of high quality material, and long service life. Suitable for mechanical equipment, textile equipment and food processing
SPECIFICATION: Effective Sectional Area: 16mm² (Cv=0.89); Maximum Operating Frequency: 5 times / sec; Operating Temperature Range: 0~60; Use Pressure: 0.15-0.8Mpa; Maximum Pressure Resistance: 1.0Mpa;
INLET/OUTLET DIA: The air inlet/air outlet diameter is PT1/4in, the exhaust diameter is PT1/8in.
EASY TO INSTALL: Professional and reasonable structure, easy to install and use. This valve has good wear resistance and pressure resistance.

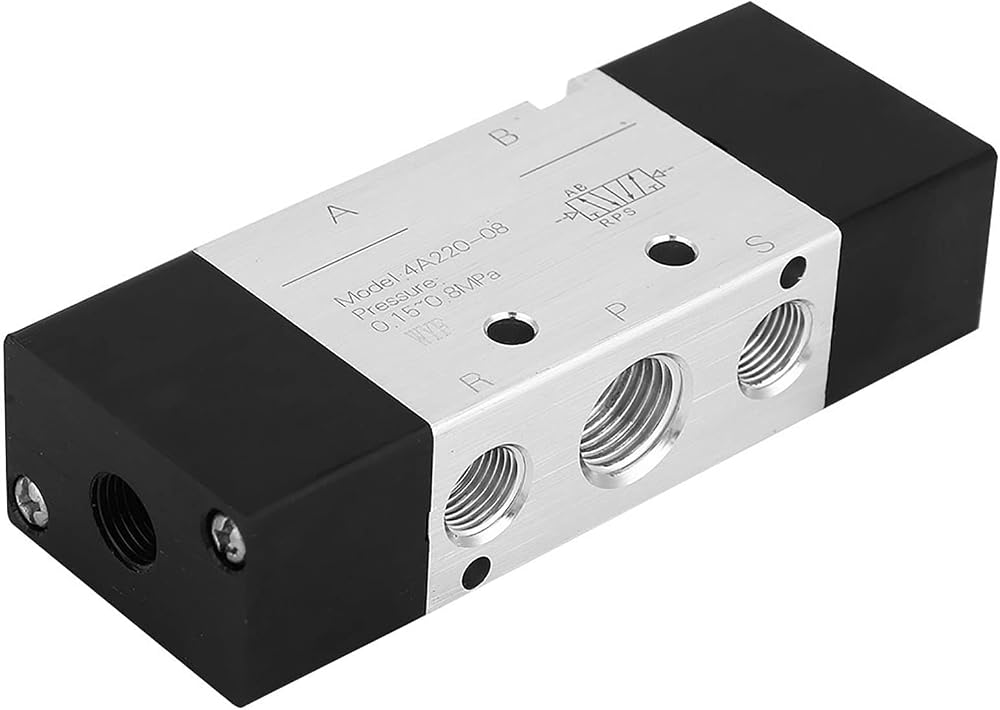

PNEUMATIC AIR VALVE: Model: 4A220-08; Working Medium: Air; Mode of Operation: External air control.
PNEUMATIC AIR VALVE: Model: 4A220-08; Working Medium: Air; Mode of Operation: External air control.

وصف

Specification:
Condition: 100% Brand new
Model: 4A220-08
Working Medium: Air
Mode of Operation: External air control
Use Pressure: 0.15-0.8Mpa
Maximum Pressure Resistance: 1.0Mpa
Connecting Diameter: Air inlet = air outlet =PT1/4in, exhaust=PT1/8in
Effective Sectional Area: 16mm² (Cv=0.89)
Maximum Operating Frequency: 5 times / sec
Operating Temperature Range: 0~60

Package List:
1 x Valve
1 x User Manual
