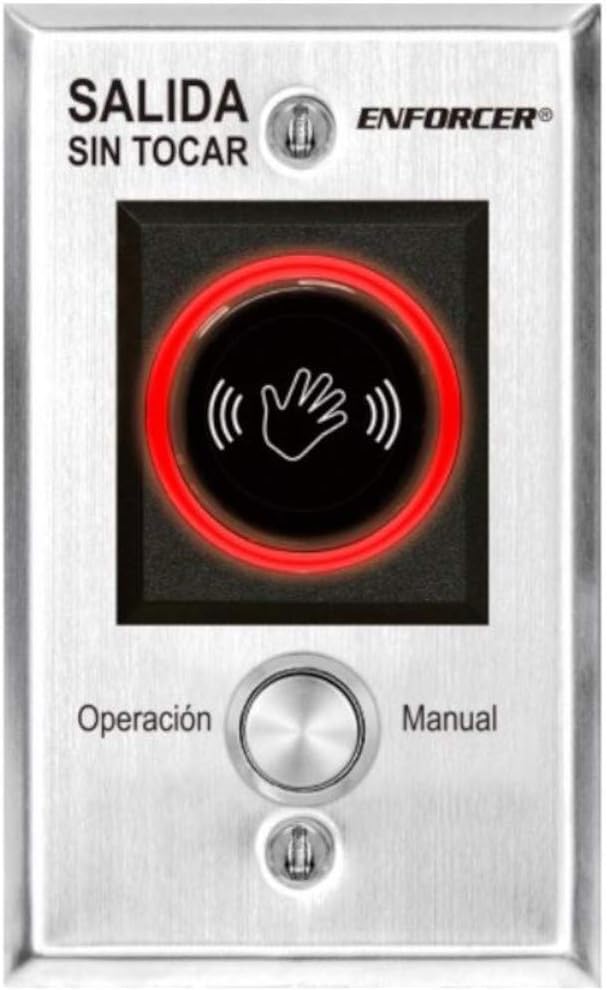

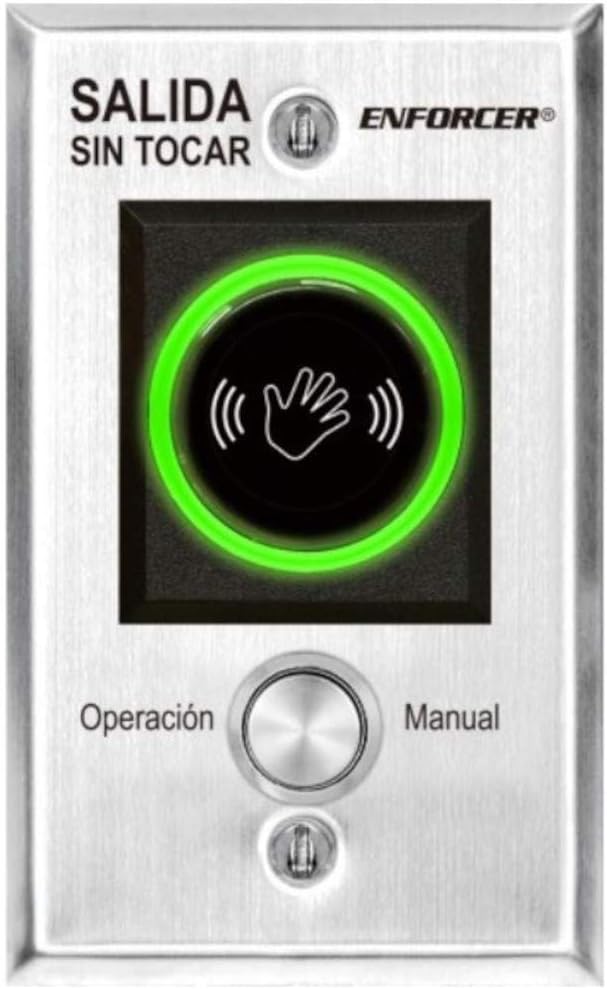

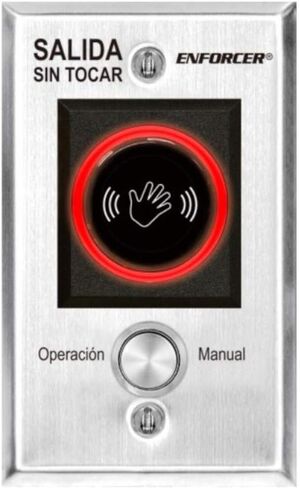

Seco-Larm SD-927PKC-NSVQ Wave To Open Sensor with Manual Override Button, w/ IR Technology and LED Illuminated Sensor, No Touch is Required, Range Adjustable From 23/8"-8", Spanish
The ENFORCER Wave-To-Open Sensors use IR technology to request egress from a protectedarea or activate a device with the simple wave of a hand. Since no touch is required, this sensor isideal for use in hospitals, clinics, labs, cleanrooms, schools, factories, or offices. The SD-927PKC-NSVQ adds a manual override button.
Key FeaturesDual voltage, 12~24 VAC/VDC
Range adjustable from 23/8"-8" (6~20 cm)
Stainless steel single-gang plate
3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
LED illuminated sensor area for easy identification
Quick connect screw-less terminal block
Selectable LED colors (turns from red to green or green to red) when activated
Adds manual override button as a backup to the sensor

SpecificationsOperating Voltage: 12 to 24 VAC/VDC
Current Draw: 120mA 12VDC
Relay Type: Form C dry contact, 3A 24VDC
Override Button - Switching capacity; 3A 24VDC
Override Button - Mechanical life: 500000 cycles
Response Time: 10ms
LEDs - Standby: Red
LEDs - Triggered: Green
Output Time: Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered
Range: Adjustable, 2-3/8"~8" (6-20 cm)
Operating Temperature: -4°~131° F (-20°~55° C)
Weight: 3.9oz (0.25 pounds)
