Specifications:

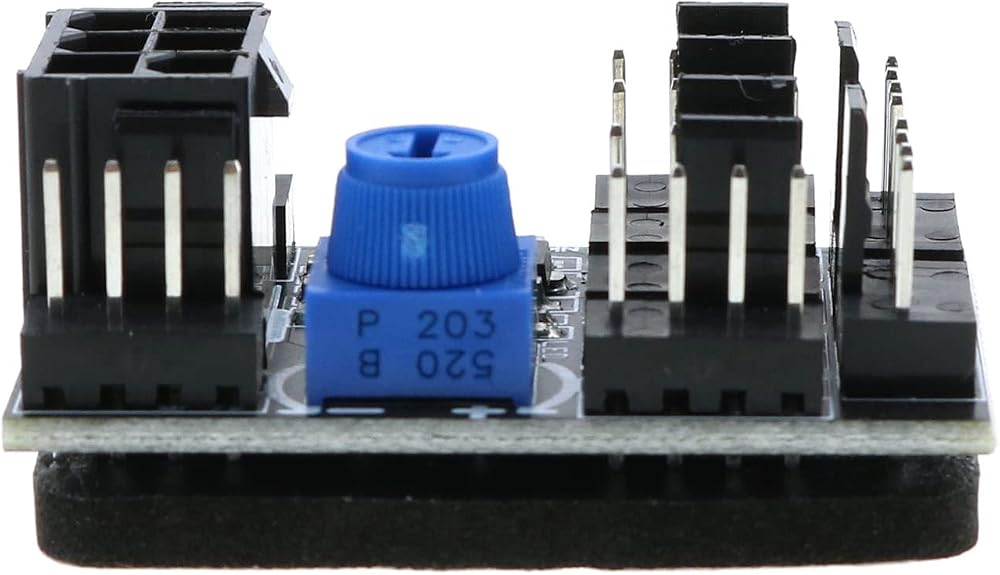

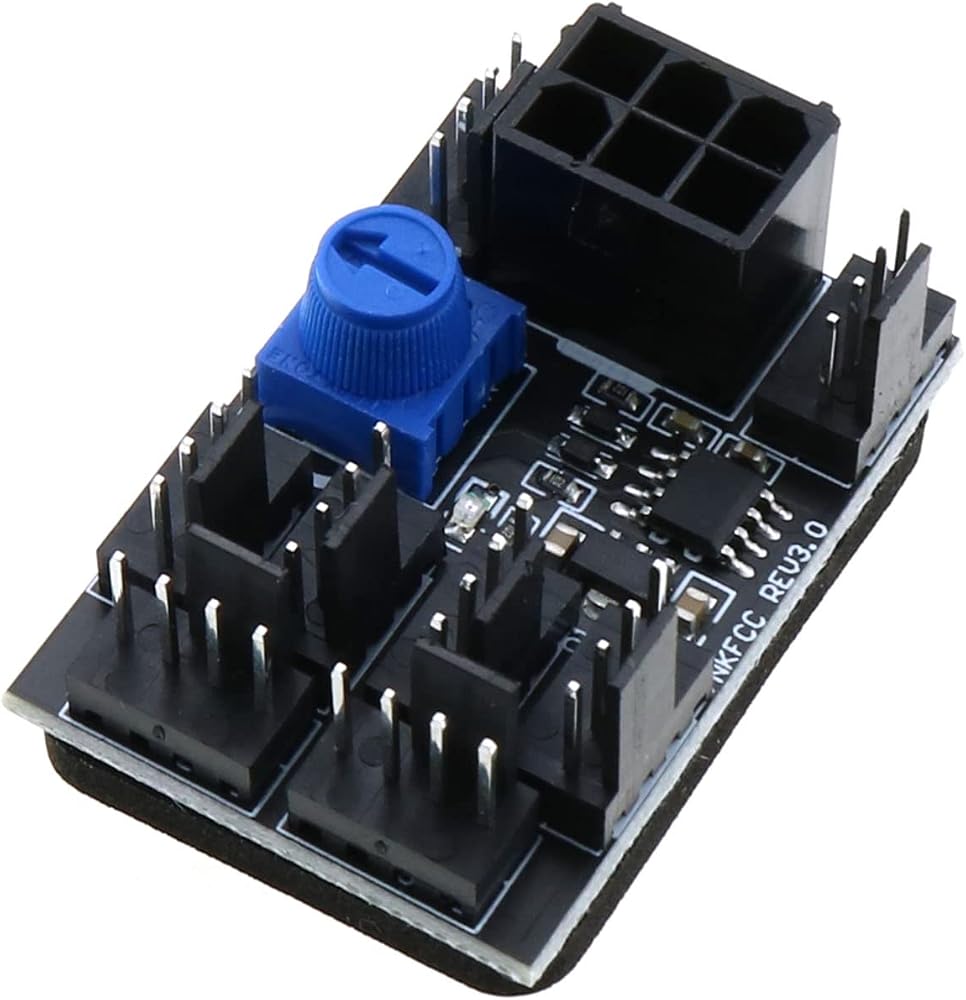

Name: High Power Fan PWM Hub Governor

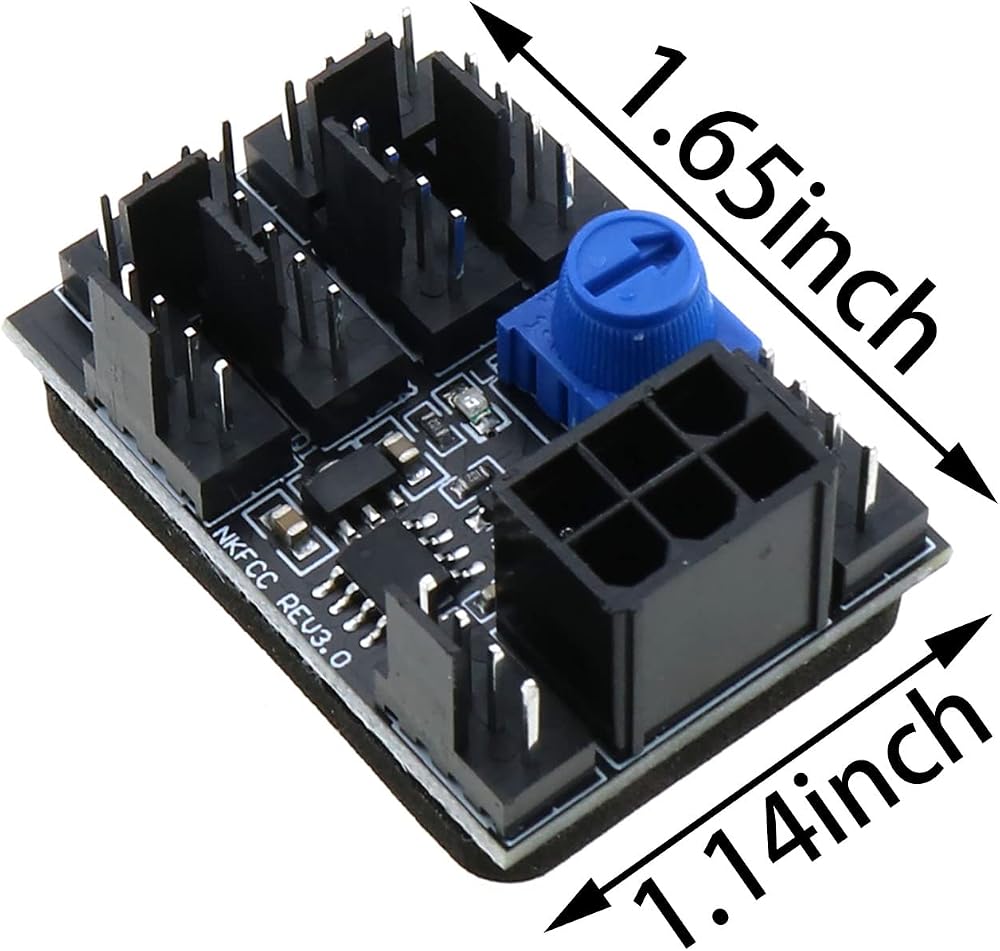

Size: 42 x 29 x 20mm/1.65 x 1.14 x 0.79inch
Weight: 12g
Power supply voltage: DC12V

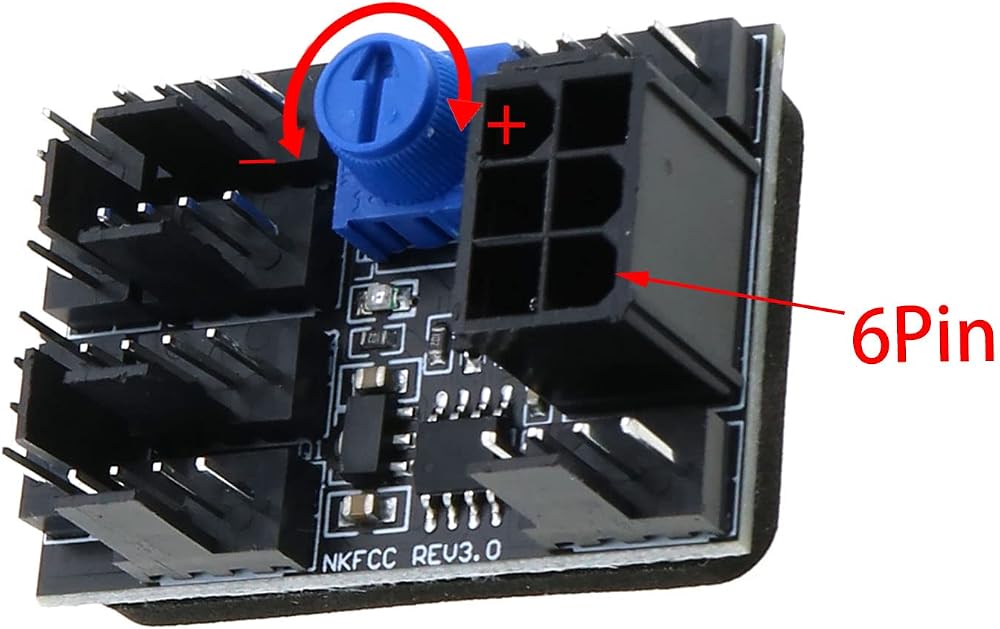

Power interface: 6PIN (2 x 3)
Maximum interface current: 17A
Number of fan bases: 8
Package includes: 1 high-power fan PWM hub governor
Characteristic:
The power supply voltage of this product is 12V DC, the maximum current of the interface is 17A, and the power interface is 6pin (2x3).
This product has a total of 8 output interfaces, and the fan base supports 3pin and 4pin fans, which can power up to 8 fans.
Be careful:
The speed regulation function of this product requires the fan to support PWM speed regulation function, otherwise it cannot be achieved. Meanwhile, please ensure that the total current connected to the fan does not exceed the maximum current value of 17A during use to avoid damage to the governor.
