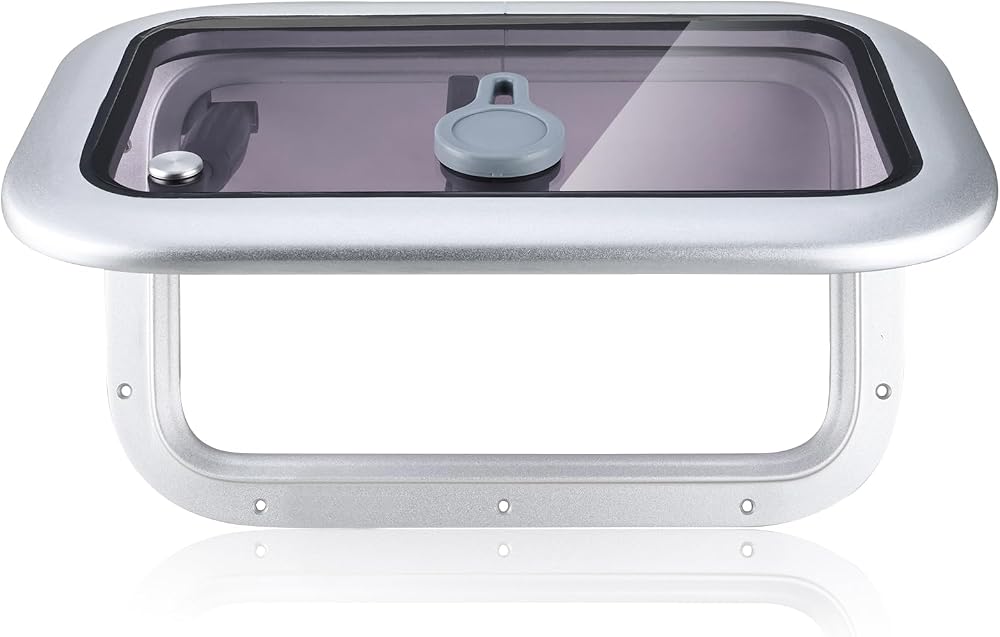

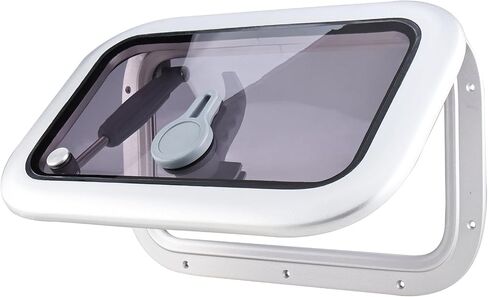

Port hole window shape:rectangle

Deck thickness:approx 15mm

Portlight total height:approx 42.5mm

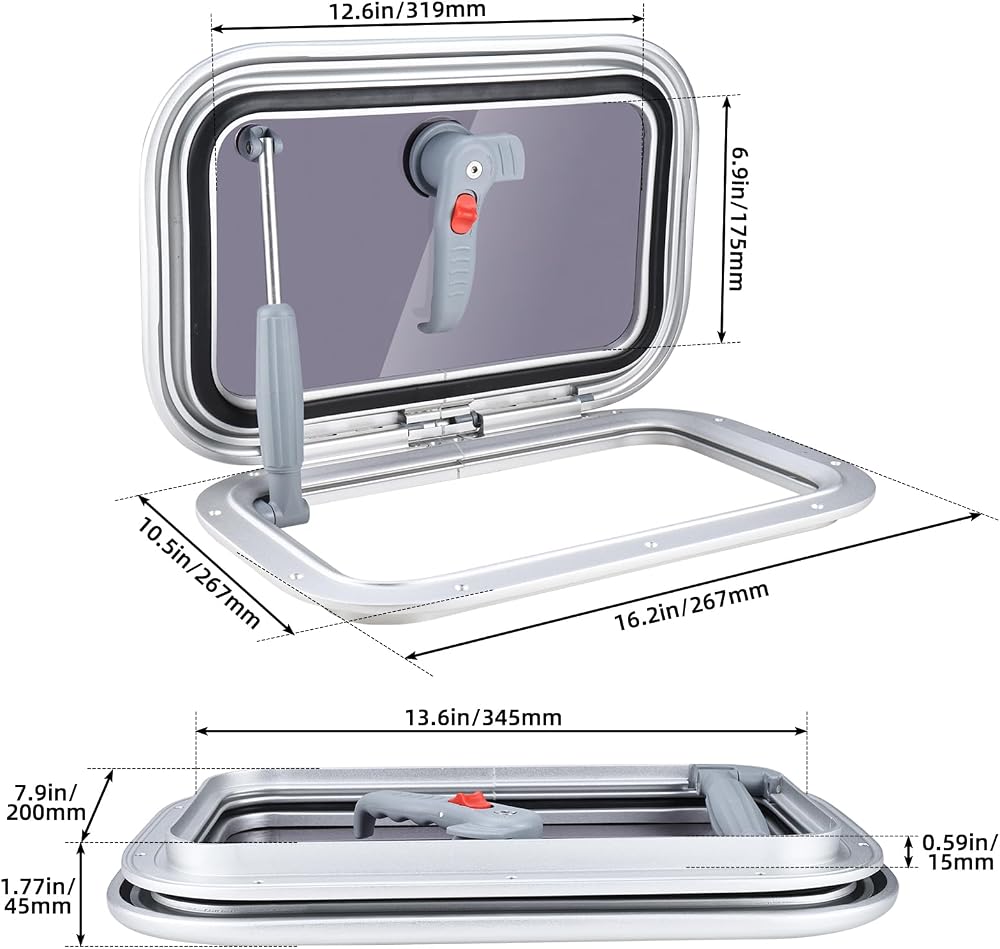

Port light window size:approx.12.6"x6.9" / 319x175mm

Porthole mounting hole size:approx.13.6"x7.9" / 345x200mm

Porthole cut-out size:approx.13.7"x8" / 347x202mm

Porthole extemal size:approx.16.2"x10.5" / 412x267mm

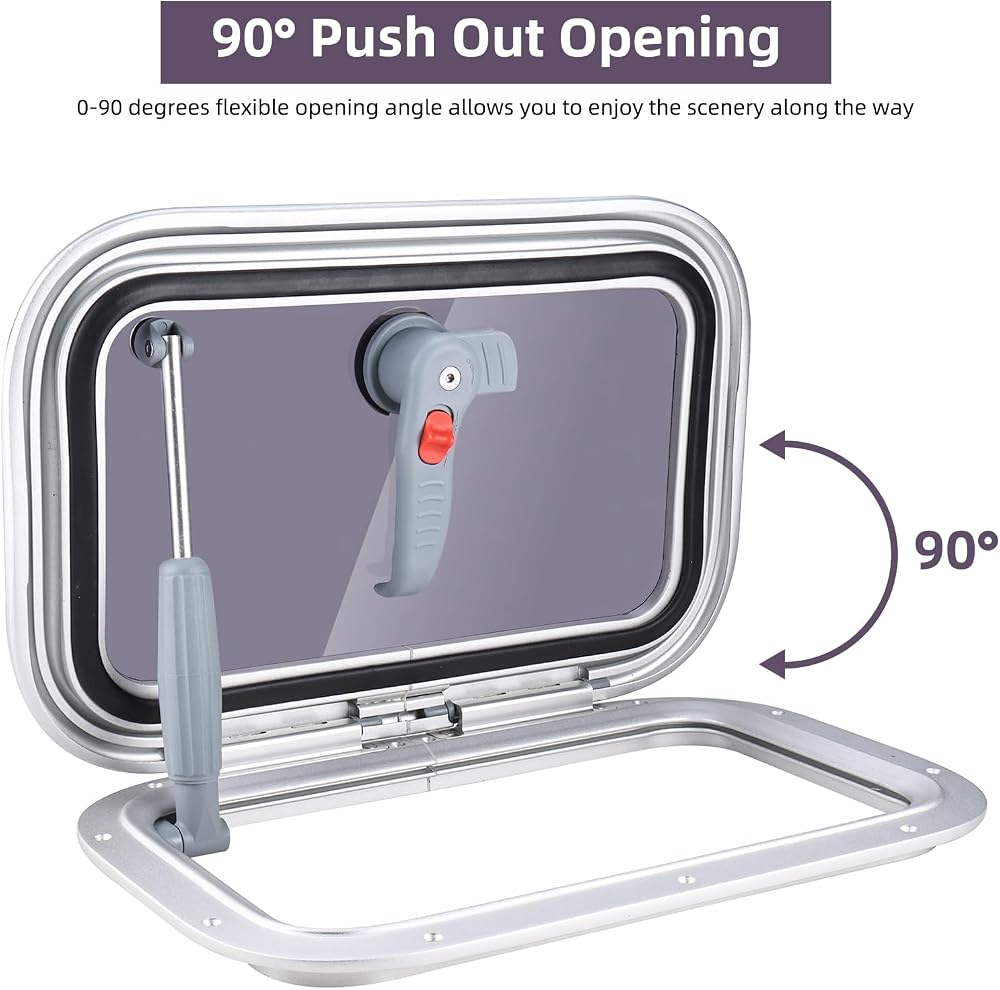

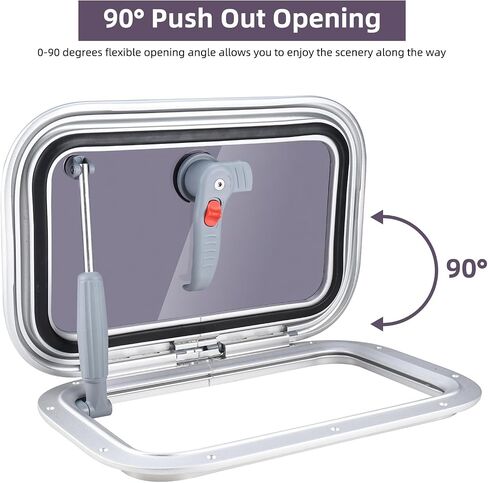

Opening portlight angle: 0-90 degrees

Boat porthole material:aluminum alloy+nylon+acrylic+ rubber+316 stainless steel

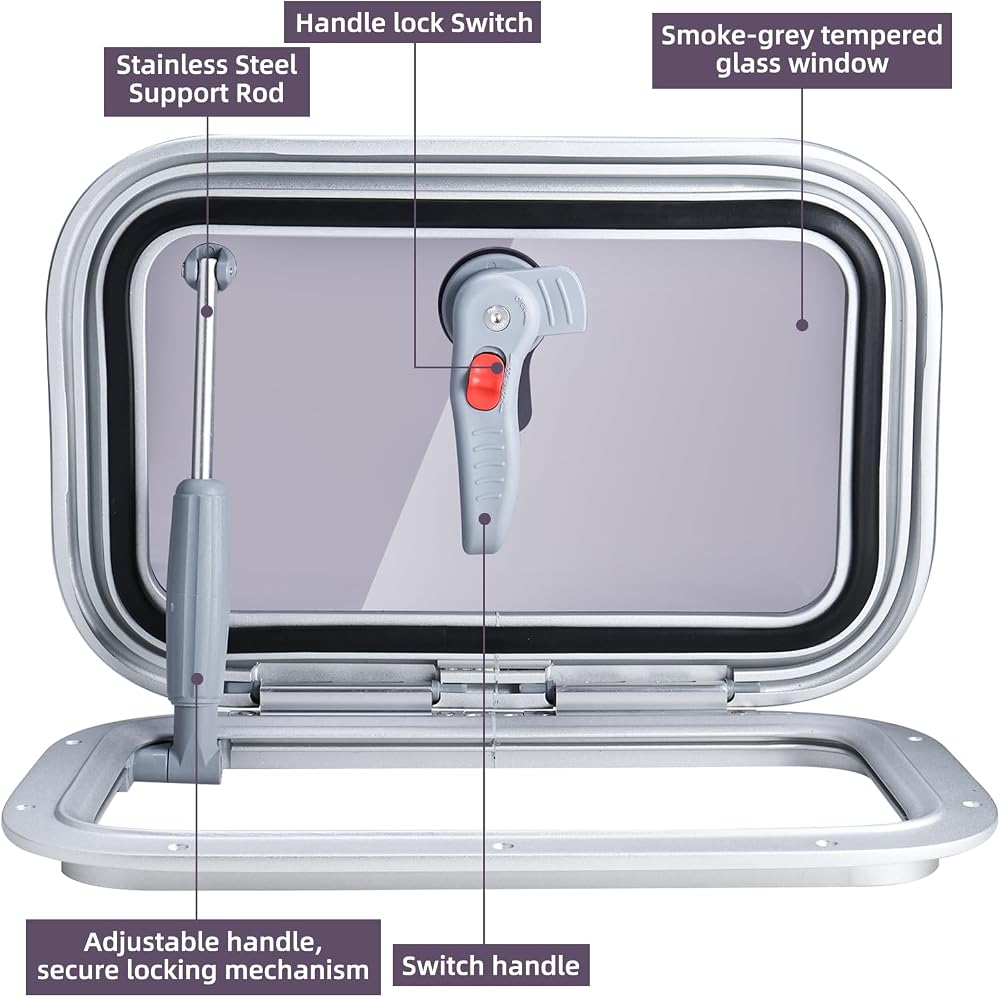

The smoked gray acrylic glass is able to mitigate the effects of glare from the sunlight reflecting off the sea surface

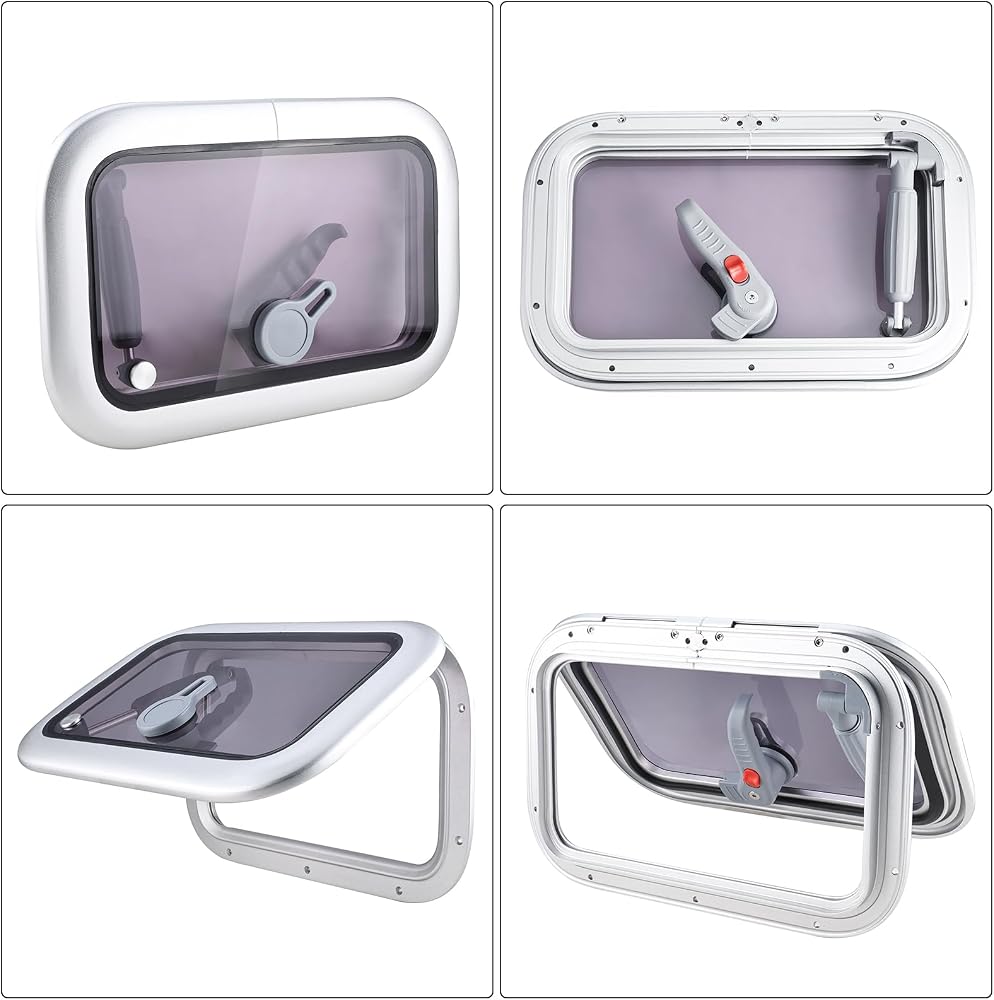

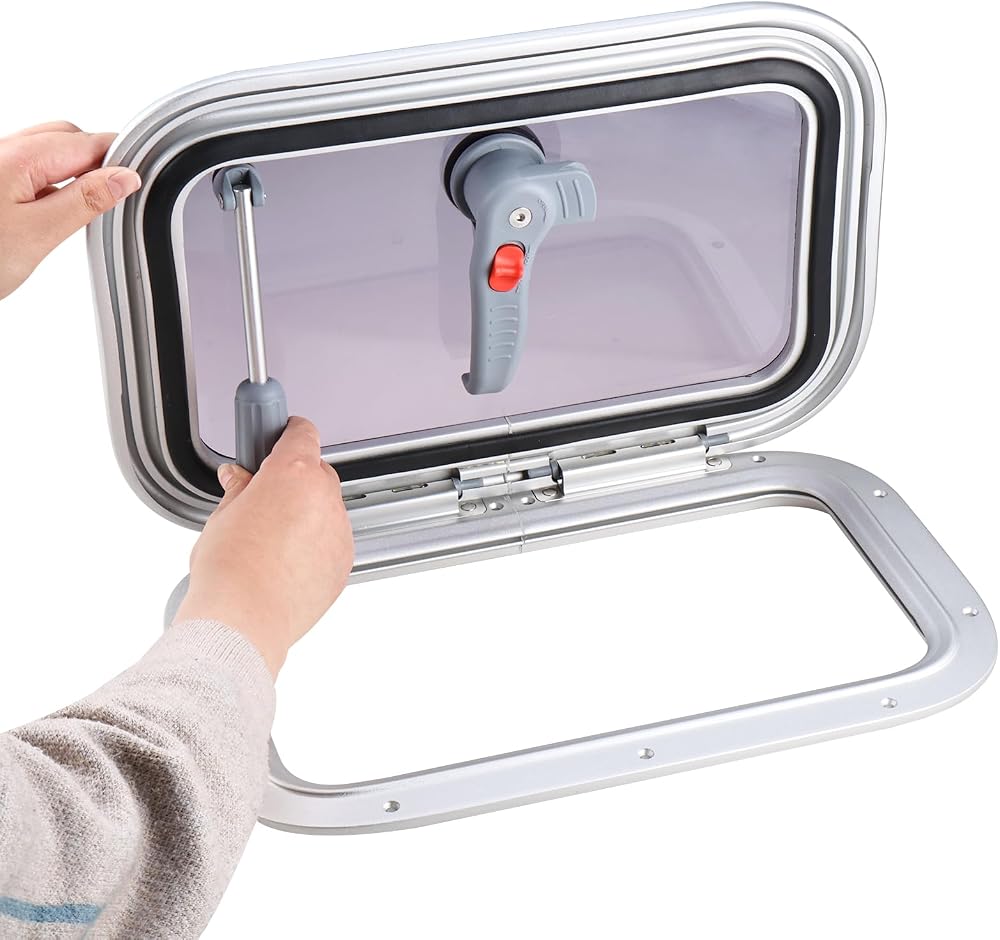

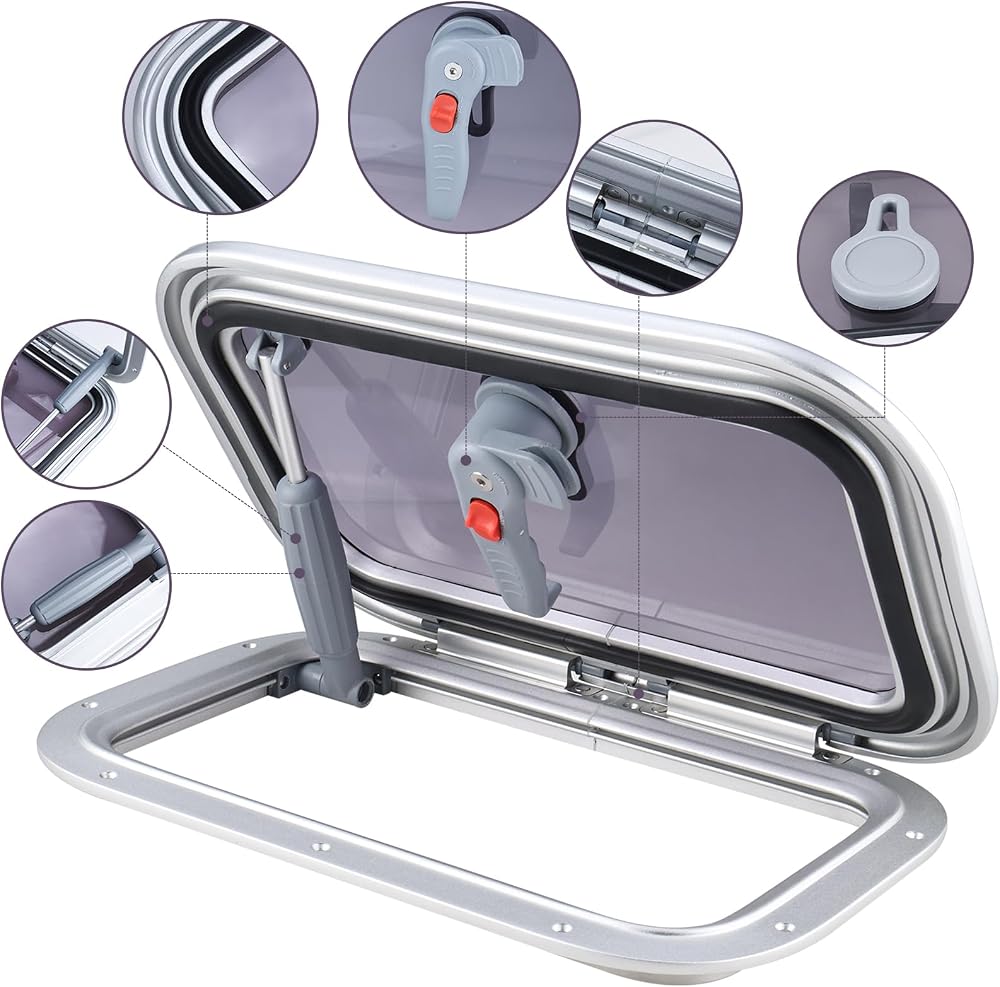

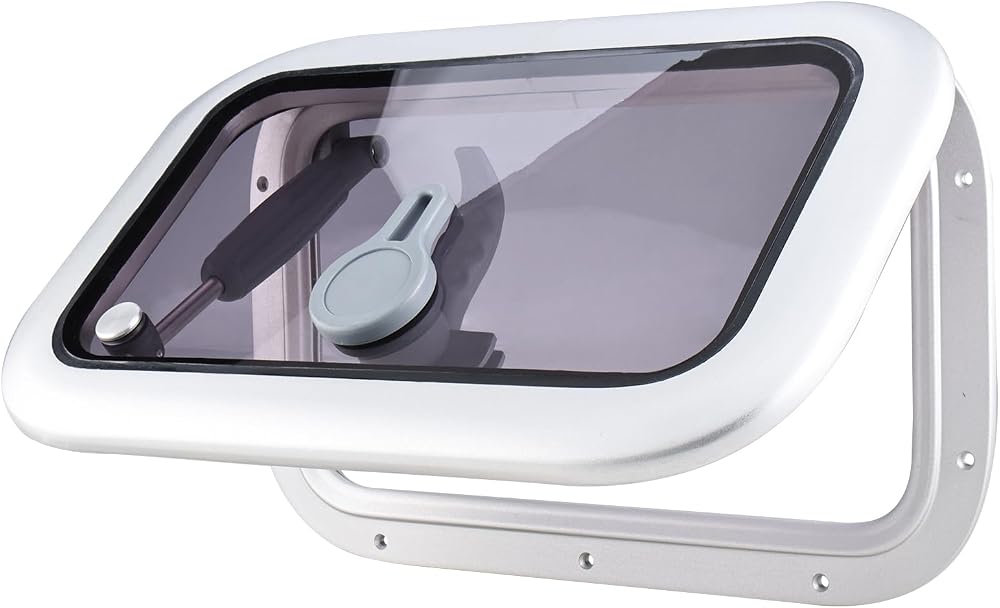

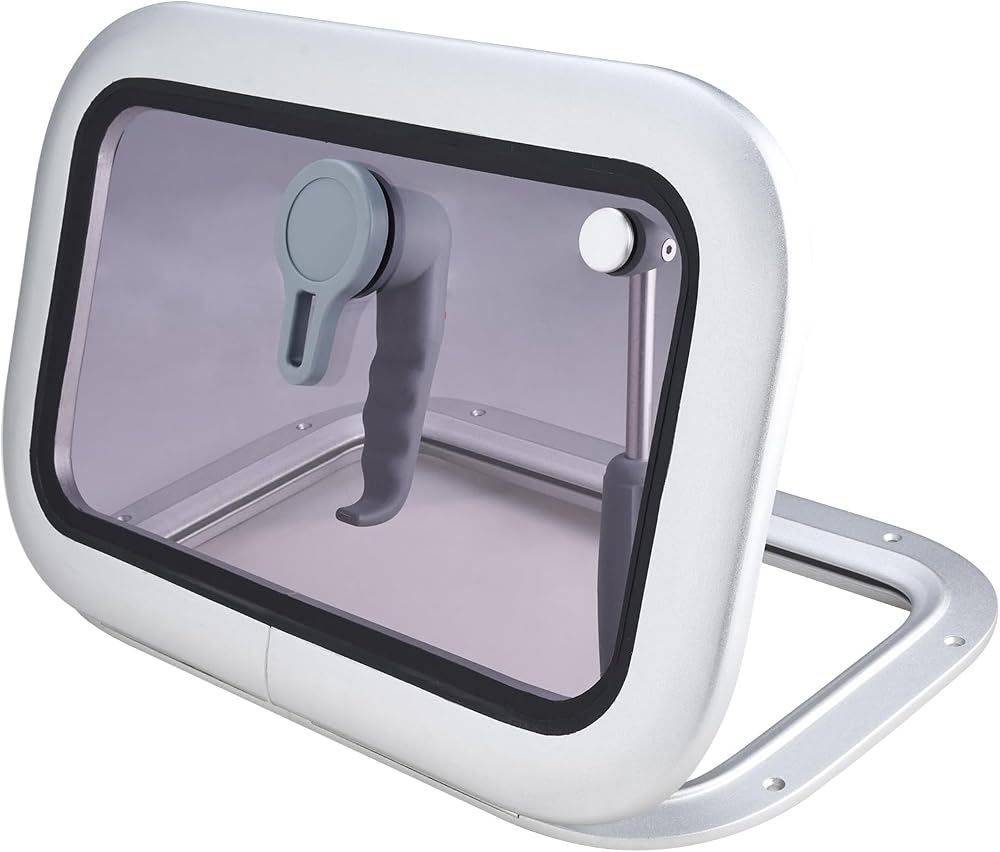

The push out opening mechanism with switch lock handle and fixed support rod allows for the opening range of 0‑90 degrees

Marine hatch window frame is equipped with waterproof rubber gaskets,providing complete sealing and water resistance

Constructed with a strong aluminum alloy frame,boat porthole window is highly durable and resistant to harsh marine and outdoor environments

Versatile application:square hatch window can be used on boats,yachts,ships and RVs

Opening port light window can be used for portholes,sunroofs,ventilation,storage compartments,roofs or any location where a window is needed

Package

1 x Rectangular Deck Hatch

Please notice

1.Please measure the size before purchasing

2.Please allow slightly difference due to manual measurement

3.Installation is slightly difficult,it is recommended to find a professional engineer to assist in the installation
