Ebike Brake Sensor MS-BK-2R for Electric Bicycles Hydraulic Cut Off Power Brake System 3 PIN Waterproof Connector Plug Ebike Kits

Applicable: hydraulic brake sensor is applicable to most types of brakes, disc brakes, V-type brakes, drum brakes, etc.
Material: MS-BK-2R power-off sensor is made of high-quality materials. The magnet is sensitive, not easy to corrode, wear-resistant, and has a long service life

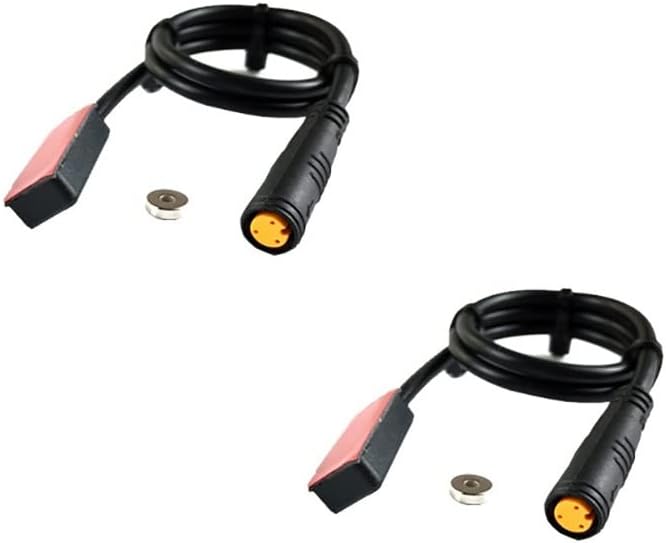

Package: 2 external speed sensors; 2 x adhesive; 2 magnets.

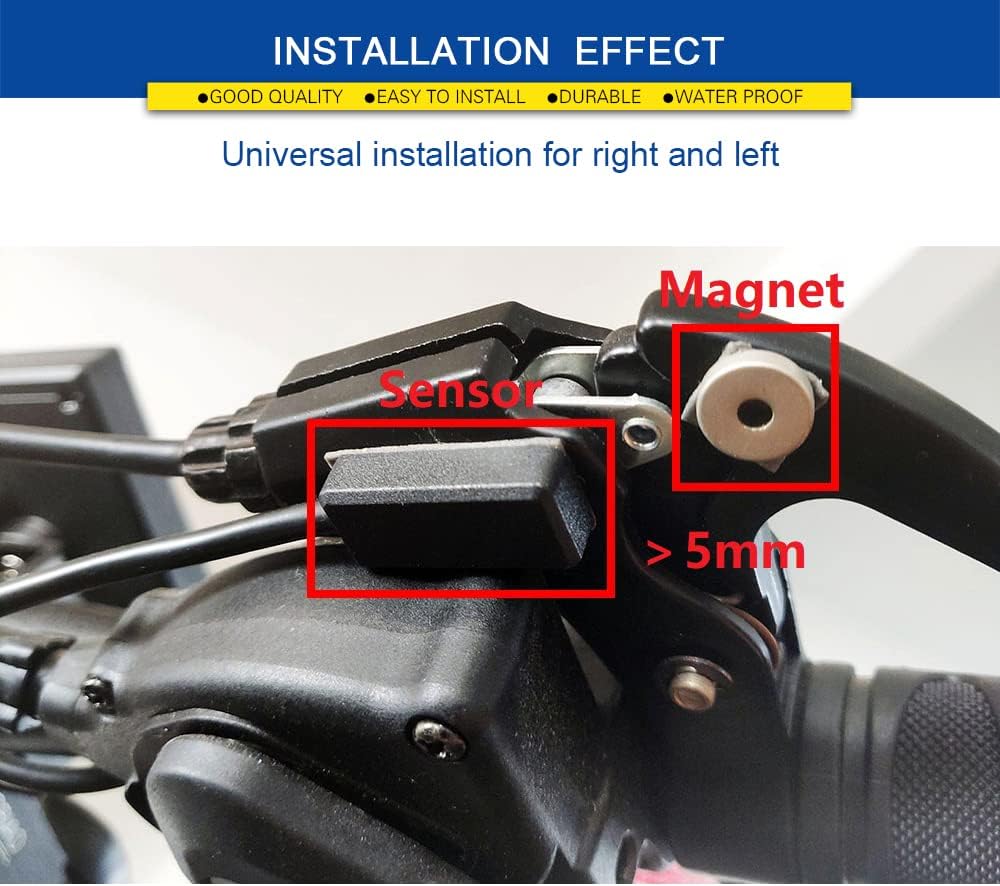

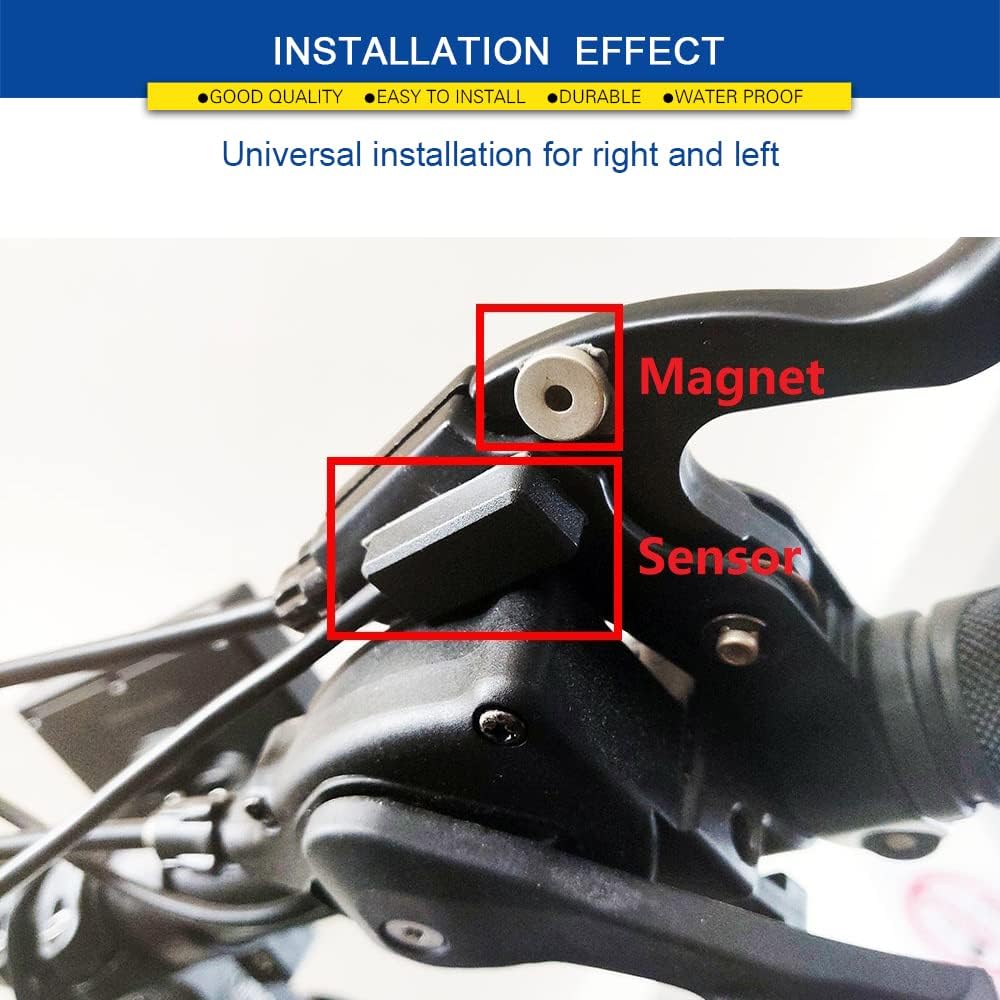

Installation: It is not necessary to remove the original brake, but only to paste the sensor under the brake, which is convenient and simple to operate. When the electric wheel is running, the magnet will work to transmit the signal to the sensor
Connection: WP connector cannot be used directly. You need to connect 1T4/1T5 cable to use

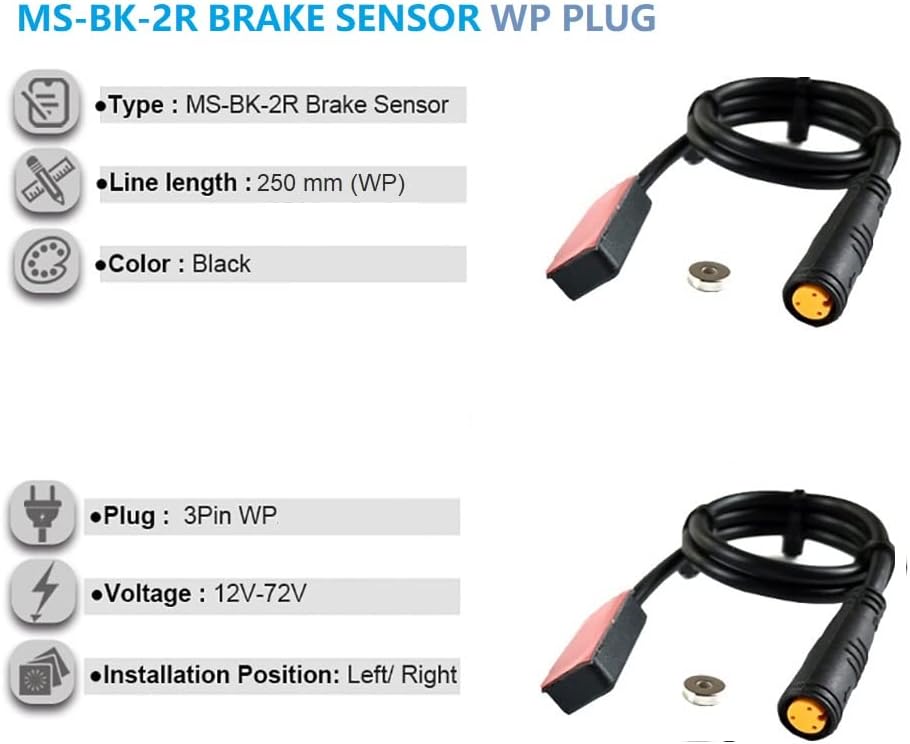

Type : MS-BK-2R Cut Off Power Brake Sensor

Material : Plastic

Installation : Left and Right

Size : L26mm W12mm H6mm (All dimensions are measured manually with deviation ranged at 1-3mm. )

Voltage : 12V 24V 36V 48V 60V 72V

Color : Black

Weight : 30g

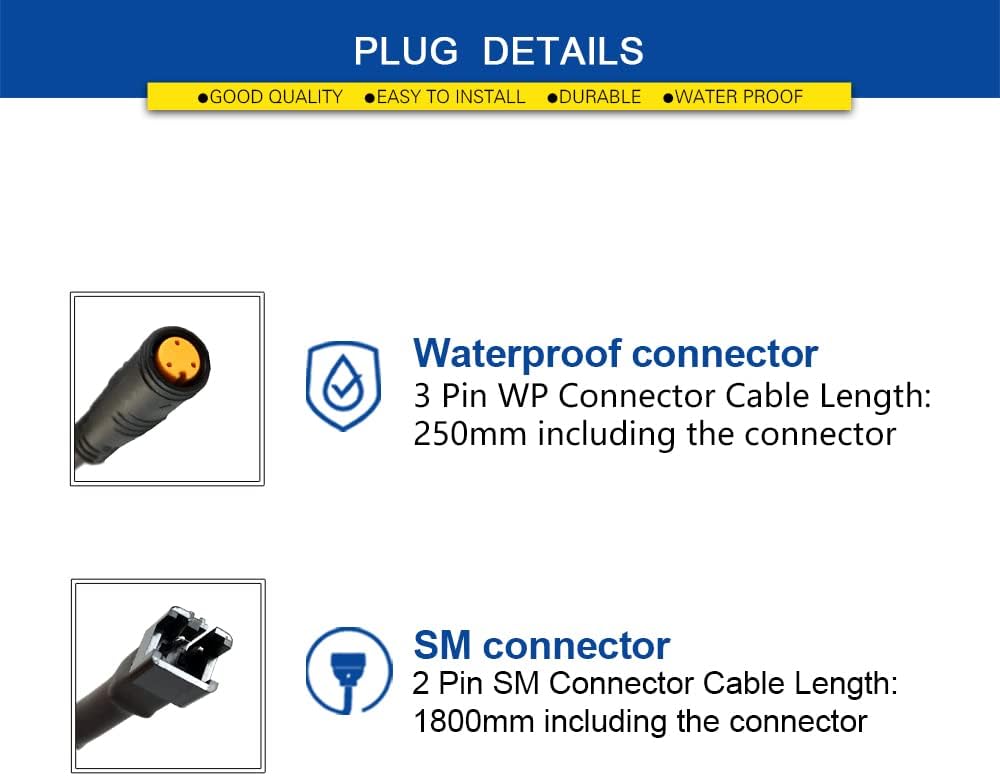

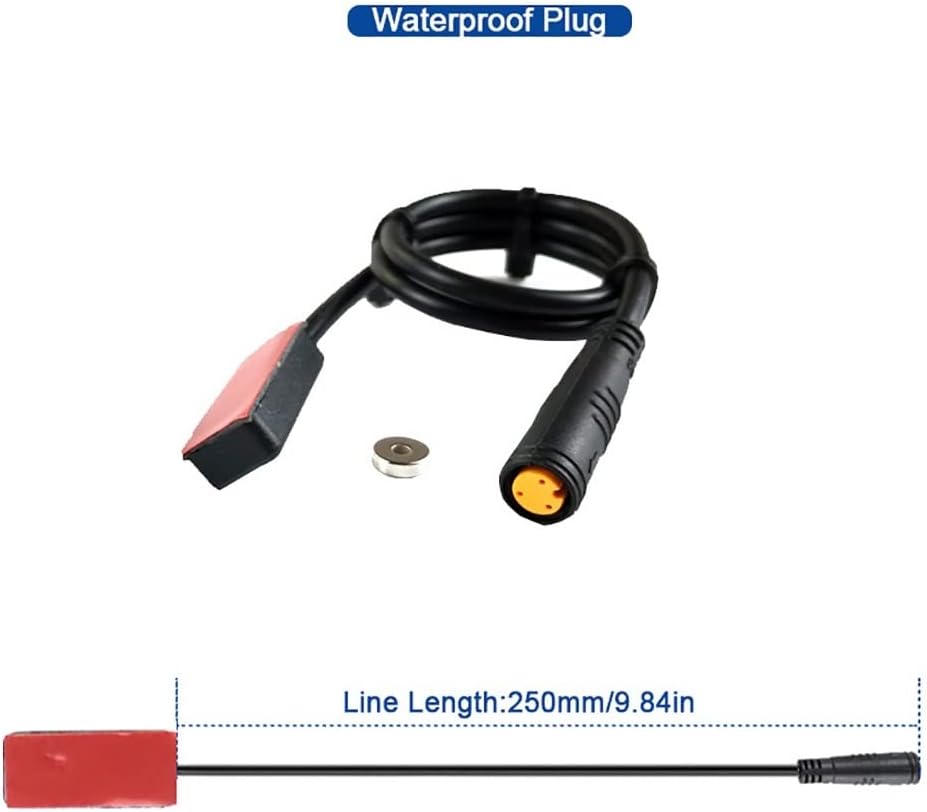

Cable Length : Waterproof 3pin 25cm including the connector

Plug : 3 pin Connector

Waterproof : IP76.
