Signal Generator, 100kHz-150MHZ High Frequency RF/AM Radio Frequency Generator, 110V Signal Generator, Sine Wave & Amplitude-modulated Wave, Accuracy ±5% (TSG-17)
Signal generator offers a frequency range between 100kHz-150MHz with 3 harmonic wave up to 450MHz
Signal generator outputs sine wave and amplitude-modulated wave
Signal generator allows over-modulation settings up to 80% or 100% within a 1kHz internal modulation signal
RF/AM Output: Maximum signal intensity ≥10VP-P
External modulation signal can be set freely between 50Hz to 20 KHz
Signal generator embedded with advanced technologies and premium components for minimum accuracy deviation
Description
TSG-17 Signal Generator is suitable for high-frequency RF/AM signal generation with precise accuracy and flexibility in modulation settings.

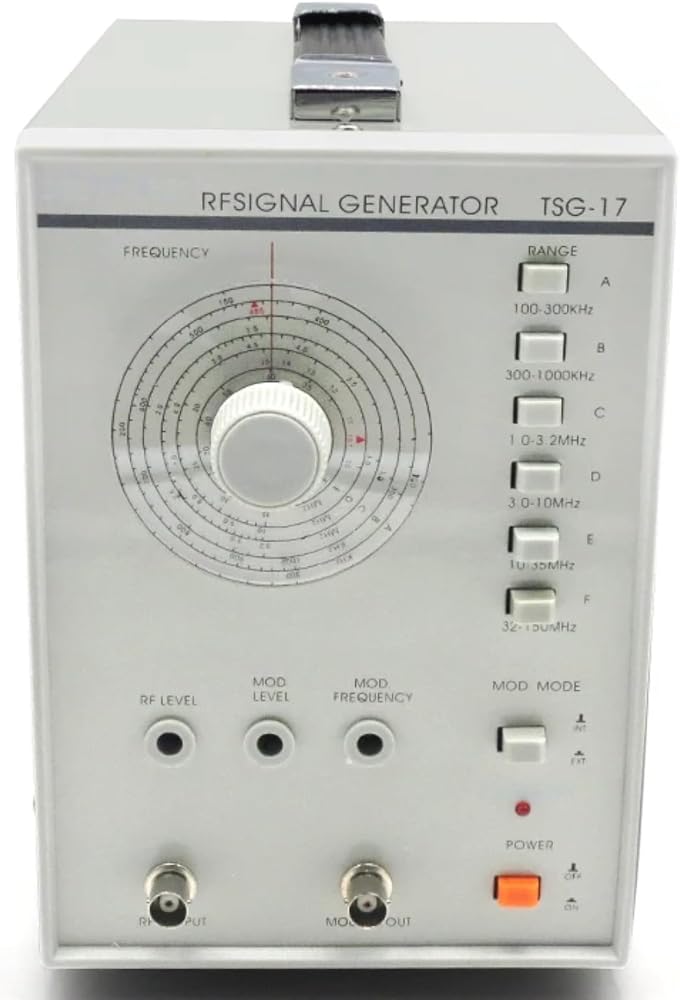

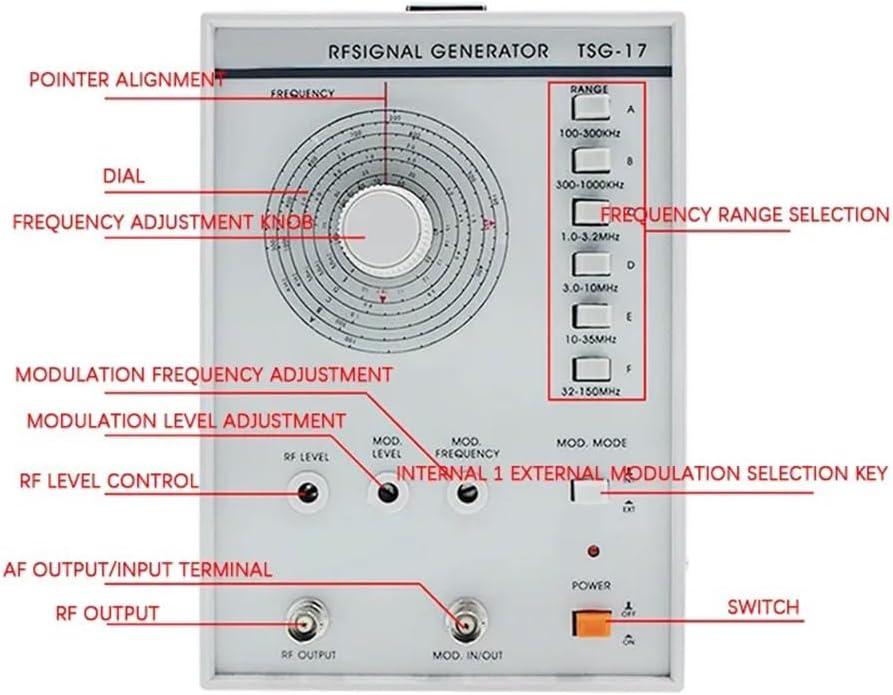

Frequency Band
A: 100KHz-300KHz
B: 300KHz-1MHz
C: 1MHZ-3.2MHz
D: 3MHz-10MHz
E: 10MHz-35MHz
F: 32MHz-150MHz
SPECIFICATION
Model: TSG-17

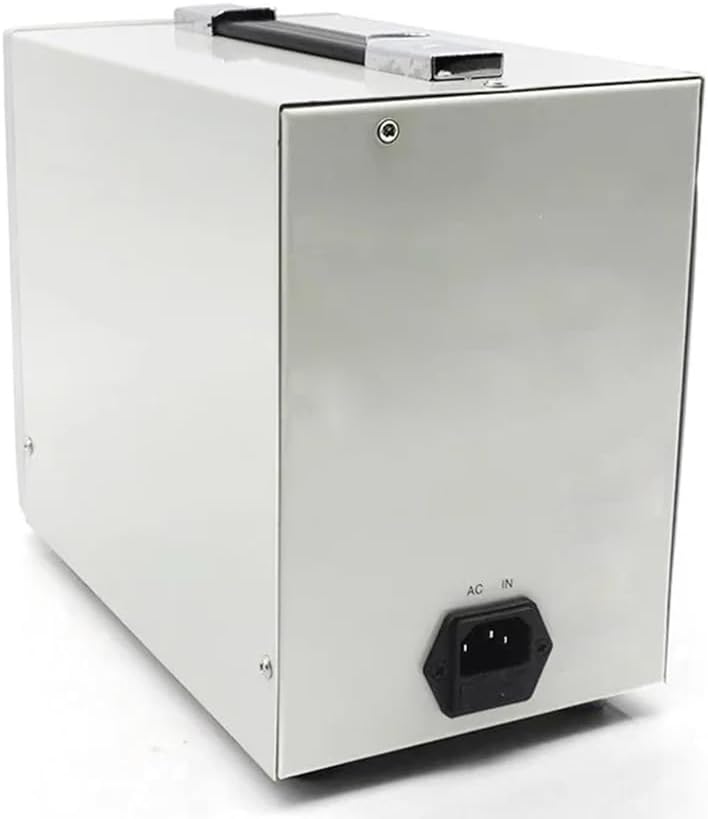

Voltage: AC 110V
Frequency range: 100 KHz to 150MHz
Frequency accuracy: ±5%
Output waveform: RF/AM signal waveform
Output impedance: 600Ω
Radio frequency output: Over 100Mv rms (when frequency ≤ 35MHz)
Level control: 1mV to100mV
External modulation: 150Hz to 1.5 KHz. Amplitude from 0 to 30% adjustable.
Norml operation: 50Hz to 20 KHz

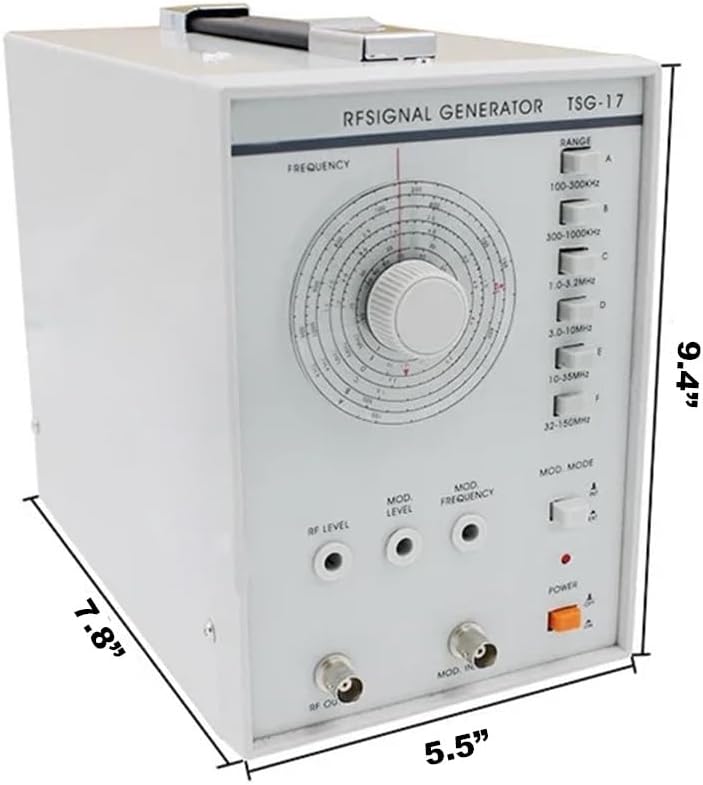

Dimensions: 5.5x7.8x9.4in
Weight: 5.5 lb.

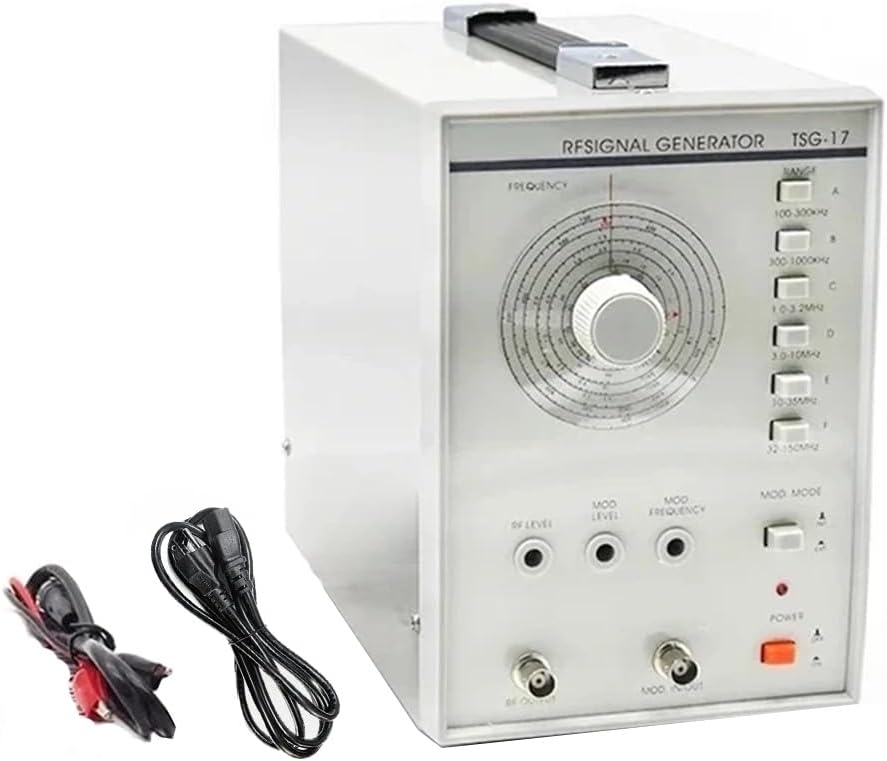

PACKAGE
1 x 110V Signal Generator
1 x Power Cord
1 x Clip Cable
1 x Instructions
