Specification:

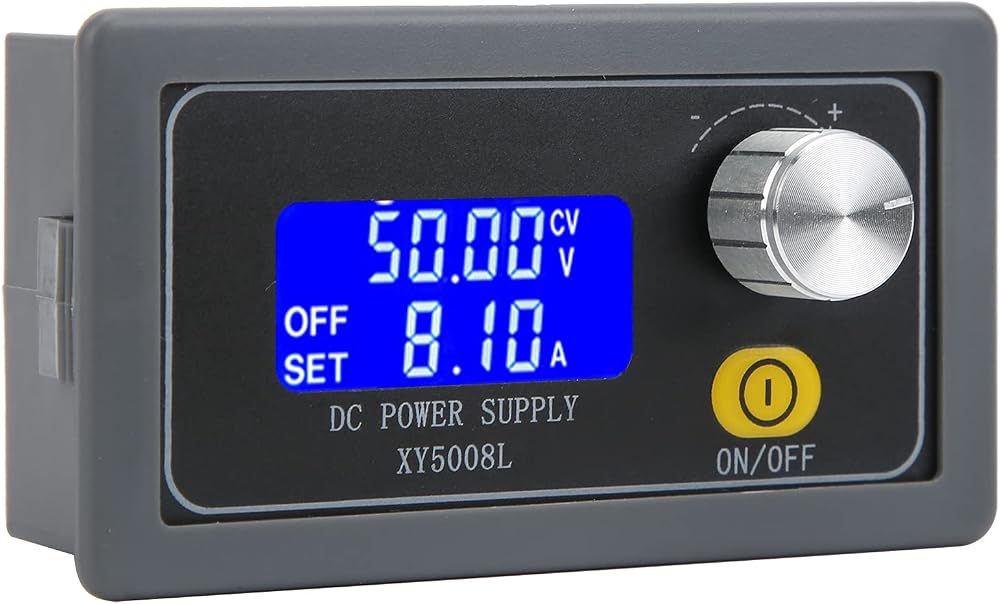

Item Type: DC Power Supply
Model: XY5008L
Material: Plastic
Purpose: Display power supply voltage rise and fall
Input Voltage: DC6.0-55V (extreme low voltage 5.5V, extreme high voltage 60V)
Output Voltage: DC0V-50V
Output Current: 0A-8.1A
Output Power: 0-400W
Typical Output Ripple: Vpp-150mv
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Voltage Accuracy: ±0.4%+1 digits
Current Accuracy: +0.5%+3 digits
Capacity: 0-999999AH
Energy: 0-999999WH
Time: 0-1000 hours

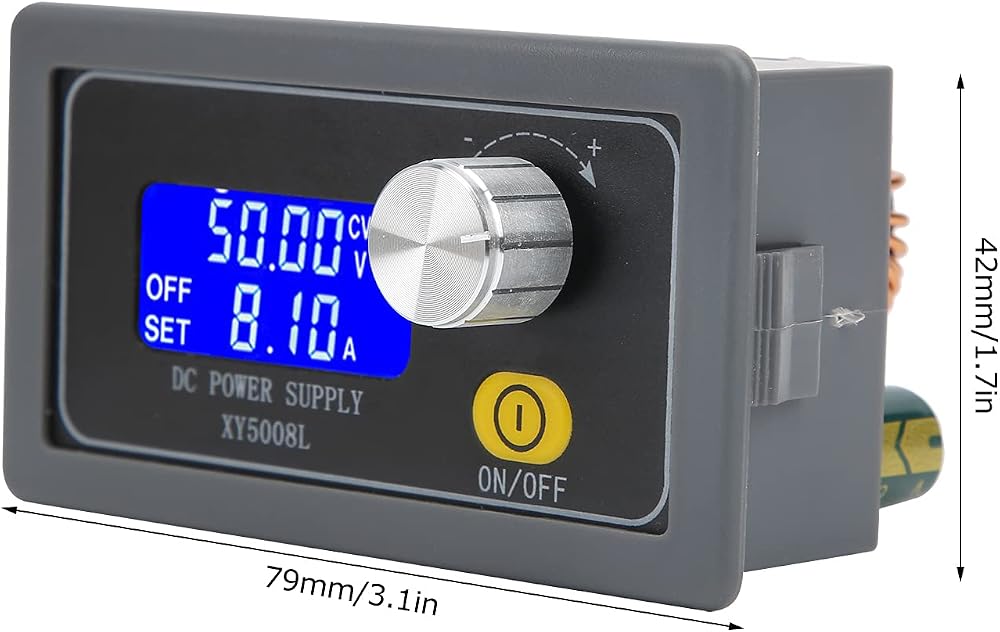

Product Size: Approx. 79 x 42mm / 3.1 x 1.7in

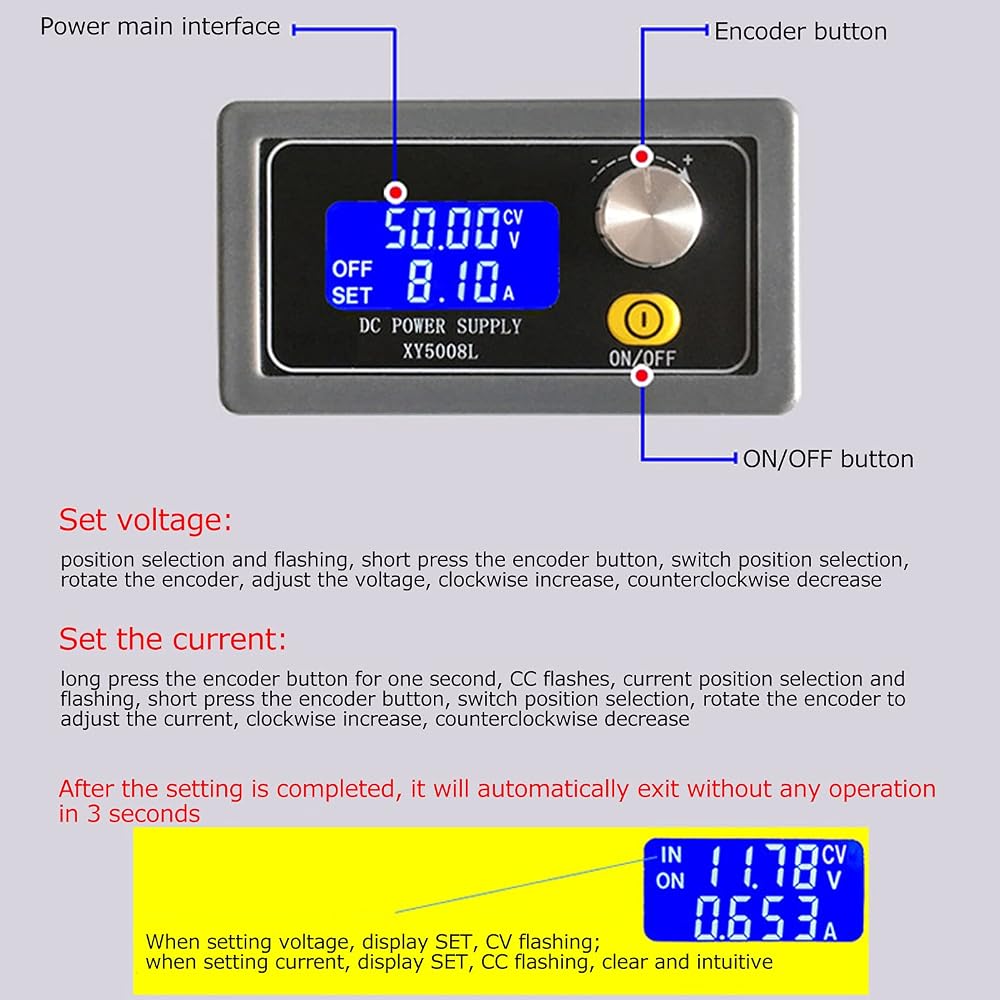

Setting Interface(how to use):
1. Long press the rotary encoder button for 3 seconds to enter the setting interface
2. Adjust the size of the parameter through the rotary encoder potentiometer, support rapid rotation (rapid increase/decrease), short press the rotary potentiometer button to switch the parameter to be adjusted
3. In the maximum capacity (OAH) / maximum energy (OPH) / maximum operating time (OHP) interface, short press the "ON/OFF" button to select the corresponding function on or off, if it is off, it will display "----"
4. In the maximum capacity (OAH)/maximum energy (OPH) parameter interface, long press the "ON/OFF" button to select the capacity range (9.999Ah/99.99Ah /.9Ah/9999Ah, 9.999Wh/99.99Wh /.9Wh/9999Wh )
5. After setting the parameters, press and hold the encoder potentiometer button for 3 seconds to exit the setting interface, and the setting parameters are automatically saved

Package List:
1 x DC Power Supply
