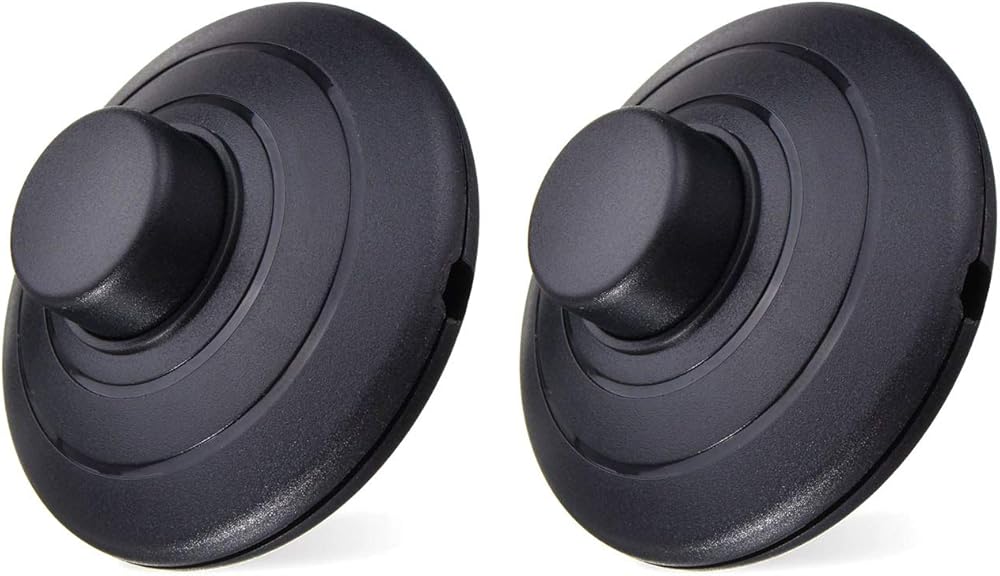

Type: Foot Pedal Push Switch
Model: 317
Rating: 2A 250V, 3A 125V
Contact Resistance: Max 20m Ohm
Insulation Resistance: Min 100m Ohm/min
Withstand Voltage Strength: 2500V AC/min
Temperature Range: -40 to +85 degree
Life Span: Min 10000 times
Material: Plastic
Color: Black
Shape: Round
Switch Action: Maintained (Push On/Push Off, Stay Switched)
Fit for table lamp, floor lamp, DIY lamp switch wire line.

Made of high quality plastic housing, ensuring high reliability, push button switch can be operated by foot or hand, simple design, easy and durable to use.

This feed-through Lamp In-line Switch is used to replace an old broken switch or add a switch to a light or appliance that did not have one before.

Be widely used as the power switches of various lighting apparatus, electrical appliances and transformers with power line, light-duty industrial, medical, office, and many other applications.

Installation: Cut off fire wire, and install the both ends to the switch.

Tip: Be sure that you only use this with devices that are within the power rating.

Package included:
2x Foot Pedal Push Switch
