57 Nema 23 Stepper Motor Standard 2000steps/rev High Torque 3000mNm/424.83oz.in 100MM Bipolar 4.2A-3.78V 1.8 Deg 2 Phase 4 Lead for 3D Printer CNC Milling Engraving Machine, 2.25x2.25x3.94in in Saudi Arabia 57 Nema 23 Stepper Motor Standard 2000steps/rev High Torque 3000mNm/424.83oz.in 100MM Bipolar 4.2A-3.78V 1.8 Deg 2 Phase 4 Lead for 3D Printer CNC Milling Engraving Machine, 2.25x2.25x3.94in in Saudi Arabia 57 Nema 23 Stepper Motor Standard 2000steps/rev High Torque 3000mNm/424.83oz.in 100MM Bipolar 4.2A-3.78V 1.8 Deg 2 Phase 4 Lead for 3D Printer CNC Milling Engraving Machine, 2.25x2.25x3.94in in Saudi Arabia 57 Nema 23 Stepper Motor Standard 2000steps/rev High Torque 3000mNm/424.83oz.in 100MM Bipolar 4.2A-3.78V 1.8 Deg 2 Phase 4 Lead for 3D Printer CNC Milling Engraving Machine, 2.25x2.25x3.94in in Saudi Arabia 57 Nema 23 Stepper Motor Standard 2000steps/rev High Torque 3000mNm/424.83oz.in 100MM Bipolar 4.2A-3.78V 1.8 Deg 2 Phase 4 Lead for 3D Printer CNC Milling Engraving Machine, 2.25x2.25x3.94in in Saudi Arabia 57 Nema 23 Stepper Motor Standard 2000steps/rev High Torque 3000mNm/424.83oz.in 100MM Bipolar 4.2A-3.78V 1.8 Deg 2 Phase 4 Lead for 3D Printer CNC Milling Engraving Machine, 2.25x2.25x3.94in in Saudi Arabia

57x55 Nema 23 Stepper Motor 3PCS 1350mNm/191.17oz.in 55MM Bipolar 4.2A 1.8 Deg High Torque2 Phase 4 Lead Step Motor for Automation/3D Printer/CNC Milling Engraving Machine - Used

SAR 274
Size2.25x2.25x2.17 inch
Number of Items3
– 1 +

Special Features

  • [Specifications]: Weight: 1.5kg; Rotor Inertia: 885g.cm²; Holding Torque: 3000mNm (424.83oz.in); Phase Inductance: 2.6mH; Phase Resistance: 0.9Ω; Rated Current: 4.2A; Phase: 2; Step Angle: 1.8 degree; Body Length: 100MM / 3.94in.

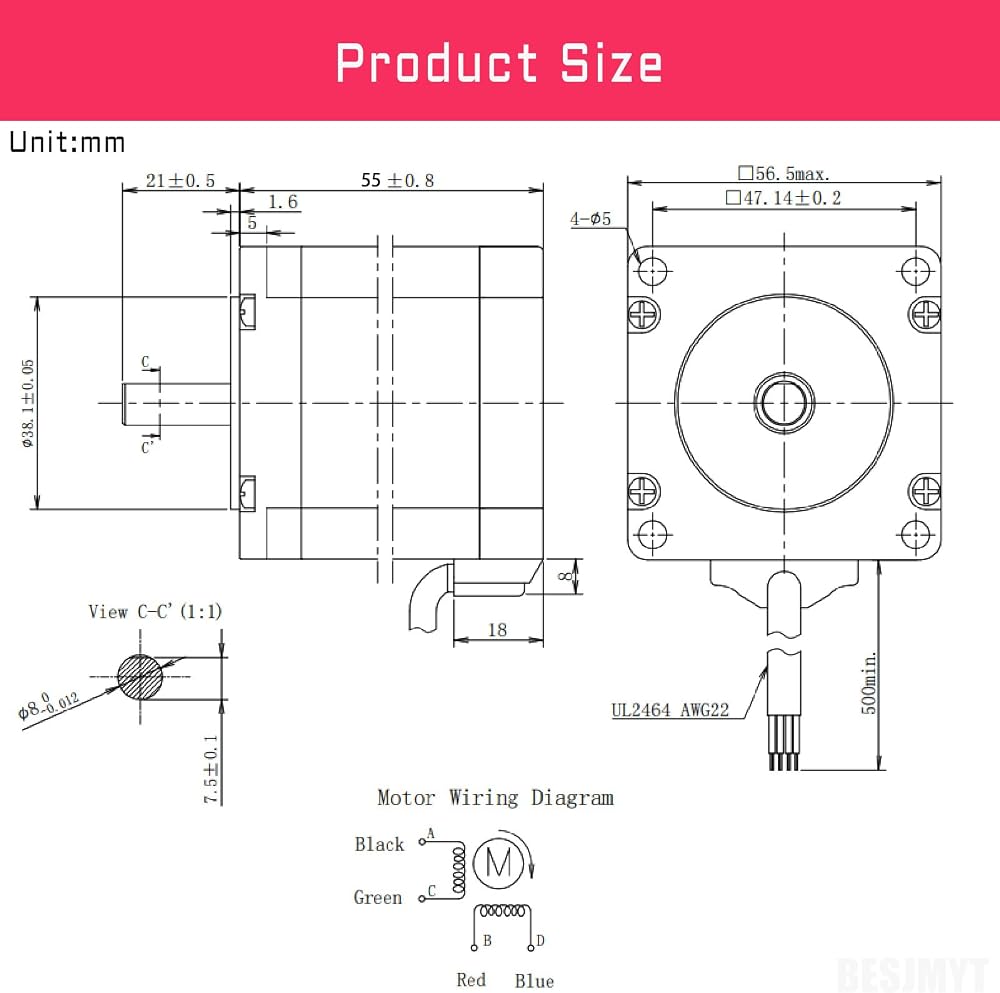

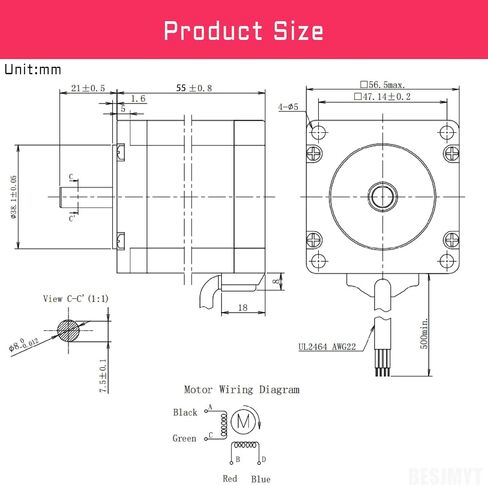

  • [Dimension]: Nema 23 Bipolar Stepper Motor: Shaft Length: 21mm, 57x57x100MM / 2.25x2.25x3.94in, Shaft Diameter: Φ 8mm ( D Shaft Φ 7.5mm ), 2 phase, 4 wires: Red (B), Black (A), Green (C),Blue (D).
  • [High Accuracy]: The NEMA 23 stepper motor offers precise position control and repeatability, ensuring accurate performance for a variety of motion tasks within the system.

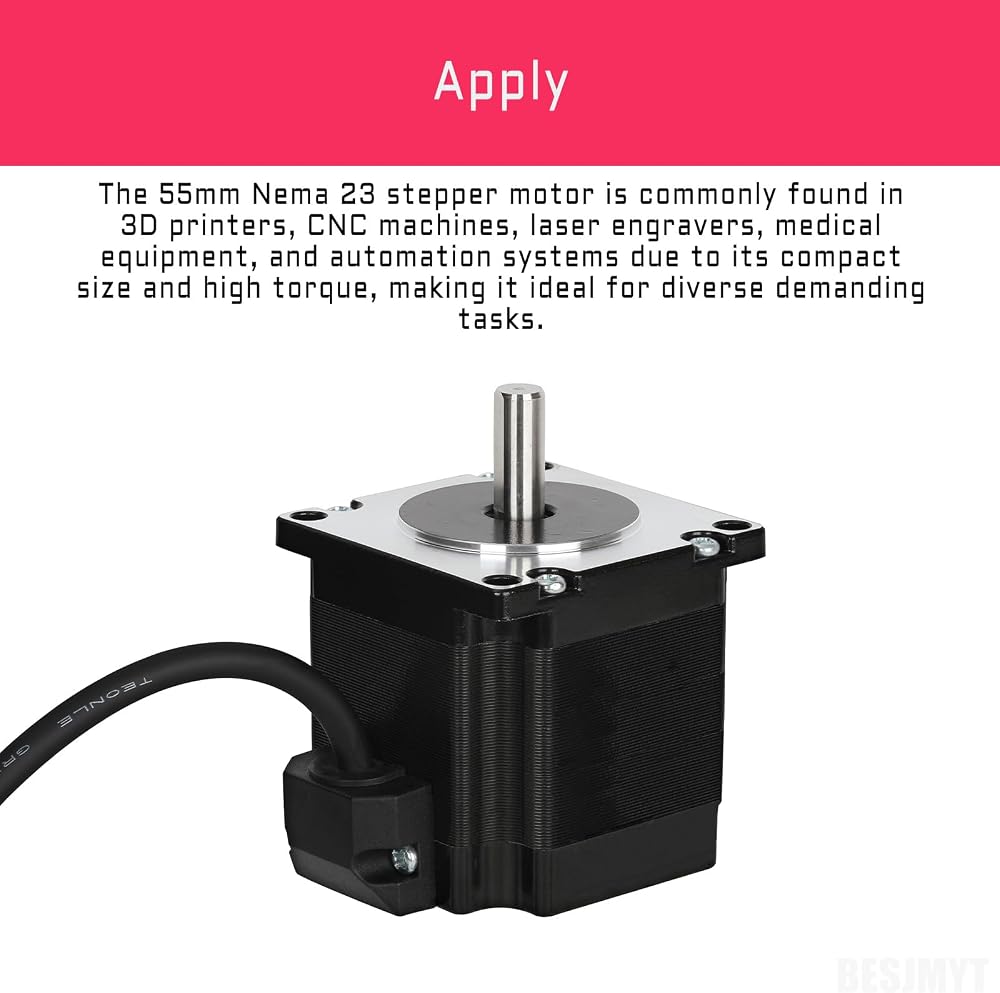

  • [Function]: Its compact size and high torque make it suitable for various applications.The 57x100 stepper motor is widely used in medical equipment, CNC machines, 3D printers, laser engraving, and other automation systems.
  • [Packing Content]: Include a 100MM Nema 23 stepper motor with black cable. Feel free to reach out for English translation assistance if you have any questions or uncertainties.
