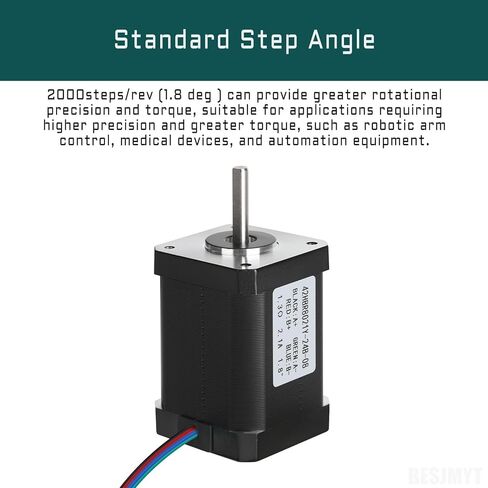

Nema 17 Stepper Motor 190mNm High Torque 1.8 Deg Standard Step Angle 1A/3.7V 22.5mm(0.89inch) Bipolar 2 Phase 4 Lead Low Noise for CNC Engraving Machine and Precise 3D Printing in Saudi Arabia Nema 17 Stepper Motor 190mNm High Torque 1.8 Deg Standard Step Angle 1A/3.7V 22.5mm(0.89inch) Bipolar 2 Phase 4 Lead Low Noise for CNC Engraving Machine and Precise 3D Printing in Saudi Arabia Nema 17 Stepper Motor 190mNm High Torque 1.8 Deg Standard Step Angle 1A/3.7V 22.5mm(0.89inch) Bipolar 2 Phase 4 Lead Low Noise for CNC Engraving Machine and Precise 3D Printing in Saudi Arabia Nema 17 Stepper Motor 190mNm High Torque 1.8 Deg Standard Step Angle 1A/3.7V 22.5mm(0.89inch) Bipolar 2 Phase 4 Lead Low Noise for CNC Engraving Machine and Precise 3D Printing in Saudi Arabia Nema 17 Stepper Motor 190mNm High Torque 1.8 Deg Standard Step Angle 1A/3.7V 22.5mm(0.89inch) Bipolar 2 Phase 4 Lead Low Noise for CNC Engraving Machine and Precise 3D Printing in Saudi Arabia Nema 17 Stepper Motor 190mNm High Torque 1.8 Deg Standard Step Angle 1A/3.7V 22.5mm(0.89inch) Bipolar 2 Phase 4 Lead Low Noise for CNC Engraving Machine and Precise 3D Printing in Saudi Arabia

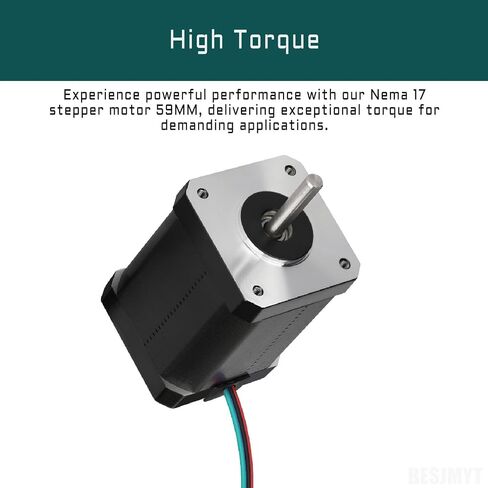

Nema 17 Stepper Motor Bipolar 1.8 Deg Standard Step Angle 760mNm(107.62oz.in) High Torque 59MM 2.1A 42 Motors 2 Phase 4 Lead for 3D Printer CNC Industrial Machine, 1.66x1.66x2.33inch

SAR 371
Size1.66x1.66x2.33 inch
Number of Items5
– 1 +

Special Features

  • [Argument]: Holding Togque: 190mNm (26.90oz.in); Rotor Inertia: 16.5g.cm²; Body Length: 22.5MM / 0.89inch; Rated Current: 1A; Step Angle: 1.8 degree; Phase: 2; Phase Resistance: 3.7Ω±10%Ω; Phase Inductance:4.3mH±20%; Weight: 0.14kg.

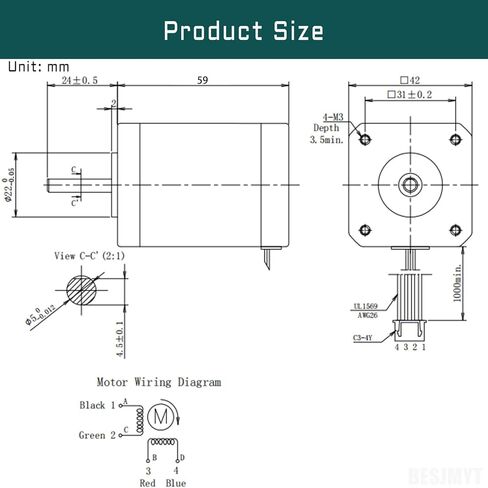

  • [Size]: Nema 17 Bipolar Stepper Motor: Shaft Diameter: Φ 5mm ( D Shaft Φ 4.5mm ), Shaft Length: 24±0.5mm, 42x42x22.5MM / 1.66x1.66x 0.89inch, 2 phase, 4 wires: Black (A+), Green (A-), Red (B+), Blue (B-).
  • [Low Power Consumption]: At rest or at low speed, the power consumption of the stepper motor is relatively low, which helps to save energy and reduce emissions.
  • [Easy Maintenance]: The stepper motor is usually easy to disassemble and assemble, the parts are easy to replace, and the maintenance cost is low.
  • [Reversibility]: The direction of rotation of the stepper motor can be reversed by changing the order or polarity of the control signal, which has strong flexibility.
