صندوق سيجار كهربائي بسلك واحد مكون من 4 خيوط مسبقًا، مع أوعية ومقابض ذات نغمة كبيرة، أسود in Saudi Arabia صندوق سيجار كهربائي بسلك واحد مكون من 4 خيوط مسبقًا، مع أوعية ومقابض ذات نغمة كبيرة، أسود in Saudi Arabia صندوق سيجار كهربائي بسلك واحد مكون من 4 خيوط مسبقًا، مع أوعية ومقابض ذات نغمة كبيرة، أسود in Saudi Arabia صندوق سيجار كهربائي بسلك واحد مكون من 4 خيوط مسبقًا، مع أوعية ومقابض ذات نغمة كبيرة، أسود in Saudi Arabia

صندوق سيجار كهربائي بسلك واحد مكون من 4 خيوط مسبقًا، مع أوعية ومقابض ذات نغمة كبيرة، أسود

SAR 75
– 1 +

مميزات خاصة

  • PACKAGE - 1 Set x Pre-Wired 4-String Single Coil Pickup Harness.
  • STANDARD - Pickup Cover Pole Spacing: 30mm, Each Hole Diastance: 10mm.
  • APPLICATION - Suitable for 4-string instruments, ready to mount in your cigar box guitar or other stringed instrument without any need to solder or worry about wiring schematics.
  • FEATURE - This harness features a special single coil pickup with a flanged black plastic base plate that makes it easy to surface mount on your build (you will still need to cut a hole in the surface to accommodate the bottom of the pickup).
  • DIFFERENCE NOTICE - Please allow 1-3mm measurement difference due to manual measurement and a certain degree of color difference caused by camera lenses, different phone screens, and different monitors.

وصف

Features:

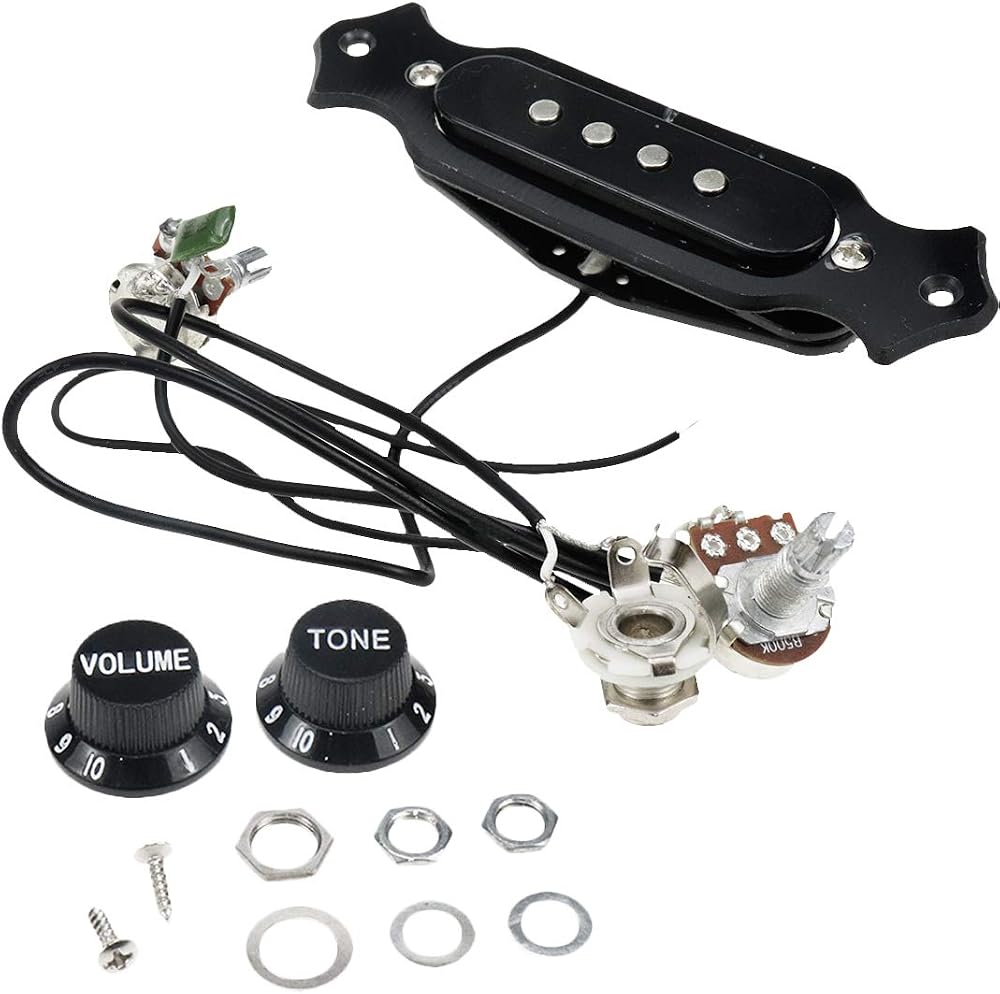

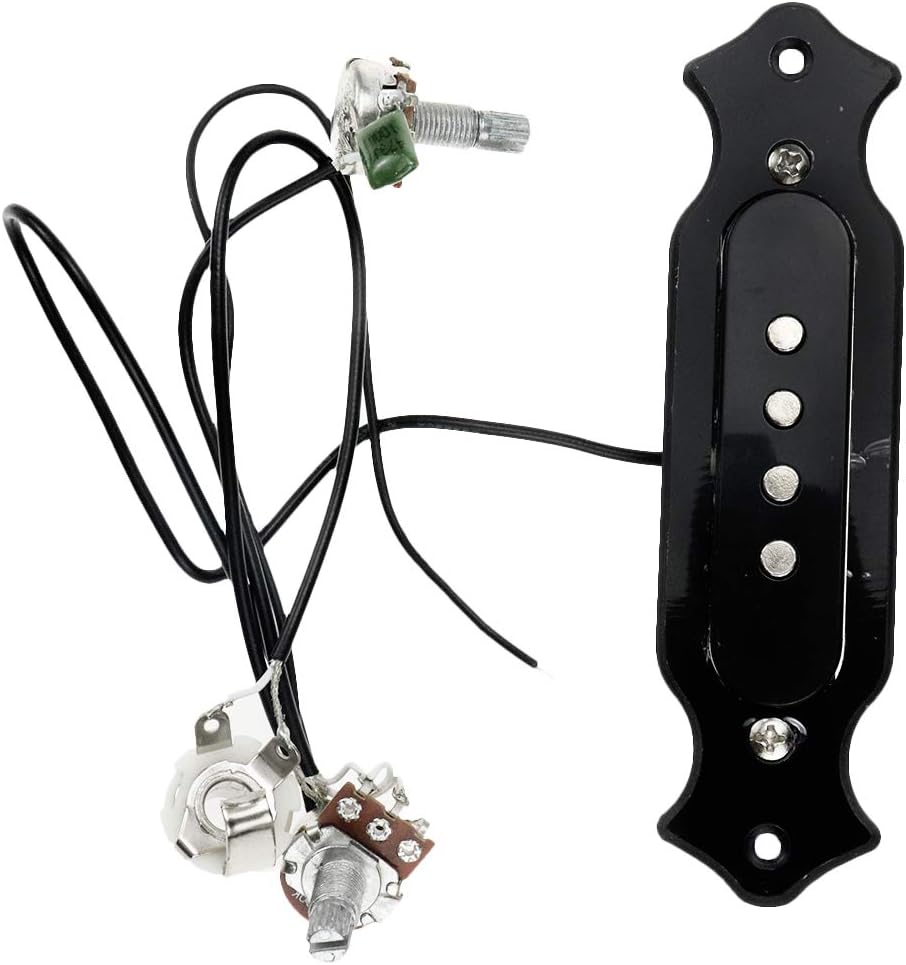

1. All-in-one pre-wired electric guitar pickup harness for 4-string instruments.

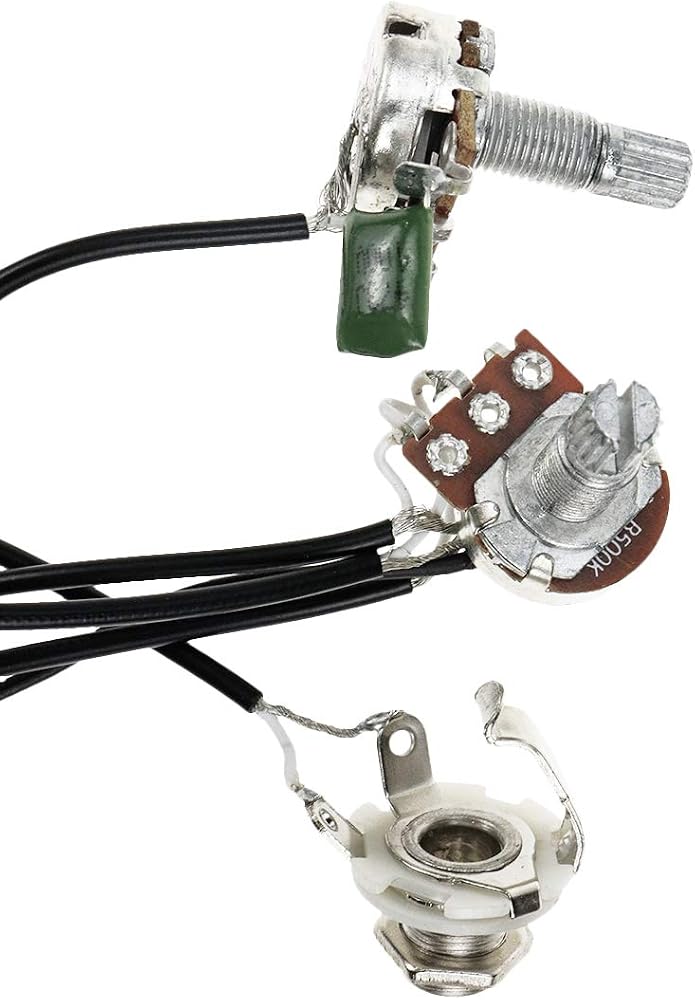

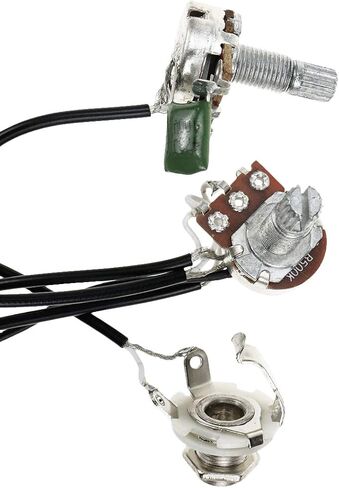

2. The pickup is wired to 500KOhm mini tone (with capacitor) and volume pots, and from there to the mono output jack.

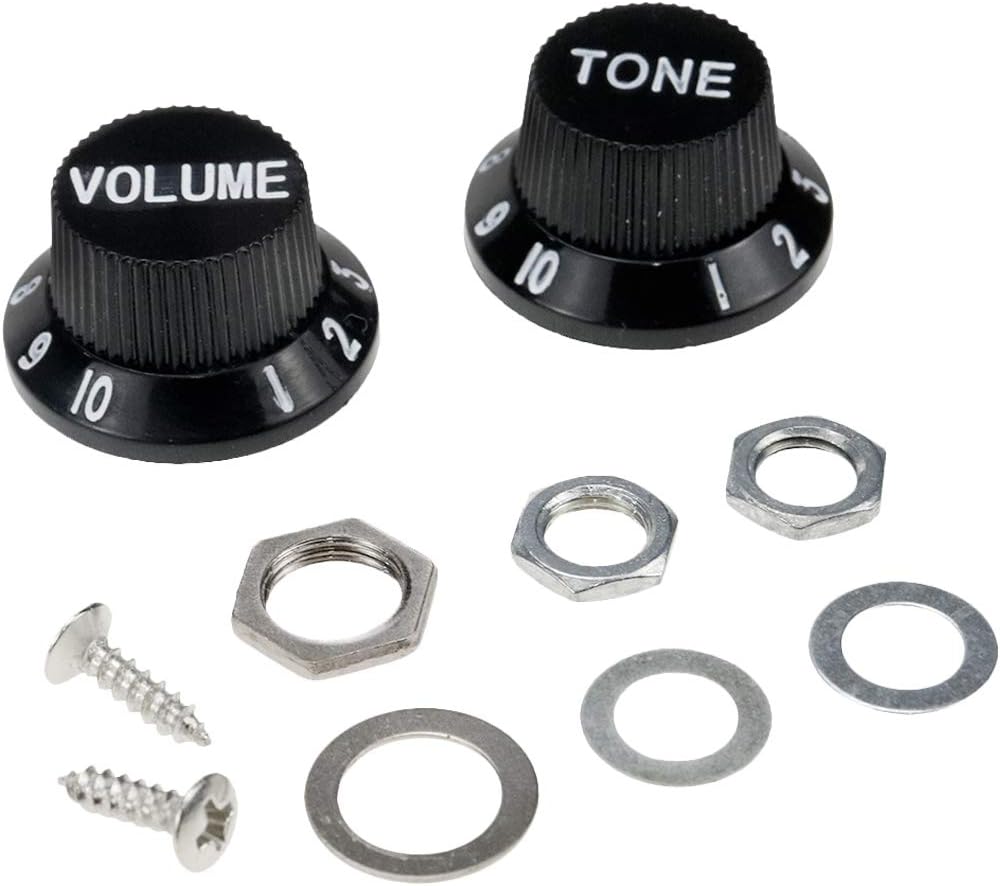

3. Black plastic Tone and Volume knobs are included along with mounting hardware for good measure.
4. Please note that the pickup itself is actually a modified 6-pole pickup, with a 4-pole cover and special magnet arrangement to "hide" two of the poles.
5. There is a protective film on the surface of the product, you can just torn off during installation.

Specifications:
Standard: 4-String
Capacitor Load: 500K Ohm
Capacitor Shaft Dia: 6mm
Knob Inner Dia: 6mm
Knob Dimension: 17.5x25.7x13.2mm/0.69"x1.0"x0.52(Top*Bottom*H)
Total Pole Distance: 30mm
Mounting Flange Size: 122x32mm/4.8"x1.26"(L*W)
