Product Description
Feature:
1.Small size, engineers can carry it with them, support Micro Android interface power supply

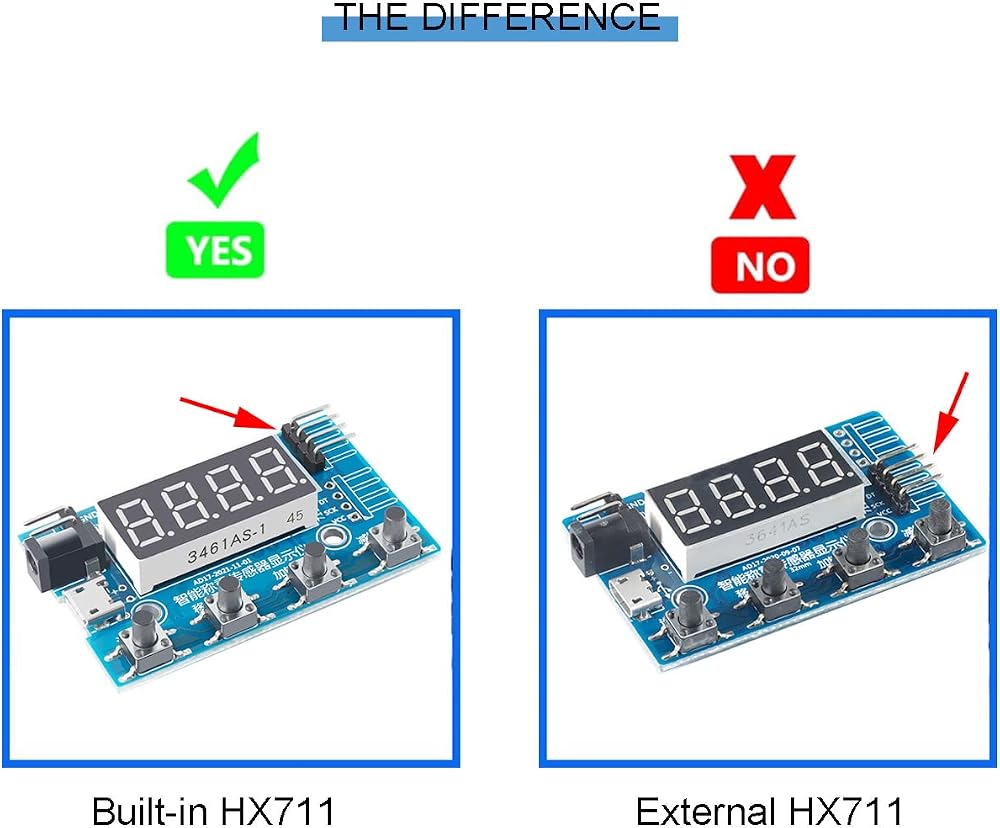

2.HX711 chip can be built on-site for easy debugging
3.Send data regularly or when weight changes
4.Measurement signal range: ± 19mV
5.Temperature coefficient: greater than or equal to 100ppm / ℃
6.A / D conversion rate: 6.25 ～ 100Hz
7.Comprehensive protection function: with multiple protections such as anti-reverse connection, anti-overvoltage, instantaneous suppression, etc.
8.Operating temperature range: -40 ℃ ～ + 70 ℃; Storage temperature range: -60 ℃ ～ + 90 ℃

Function Description:
1.Analog-to-digital conversion, digital calibration, peeling, zero setting, anti-shake and other functions
2.Strong anti-interference ability, strong versatility, small temperature drift, high linearity
3.Non-volatile storage of characteristic parameters, parameters are still saved after power off;
4.Display: 4 digital tubes (decimal point can be set, automatic displacement)

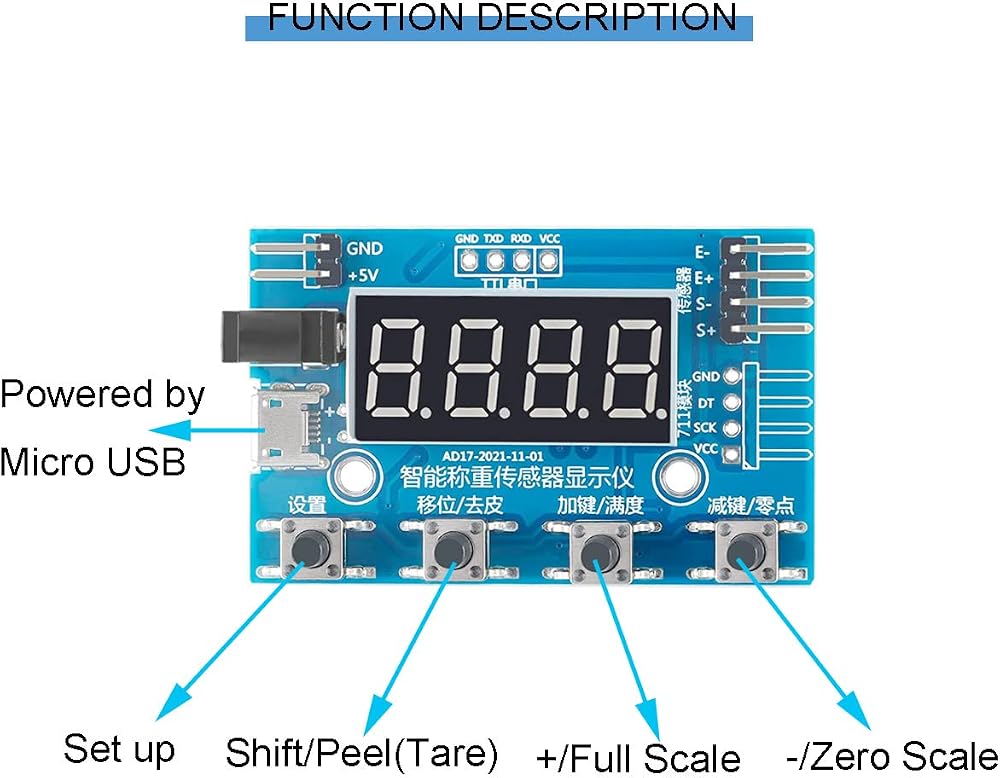

5.Keyboard: 4 keys
6.Power supply: 5VDC, all copper high-resistant socket 3.5-1.3, power line power supply DC3.5mm

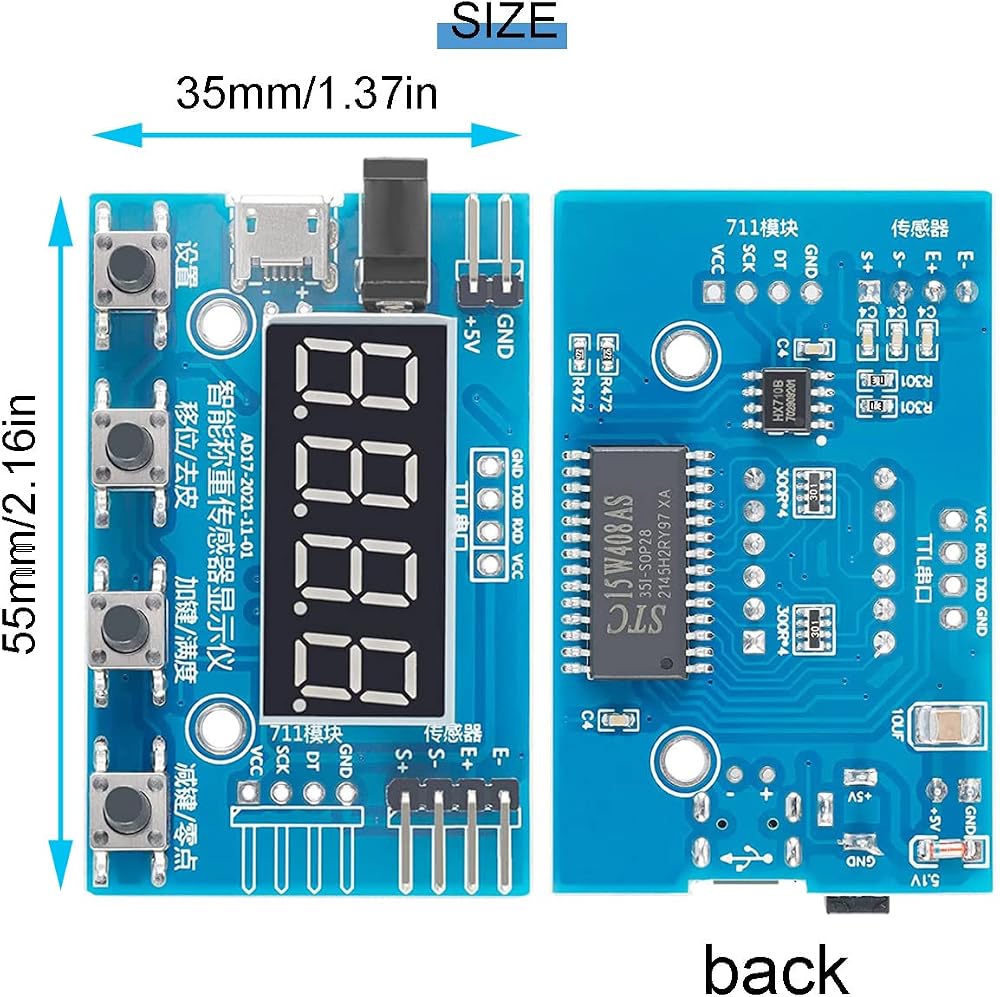

7.Size: 55 × 35 × 12 (length × width × depth mm)
8.A / D module acquisition speed: 0-100 times / second optional (default 30)

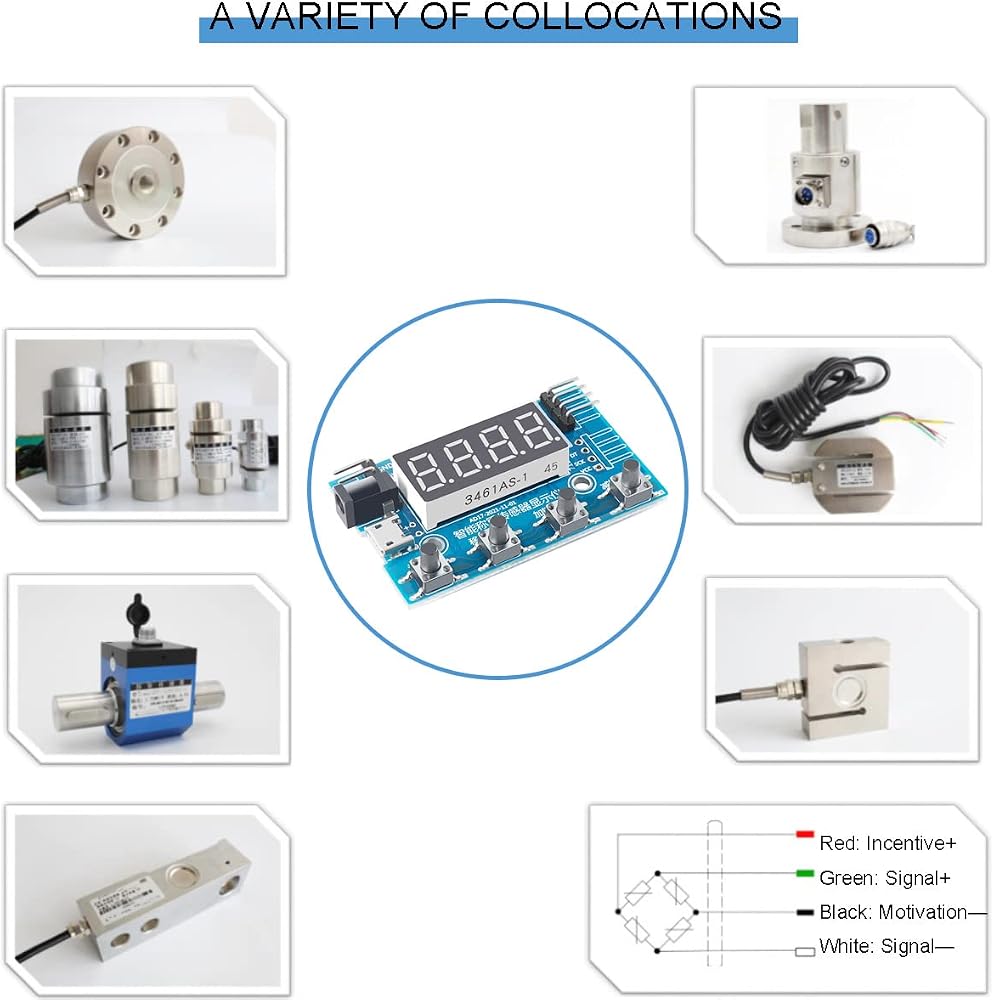

9.Number of sensors: 4 350Ω load cells

Package Includes:

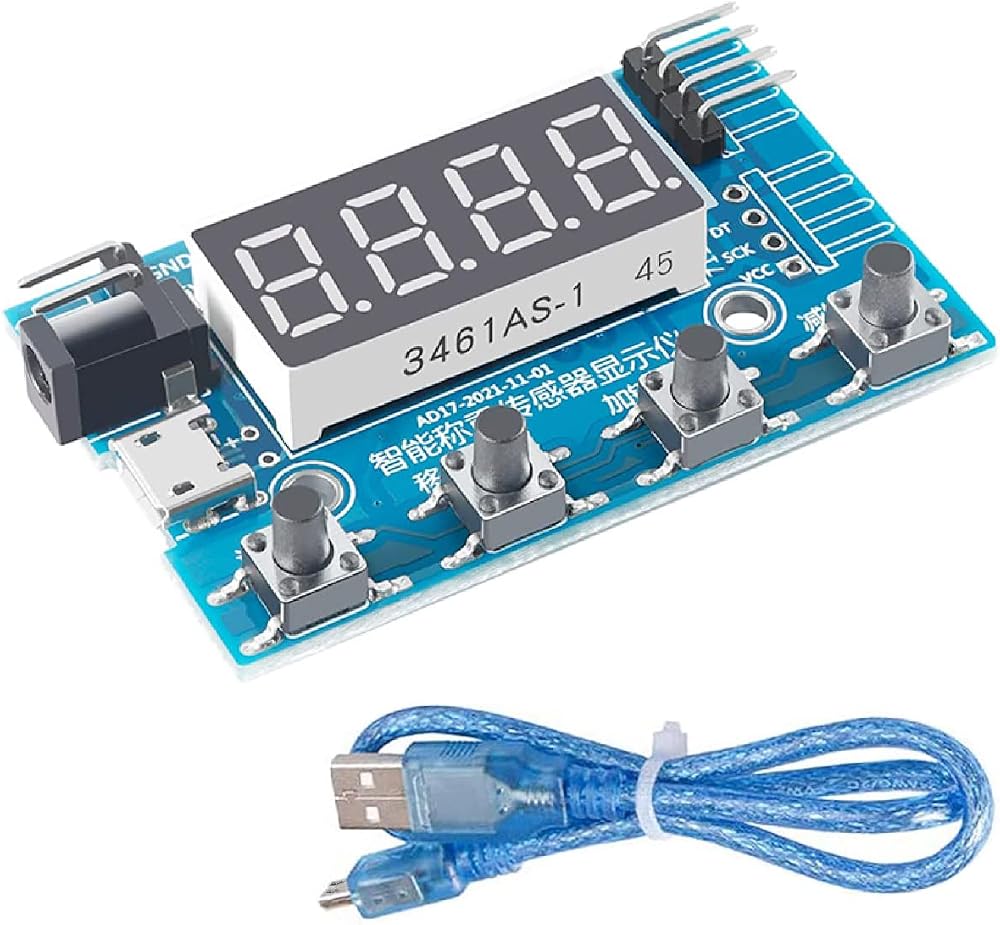

1 x HX711 Digital Load Cell Module
1 x Micro USB Cable
