MECCANIXITY KF25 Pipe Fitting Female Threaded 1/4 PT to Clamp OD 40mm Ferrule and Vacuum Clamp 53mm x 31mm Clamp Wing Nut with Center Ring Pack of 3 in Saudi Arabia MECCANIXITY KF25 Pipe Fitting Female Threaded 1/4 PT to Clamp OD 40mm Ferrule and Vacuum Clamp 53mm x 31mm Clamp Wing Nut with Center Ring Pack of 3 in Saudi Arabia MECCANIXITY KF25 Pipe Fitting Female Threaded 1/4 PT to Clamp OD 40mm Ferrule and Vacuum Clamp 53mm x 31mm Clamp Wing Nut with Center Ring Pack of 3 in Saudi Arabia MECCANIXITY KF25 Pipe Fitting Female Threaded 1/4 PT to Clamp OD 40mm Ferrule and Vacuum Clamp 53mm x 31mm Clamp Wing Nut with Center Ring Pack of 3 in Saudi Arabia MECCANIXITY KF25 Pipe Fitting Female Threaded 1/4 PT to Clamp OD 40mm Ferrule and Vacuum Clamp 53mm x 31mm Clamp Wing Nut with Center Ring Pack of 3 in Saudi Arabia

MECCANIXITY KF25 Pipe Fitting Female Threaded 1/4 PT to Clamp OD 40mm Ferrule and Vacuum Clamp 53mm x 31mm Clamp Wing Nut with Center Ring Pack of 3

SAR 119
Brand
MECCANIXITY
Weight
233 g
– 1 +

Special Features

  • This pipe fitting can provide efficient connections for valves, hoses, etc., with a high-temperature silicone gasket in the middle, which can effectively seal and better prevent leakage. The clamp is a convenient fastener for quick connection of vacuum lines. It can be used in vacuum pipes, vacuum equipment.
  • The pipe fitting is in size of: Model: KF25; Material: 304 Stainless Steel; Finish: Polished; Pipe Size: 1/4 PT; Flange Diameter: 40mm / 1.57-inch, and fits KF25 -clamp; Total Height: 25mm / 0.97-inch; Outer Diameter: 19mm / 0.75-inch. The vacuum clamp is in size of: Model: KF25; Material: Aluminum Alloy; Inner Diameter: 31mm/1.22 inch; Outer Diameter: 53mm/2.08 inch; Length: 72mm/2.83 inch; Center Ring Size: 39mm x 24.5mm x 8mm/1.53 x 0.96 x 0.31 inch.
  • The pipe fitting is made of 304 stainless steel with high hardness and corrosion resistance. The vacuum clamp is made of aluminum alloy for good corrosion resistance.
  • For vacuum clamp, direct mount, easy to clamp and fasten. Between the connecting flanges, centering rings and circumferential clamping contribute to a vacuum-tight seal. These pipe fittings are often used for connections between fittings and rubber vacuum hoses.
  • Please pay attention to product specifications before purchasing.

Description

What is this?
This pipe fitting can provide efficient connections for valves, hoses, etc., with a high-temperature silicone gasket in the middle, which can effectively seal and better prevent leakage. The clamp is a convenient fastener for quick connection of vacuum lines. It can be used in vacuum pipes, vacuum equipment.

What will I get?

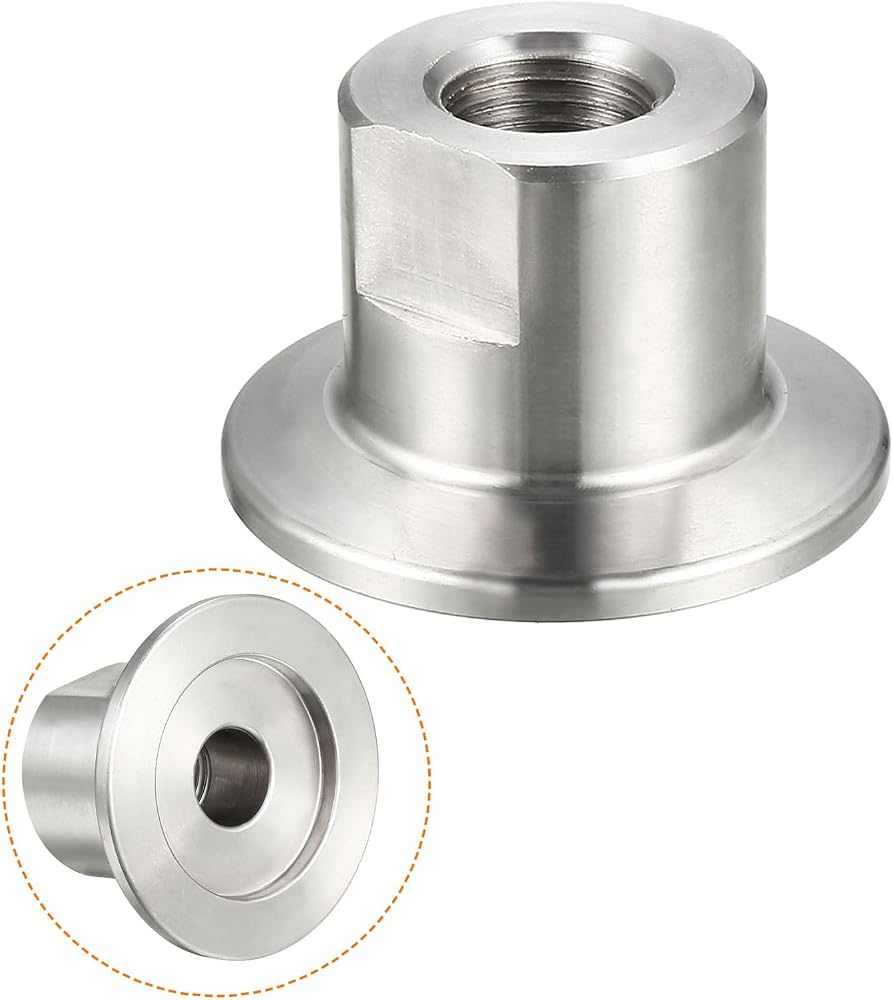

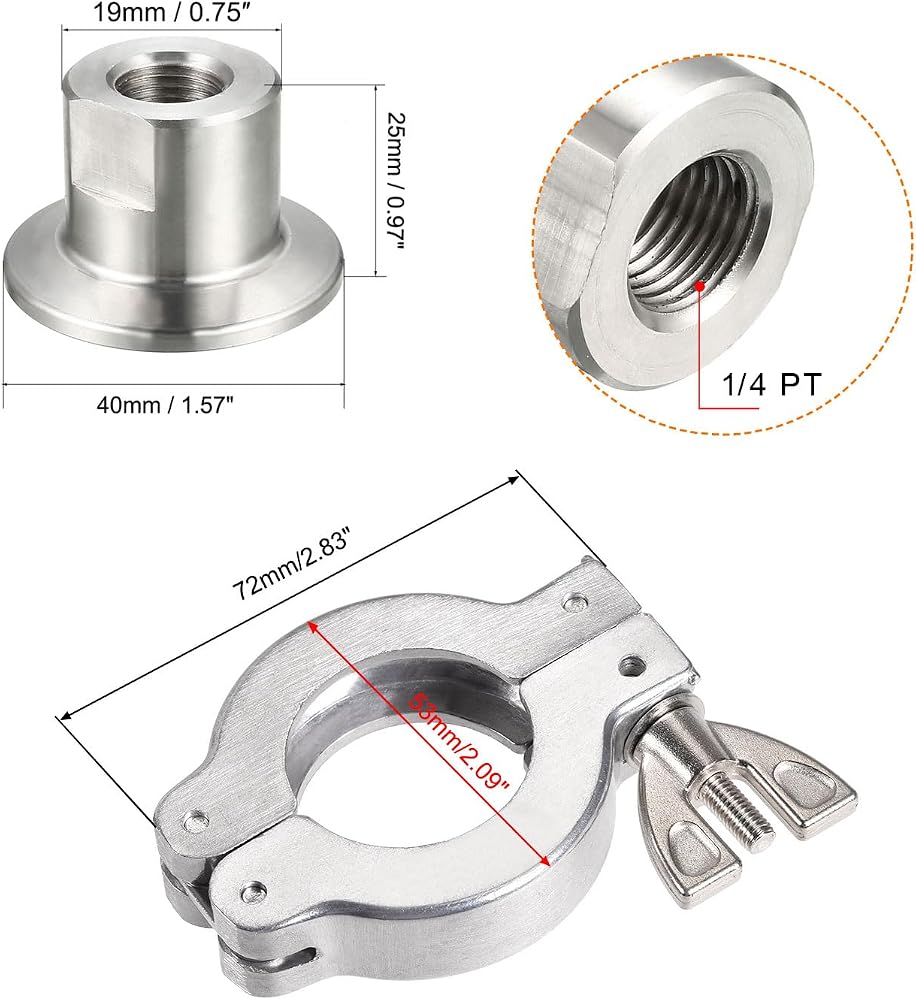

The pipe fitting is in size of:
Model: KF25
Material: 304 Stainless Steel
Finish: Polished
Pipe Size: 1/4 PT
Flange Diameter: 40mm / 1.57-inch, and fits KF25 -clamp
Total Height: 25mm / 0.97-inch
Outer Diameter: 19mm / 0.75-inch

The vacuum clamp is in size of:
Model: KF25
Material: Aluminum Alloy
Inner Diameter: 31mm/1.22 inch
Outer Diameter: 53mm/2.08 inch
Length: 72mm/2.83 inch
Center Ring Size: 39mm x 24.5mm x 8mm/1.53 x 0.96 x 0.31 inch

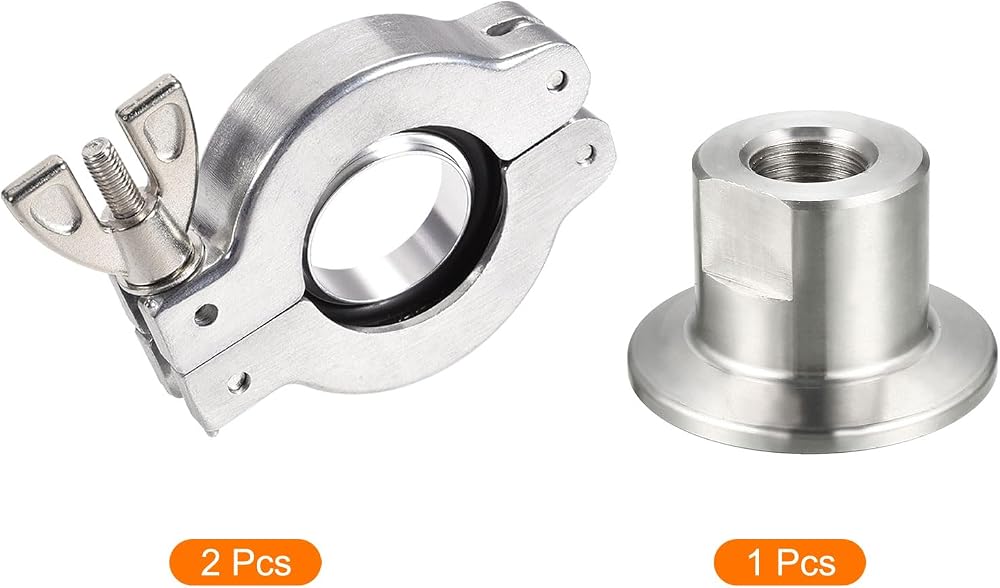

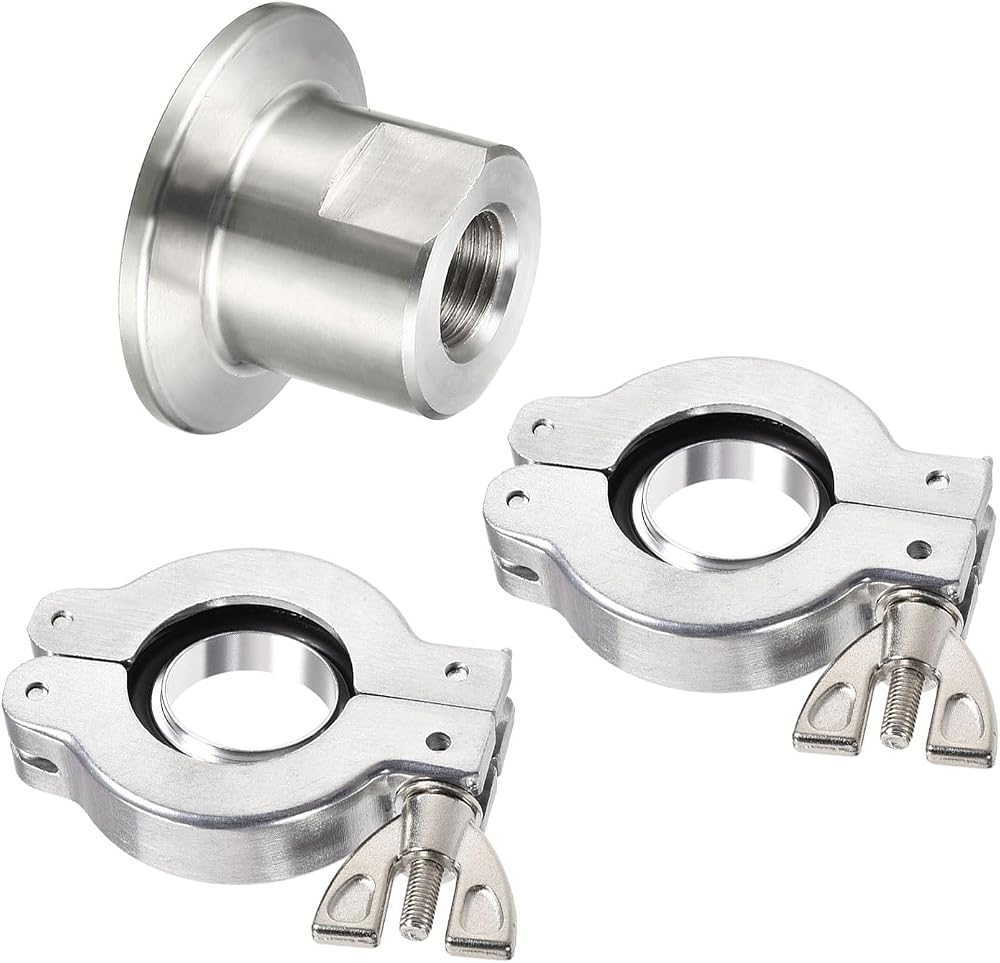

In the package of: 1 x pipe fitting; 2 x vacuum clamp; 2 x center ring

Is there any advantages of the product?
The pipe fitting is made of 304 stainless steel with high hardness and corrosion resistance. The vacuum clamp is made of aluminum alloy for good corrosion resistance.

How to use it?
For vacuum clamp, direct mount, easy to clamp and fasten. Between the connecting flanges, centering rings and circumferential clamping contribute to a vacuum-tight seal. These pipe fittings are often used for connections between fittings and rubber vacuum hoses.

What should I notice?
Please pay attention to product specifications before purchasing.
