Description：

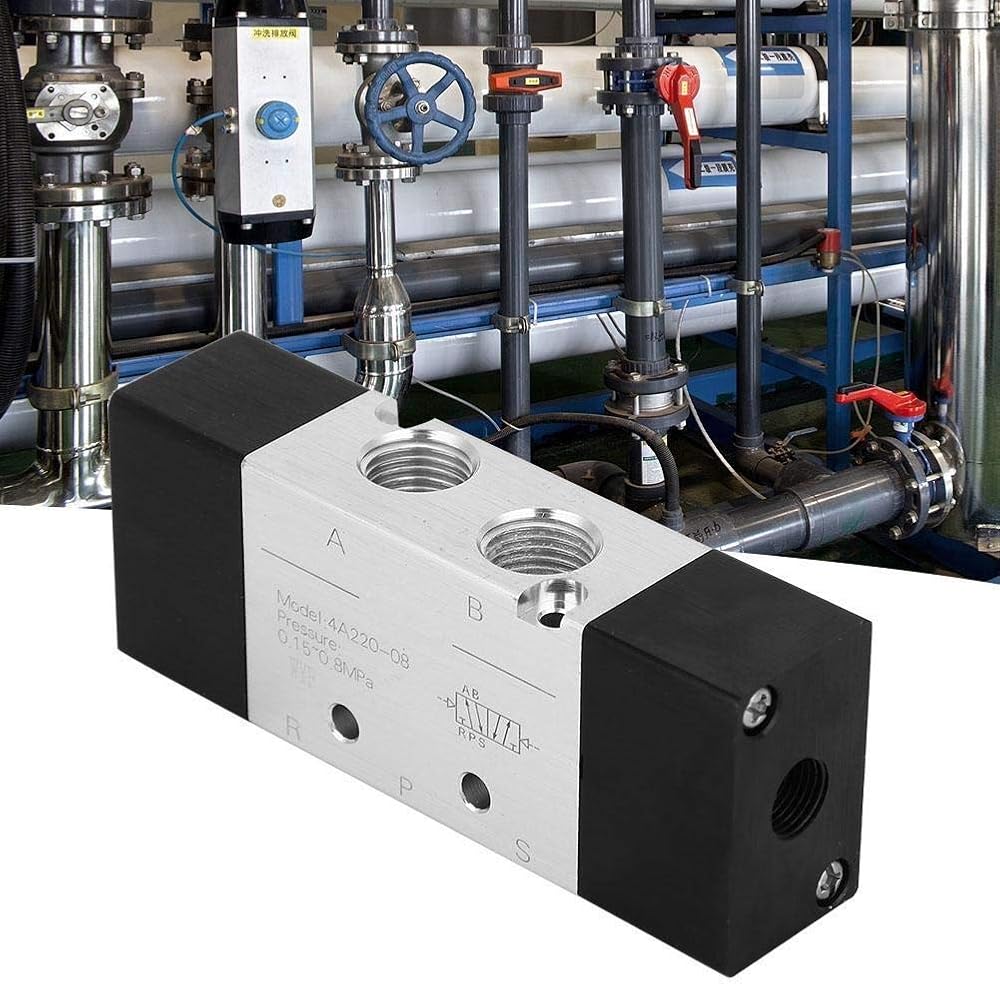

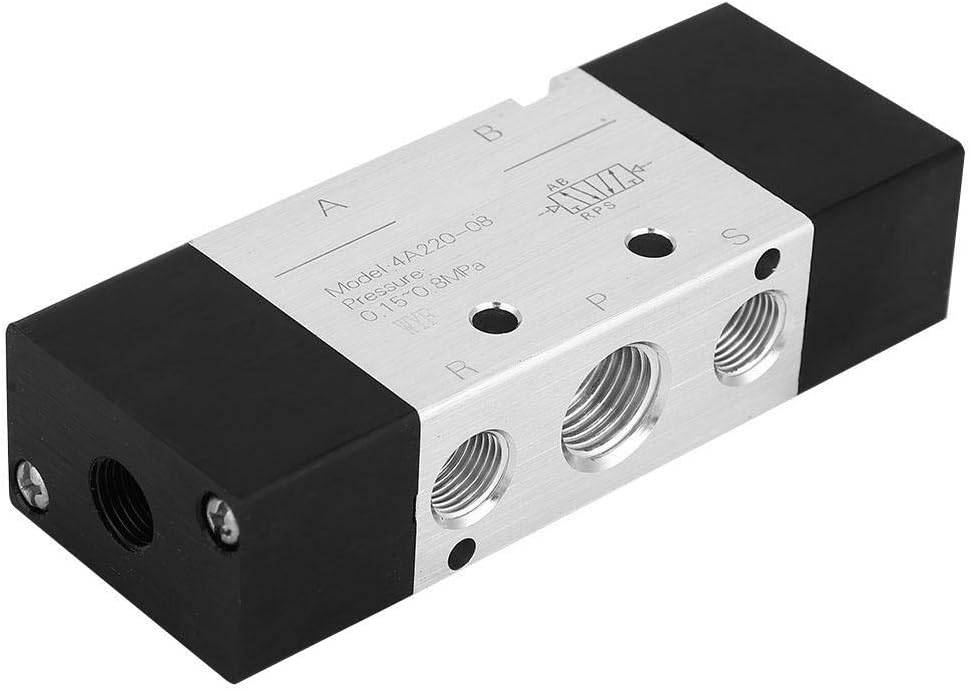

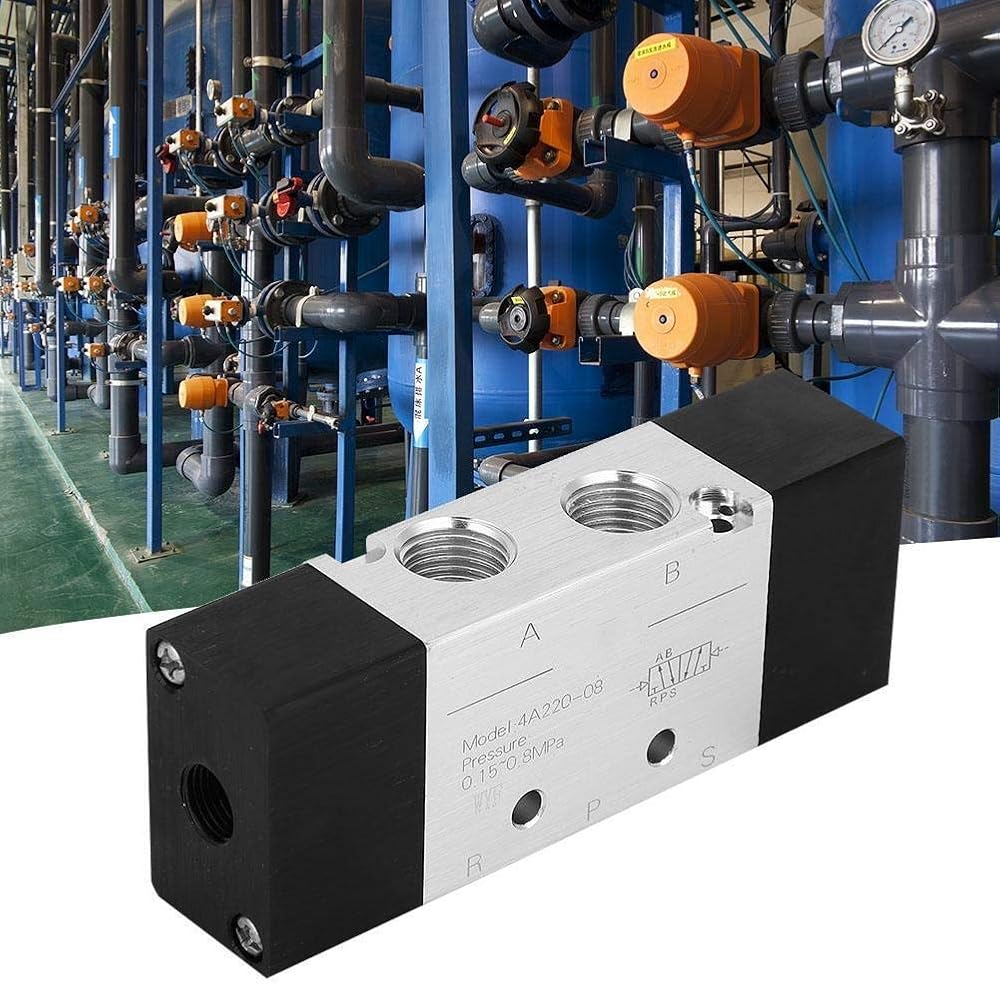

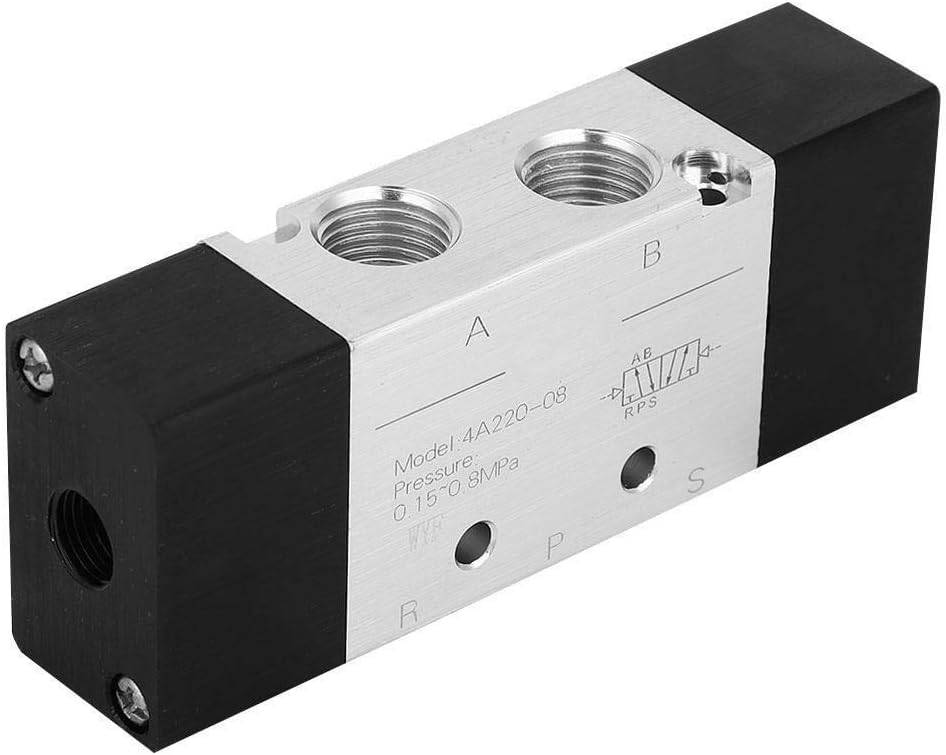

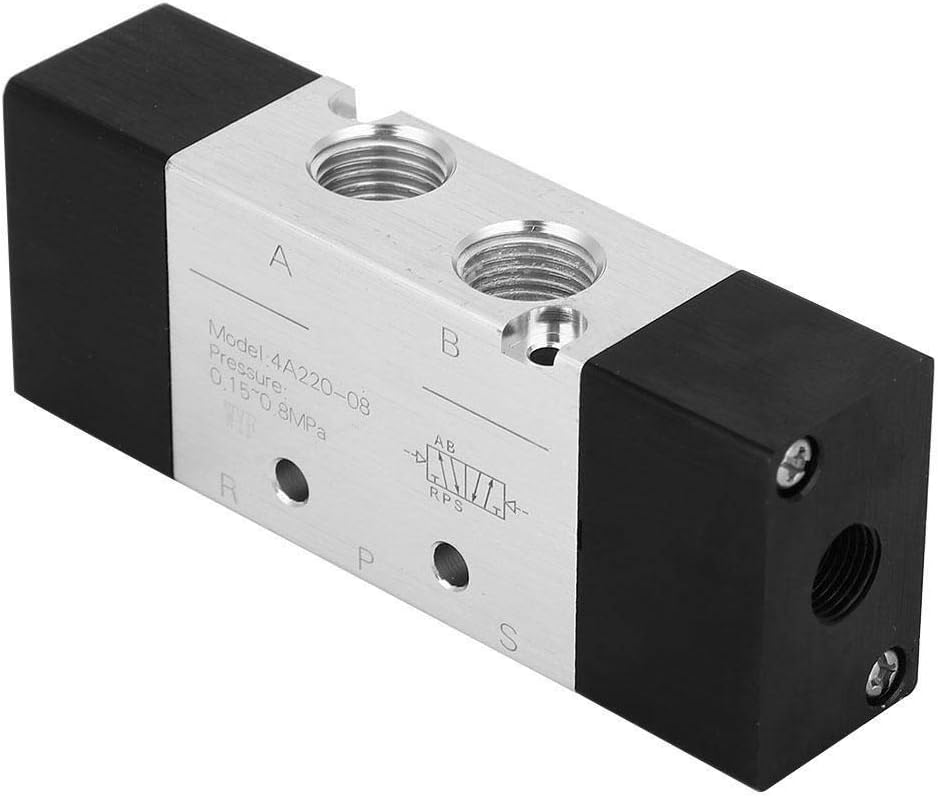

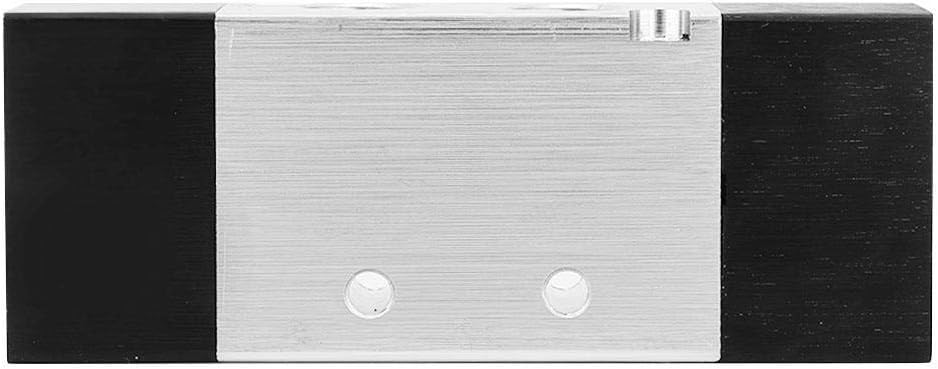

Pneumatic Valve 4A220-08 Two-position Five-way Two-way Double-Head Cylinder Pneumatic Switch Control Valve Air Valve.
Pilot valves or diaphragms used to control larger valves, small cylinders, or any pressure system that alternately pressurizes and discharges. Suitable for machinery equipment, textile equipment and food processing

Features:
1. Made of high quality material, durable and long service life.
2. Professional and reasonable structure, easy to install and use
3. This valve has good wear resistance and pressure resistance
4. The air inlet/air outlet diameter is PT1/4in, the exhaust diameter is PT1/8in
5. Suitable for mechanical equipment, textile equipment and food processing

Specification:
Condition: 100% Brand new
Model: 4A220-08
Working Medium: Air
Mode of Operation: External air control
Use Pressure: 0.15-0.8Mpa
Maximum Pressure Resistance: 1.0Mpa
Connecting Diameter: Air inlet = air outlet =PT1/4in, exhaust=PT1/8in
Effective Sectional Area: 16mm² (Cv=0.89)
Maximum Operating Frequency: 5 times / sec
Operating Temperature Range: 0~60℃

Package List:
1 x Valve
1 x User Manual
