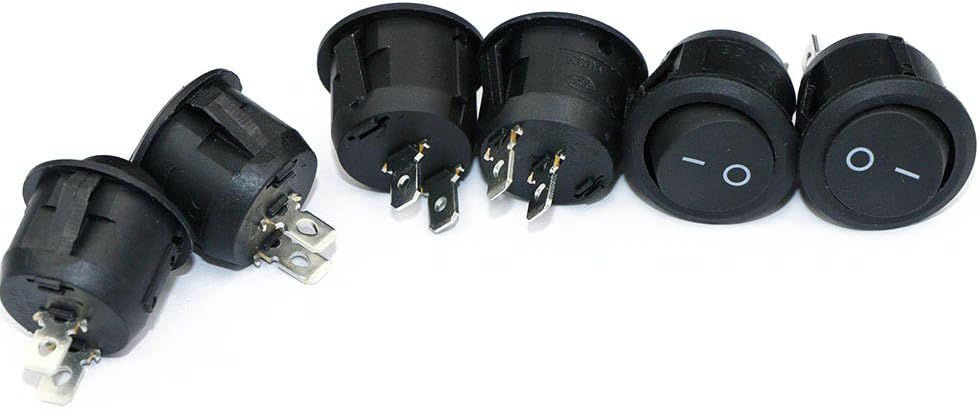

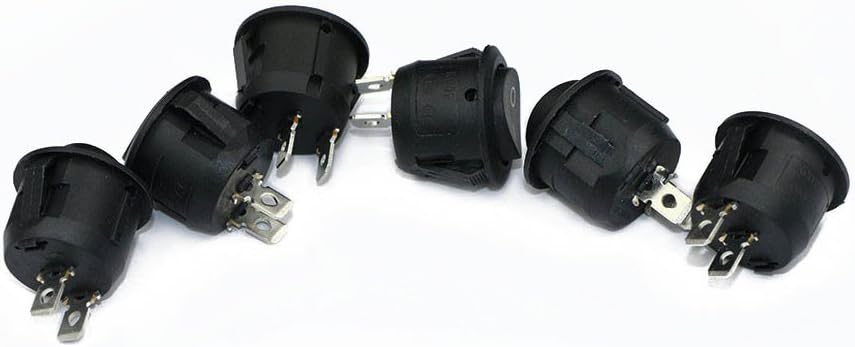

The U.S. Solid Round Rocker ON/OFF Car/Boat Switch is a durable ON/OFF push switch made of heavy-duty nylon. It is a round rocker style switch with on/off legends on the push button; depress one side to turn ON, depress the other side to turn OFF. This electrical switch employs 10A/125V, 6A/250V voltage. These switches can replace your old or damaged switches simply by snapping them into place. You will receive a quantity of 6 with each order so you can replace multiple switches at once to make your boat panel or car dashboard look sleek and new. Trust that if it a U.S. Solid product, these switches will be durable and long lasting.
Specifications:
Brand U.S. Solid
SKU: JFWBS00001
GTIN-12 (U.P.C.) 888107070979
U.S. Solid Model: USS- WBS00001
Voltage: 10A/125V 6A/250V
Switch Type: Round Rocker
Head Diameter: 23mm
Button Diameter: 18mm
Hole Size Required: 21mm
Depth Including Contacts: 25mm
Rated Current: 10A
Rated Load:15A/12A/10A/6A 250V AV
Contact Resistance: ≤ 50 Ω
Insulation Resistance:≥ 100M Ω
Dielectric Strength:≥ 1500 V AC /1 min.
Life (number of on/off cycles): ≥ 10000
Materials: Silver-Plated Brass Terminals with Nylon Frame
Color: Black

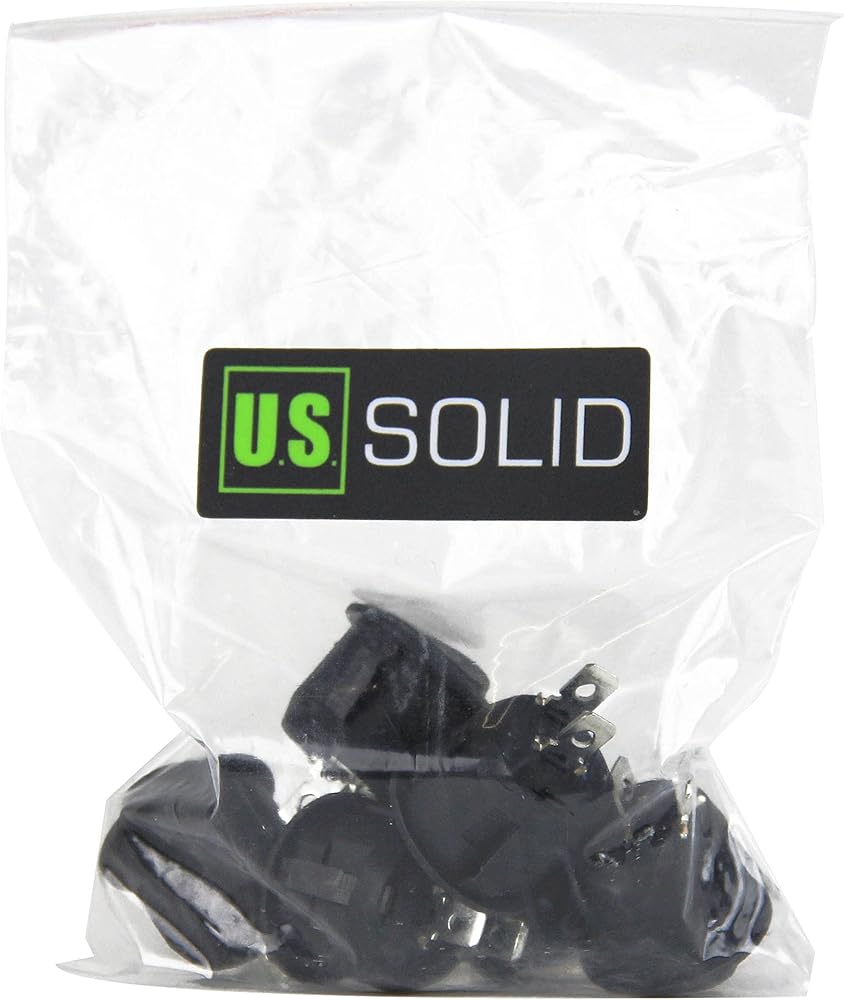

Quantity per Order: 6
