تبديل التبديل SPST الإغلاق 6A 125VAC /10A 12VDC 2 موقف تشغيل / إيقاف مع سلك 13 سم، 5 قطع مفتاح ذراع الروك للإضاءة في حالات الطوارئ التطبيق الإلكتروني للسيارة

مميزات خاصة

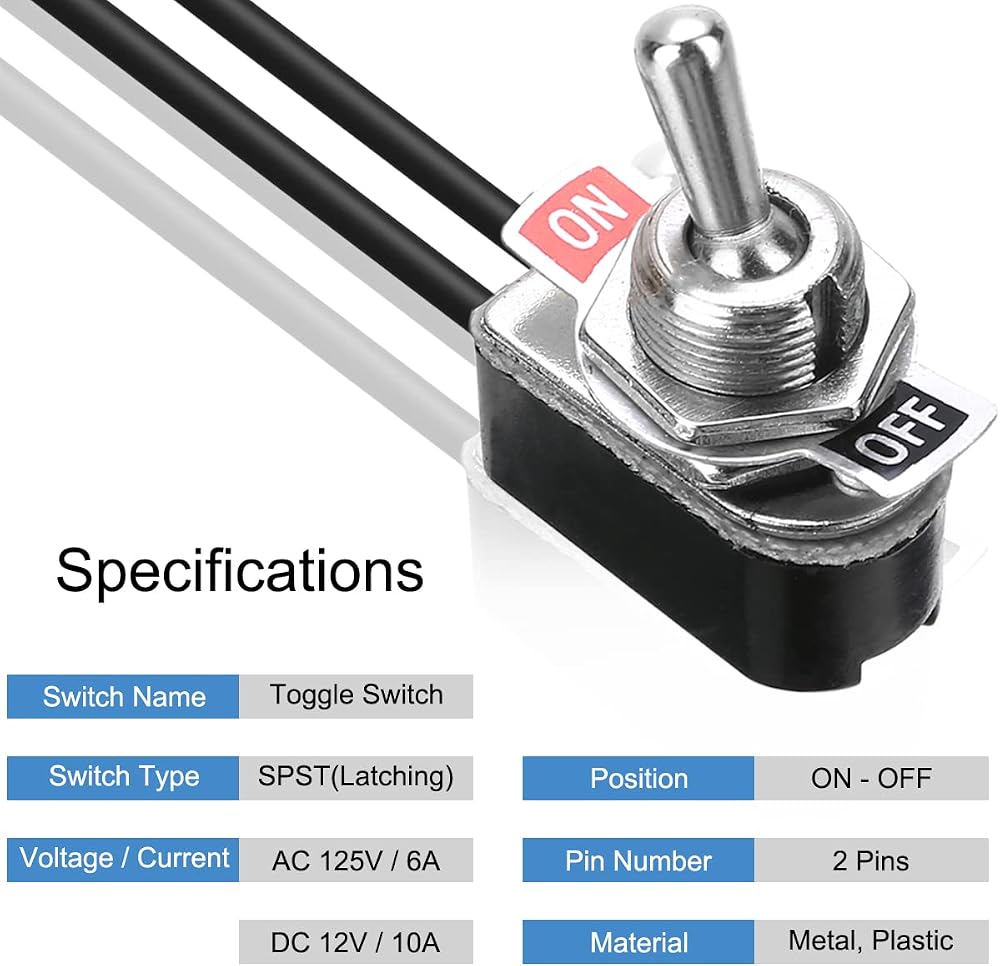

✅[Switch Type]: Switch name : toggle switch; Terminals : 2 pins; Position : 2(ON-OFF); Type : SPST(Latching). The switch has a distinct ON-OFF identification gasket.
✅[Specifications]: Voltage and current : AC 125V 6A / DC 12V 10A. Meet the power requirements of a variety of electrical equipment. Thread diameter : 11.6mm / 0.46 inch; Mechanical life is 50,000 (times).
✅[Pre-Wired]: Pre-wired with 13cm leads, 24 AWG black copper wire. Switches with wires are simpler and more convenient to connect.

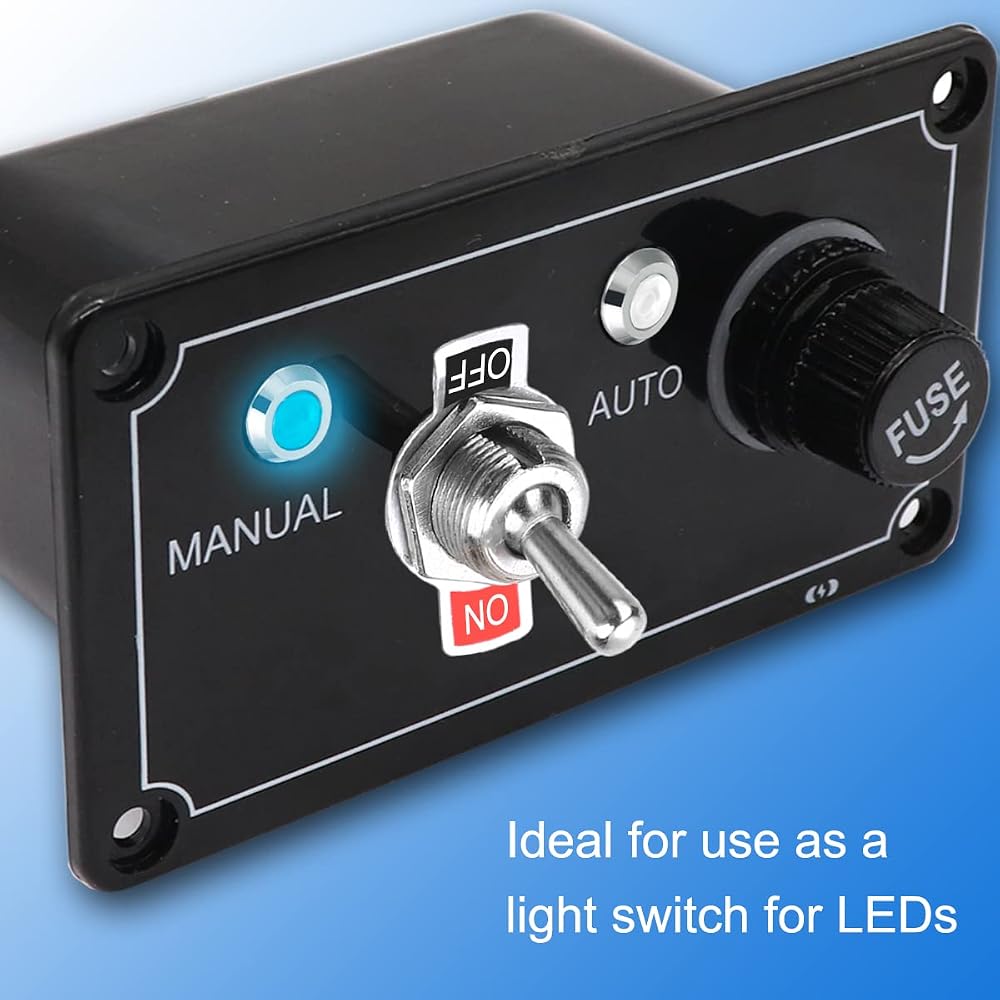

✅[Widely Used]: Suitable for all kinds of electrical engineering, such as industrial equipment, emergency lighting, household equipment, cars, marine, etc.

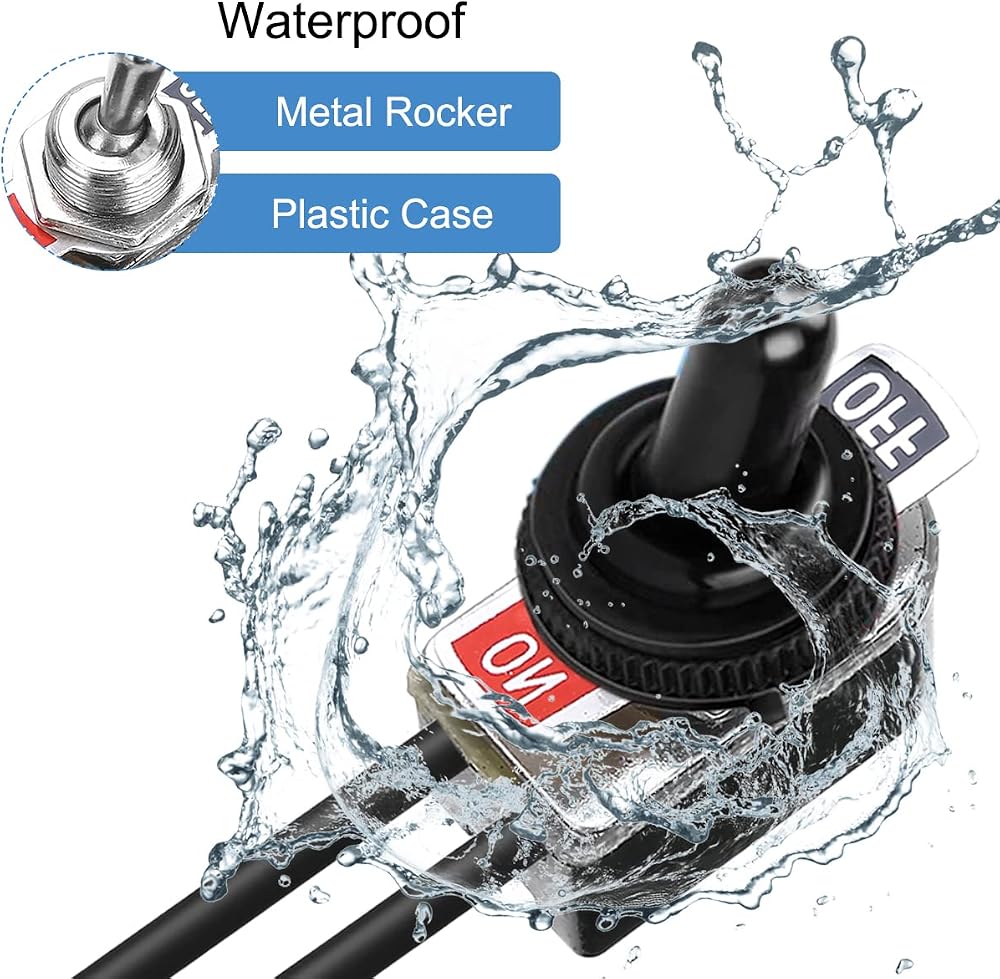

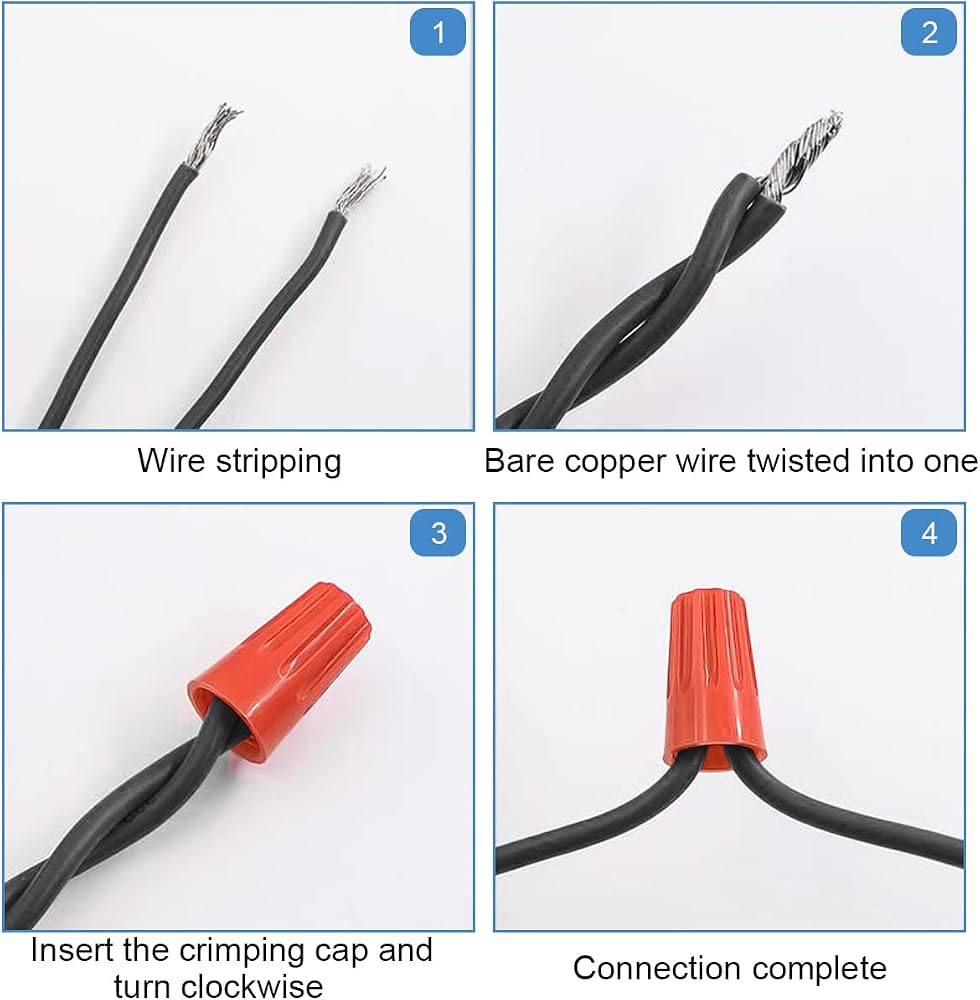

✅[Package Content]: 5 pcs toggle switch with wires; 5 pcs waterproof caps; 10 pcs wire connectors.

وصف

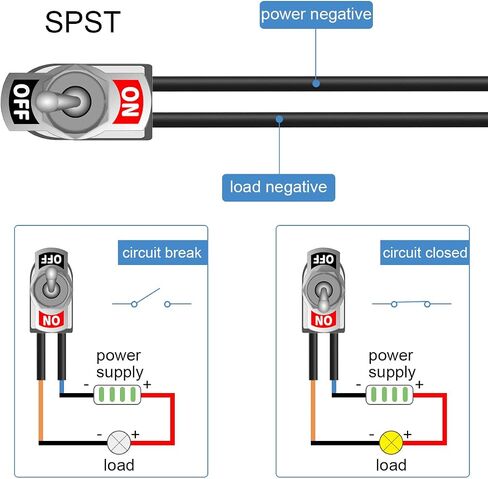

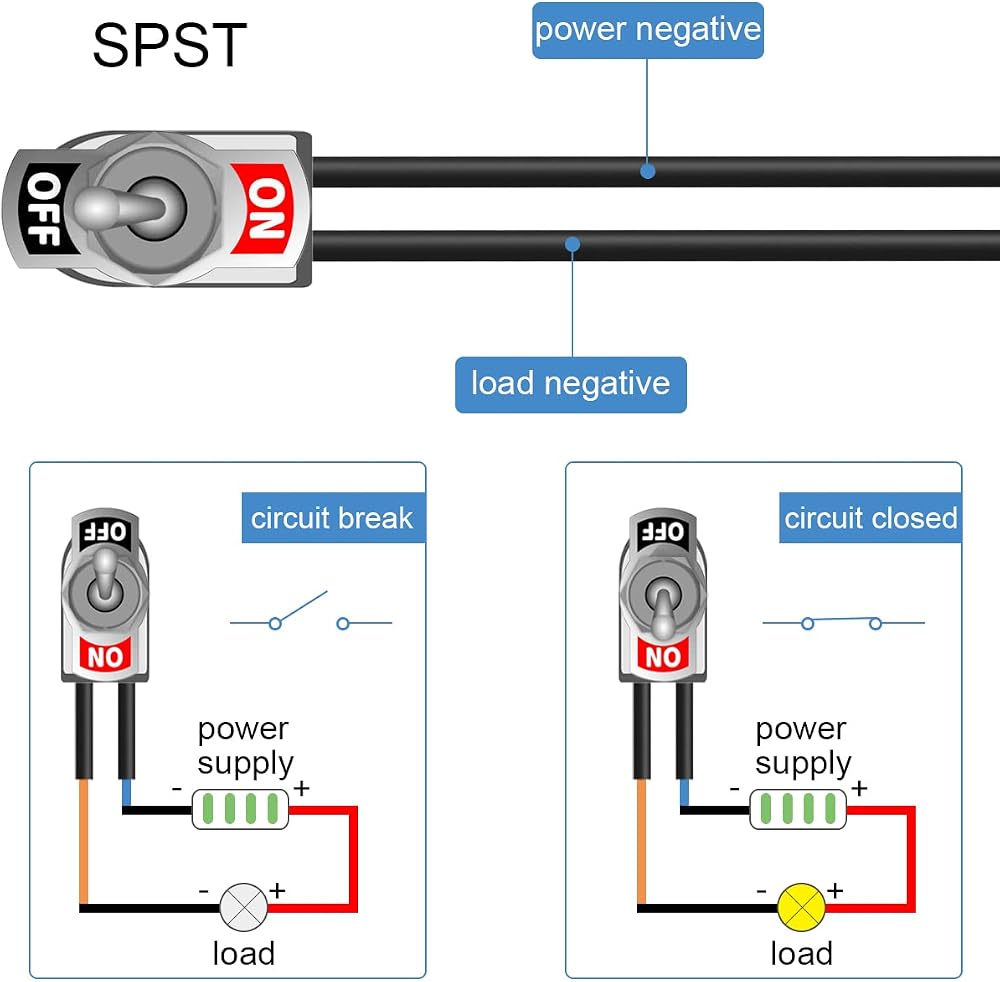

Latching Switch - When the rocker arm is turned to the ON position, the power of the device is turned on and remains on. When the rocker arm is turned to the OFF position, the power of the device is turned off and remains off.

Specifications
Operation Type: Latching
Voltage And Current : AC 125V 6A / AC 250V 3A / DC 12V 10A

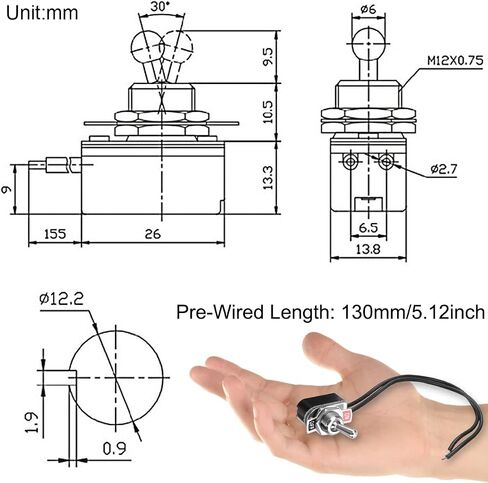

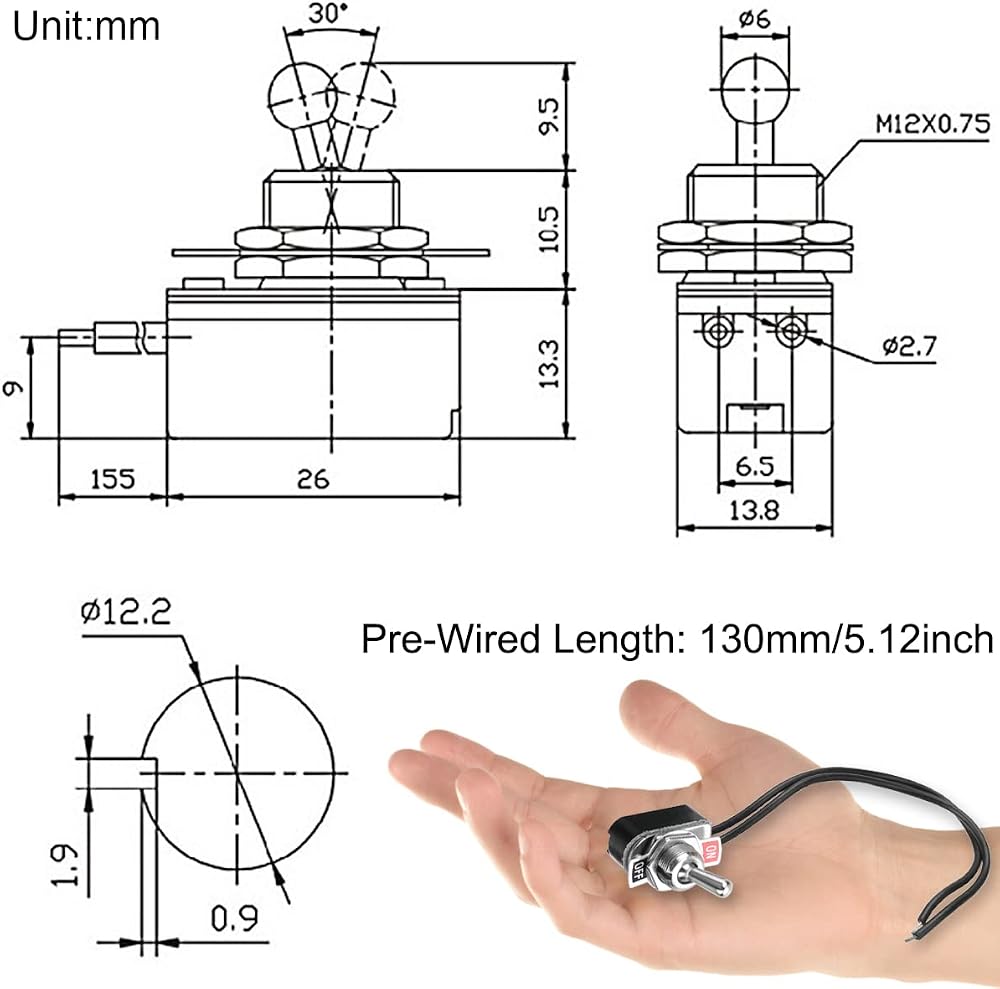

Overall Dimensions: 3.6cm X 2.8cm X 1.7cm
Body Dimensions: 2.6cm X 1.5cm X 1.4cm
Rocker Length: 1.1cm
Pre-Wired Length: 13cm
Mounting Hole Diameter: 1.16cm
Material: plastic + metal
Max Contact Resistance: 20Mohm
Insulation Resistance: 1000Mohm 500VDC
Mechanical life: 50,000 time

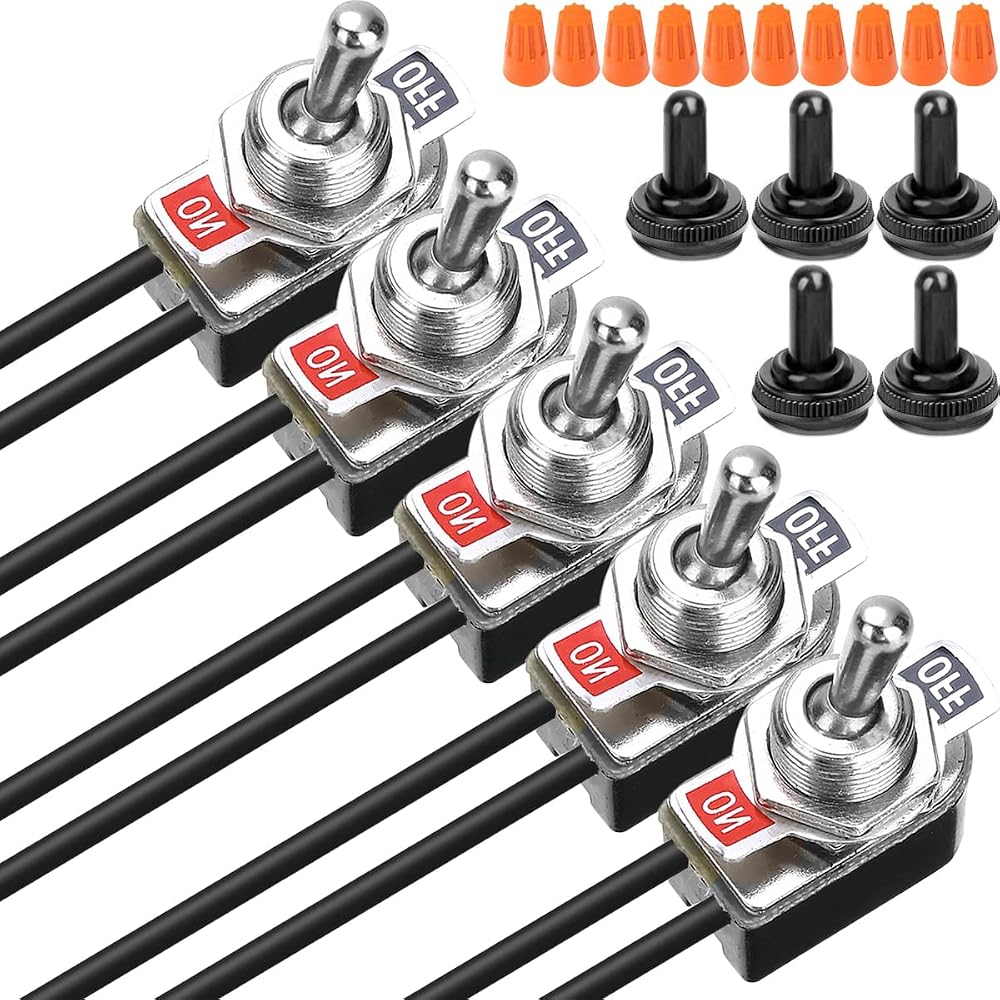

Package Included:
5 x toggle switch with wires
5 x waterproof caps
10 x wire connectors
