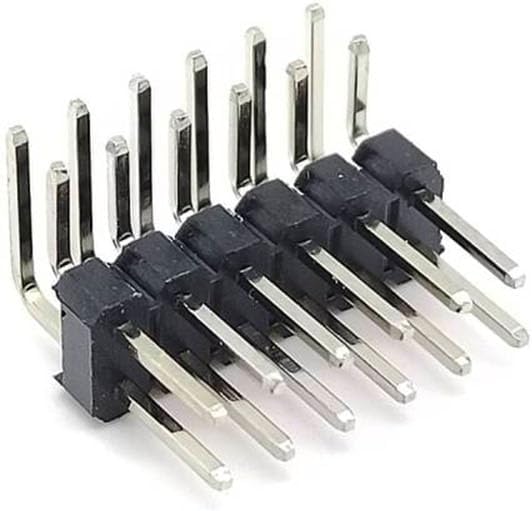

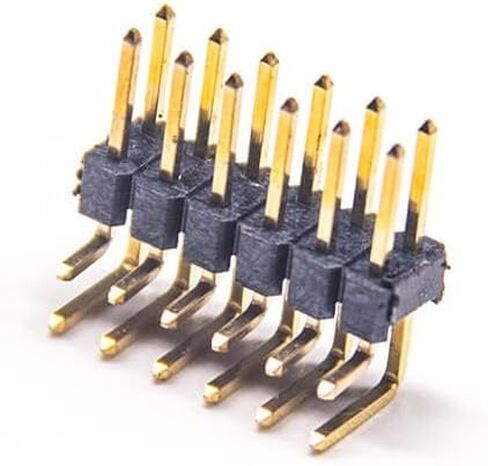

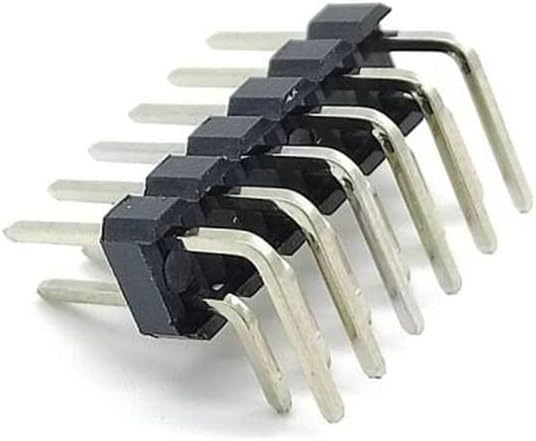

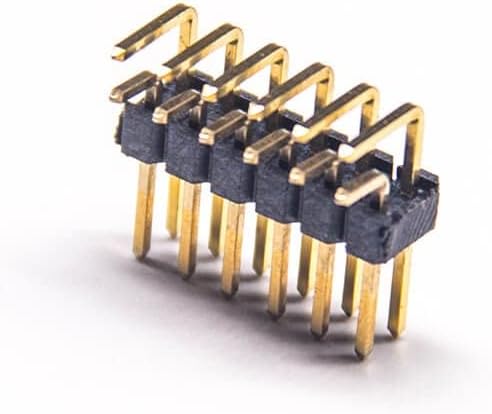

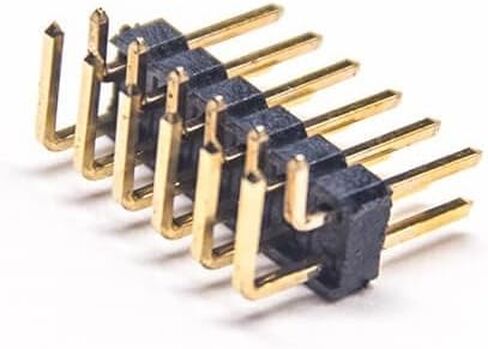

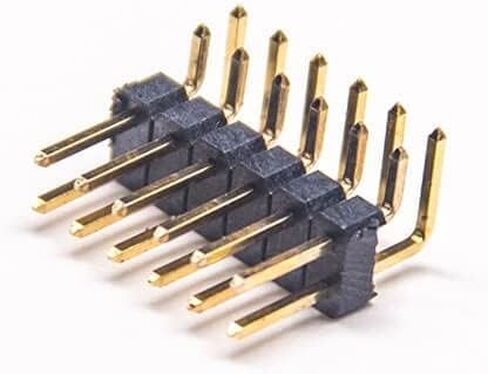

Pin Header Connector,Male/Plug,Right Angled/90°,2.54mm,2×6Pin,Dual Row,Through Hole,Solder Type,Gold Plating,H3.0mm,Square,Black
Normally associated with ribbon cable connectors, or worked as recipients for jumpers
consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

وصف

Main Application
Electronic device
Home appliances
Electrical instruments
Automotive: Car navigation LCD panel and so on.
Lighting industry
The above applications are typical but not limited, these products are widely use in many fields
Technical Parameters:
Electrical Characteristics
Current Rating: 1.5 Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Contact Material: Copper Alloy
Insulator Material: PA6T,UL 94V-0 Black
Mechanical characteristics
Durability (Gold finish)：300 mating cycles
Durability (Tin finish)：50 mating cycles
Insertion force：2N max per contact
Withdrawal Force：0.3N min per contact
Environmental and Processing
Operating Temperature: -40°C to +105°C
LCP Suitable For: IR Reflow, Wave, Manual solder
