Material: Plastic + Copper
Temperature resistance: 0-60 degrees centigrade
Withstand voltage: 0-1 (Mpa)

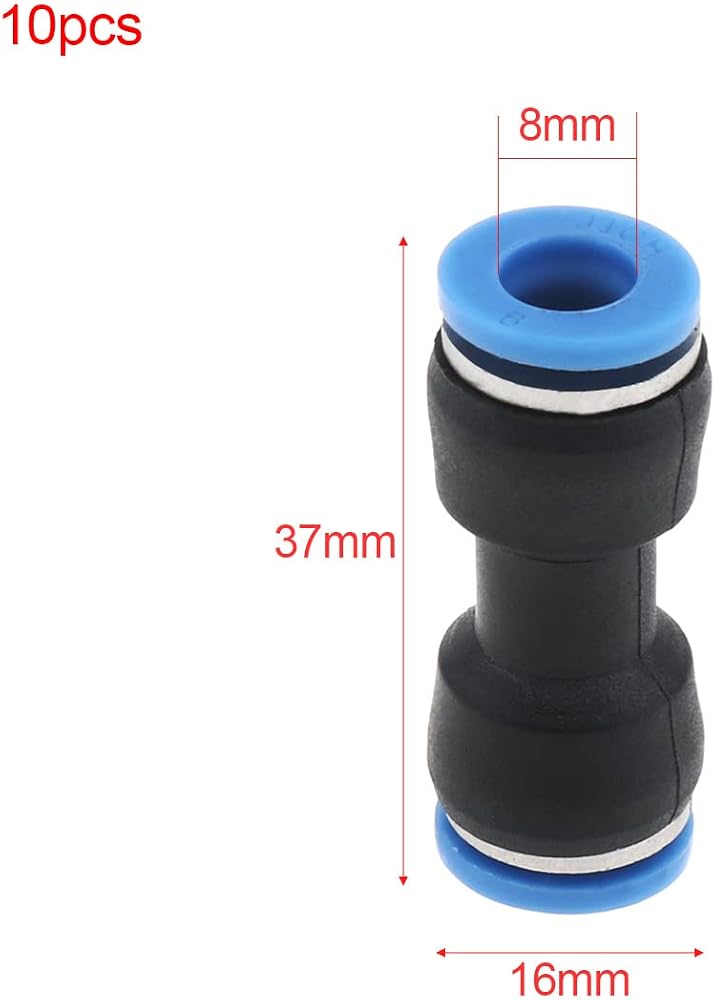

Take-up diameter: 8mm
Place of Application: Connector

Note:
- Make sure that the cut surface of the pipe is vertical, that there are no scratches on the outer circumference of the pipe and that the pipe is not oval.
- When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.
- After the tube is inserted, pull the tube to confirm that the tube cannot be pulled out.
- After the joint is connected, the product with the same direction of contact can be adjusted within the tightening torque range.
- Use a suitable tool to secure the connector body with the outer hex of the fitting.
- When tightening the joint thread, it should be noted that the installation force should not be too large or too small. excessively large may cause the thread to partially break and the seal to deform and cause leakage. Too small may cause the threaded portion to loosen and leak.
Product Weight : 20 G / 0.71 Ounces

Package Include:

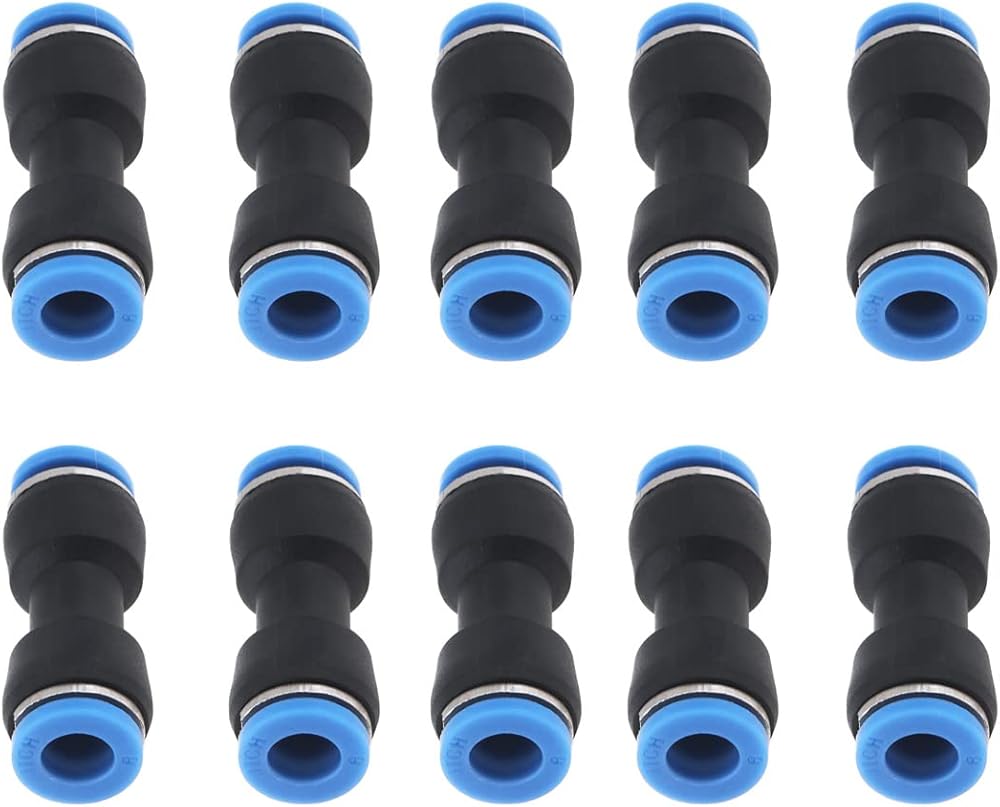

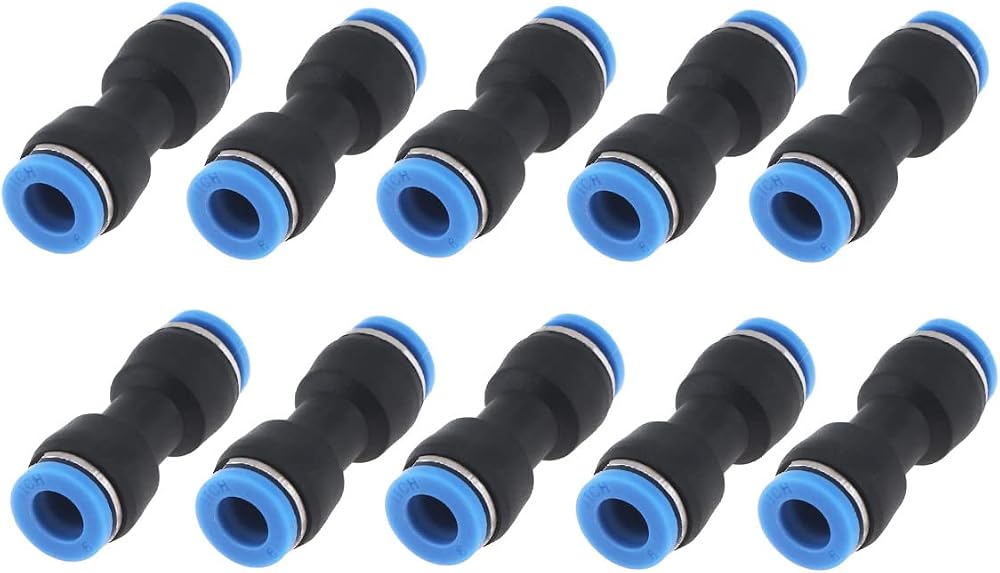

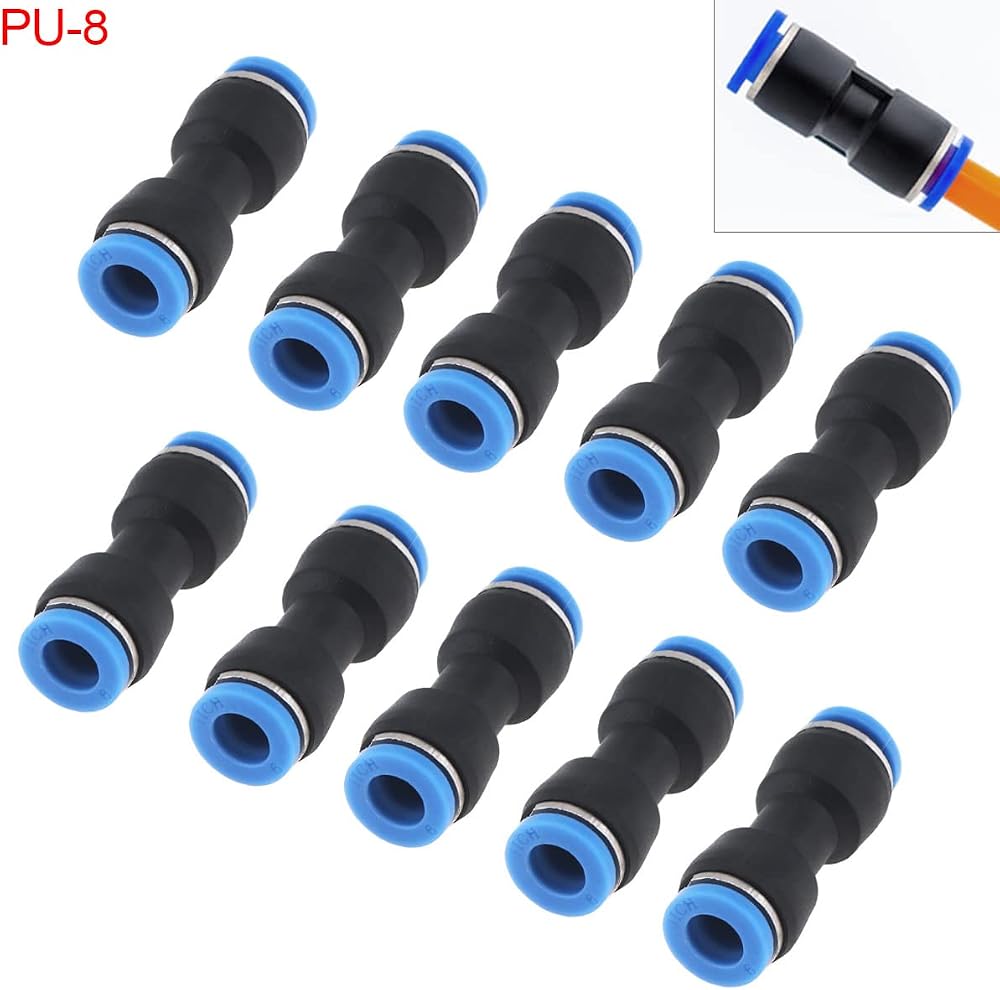

10 x Quick Fitting
