These couplers are a direct replacement for the standard sized coupler mounted on many models of skid steers and attachments.

Our coupler sizes fit many models of: Bobcat, John Deere, CAT, Kubota, New Holland, CASE, JCB, Thomas, Gehl, Volvo, and ASV skid steers.

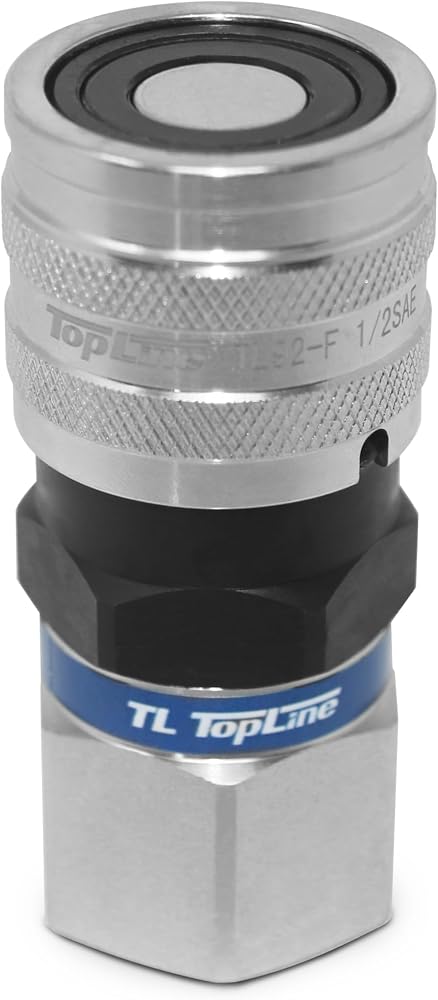

Flat Face couplers are designed for applications where hydraulic spillage is a concern.

- Heavy Duty design. Rated at over 5076 PSI

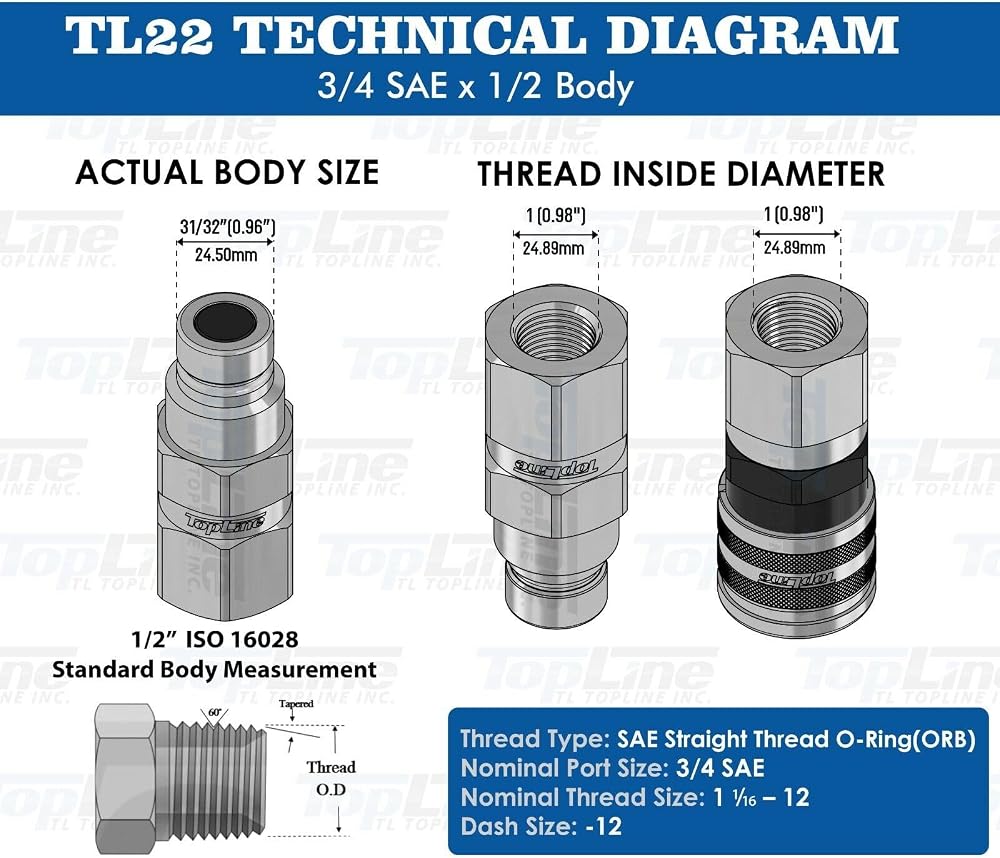

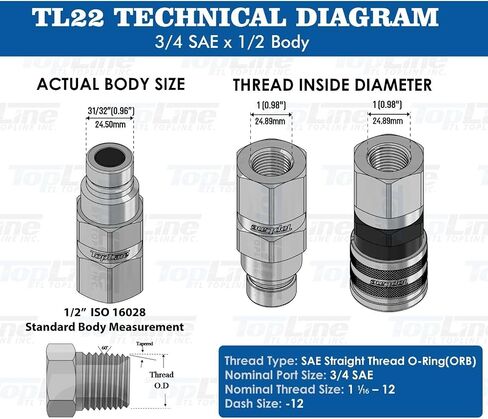

- Couples to any standard 1/2” Flat Face coupler
- Push-connect locking sleeve design
- Exceeds ISO 16028 standards
- Corrosion-resistant zinc plating
- No air inclusion during disconnection
-Heavy knurled sleeves for non-slip grip
- Includes dust caps to protect from the elements
- Flat Face coupler design minimizes hydraulic fluid loss

INTERCHANGES WITH:

Faster FFH Series - FFH08 34SAE F
Parker FE Series - FEM-501-12FO
Stucchi FIRG - 800804008
Dixon HT Series - 4HTOF6
DNP PLT4 Series - FF-HPG-08-12C-SAE
Eaton Aeroquip FD89 - FD89-1005-12-08
Safeway FFE49 Series - FFE495-4-12
Snap Tite 74 - 74C8-12EM
Tomco FE Series - EC4-12
