بيت / Kozelo / أسنان العجلة سلسلة الأسطوانة
ضرس سلسلة دوارة DIN/ISO 06B 12T [تجويف 10 مم × 3/8 بوصة] ترس محرك المحرك، للآلات، فولاذ كربوني A3، لون فضي in Saudi Arabia ضرس سلسلة دوارة DIN/ISO 06B 12T [تجويف 10 مم × 3/8 بوصة] ترس محرك المحرك، للآلات، فولاذ كربوني A3، لون فضي in Saudi Arabia ضرس سلسلة دوارة DIN/ISO 06B 12T [تجويف 10 مم × 3/8 بوصة] ترس محرك المحرك، للآلات، فولاذ كربوني A3، لون فضي in Saudi Arabia ضرس سلسلة دوارة DIN/ISO 06B 12T [تجويف 10 مم × 3/8 بوصة] ترس محرك المحرك، للآلات، فولاذ كربوني A3، لون فضي in Saudi Arabia ضرس سلسلة دوارة DIN/ISO 06B 12T [تجويف 10 مم × 3/8 بوصة] ترس محرك المحرك، للآلات، فولاذ كربوني A3، لون فضي in Saudi Arabia

ضرس سلسلة دوارة DIN/ISO 06B 12T [تجويف 10 مم × 3/8 بوصة] ترس محرك المحرك، للآلات، فولاذ كربوني A3، لون فضي

SAR 61
– 1 +

مميزات خاصة

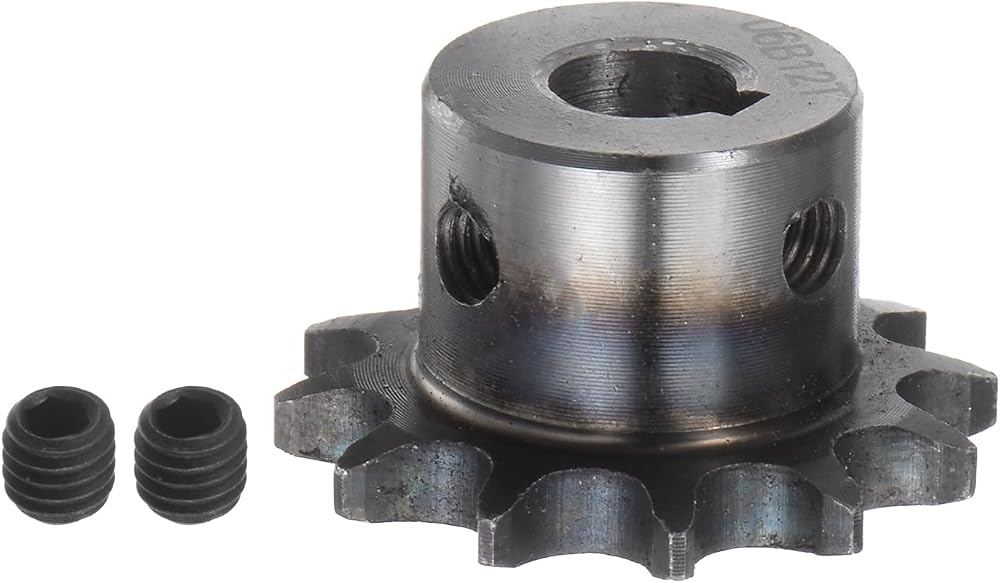

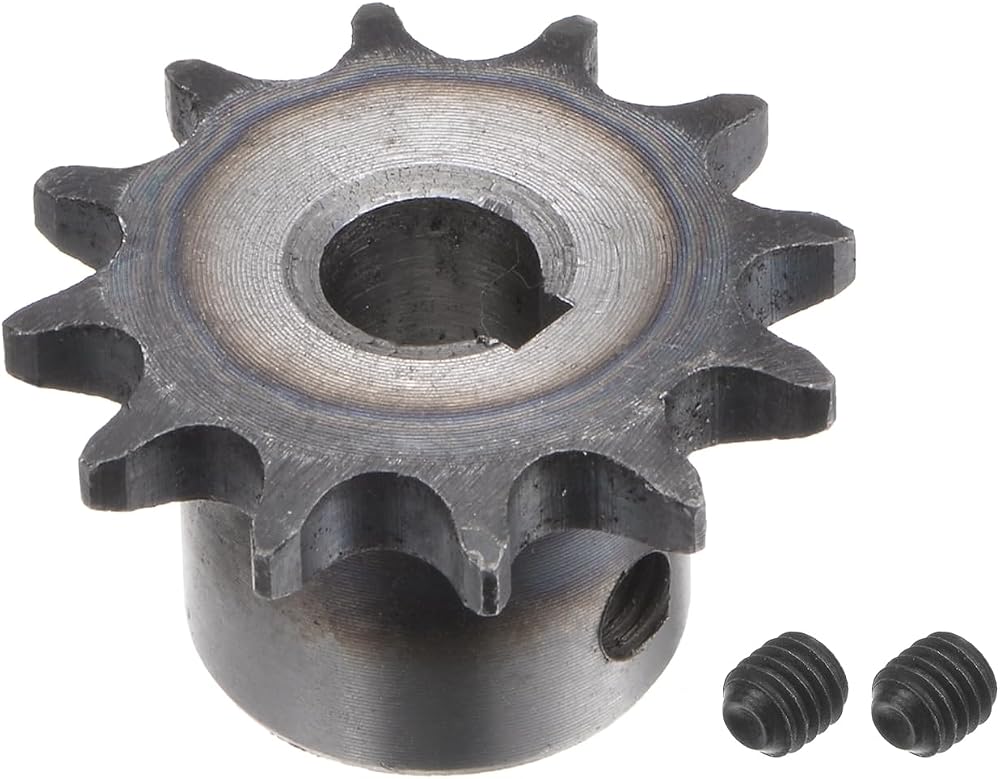

  • 1-Package Content- 1 set DIN/ISO 06B roller chain sprocket 12 teeth, 3/8" pitch, 10mm bore diameter, 4mm keyway, come with 2 set screws.
  • 2-Material-Made of A3 steel (Q235), which has high strength, high hardness, good plasticity, certain corrosion resistance and wear resistance.
  • 3-Application- Suitable for combination with roller chains to power all types of machinery, such as hardware, milling machine, machinery and other occasions.
  • 4-Features-Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use.
  • 5-Take Notice of- Please pay attention to the specification of the product and choose the suitable one for your project. The surface has not been treated with anti-rust, so there may be rust on the surface, but this does not affect the use, you can use sandpaper to remove the rust spots before using.

وصف

APPLICATION
- Suitable for combination with roller chains to power all types of machinery, such as hardware, milling machine, machinery and other occasions.

ABOUT THIS PRODUCTS
- Material- Made of A3 steel (Q235), which has high strength, high hardness, good plasticity, certain corrosion resistance and wear resistance.
-Stable- Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use.

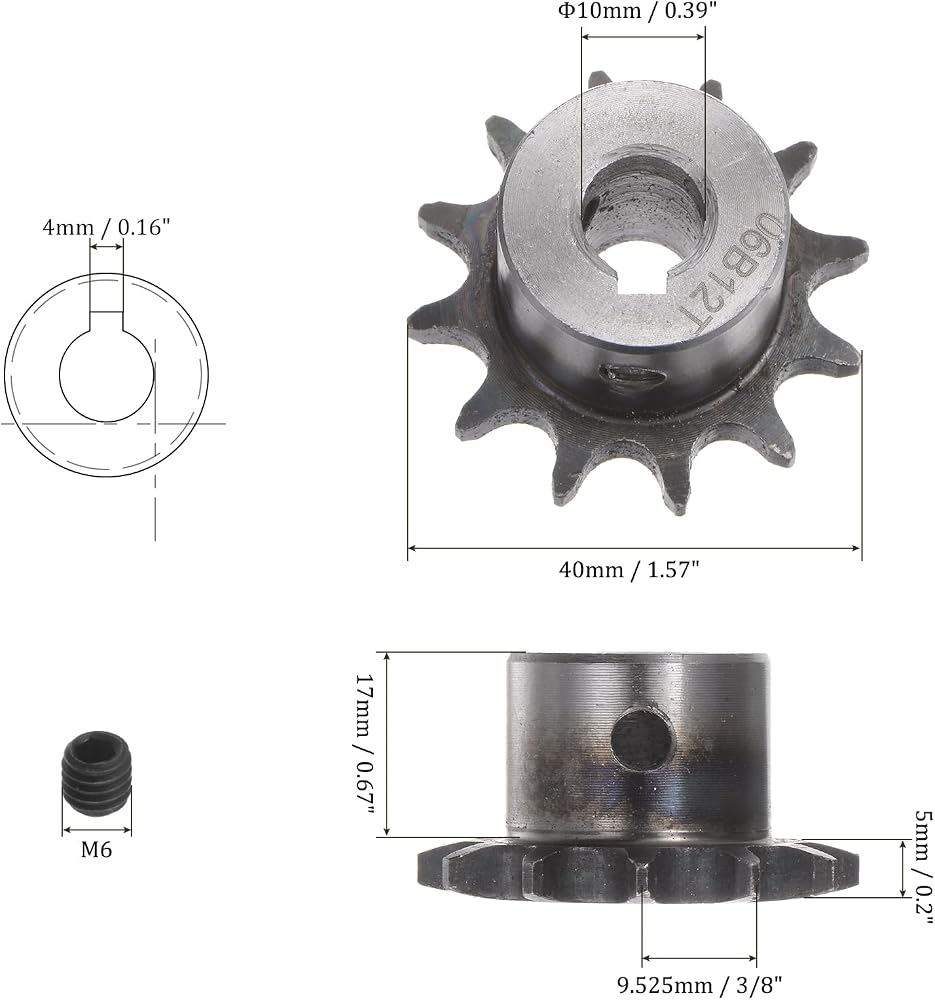

SPECIFICATION
-Color: Silver Tone
-Material: A3 Carbon Steel(Q235)

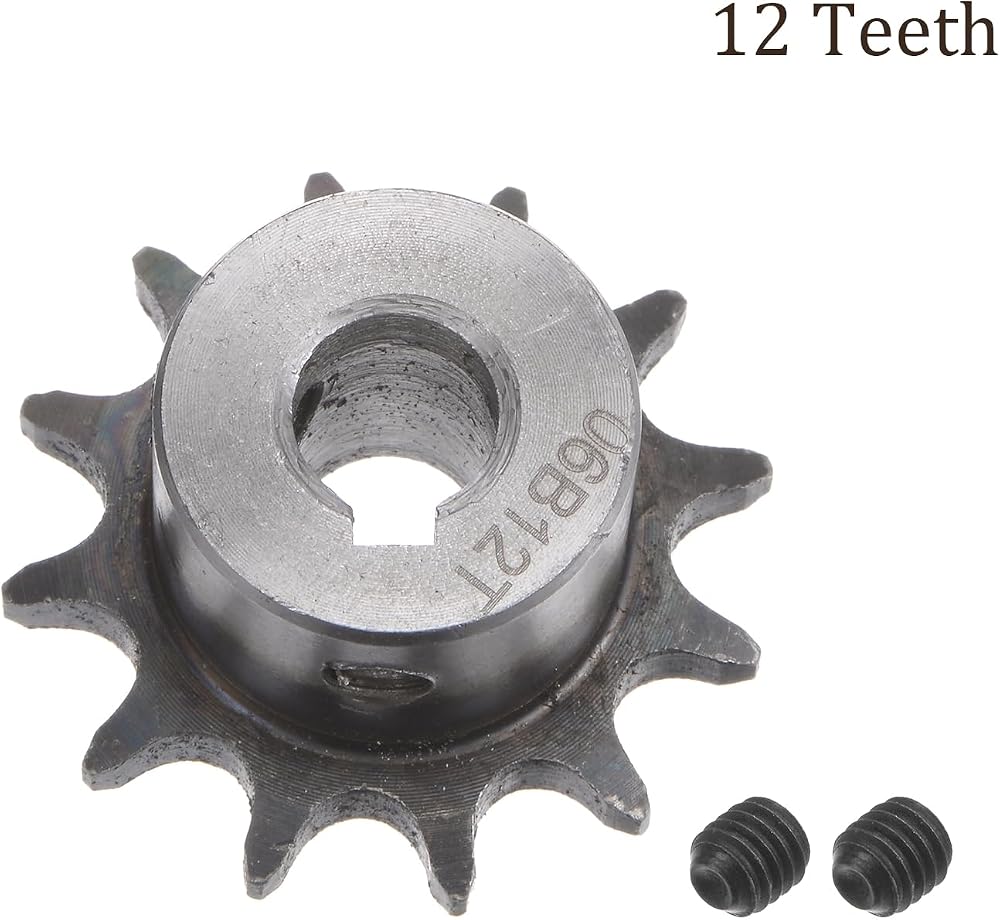

-Teeth:12
-Bore diameter: 10mm (0.39")
-Thickness:5mm (0.2"),
-Pitch:9.525mm (3/8")
-Keyway: 4mm (0.16")
-Hub Height: 17mm (0.67")
-Tooth Outer Diameter: 40mm (1.57")
-Package Content: 1 Set DIN/ISO 06B Roller Chain Sprocket

NOTE
-Please pay attention to the specification of the product and choose the suitable one for your project. The surface has not been treated with anti-rust, so there may be rust on the surface, but this does not affect the use, you can use sandpaper to remove the rust spots before using.
