Specification:

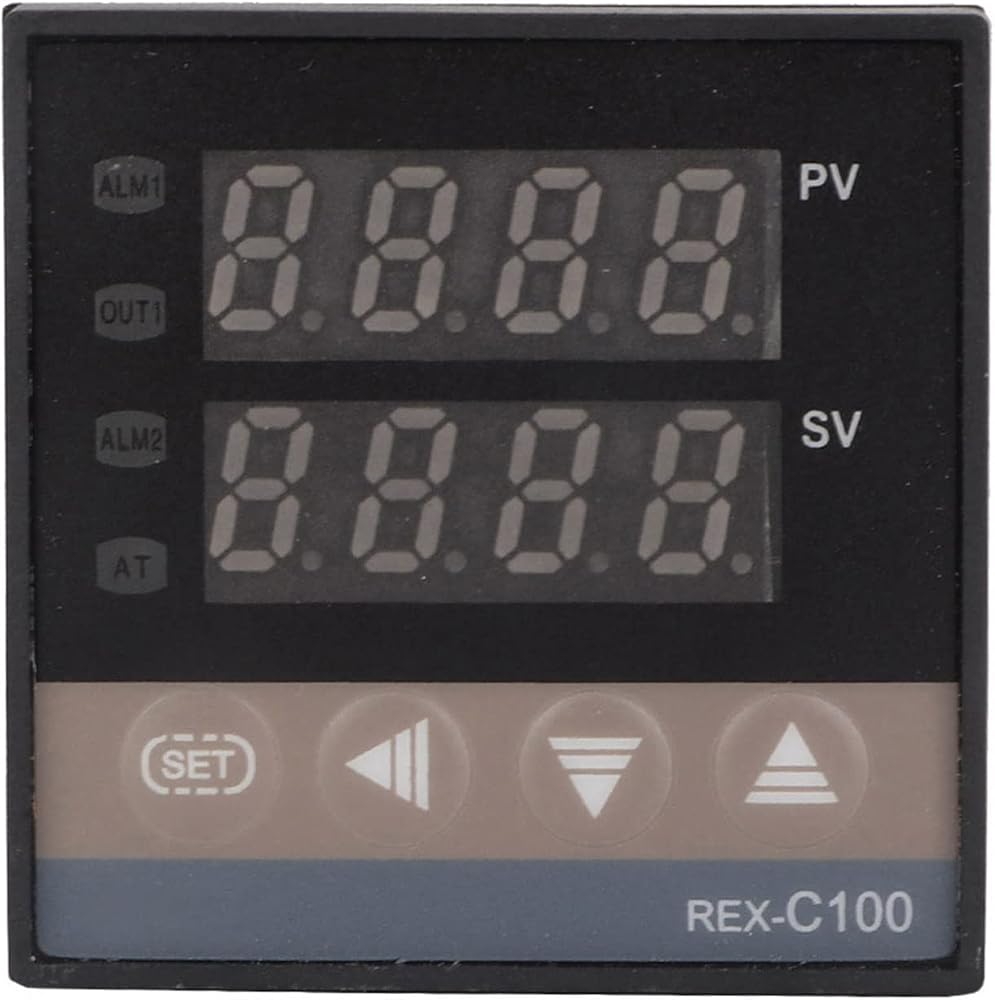

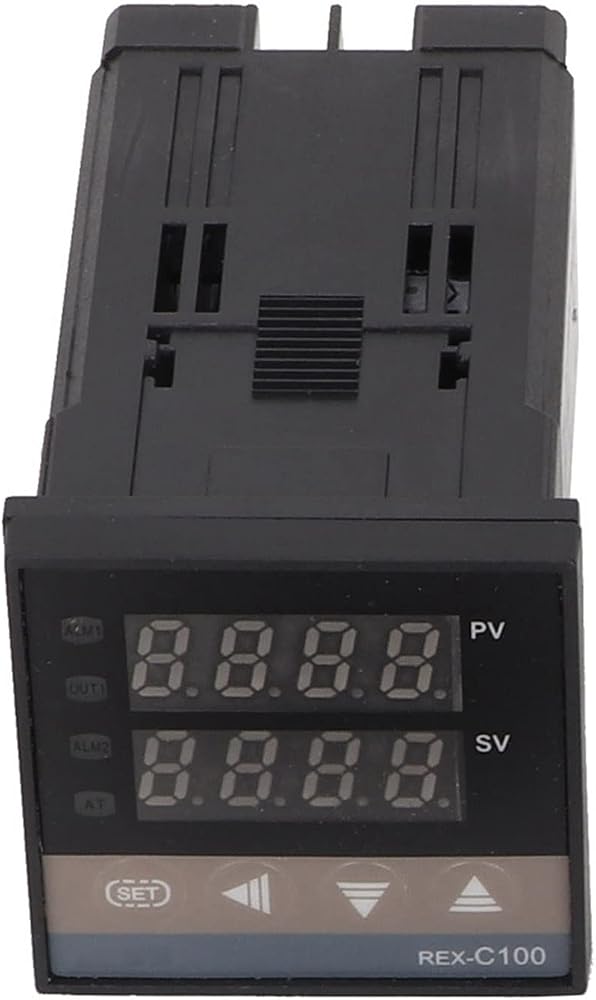

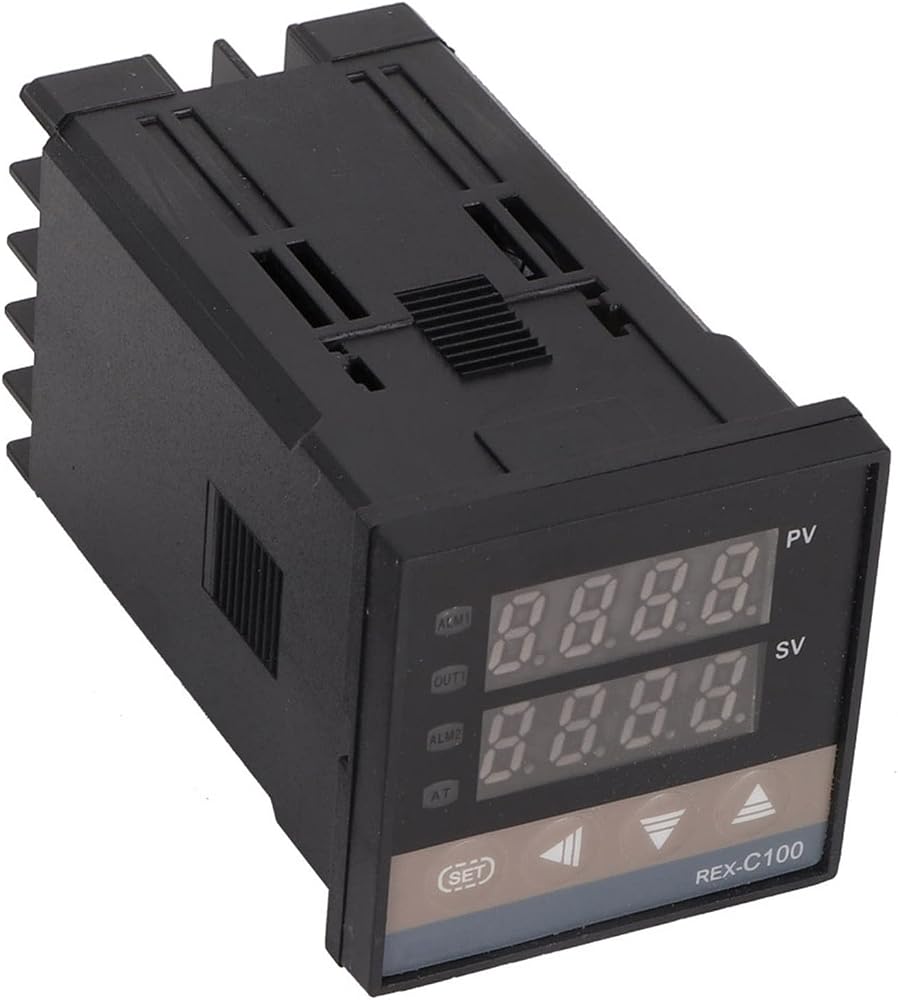

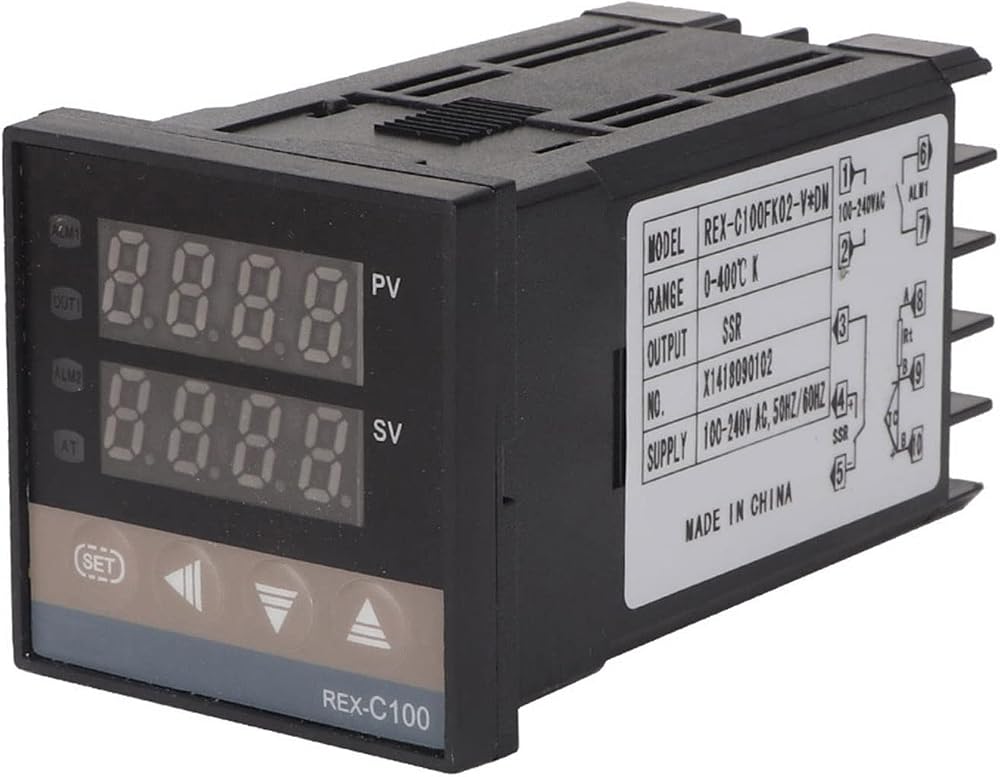

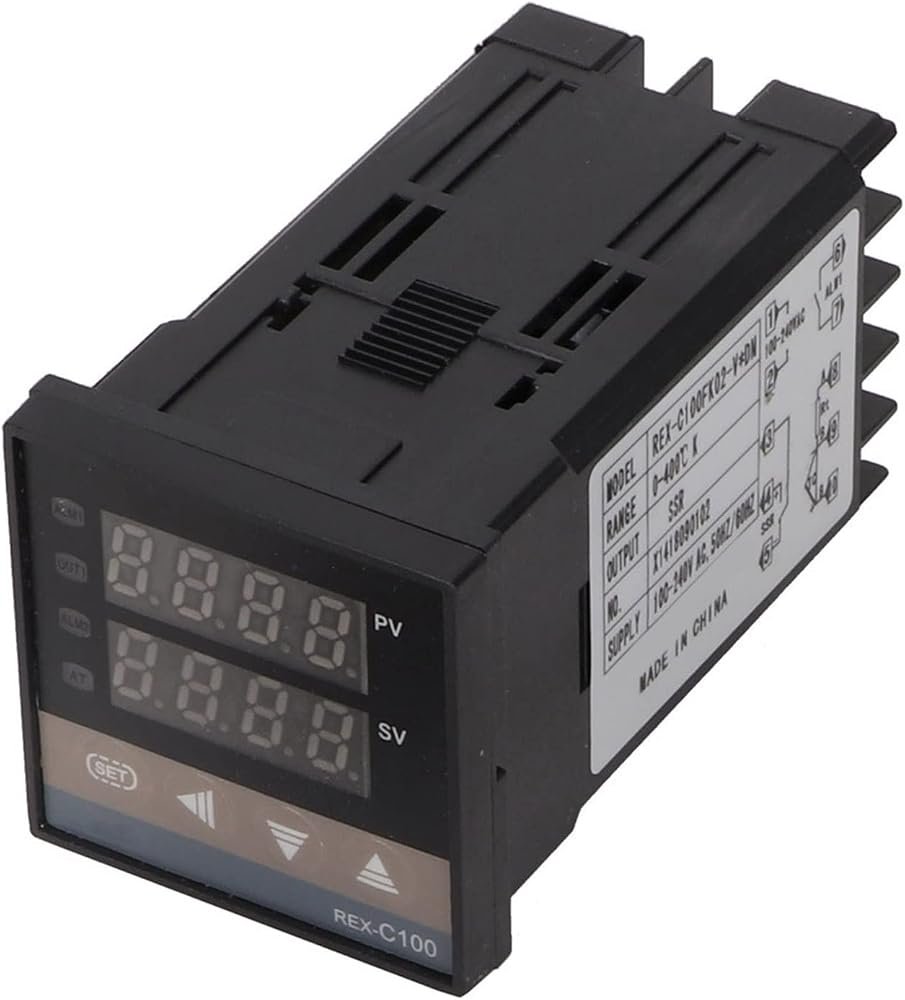

EX - C100 thermostat
Model :-C100FK02-V*AN DN
Measurement accuracy:±0.5%FS
End to end compensation tolerance: 0 ~ 50℃can be through the software to modify±2℃
Resolution: 14 bits
Sampling cycle: 0.5 seconds
Power supply: AC 110-240v 50/60hz
Process value (PV), set value (SV)
Output, alarm and self-setting can be indicated: by LED
PIN control (including ON/OFF, stepper PID and continuous PID)
Delayed output: contact capacity 250V AC 3A (resistance load)
Alarm output: none
Proportional band (P) : 0 ~ full range (ON/OFF control set to 0)
Temperature measurement range: 0 ~ 400℃
Insulation resistance: > 50M ohm (500V DC)
Insulation resistance: 1500V AC/min
Insulation resistance: power consumption Environment Temperature : 0 ~ 50℃
Non-corrosive gas environment: 30 ~ 85% RH
Temperature input type: k-type thermocouple
Appearance size: 48 * 48 * 110mm / 1.9 * 1.9 * 4.3in
K thermocouple probe cable
Length: 1 m
Diameter of sensor: 4.5mm
Temperature range: 0 ~ 1300℃
Internal insulation: glass fiber
External shielding: insulation shielding
Maximum 25A SSR (solid state relay)
Output voltage range: standard
Output current: 25A
Input voltage: DC 3-32v
Output voltage: 24-380v AC
Weight: 208 g / 7.3 oz(approx.)

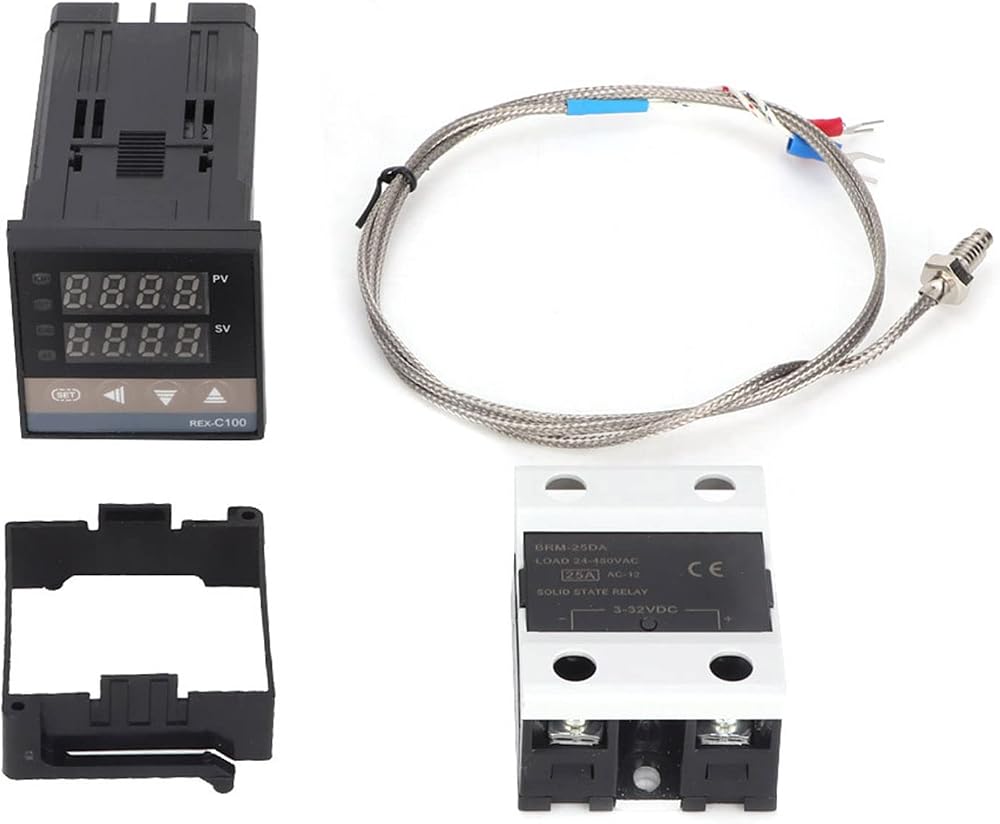

Package list:
1 x -C100 PID temperature controller
1 x K thermocouple/temperature sensor
1 x Max25A SSR

Note:

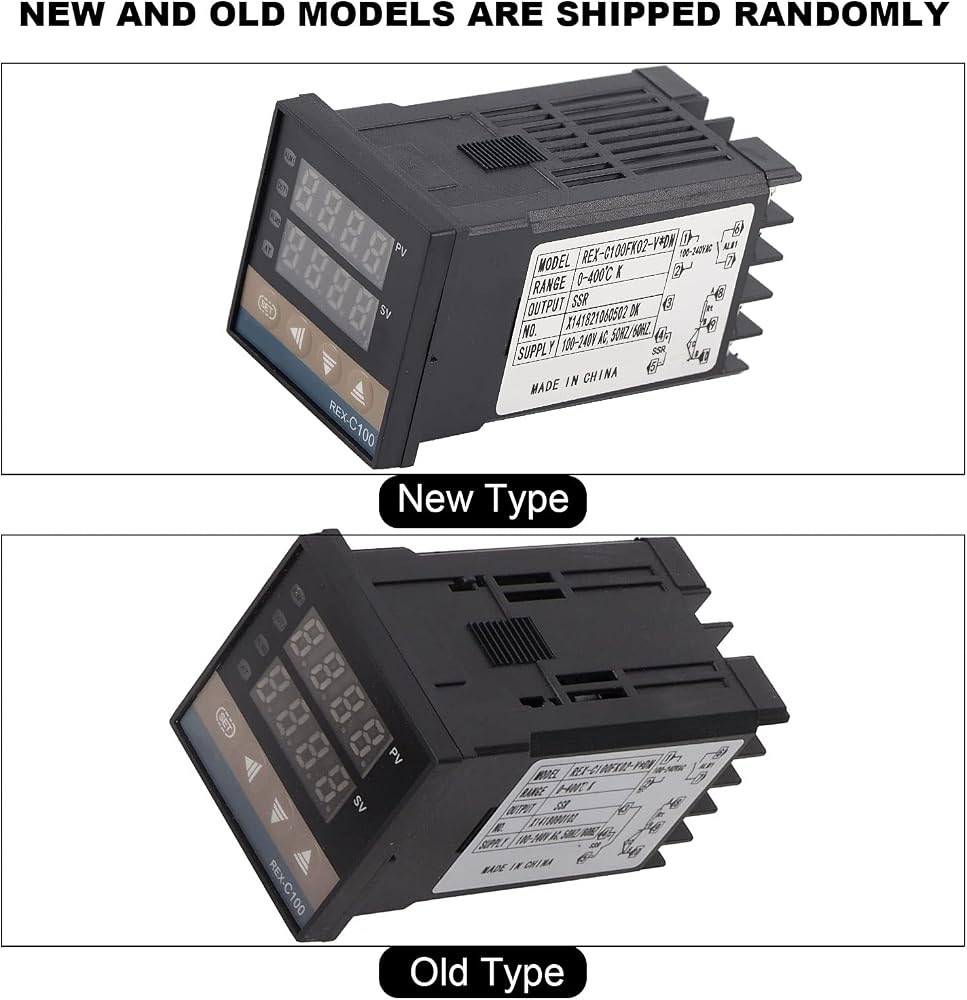

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
