Features

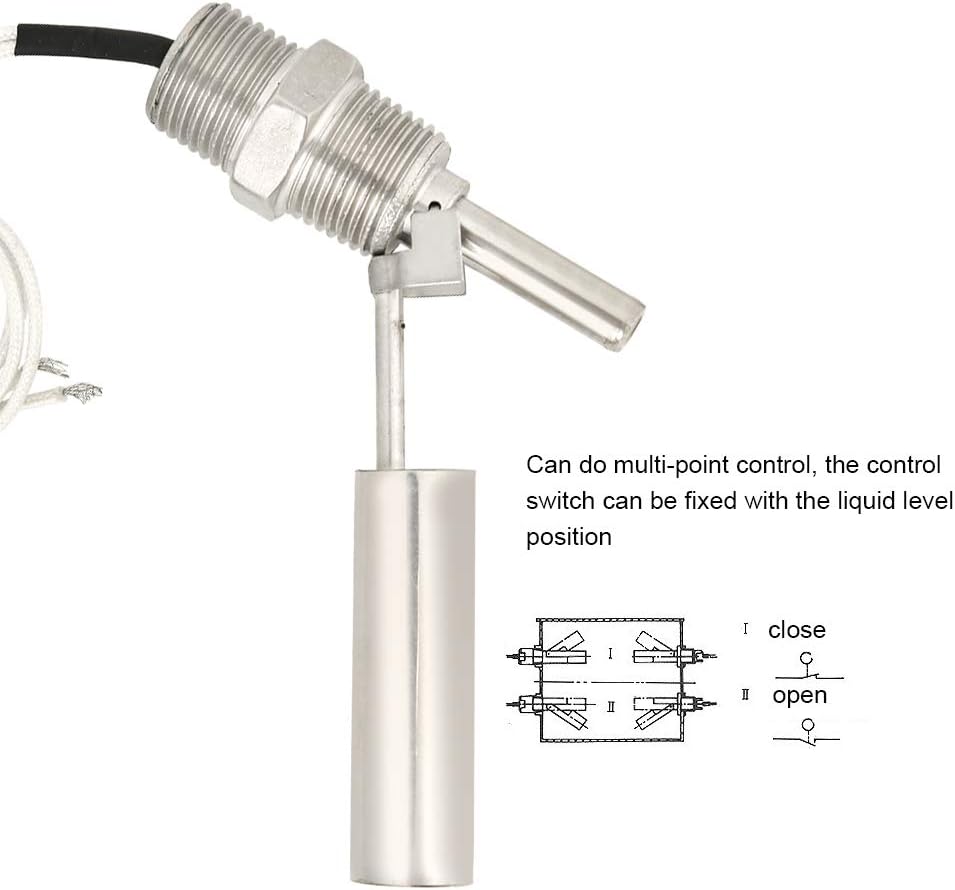

Can do multi-point control, the control switch can be fixed with the liquid level position
High accuracy, high reliability and easy installation
Made of 304 stainless steel material, can be used in weak acid and alkali places
High temperature resistance, not easy to rust and long service life
Suitable for liquids of different densities, pressures and temperatures

Specification
Item Type: Liquid Water Level Sensor
Model: YZ-SUS304 (H type)
Male Thread Size: 1/2NPT
Material: 304 stainless steel
Working Voltage: DC0-110V
Working Current: 0-1A
Maximum Temperature Resistance: 150℃
Working Pressure: 0.2(Mpa)
Maximum Withstand Voltage: 0.2(Mpa)
Medium Specific : 0.7
The product can be used for water level control of water dispensers, water heaters, solar energy, air conditioners, humidifiers, bathroom equipment, sales machines, fuel , water towers, chemical liquids, anti-dry-burning water level sensors for water heating equipment such as kitchen equipment and water heaters

Package List
1 x Sensor Switch

Note
The stroke of the is 10mm, that is, the control range is 10 mm. If the control range is required, it can be installed in 2 combinations.
