مميزات خاصة

EXCELLENT MATERIAL: The pressure diaphragm is made of stainless steel, the pressure joint is made of brass, and the thread is NPT1/4‑18.
PRESSURE DETECTION: By detecting changes in pressure, changing the state of the internal switch to control the ON and OFF action of the external circuit.

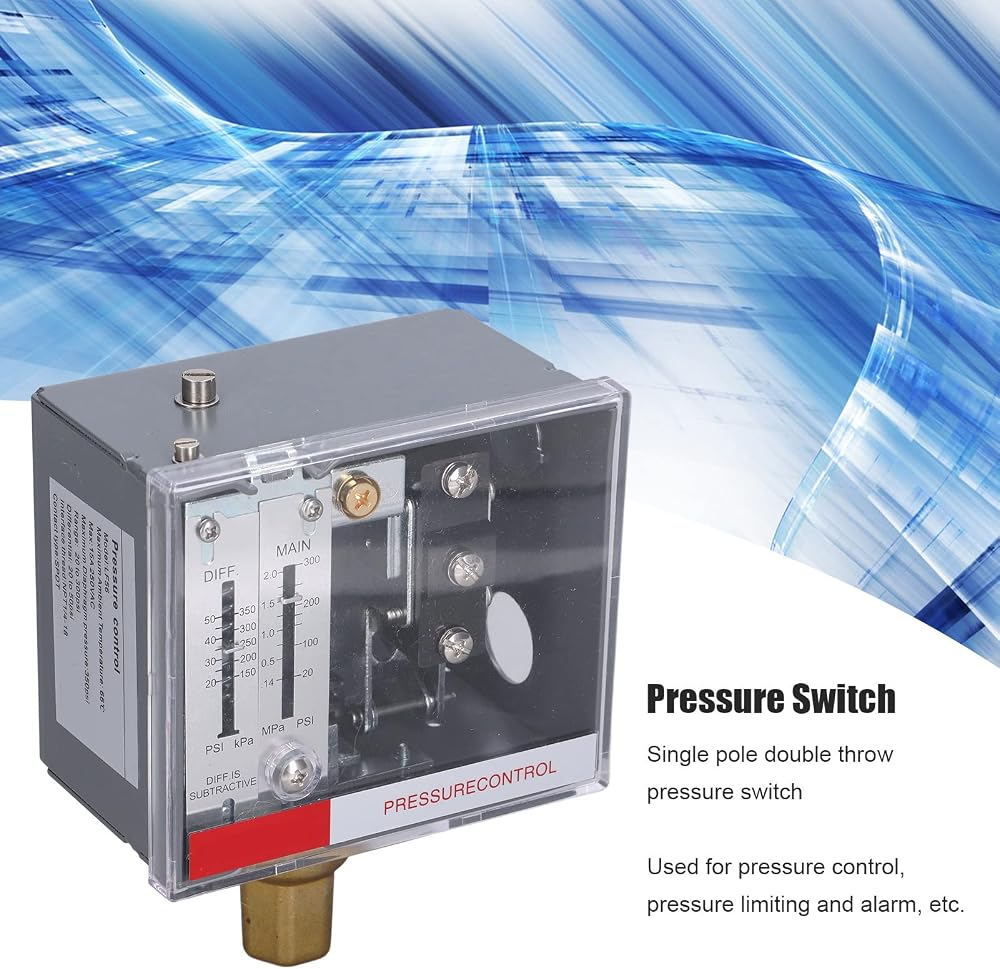

SPDT CONTACT TYPE: Single pole double throw contact method, can be used for boiler control and water tower pressure regulation system.

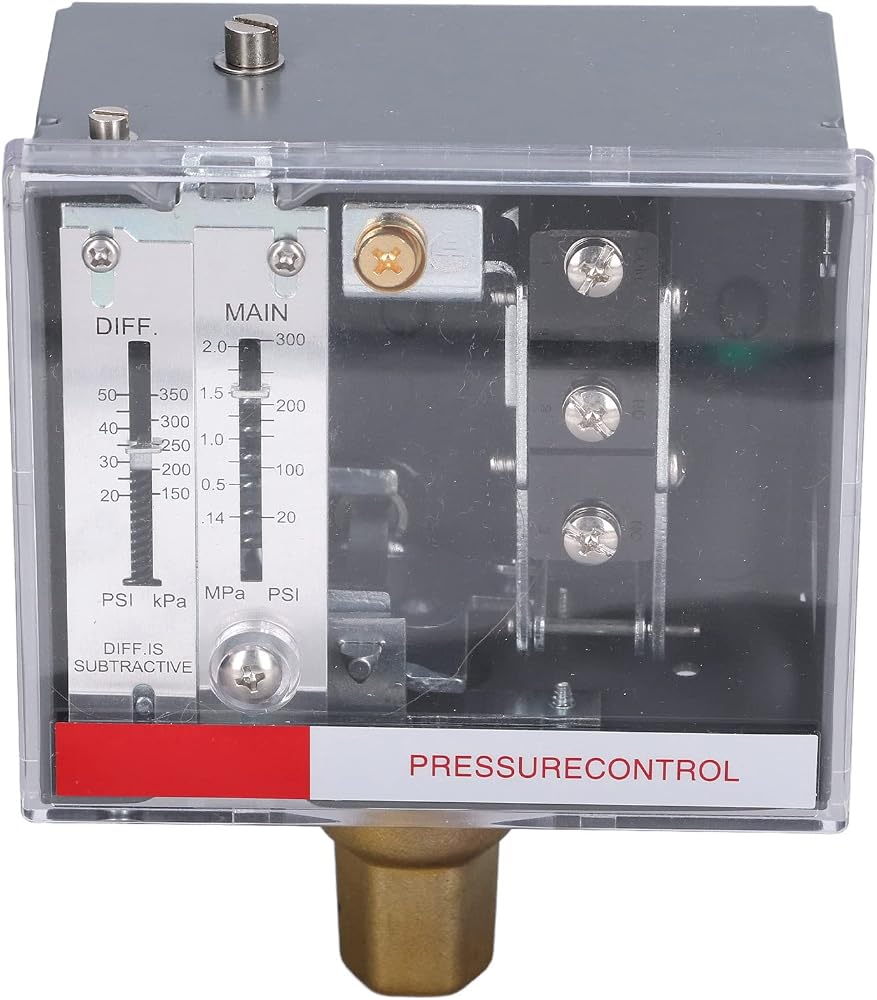

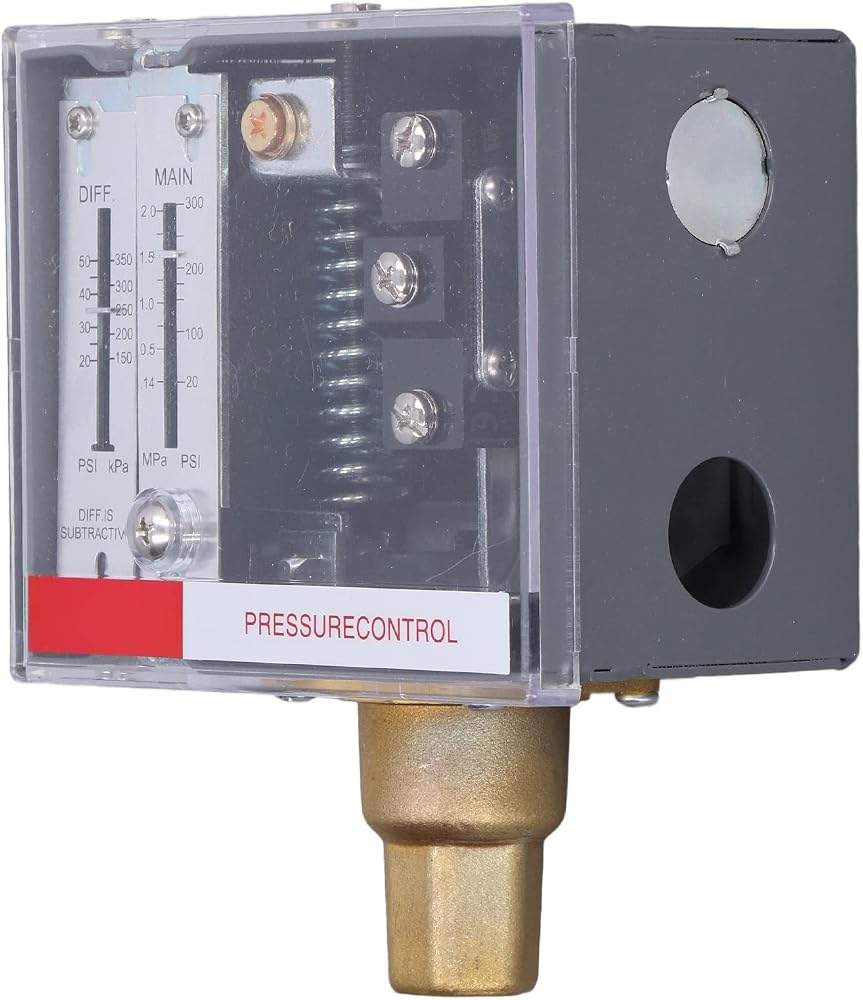

WITH PLASTIC COVER: The pressure controller shell has a plastic cover, you can observe the pressure control point at any time.
MULTIPLE USAGES: The pressure switch is suitable for pressure control, pressure limiting and alarming of non corrosive liquids, gases and steam.

وصف

Specification:
Item Type: Pressure Switch
Model: LF56
Maximum Ambient Temperature: 66℃
Maximum Load: 15A 250VAC
Maximum Diaphragm Pressure: 350psi
Pressure Range: 20-300psi / 0.14-2.0MPa

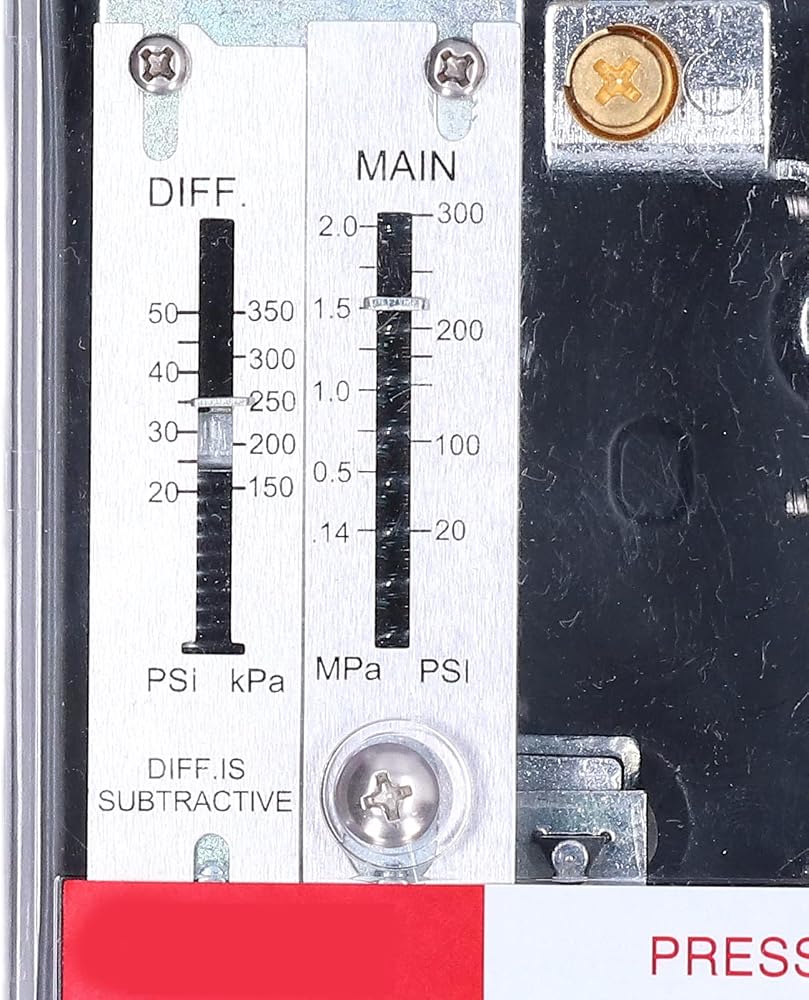

Pressure Difference Range: 20-50psi / 150-350kPa

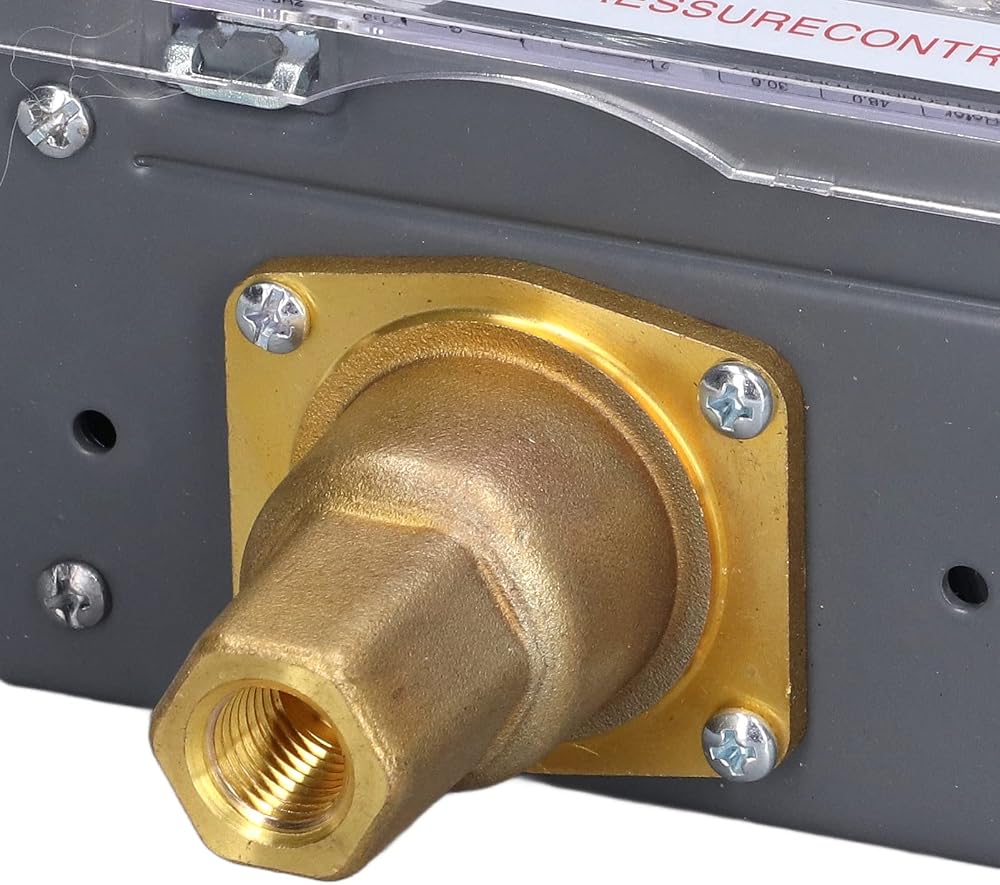

Interface Thread: NPT1/4-18
Contact Type: SPDT
Contact Method: Single Pole Double Throw
Diaphragm: Stainless Steel
Interface: Brass
Working Medium: Non corrosive medium such as air, water, oil, liquid, etc., and containing liquid is not available
Ambient Temperature: -29℃~66℃ normal operation
Medium Temperature: -40℃~180℃ without freezing

Package List:
1 x Pressure Switch
1 x User Manual

Note:
1. For standard of non corrosive media such as , water, air, liquids, etc., liquid is not available.
2. The allowable ambient temperature is ‑29℃‑66℃
