High power density, smallest and compact

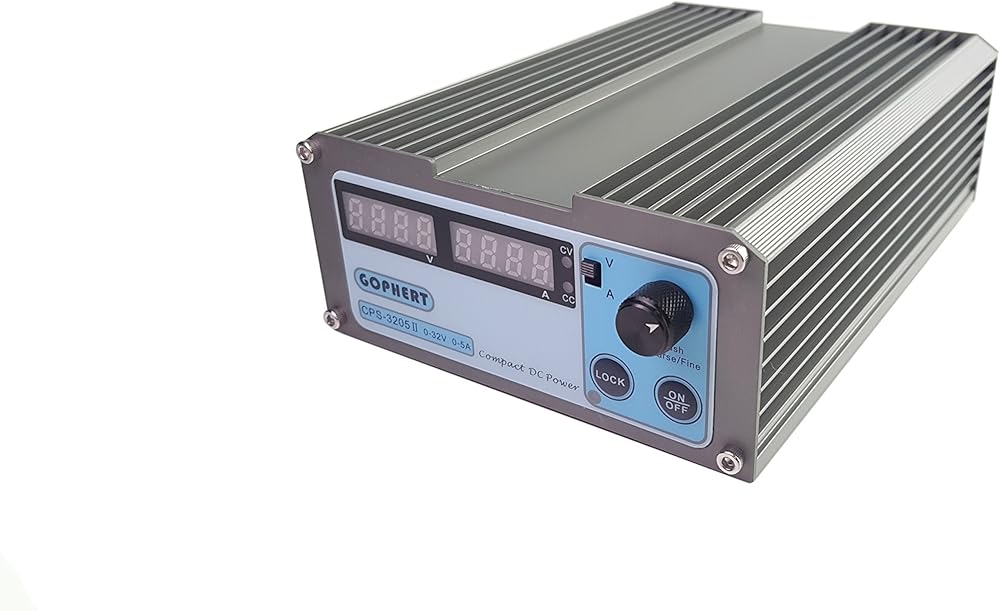

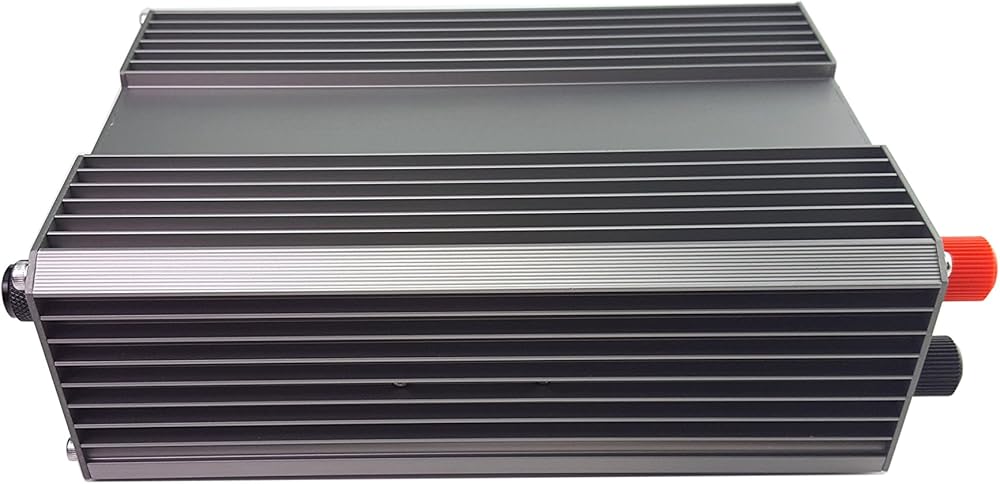

Aluminum shell, lower EMI
Microprocessor(MCU) control

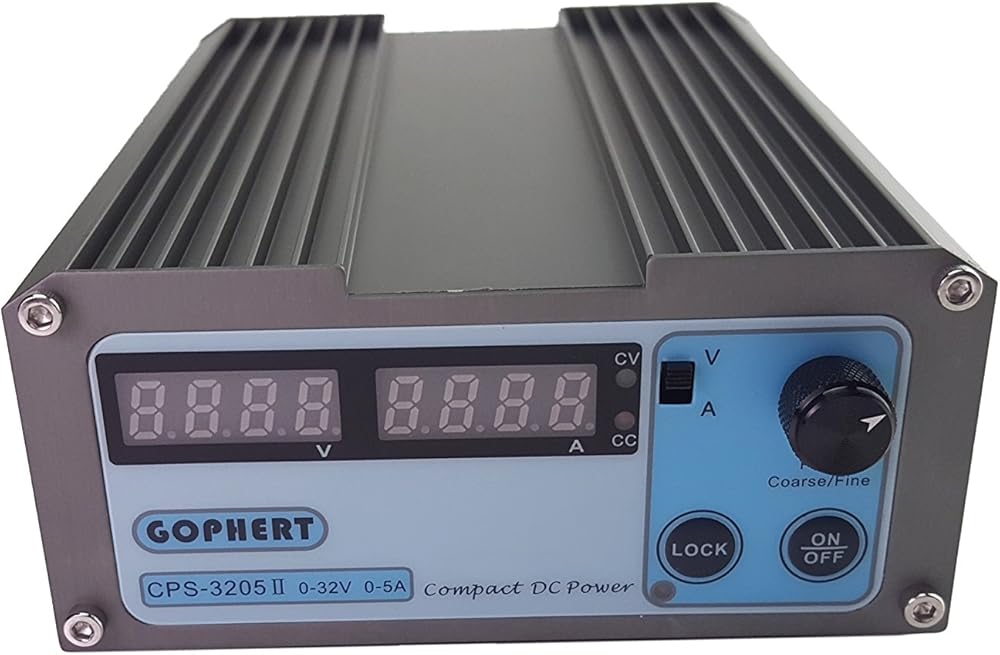

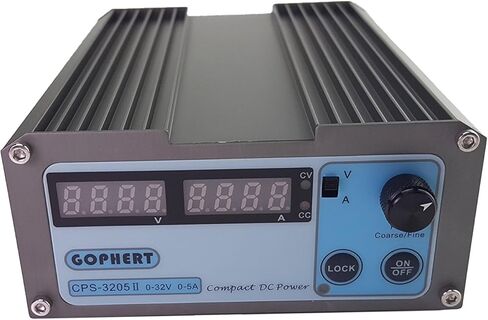

Using Encoder to set the voltage and current
Four digital volt meter and three digital current meter
Current meter displays mA automatically when current belows 1A
High efficiency, up to 88%
Specification

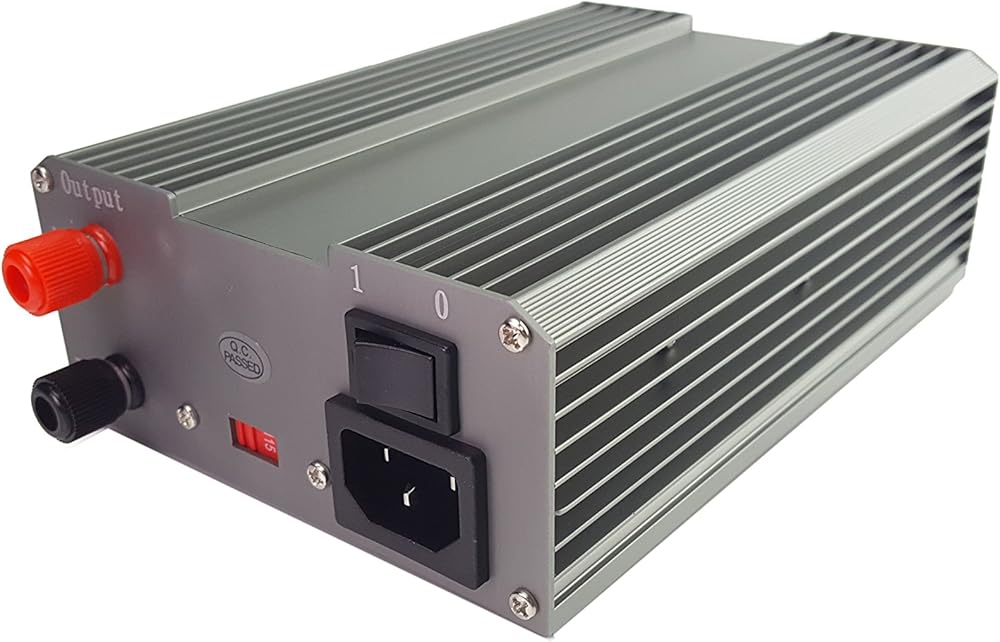

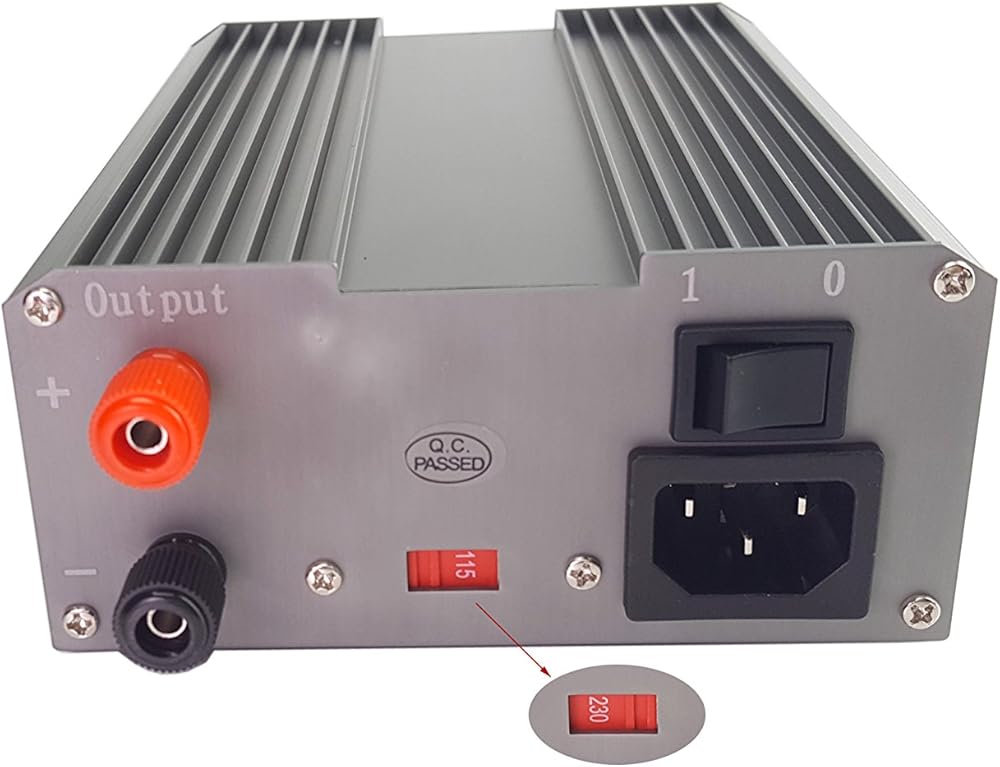

Operation Voltage Range 110/220V switchable
Operation Frequency Range 45 – 65HZ
Output Voltage Range 0 – 32V
Output Current Range 0 – 5A
Efficiency (220Vac/full load) ≥87%
Full Load Input Current(220Vac) ≤1.4A
No Load Input Current(220Vac) ≤80mA
Volt Meter Accuracy ≤ 0.3% + 1 digits
Current Meter Accuracy ≤ 0.3% + 2 digit

Constant Voltage

Load Regulation (0-100%) ≤ 30mV
Line Regulation(198-264Vac) ≤ 10mV
Ripple & Noise (Peak-Peak) ≤ 30mV
Ripple & Noise (r.m.s) ≤ 3mV
Set Accuracy ≤ 0.3% + 10mV
Transient Response Time (50%-100% rated Load) ≤ 1.0ms

Constant Current

Load Regulation(90%-10% Rated Voltage) ≤ 50mA
Line Regulation (198-264Vac) ≤ 20mA
Ripple & Noise (Peak-Peak) ≤ 30mAp-p
Set Accuracy ≤ 0.3% + 20mA
Size(width× height× depth) 120×55×168mm
Net Weight 0.85KG
