Description:

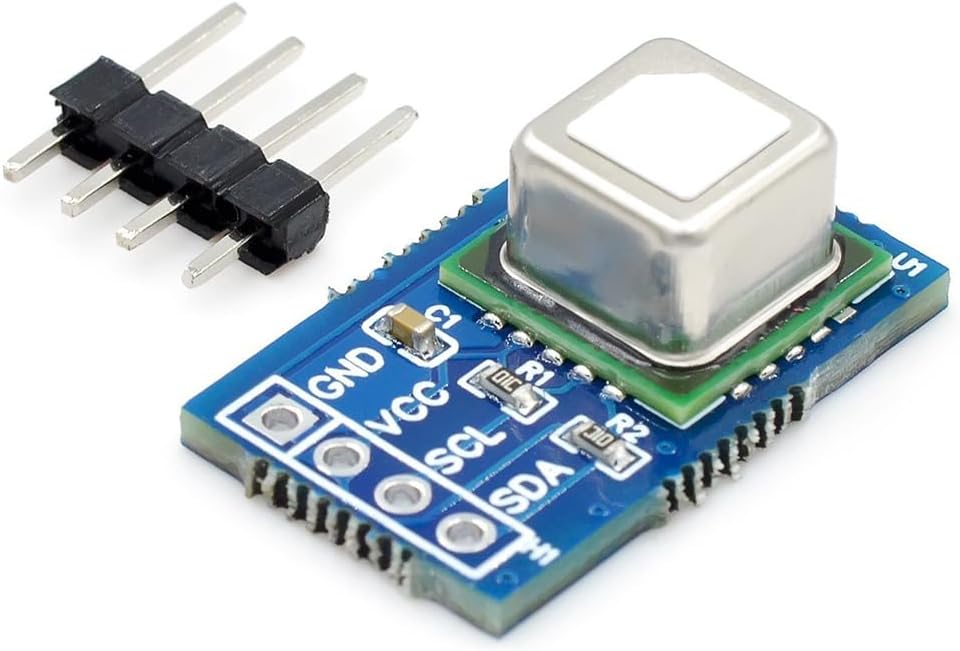

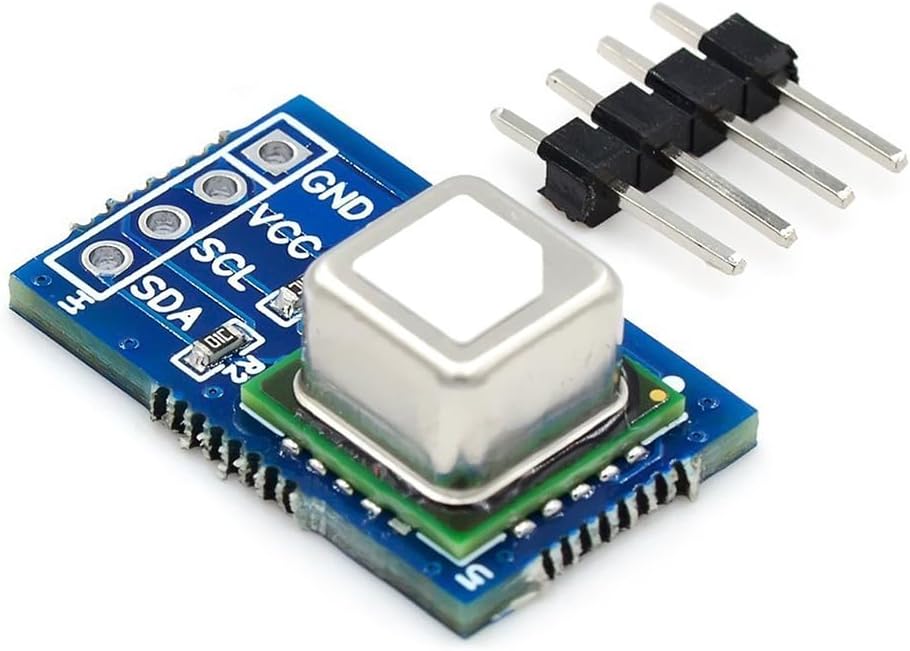

Carbon dioxide is a key indicator of indoor air quality, damaging human cognitive ability and happiness. SCD41 is the next generation of micro carbon dioxide sensor of Sensirion. SCD41 has high precision and high performance. The module leads out the power supply and communication pins with a 2.54mm spacing pin interface. On chip temperature and humidity compensation realizes humidity and temperature measurement through built-in temperature and humidity sensor. SCD41 can realize intelligent regulation of indoor ventilation system according to carbon dioxide concentration. Indoor air quality helps to maintain a healthy and efficient environment under low carbon dioxide concentration for a period of time.
Features:
Reference accuracy, specified range
SCD40:400-2000 ppm
SCD41:400-5000 ppm
Supply voltage range: 2.4-5.5 V
High accuracy: ± 5%
Digital I2C interface
Integrated temperature and humidity sensor

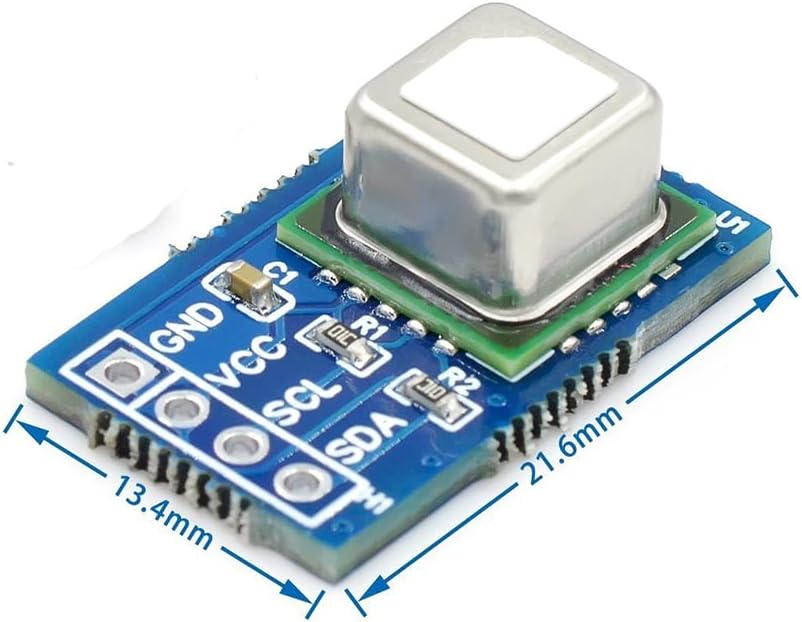

Low power operation to Board size: 13.4 × 21.6mm

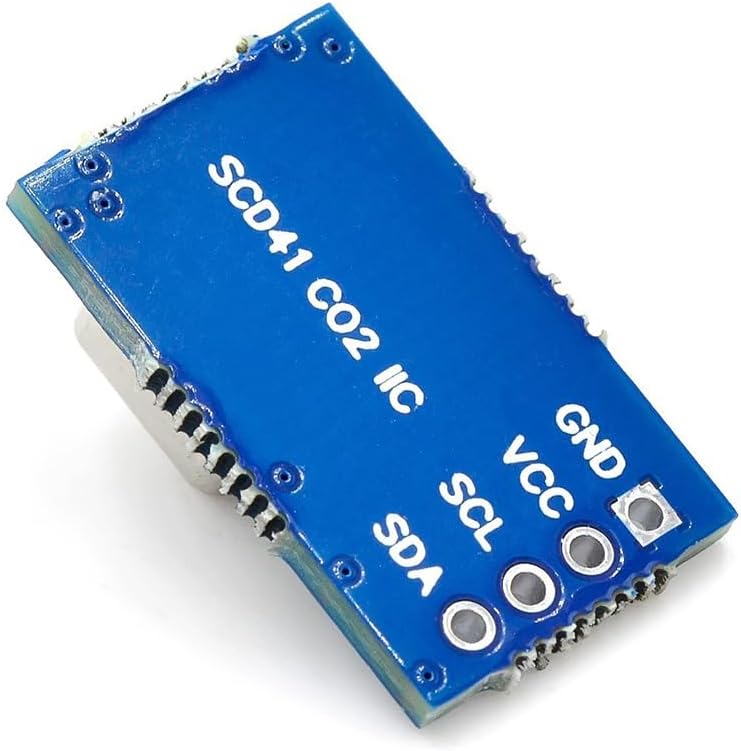

Interface:
1. GND: negative input port of power supply
2. VDD: positive input port of power supply
3. SCL: I2C clock port
4. SDA: I2C data port
Package included:
1 * SCD41 CO2 Carbon Dioxide Gas Sensor
