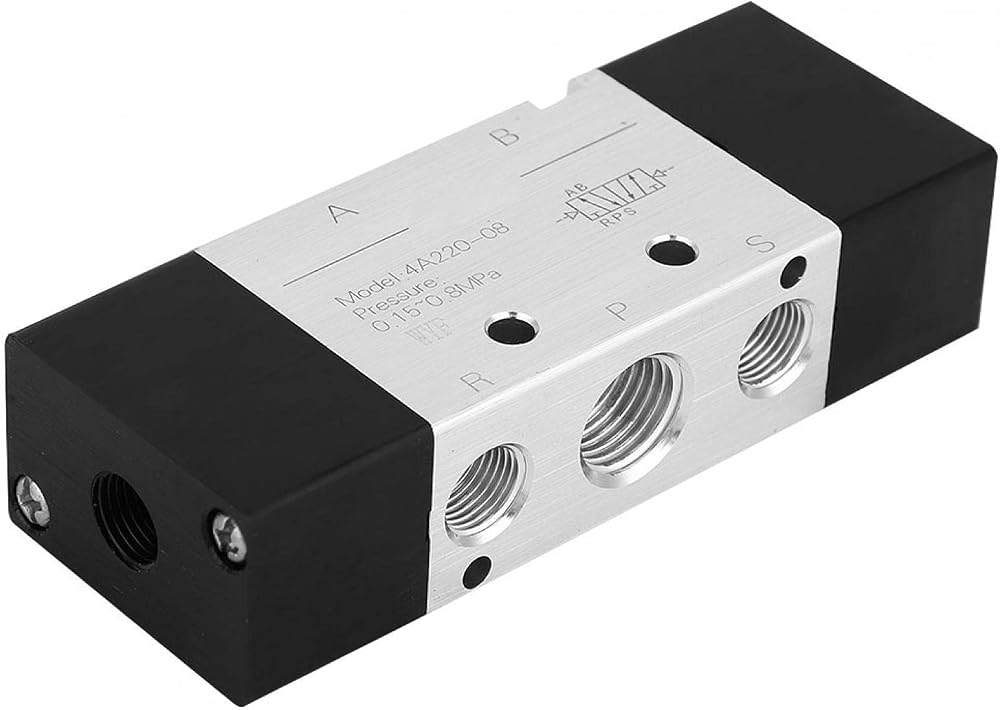

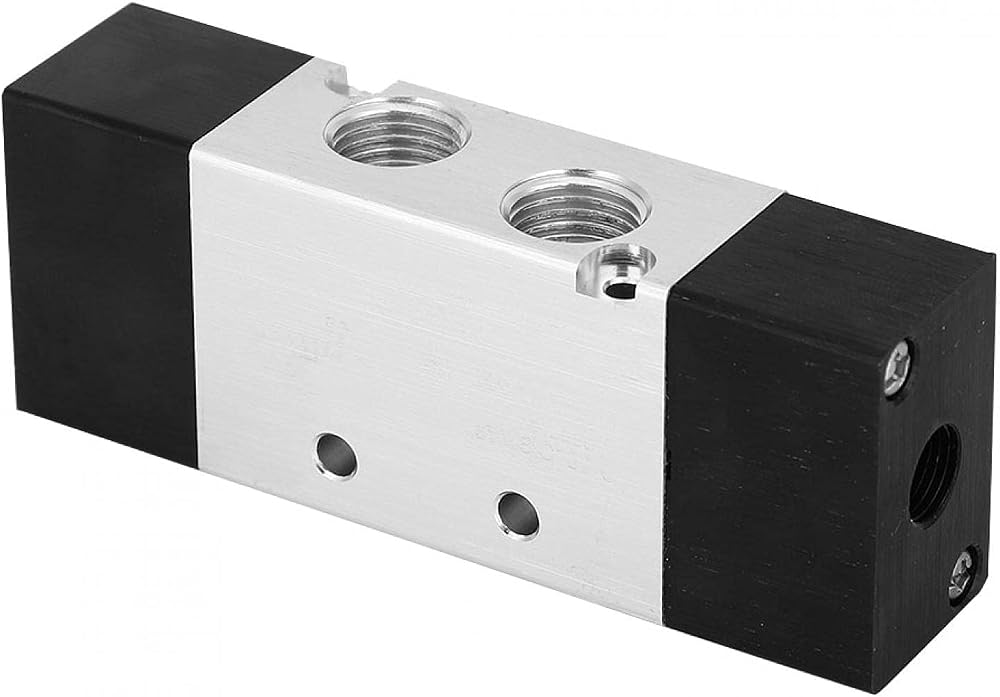

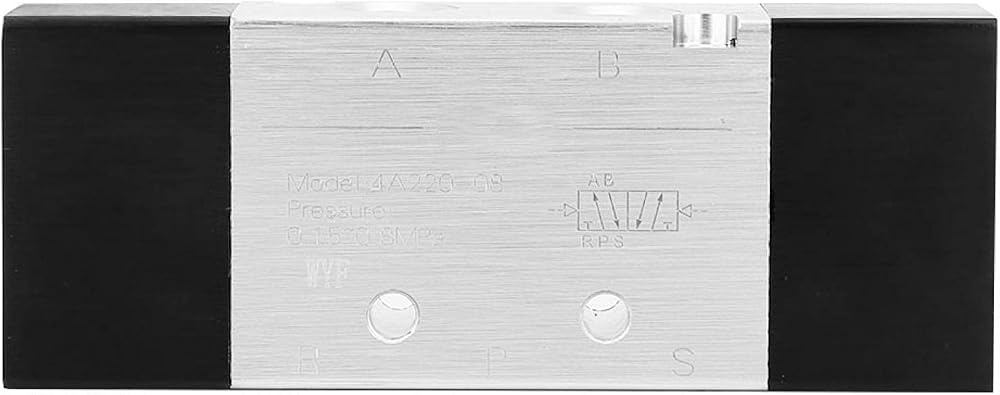

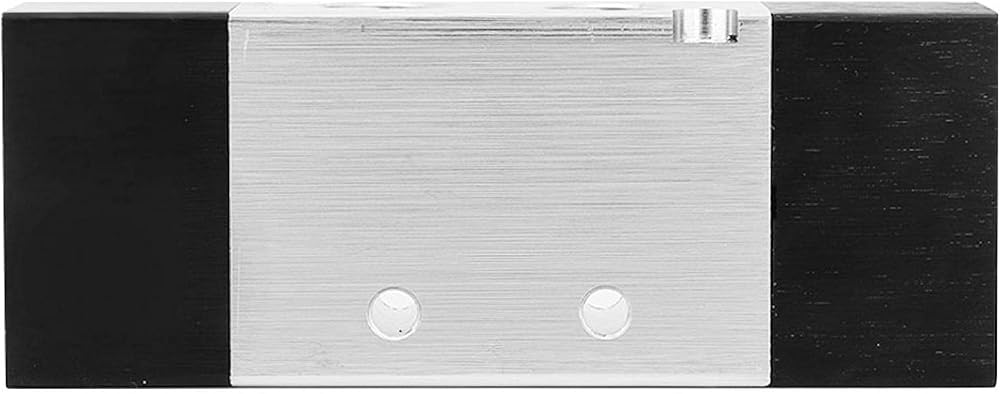

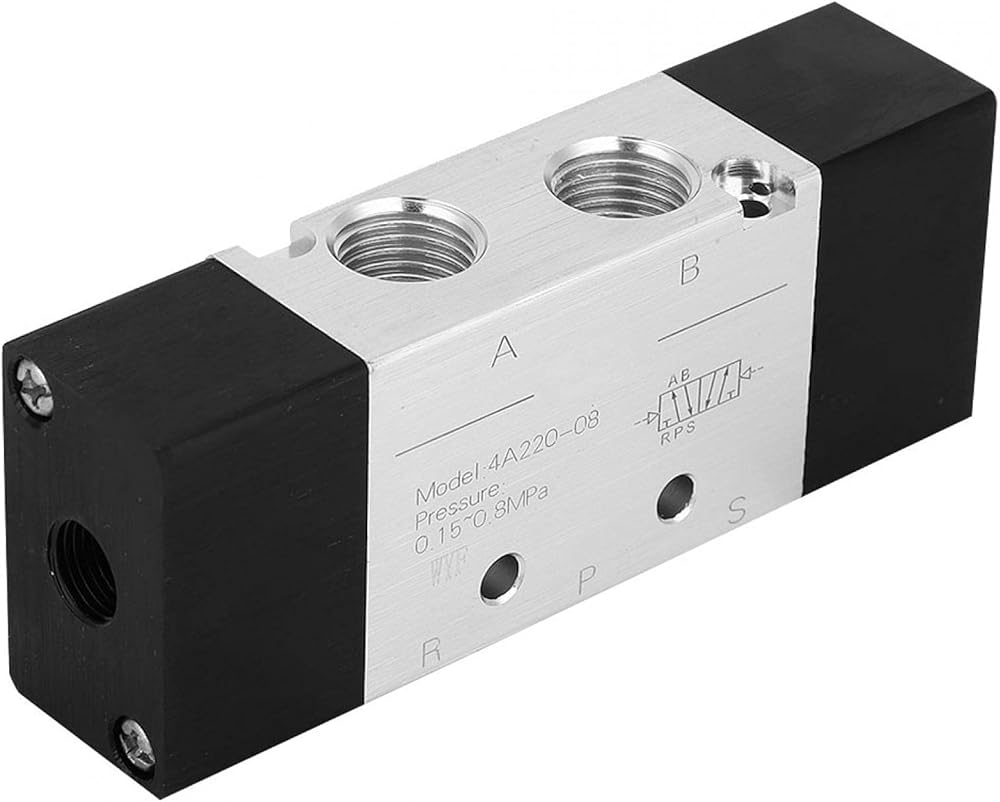

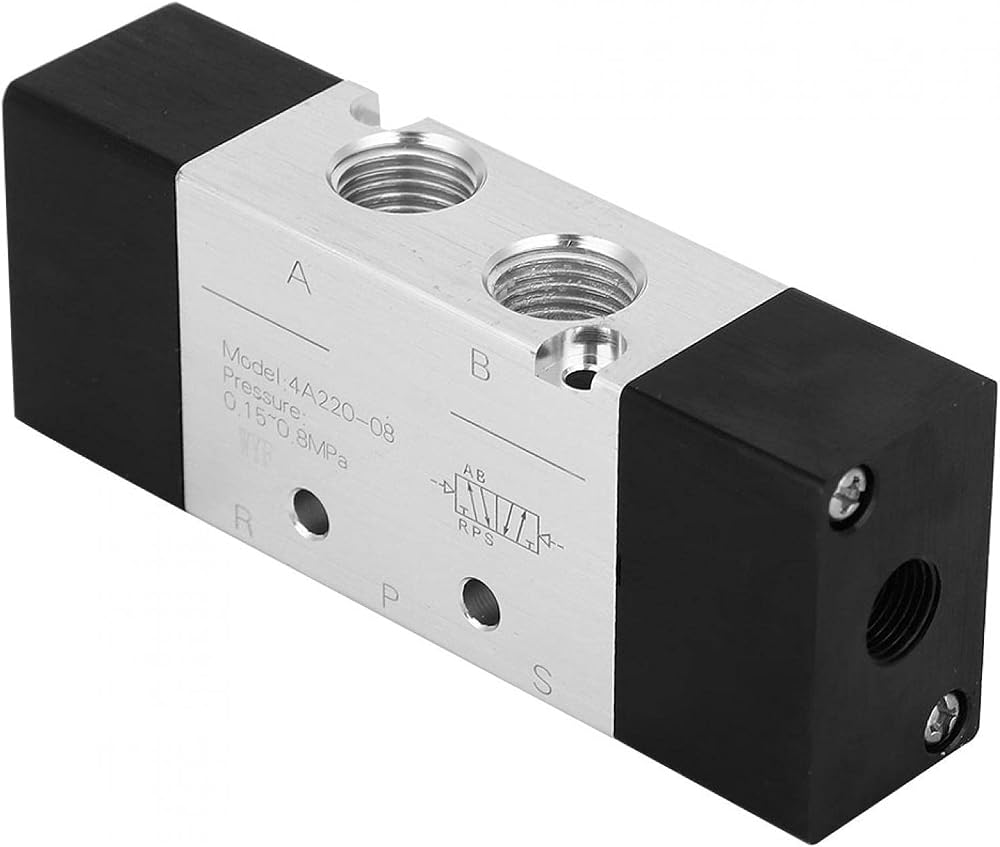

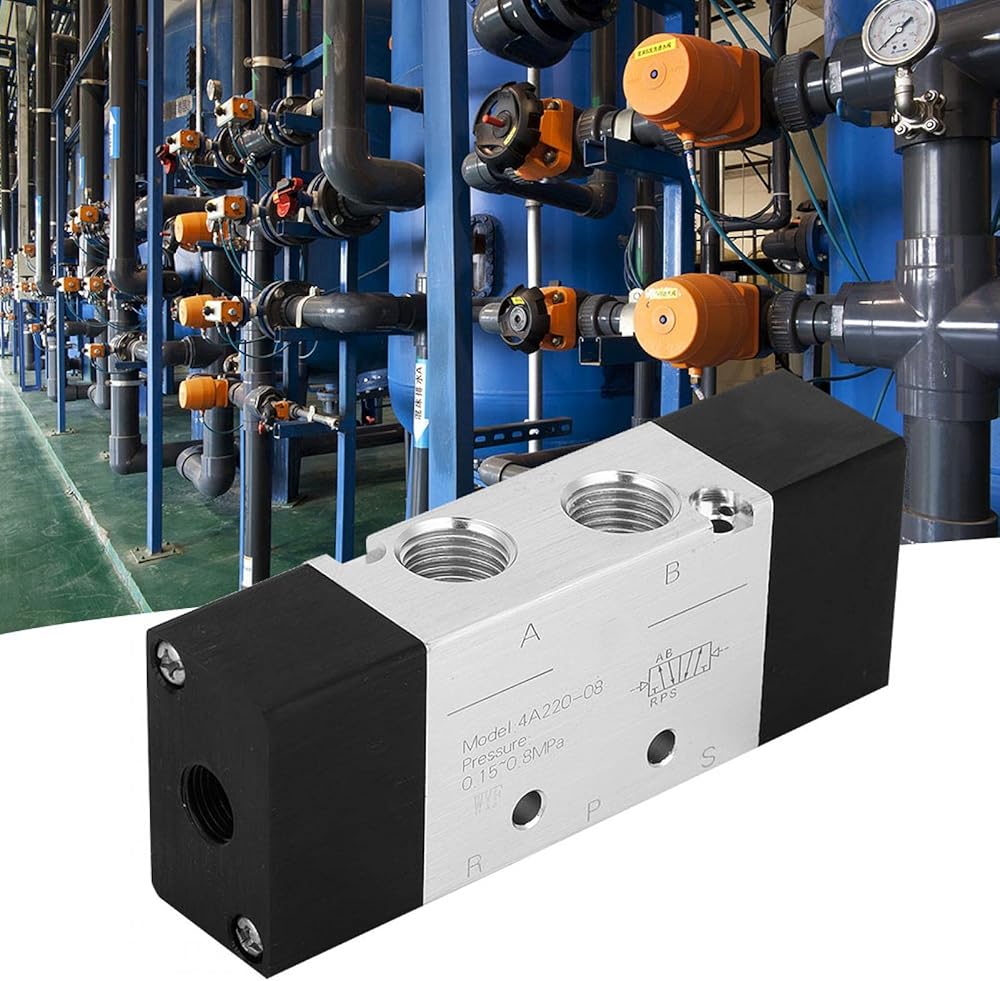

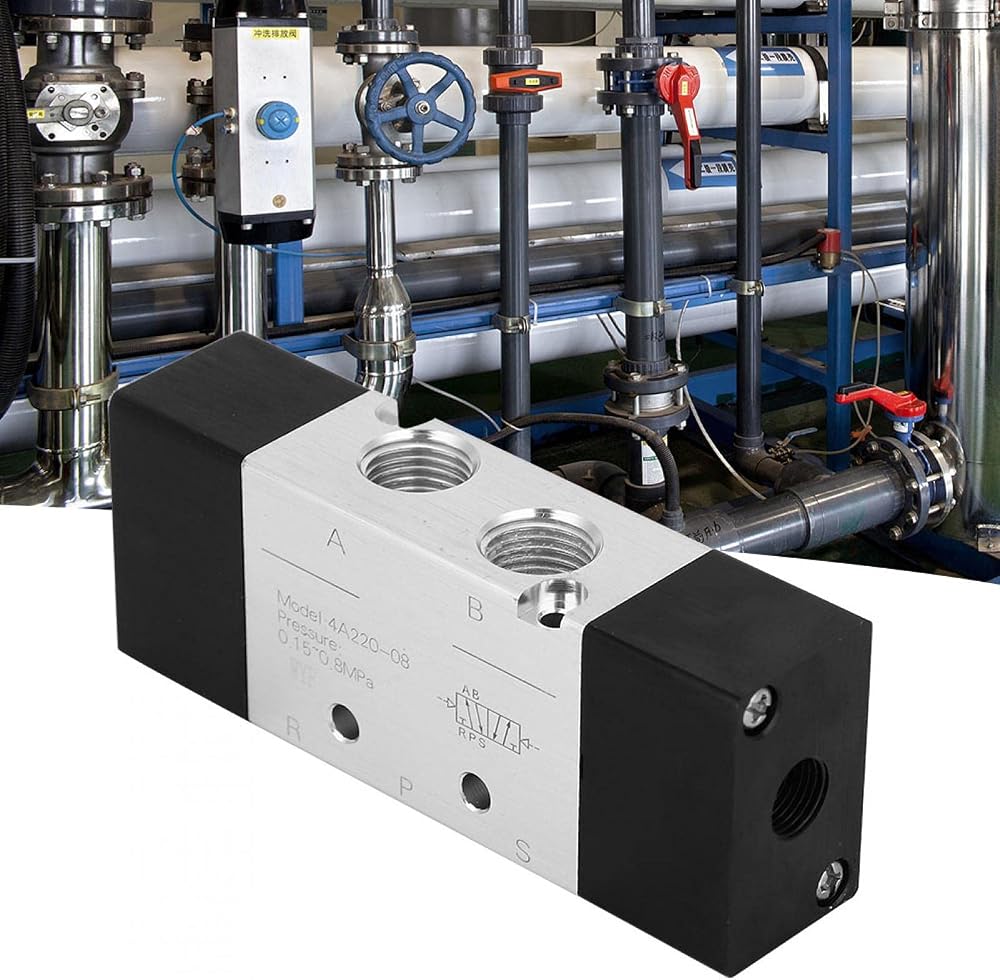

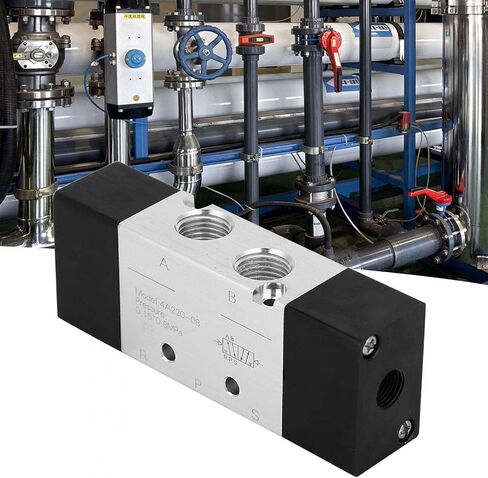

Pneumatic Valve 4A220-08 Two-position Five-way Two-way Double-Head Cylinder Pneumatic Switch Control Valve Air Valve

➤ The double-air-controlled directional valve is made of high-quality materials, which is durable and has a long service life. The operation mode is external air control.
➤ Reasonable structure, easy to install and use, effective cross-sectional area is 16mm² (Cv=0.89)，The maximum operating frequency is 5 times/sec.
➤ This valve has good wear resistance and pressure resistance. The working pressure is 0.15-0.8Mpa, and the maximum pressure it can bear is 1.0Mpa
➤ The connection diameter of this pneumatic valve is PT1/4in in inlet/outlet diameter and PT1/8in in exhaust diameter. The working temperature range is 0~60℃.
➤ Pilot valves or diaphragms used to control larger valves, small cylinders, or any pressure system that alternately pressurizes and discharges. Suitable for machinery equipment, textile equipment and food processing
