مميزات خاصة

★Contact Rated Power: 10W(low voltage)/50W (high voltage); Maximum Contact Voltage: 110V DC(low voltage)/220V AC/DC (high voltage); Maximum Contact Current: 0.5A(low voltage)/1A (high voltage); Max Contact Resistance: 100m ohm

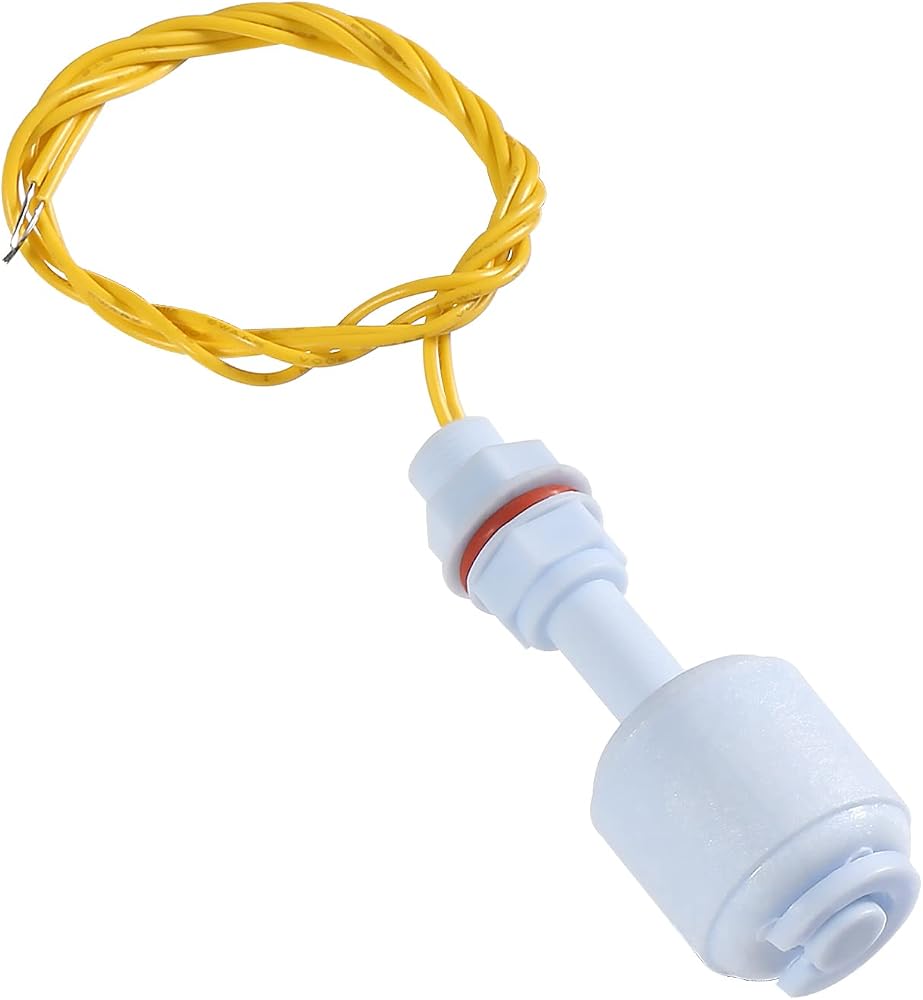

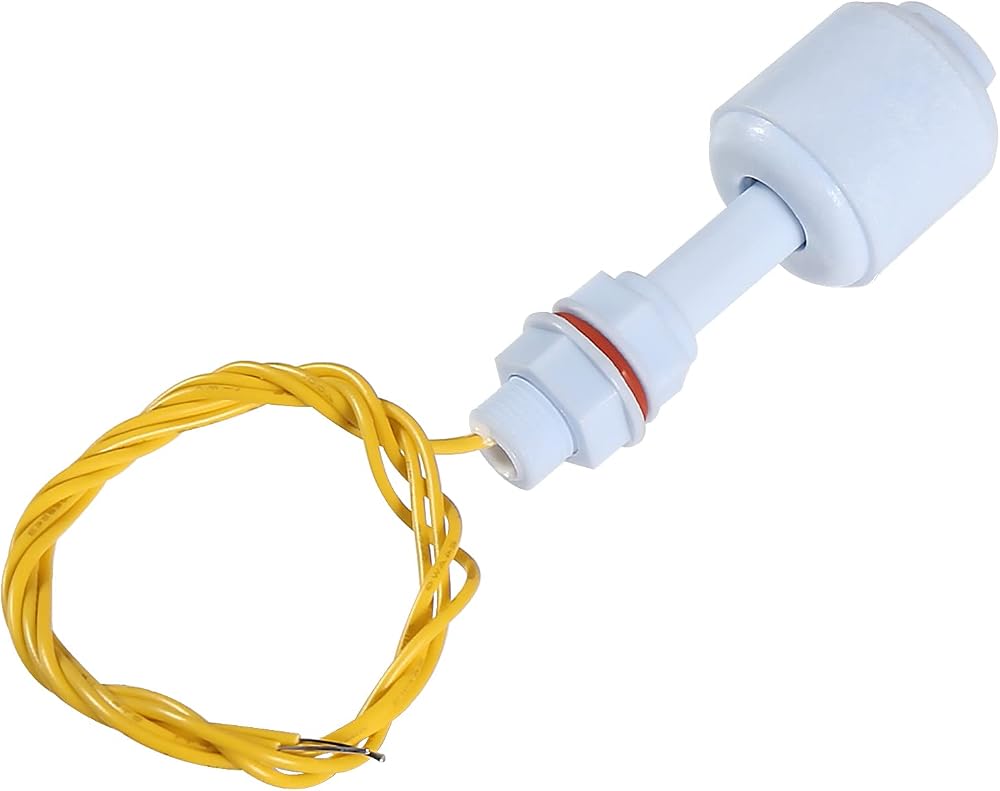

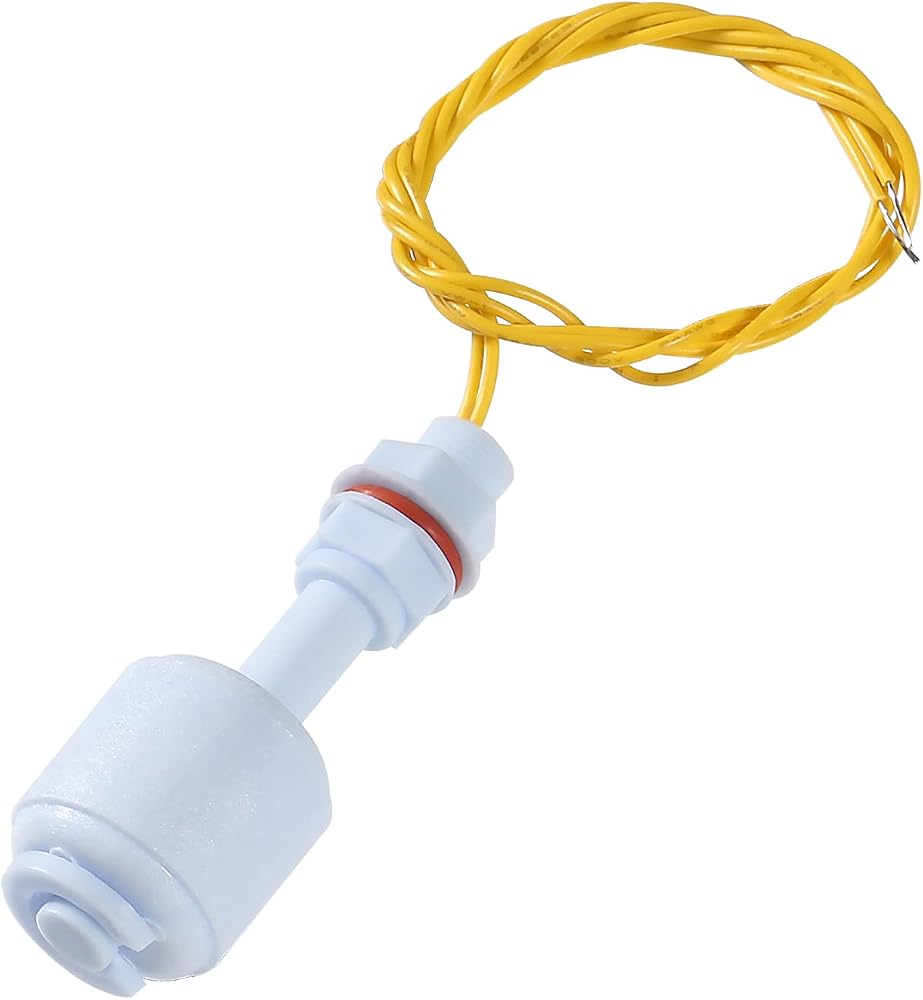

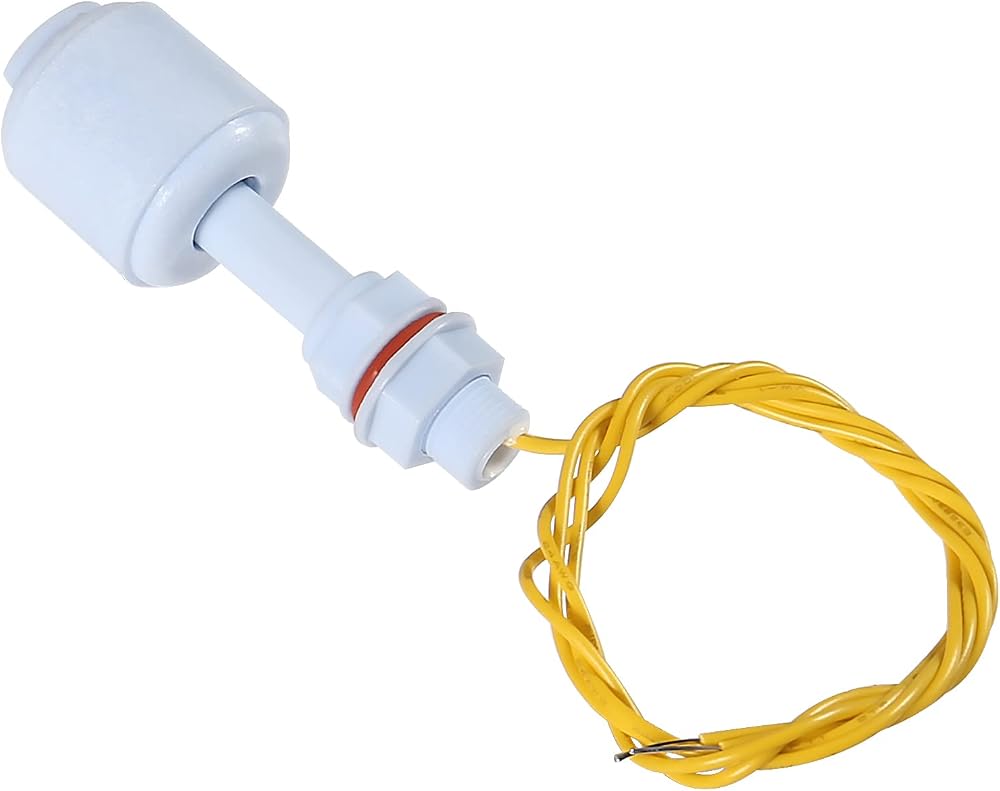

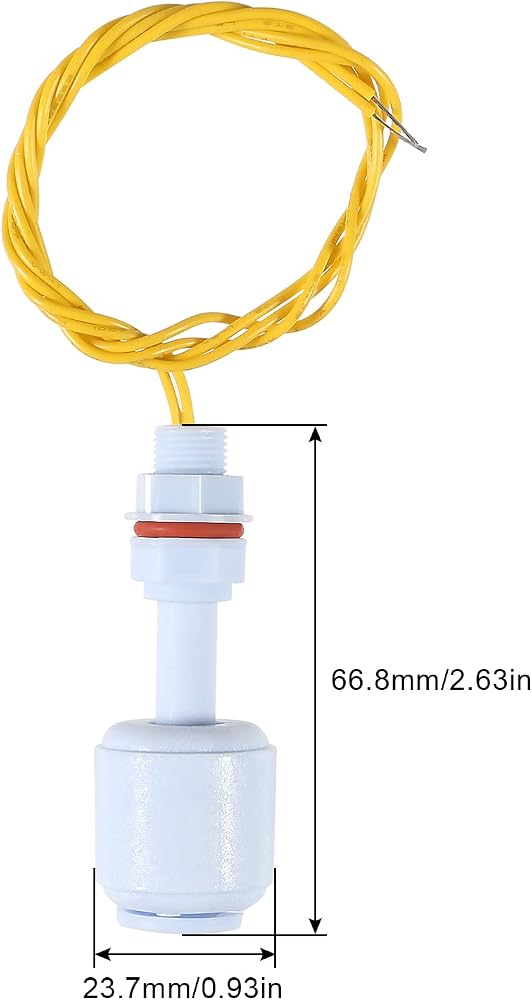

★M10 5210 float switch is a device used to sense the level of liquid within a tank,the switch may activate a pump,an indicator,an alarm,or other device.
★Float switch M10 5210 light weight and simple working principle,high reliability. It can be easily converted from normally open to normally close by inverting the float.
★Widely use for hydroponics, saltwater tank, freshwater tank, gardening, pet bowls, fish tanks, filtration, pumps, ponds, basement alarms, boats, air condition drain pans, aquarium, ice machines, coffee pots, marine,evaporator coils.
【Note】: Due to the current that the switch can carry is much little(above 0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.

وصف

Feature:
Material: Plastic
Contact Rated Power: 10W(low voltage); 50W (high voltage)
Maximum Contact Voltage: 110V DC(low voltage); 220V AC/DC (high voltage)
Maximum Contact Current: 0.5A(low voltage); 1A (high voltage)
Electrical Life: 1 million times

Note:
AC220V, AC/DC24V circuit can be used
Contact life can reach 1 million times
It can realize multi-point and remote control simply and conveniently.
The dry reed tube and conductor are completely isolated from the measured medium and can be used reliably under high temperature and high pressure.
A variety of installation methods: thread, flange, chuck, etc., to meet the different needs of various environments.
Widely Application: water treatment, chemical industry, electronics, shipping and other industries can be applied.

مرحبًا،

بحث

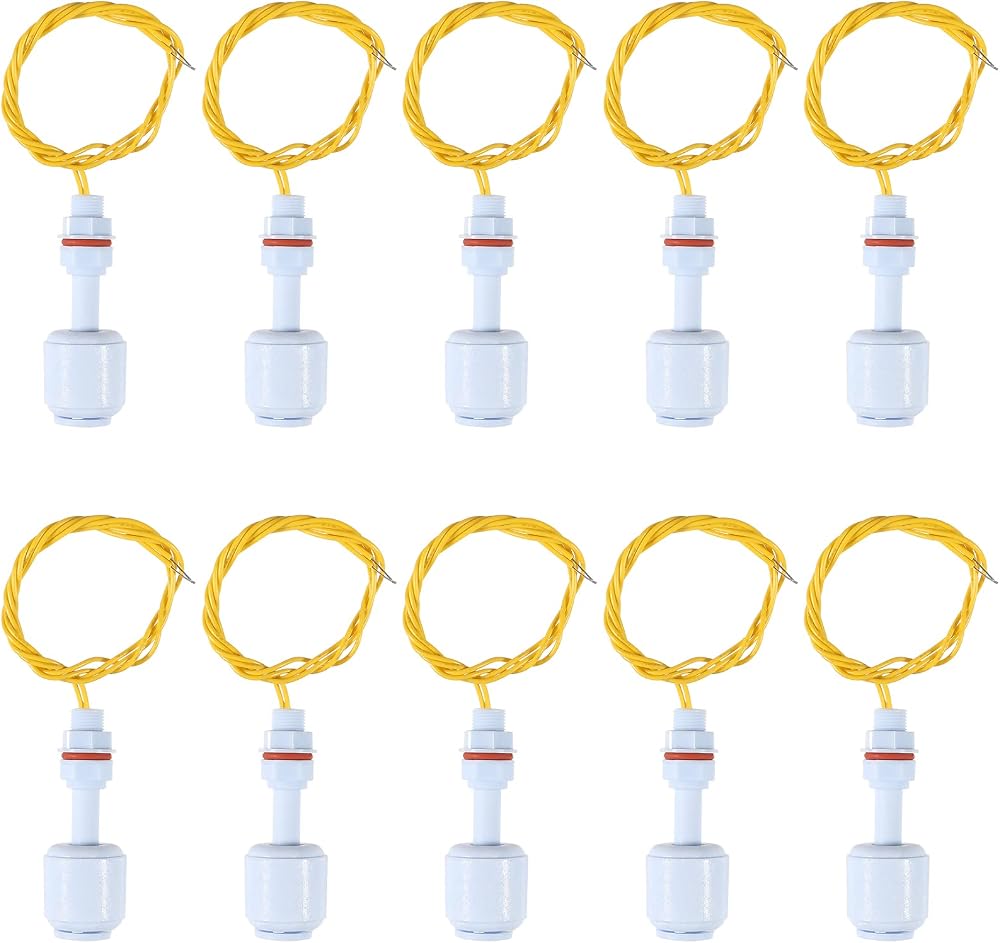

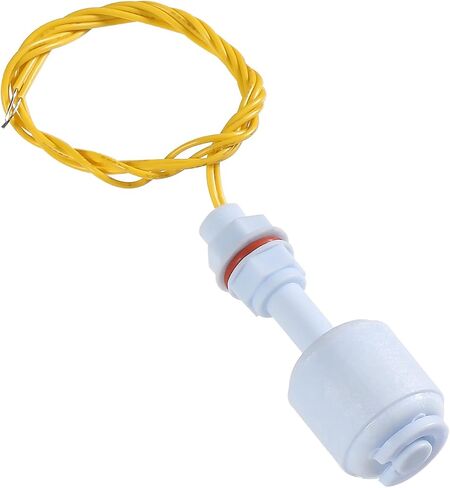

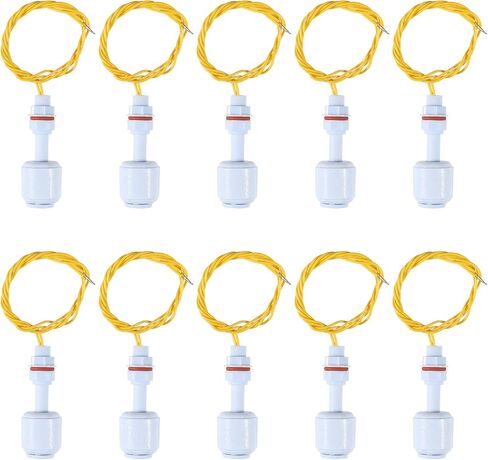

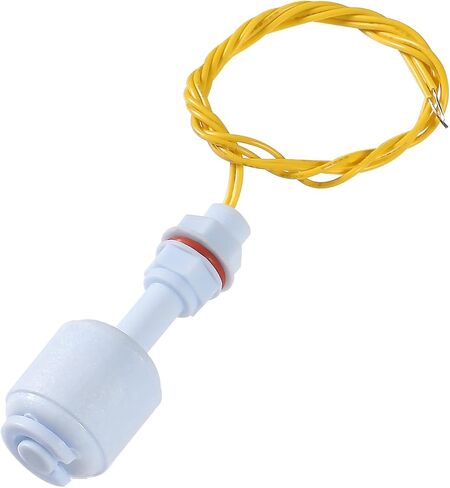

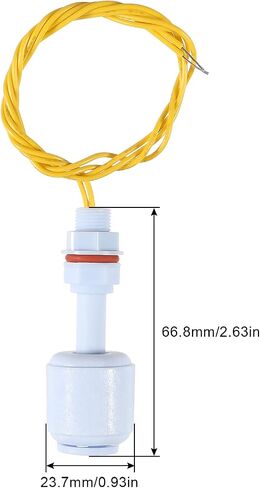

10 قطعة من البلاستيك PP تعويم التبديل M10 5210 خزان الأسماك مستشعر مستوى المياه السائلة تحكم لأحواض الأسماك خزان الأسماك
