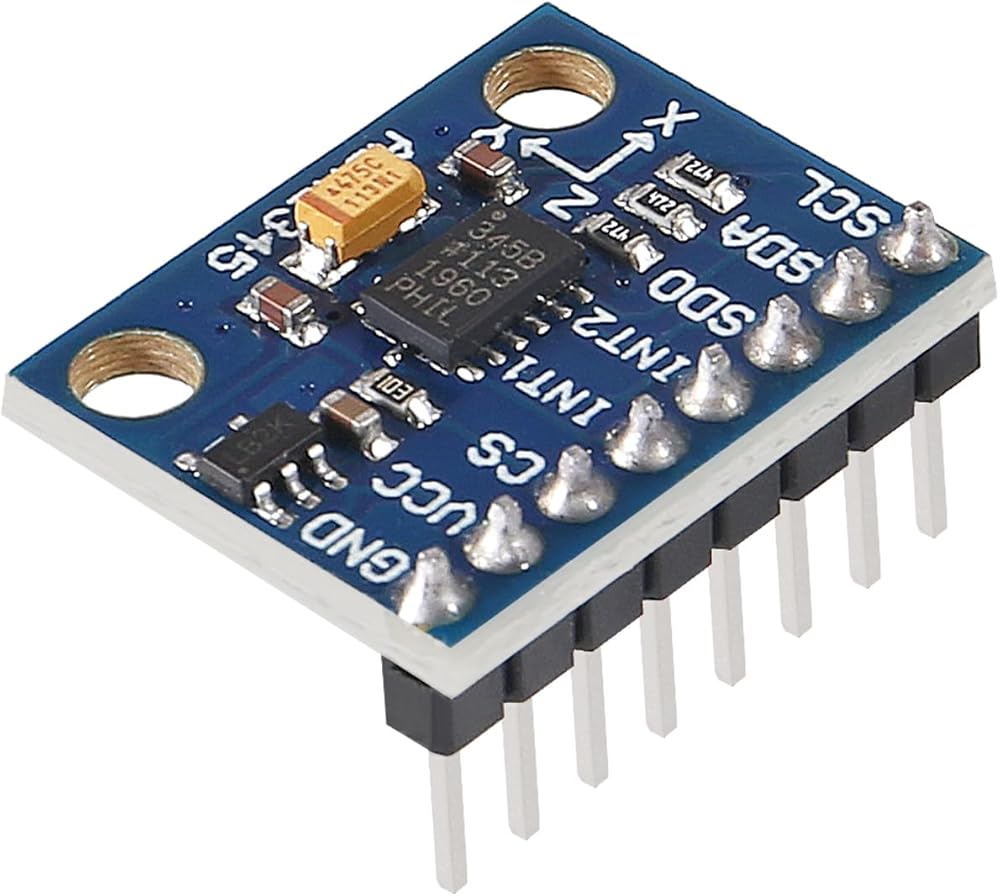

ADXL345 Pre-soldered 3-Axis Accelerometer Sensor

Specifications:
Communication: SPI (3- and 4-wire) and I2C digital interfaces
Power supply voltage: 3.3V - 5V
Measurement range: ±2g, ±4g, ±8g, or ±16g
Current consumption: 40uA (low power mode), 150uA (normal mode), 320uA (high resolution mode)
Compatible with Klipper: Yes, no modification or soldering needed
Temperature Range Operates: over a wide temperature range (-40°C to +85°C) and is RoHS compliant

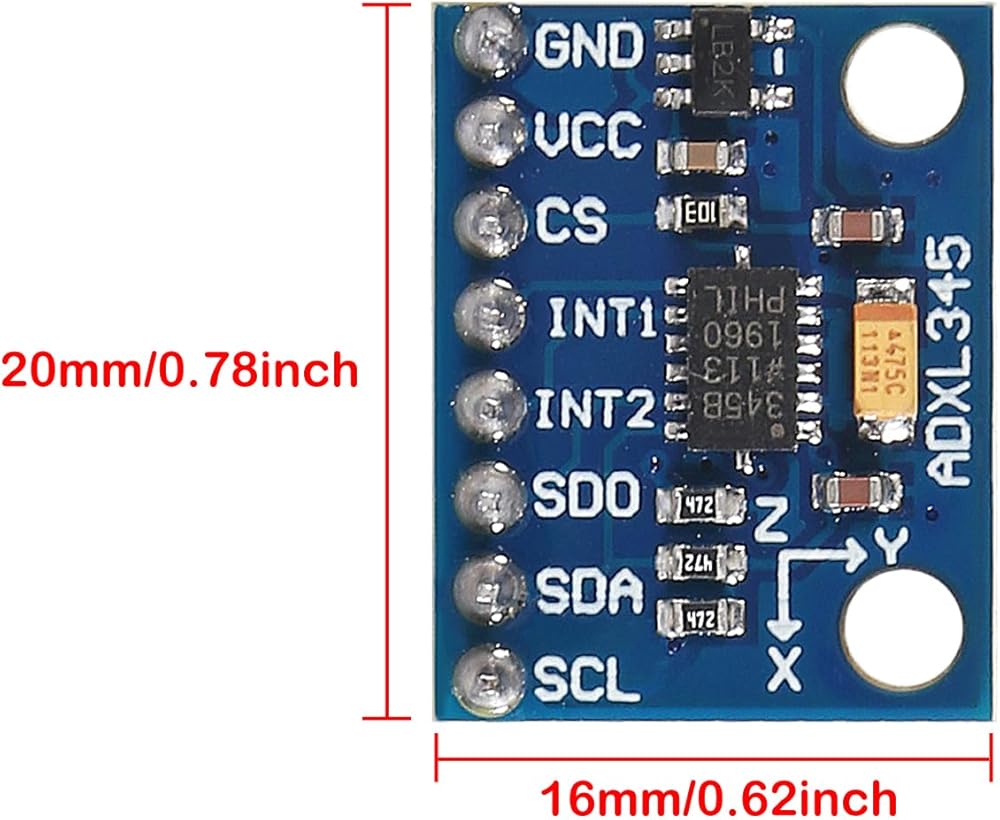

Dimensions: 2.8 x 1.4 x 1cm(1.1” x 0.55" x 0.4”)

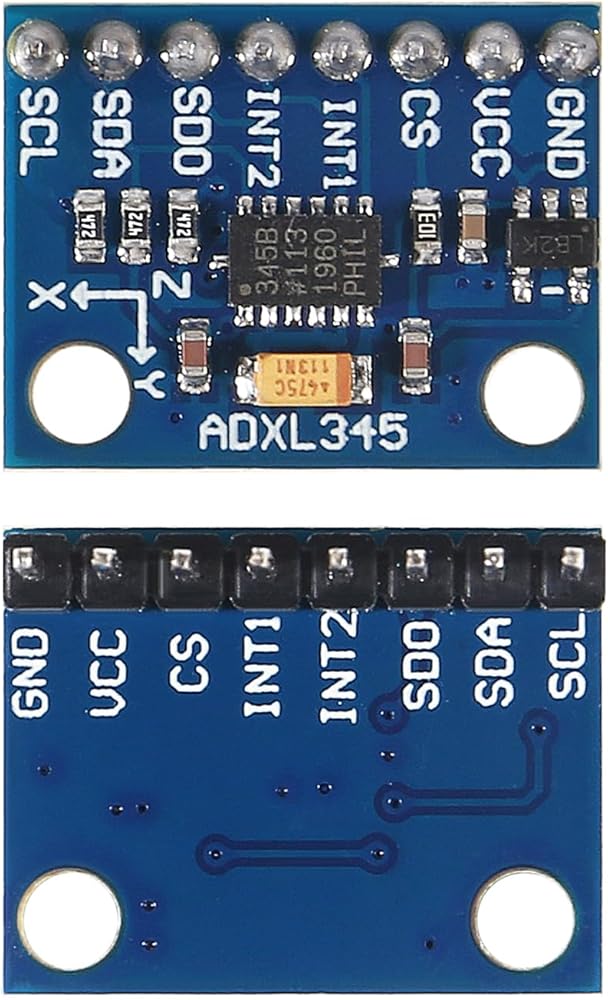

Pins:
GND: This pin is used for ground.
VCC: This pin is used for supply voltage.
CS: This is the chip select pin, which is used to enable communication between the sensor and the microcontroller.
INT1 and INT2: These pins are used to signal interrupts to the microcontroller.
SDO: This pin is for SPI mode.
SCL: This pin is used for clock pulse for I2C communication.
SDA: This pin is used for transferring data through I2C communication.

Applications:
ADXL345 is a small, low-power accelerometer sensor that is commonly used in electronic devices such as smartphones and wearable technology to detect motion, orientation, and gestures.
It can measure acceleration in three dimensions (X, Y, and Z) and is also used in scientific and industrial applications like vibration analysis and motion detection.

Package inlcuded:

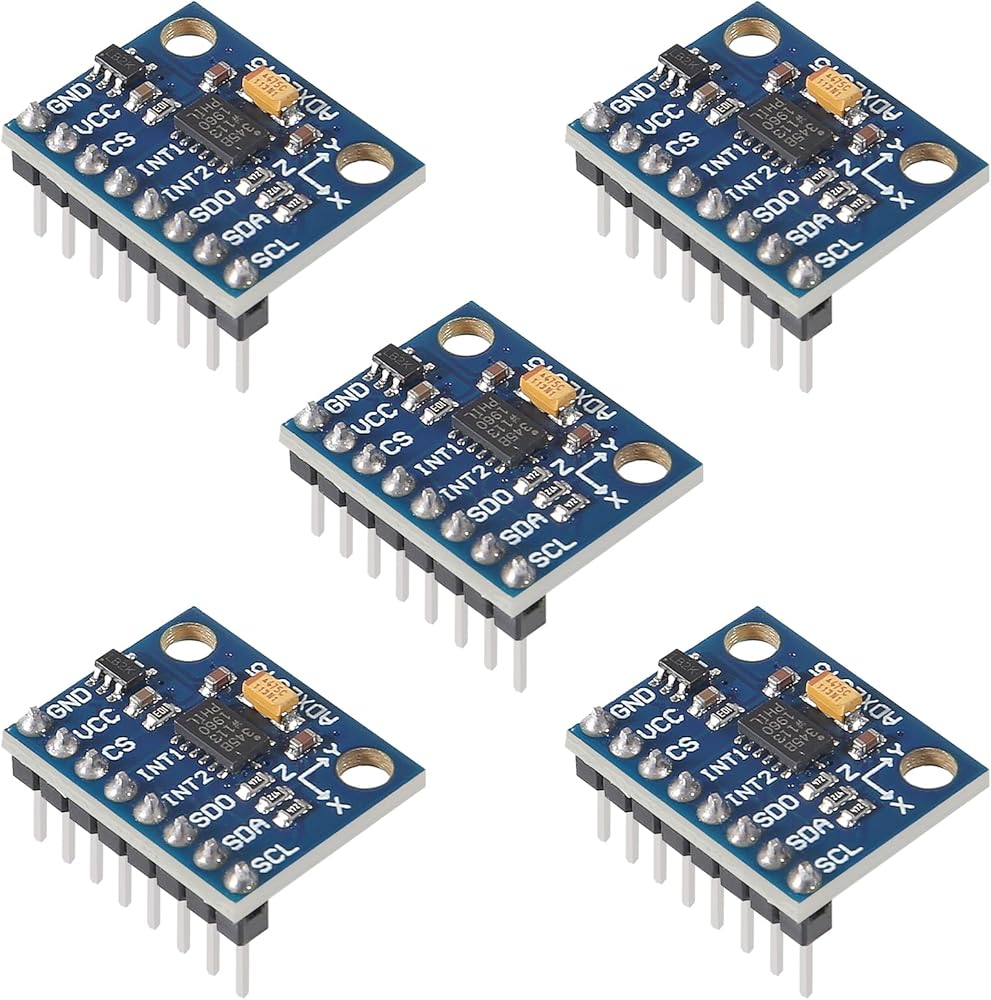

5* GY-291 ADXL345 3-axis digital acceleration sensor module
