3V Relay Module: Working Voltage: DC 3-3.3V; Working Current: 65mA; Trigger Current: 3mA;Load: 10A 250VAC / 10A 30VDC;Load Current: 10A max
Optocoupler Isolator: 3V/3.3V Power Relay Module Supports Photocoupler Isolation Control

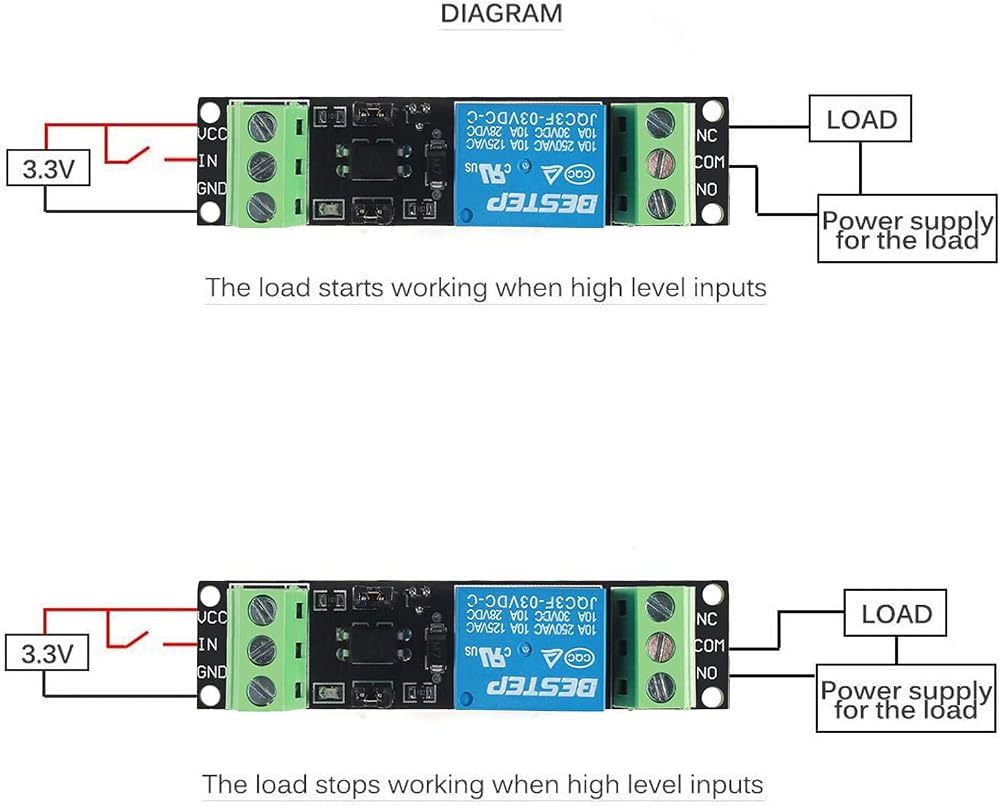

High Level Trigger: The Relay Module is Triggered by High Level Signal, Which Can Be Input From Microcontroller IO

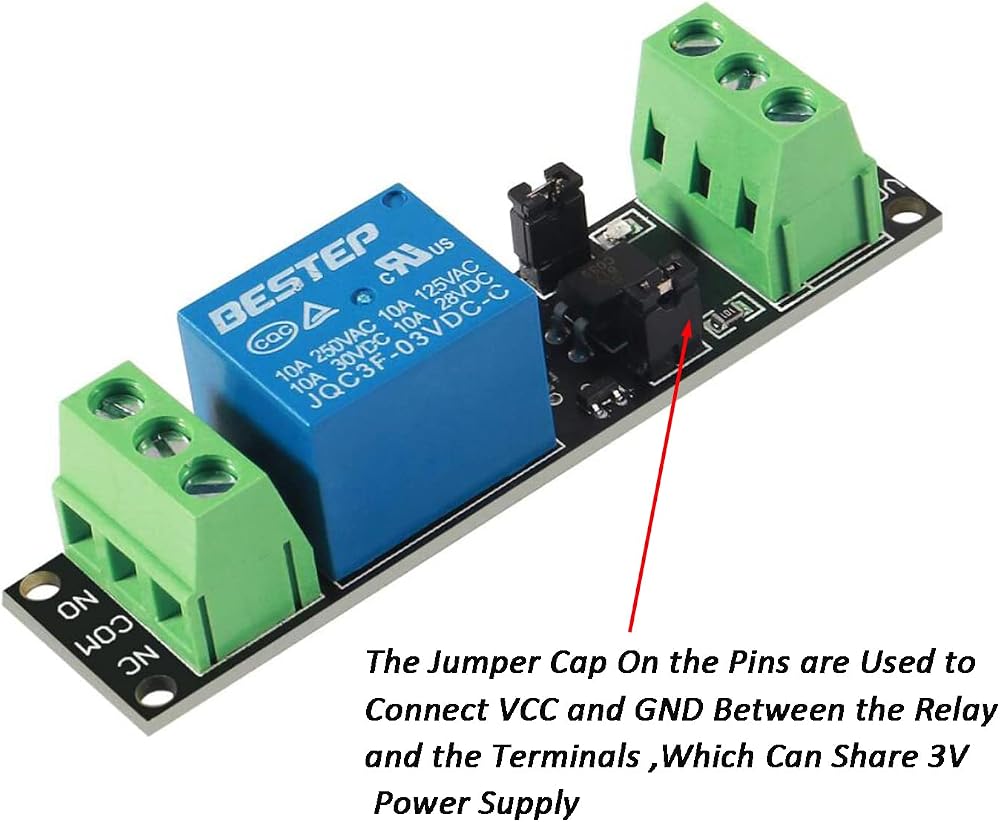

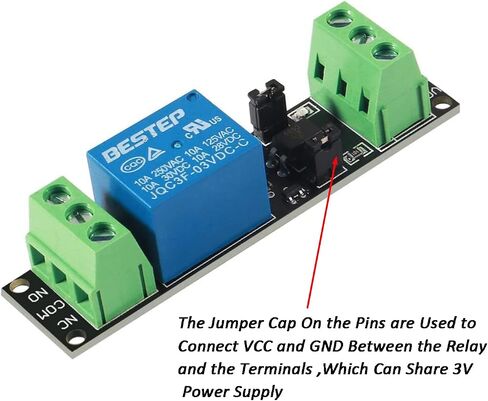

Jumper Caps: By Removing the Jumper Caps on the Pins,You can Select Whether the Relay and the Signal Share the Same Power Supply or Not,But We Are Recommended to Share the Same Power Supply
Wide Application: These 3V Relay Power Switch Module Works Well With ARM /PIC /AVR /MCU/CNC Machine/ PS4 etc.
