Specifications:
Condition: 100% Brand New

Material: Aluminum

Color: Showing as picture

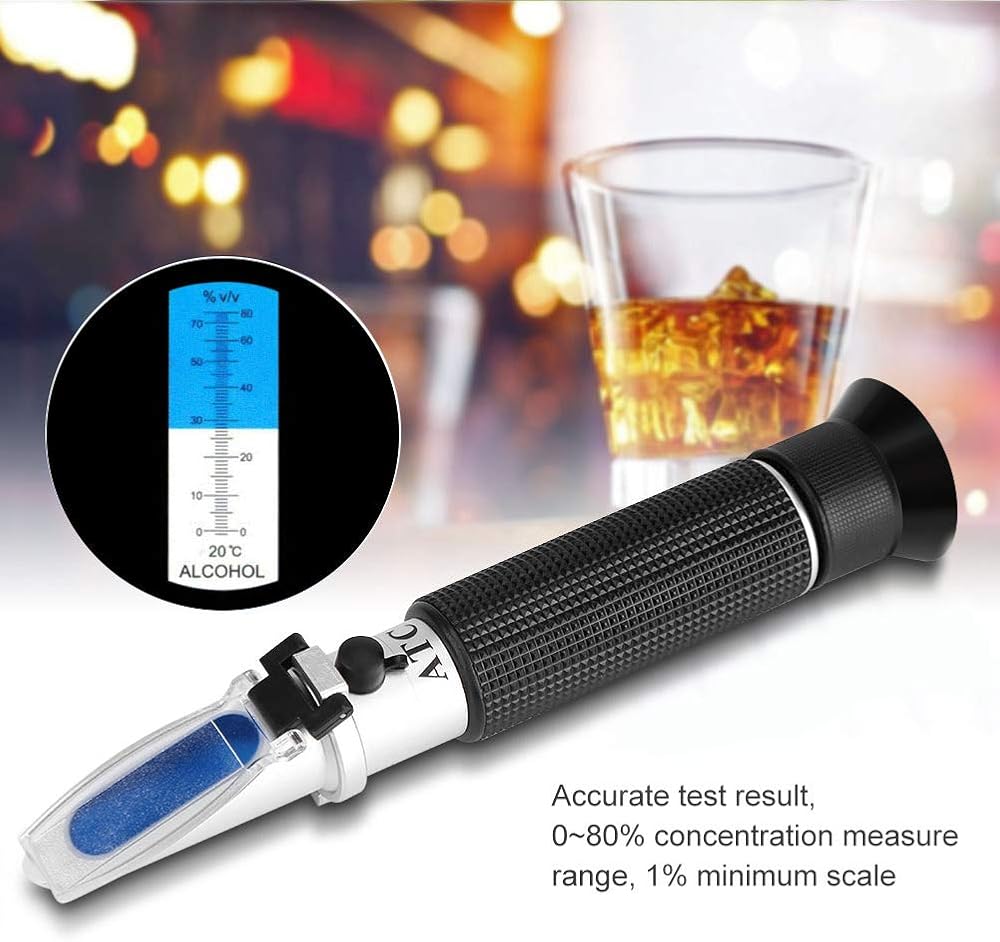

Measuring Range: 0~ 80% Alcohol

Minimum Scale: 1% Alcohol

Automatic Temperature Compensation: 0~30 ℃

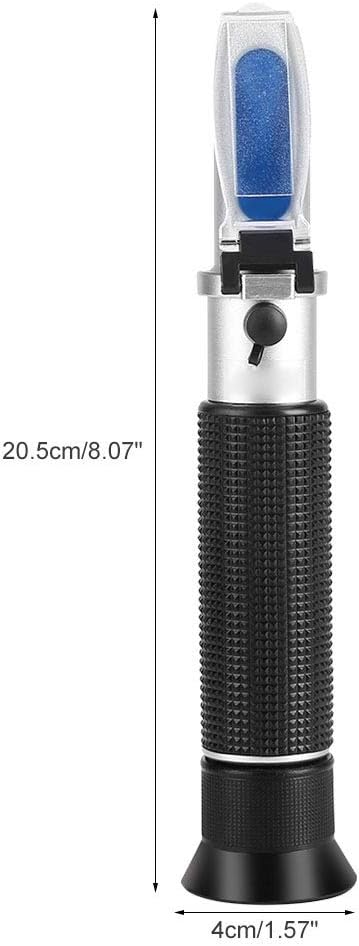

Size: approx. 30 x 40 x 205mm / 1.18 x 1.57 x 8.07inch

Weight: approx. 240g

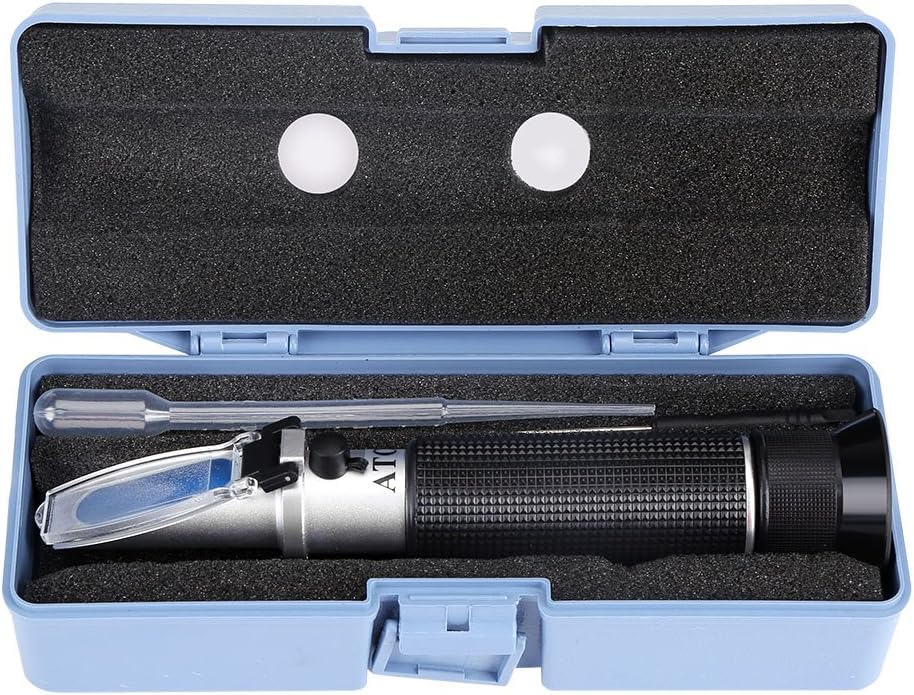

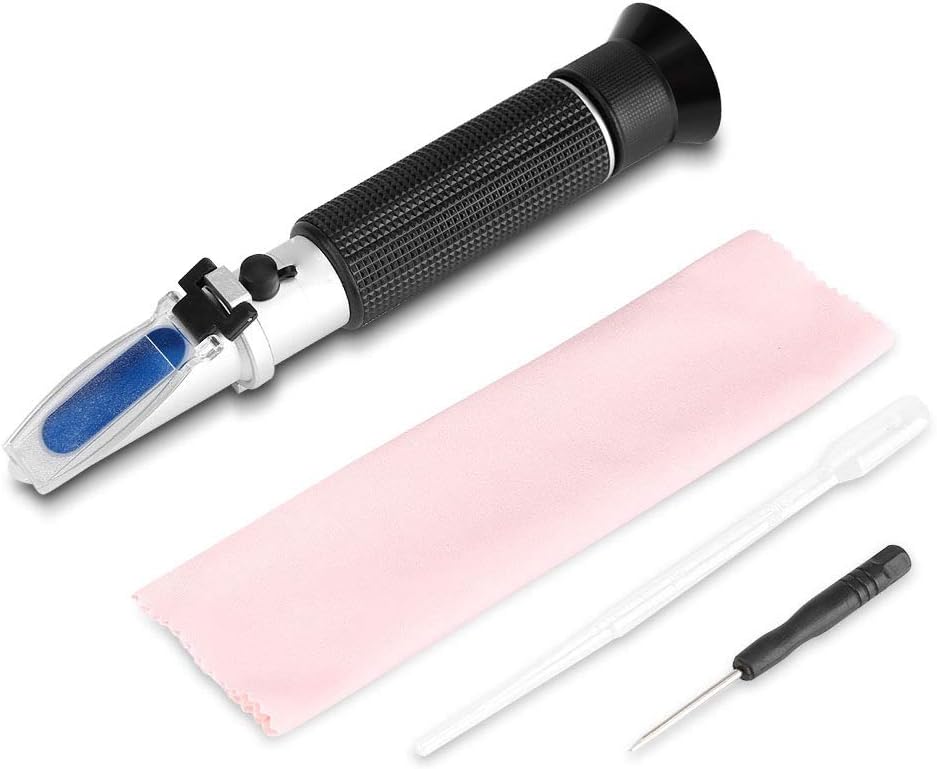

Package Included:

1 x Alcohol Refractometer

1 x Screwdriver

1 x Dropper

1 x Wipe Cloth

1 x Storage Case

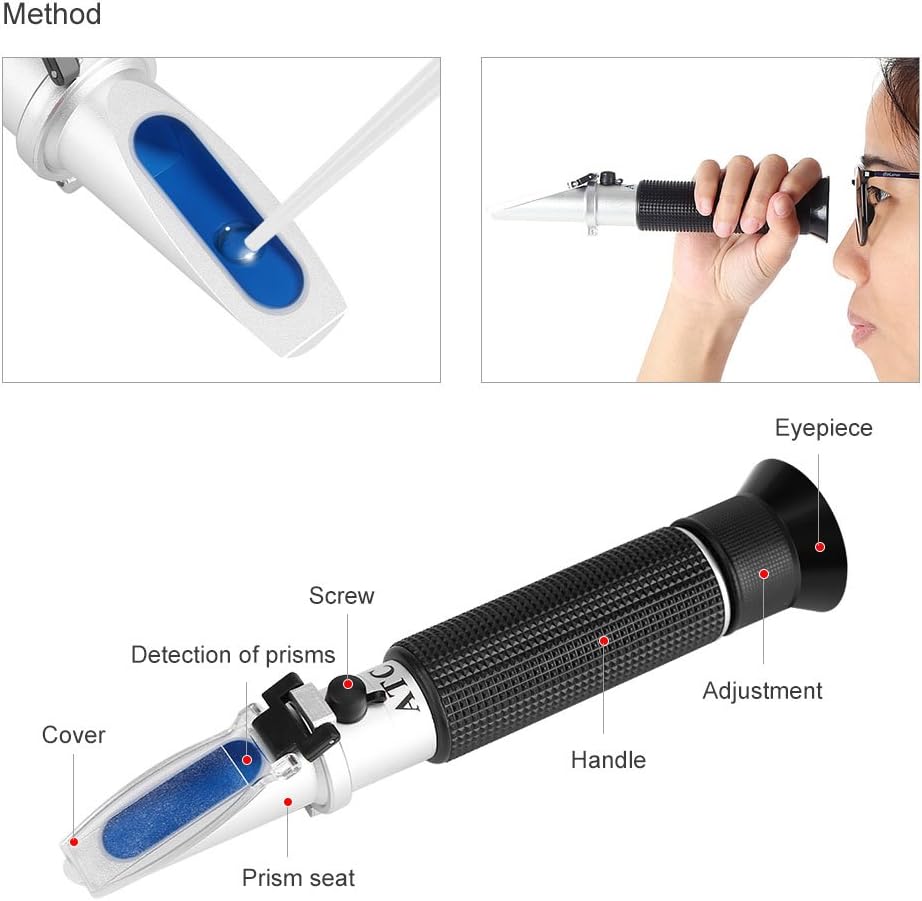

Using Instruction:

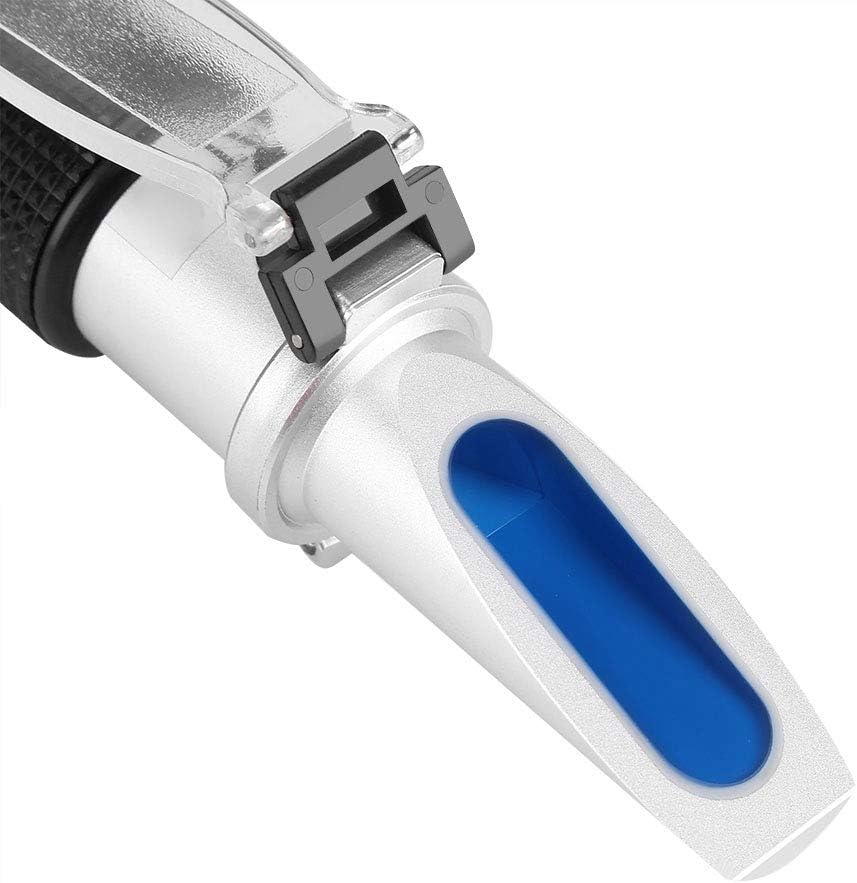

1. Open the cover and carefully wipe the prism with a soft cloth.

2. Take a few drops of the solution to be measured, place on the detection prism, gently close the cover to avoid producing bubbles which will make the solution spread all over the prism surface.

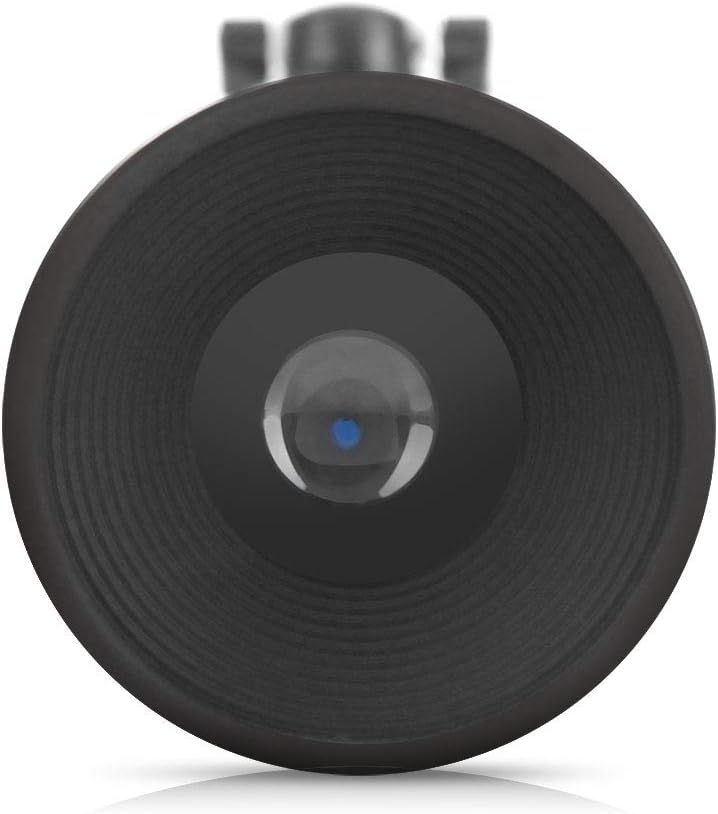

3. Put the cover directly point to the light source or bright place, observe the field of view through the eyepiece.

4. Turn the eyepiece to adjust the hand wheel to make the blue and white line clear. The scale value of the dividing line is the concentration of the solution.

Note:

1.Please use this instrument according to the instruction, be careful when using. Do not loose any connection part arbitrarily, prevent violent shock, impact and falling off.

2. Use and soft cloth to wipe the instrument, do not put into water directly to and avoid scratch of surface.

3. Storage the instrument at dry and non-corrosive place.

4. Storage the part well.

5. The adjustment range of eyepiece and hand wheel is within 2cm left or right.

6. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
