Sonew Motorized Zoom Lens, 6?22mm 5MP Length High Precision, Auto Zoom Autofocus, IR Correction, D14 Mount Fixed Industrial Lens, 500MP, F2.2

SAR 155
Brand
Sonew
Category
Camera Lenses
– 1 +

Special Features

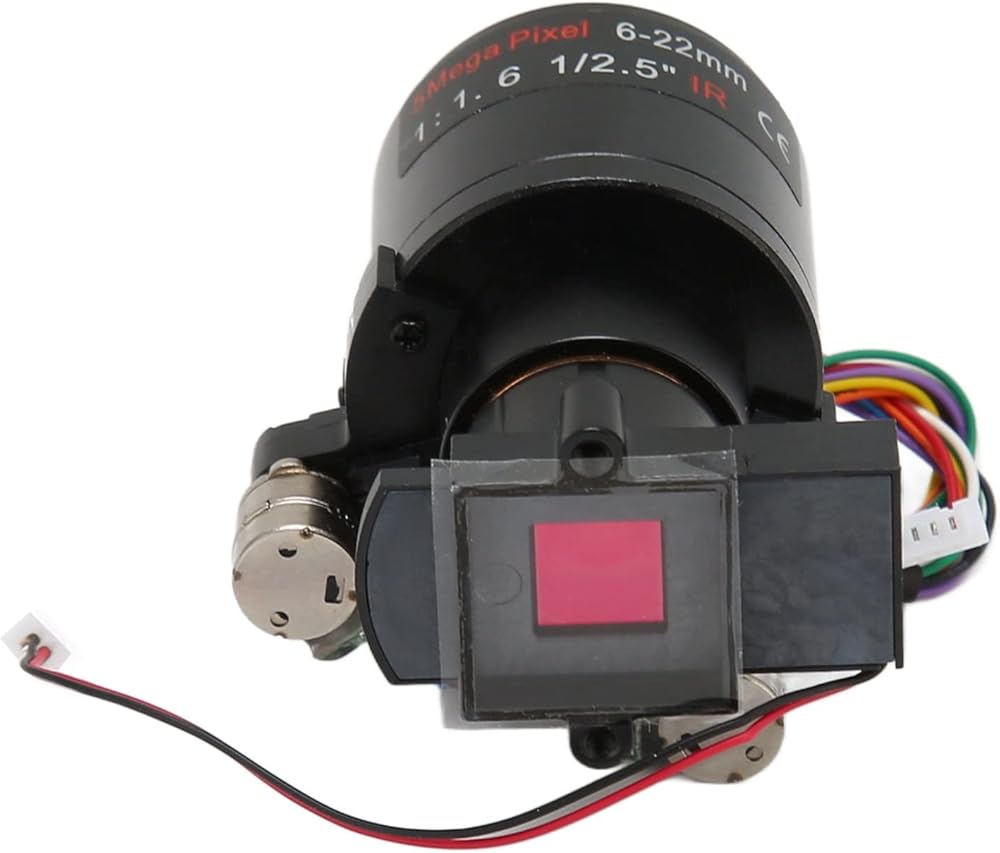

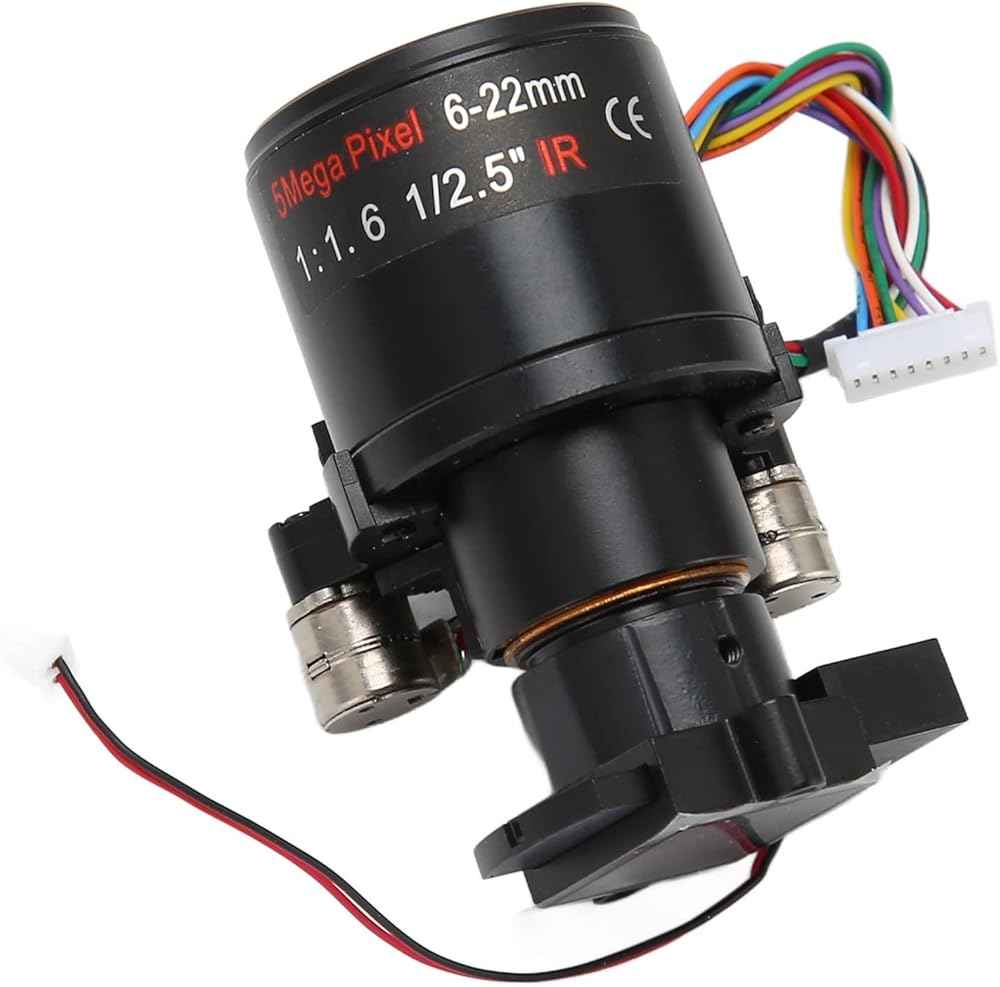

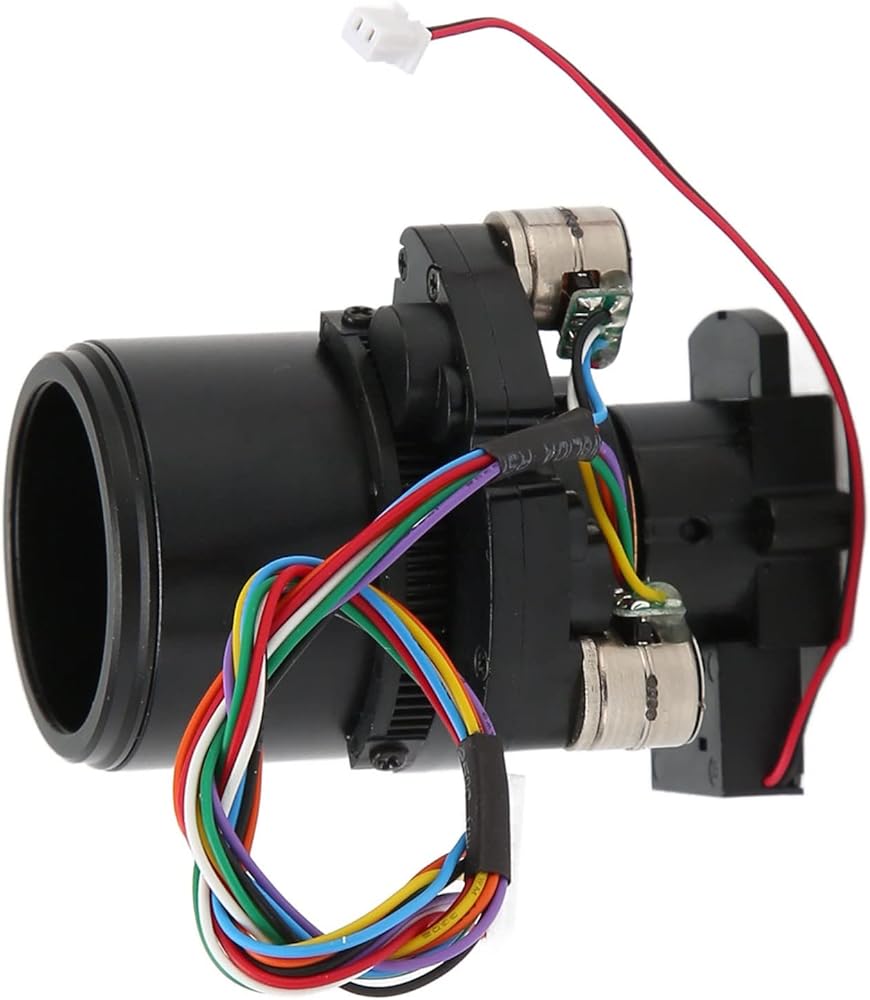

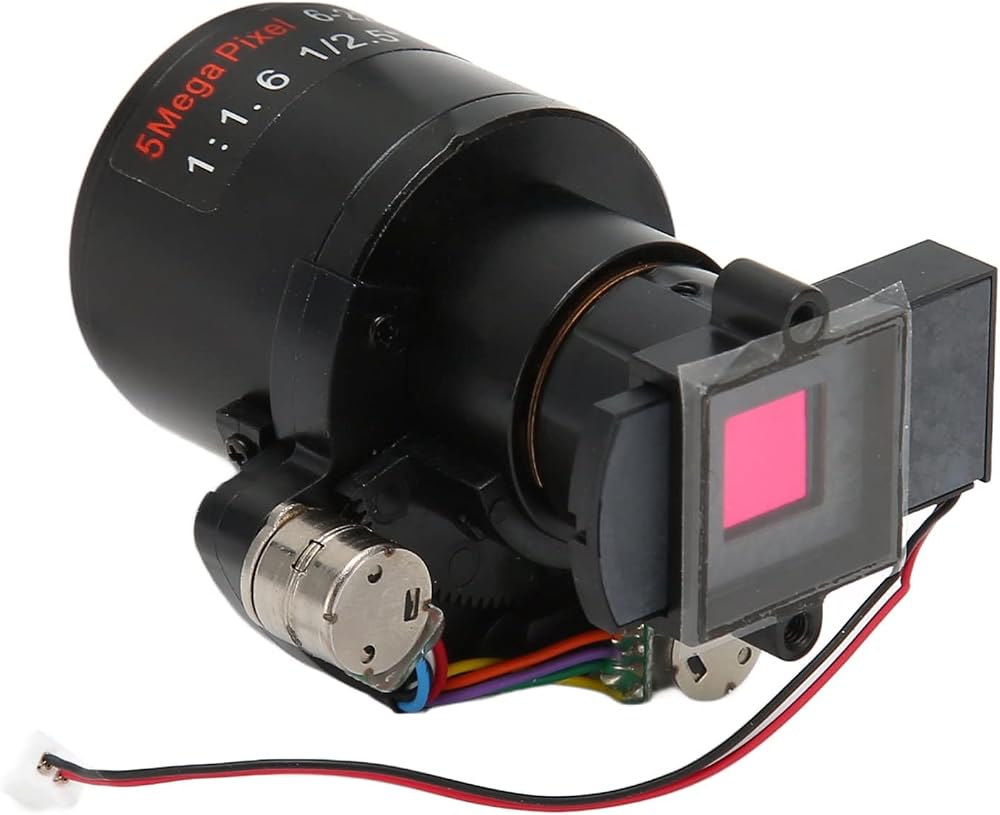

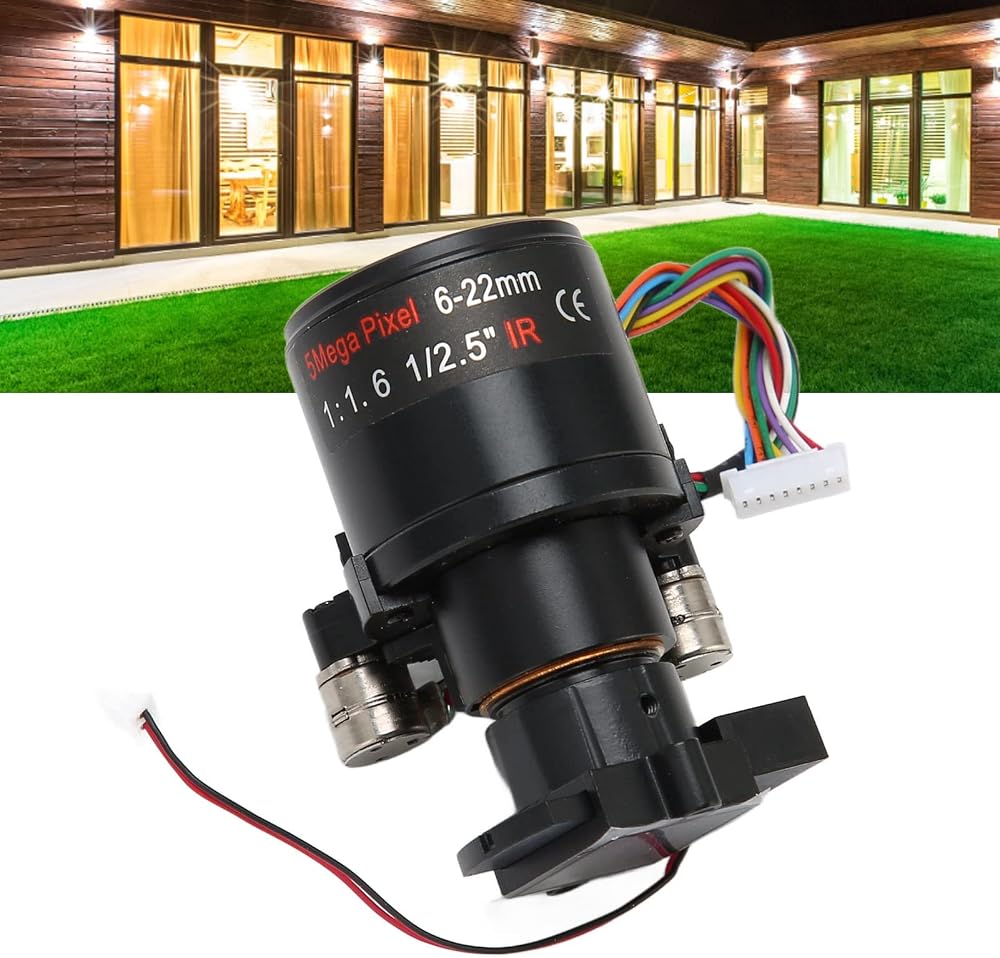

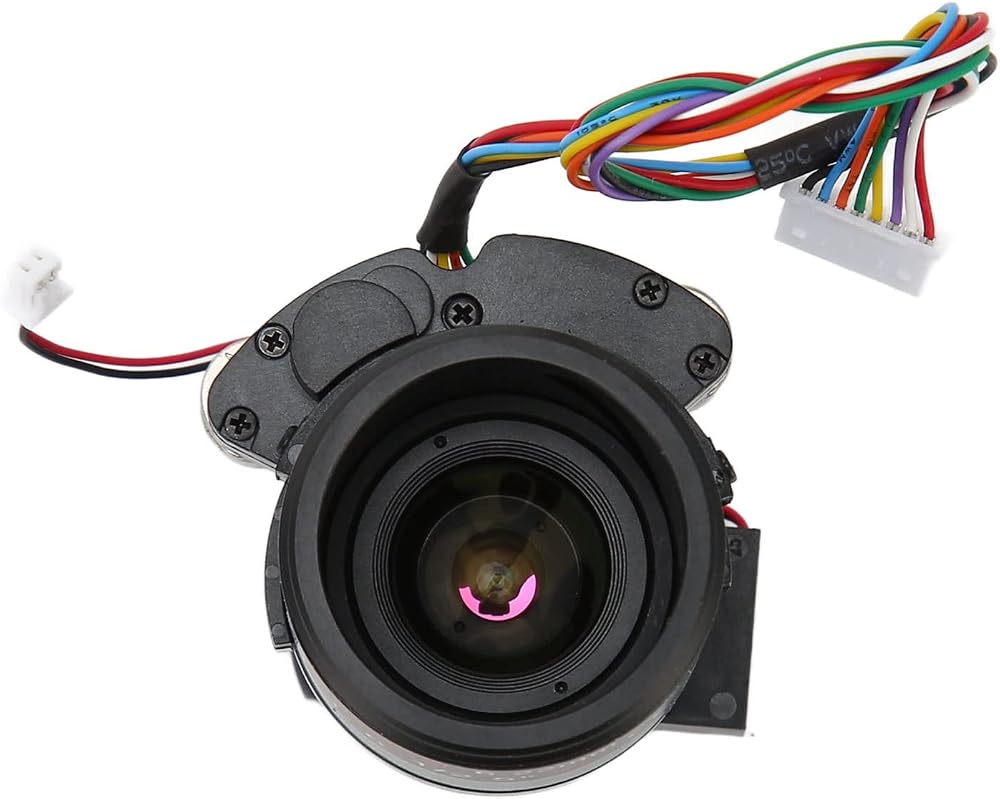

  • MOTORIZED LENS: The lens is motorized (with two high-precision motors for motorized zoom and autofocus) and should be used with a drive PCB (not included), high-definition coating, and improved imaging capability

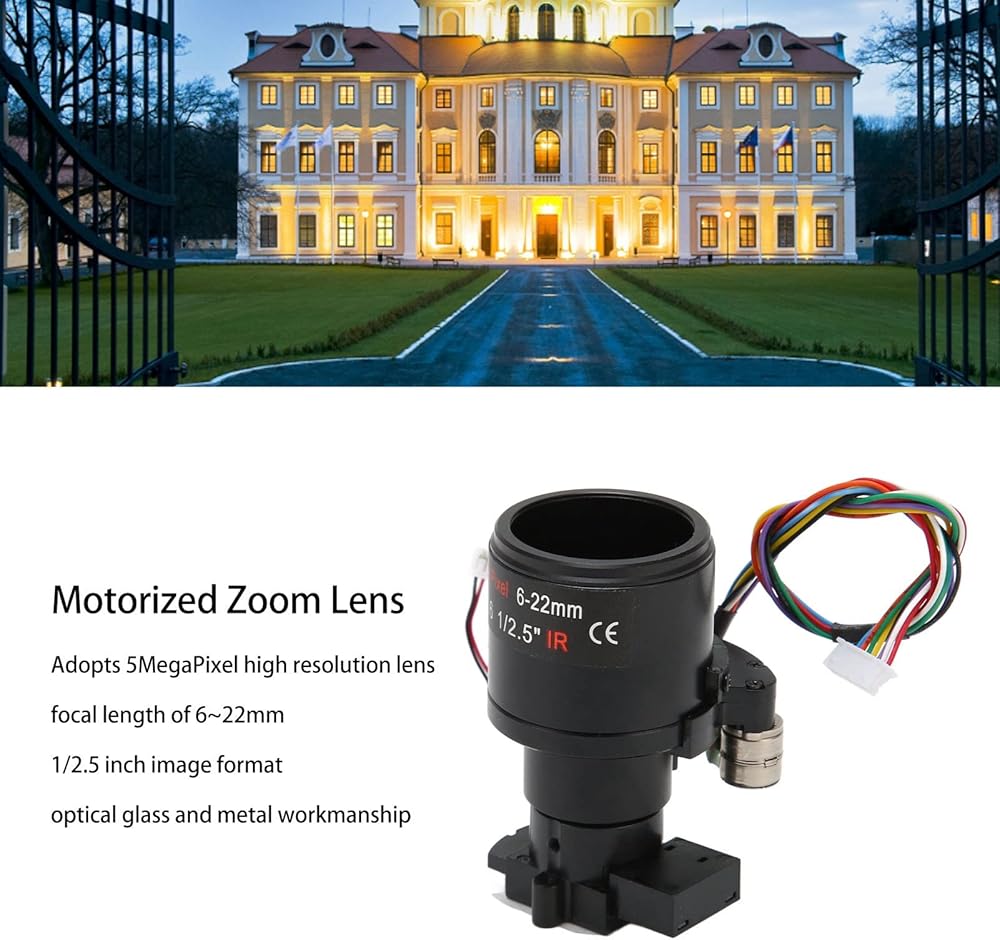

  • LENS DESIGN: 5 megapixel high-resolution lens with a length of 6 to 22 mm, 1/2.5-inch image format, optical glass and metal process to achieve a clear image and reduce chromatic aberration

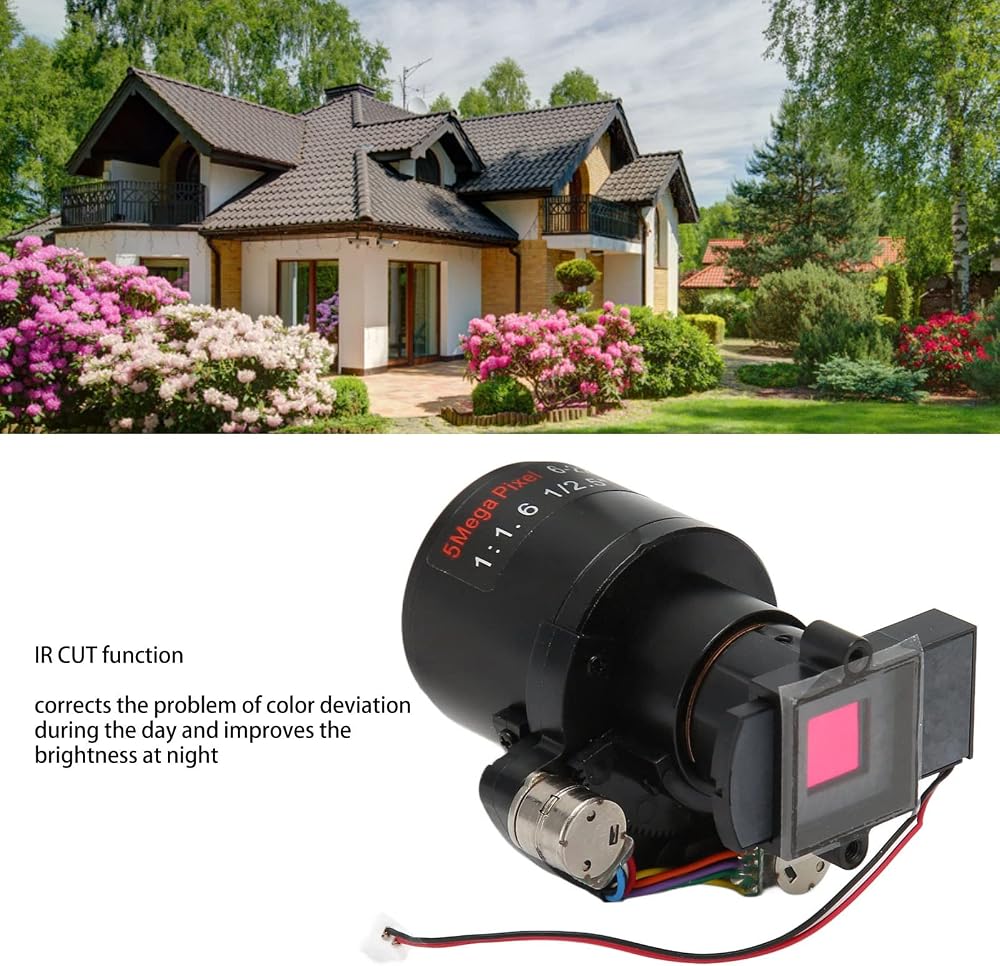

  • IR CORRECTION: The lens has IR CUT function, which corrects the problem of color deviation during the day and improves the brightness at night, capturing a clear image even at any given length
  • IMPORTANT PARAMETERS: 6-22 mm length, D14 mounting interface, low distortion, 0. minimum object size, 13.5 mm flange BFL, fixed aperture, produces high contrast images, -to- sharpness
  • RUGGED HOUSING: The lens is protected by a high-quality aluminum alloy housing that can be used in extreme environments, better protecting the lens from dust, water droplets, grease and other substances that can adhere to it while making it easier to clean

Description

Specification:
Item Type: Motorized Zoom Lens
Material: Aluminium alloy
Resolution: 5 MegaPixel
Image Format: 1/2.5in
Focal Length: 6~22mm
Aperture: F2.2
Mount Interface: D14
Field Angle (DxHxV)
1/2.5° Short Focus: D 58, H 46.4, V 34.8 Telephoto: D 20.4, H 16.3, V 12.2
1/3° Short Focus: D 46.5, H 37.2, V 27.9 Telephoto: D 18, H 14.4, V 11.4
1/4° Short Focus: D 34.5, H 27.6, V 22.5 Telephoto: D 12.6, H 10.1, V 7.6
Optical Distortion: -0.61~-15.6%(1/2.5in)
CRA: ≤11.94° (short focus), ≤11.38° (telephoto)
M.O.D.: Approx. 0./11.81in

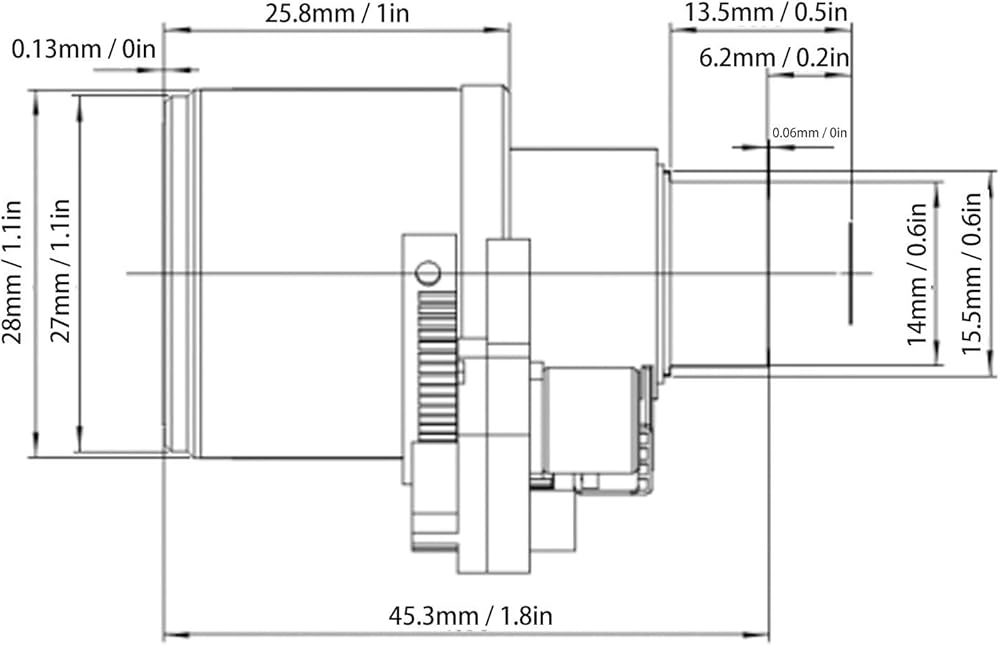

Dimension: 28x45.3mm/1.10x1.78in
Flange BFL: Approx. 13.5mm/0.53in
BFL: Approx. 6.4mm/0.25in
MBF: Approx. 6.2mm/0.24in
IR Correction: Yes

Operation:
: Fixed Aperture
Focus: Autofocus (DC)
Zoom: Auto Zoom (DC)
Operating Temperature -20°C~+60°C

Package List:
1 xLens
