Description:
This sensor is made with black and white lines tracing the car ran without black line on white paper, available in concrete The yellow complex environment such as the black line patrol track. As long as the black line around the slightly lighter color than black can, eliminating the traditional moves, so that environmental layout easier. With Enable, EN terminal is equal to "1" when the sensor does not work, equal to "0" when working. Jump on the sensor end cap long after the EN grounding plug (EN long as "0"). To use the EN pin when the jumper cap is removed.
Features:
Working voltage: DC 3.3V-5V
Working current: 20mA
Working temperature: -10degree+50degree
Detection distance : 2-40cm
IO interface: 4 line (-/+/S/EN)
Output signal: TTL Level
Adjusting mode: Multi resistance regulation
Effective angle: 35°
Size: 4.5x1.1cm(approx)
Package included:

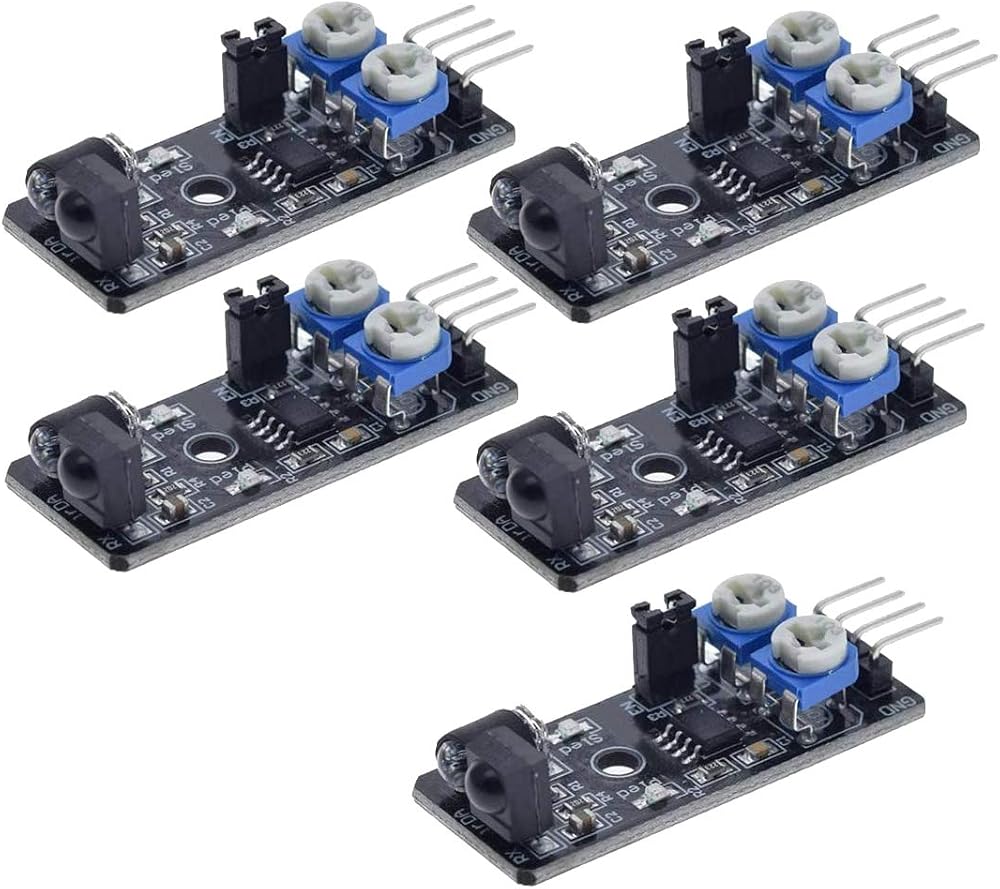

5* IR Infrared Obstacle Avoidance Sensor Module
