Overview
RS485 CAN HAT for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH, the RS485 CAN HAT will enables your Pi to communicate with other devices stably in long-distance via RS485/CAN functions, Onboard CAN Controller MCP2515 via SPI Interface, CAN Transceiver SN65HVD230, and 485 Transceiver SP3485.

Features

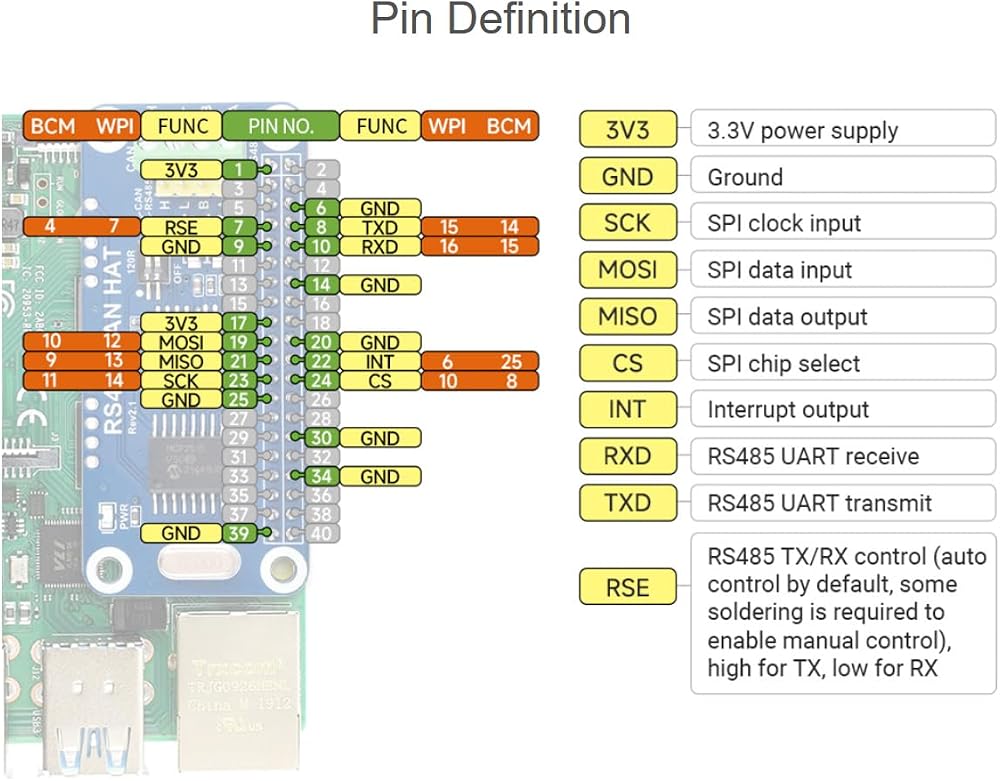

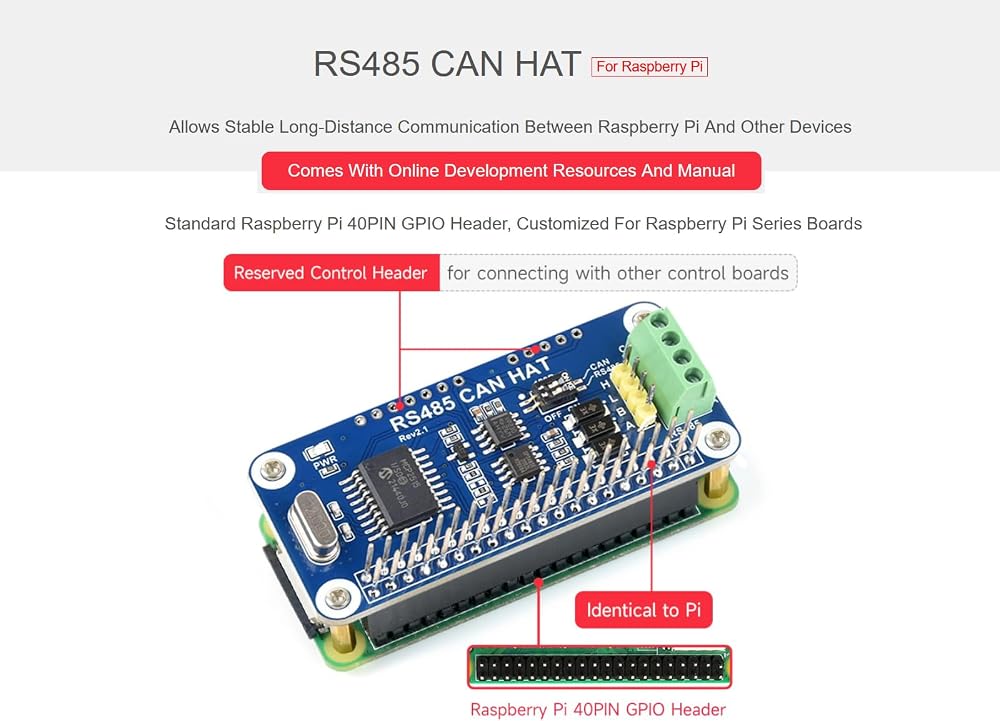

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

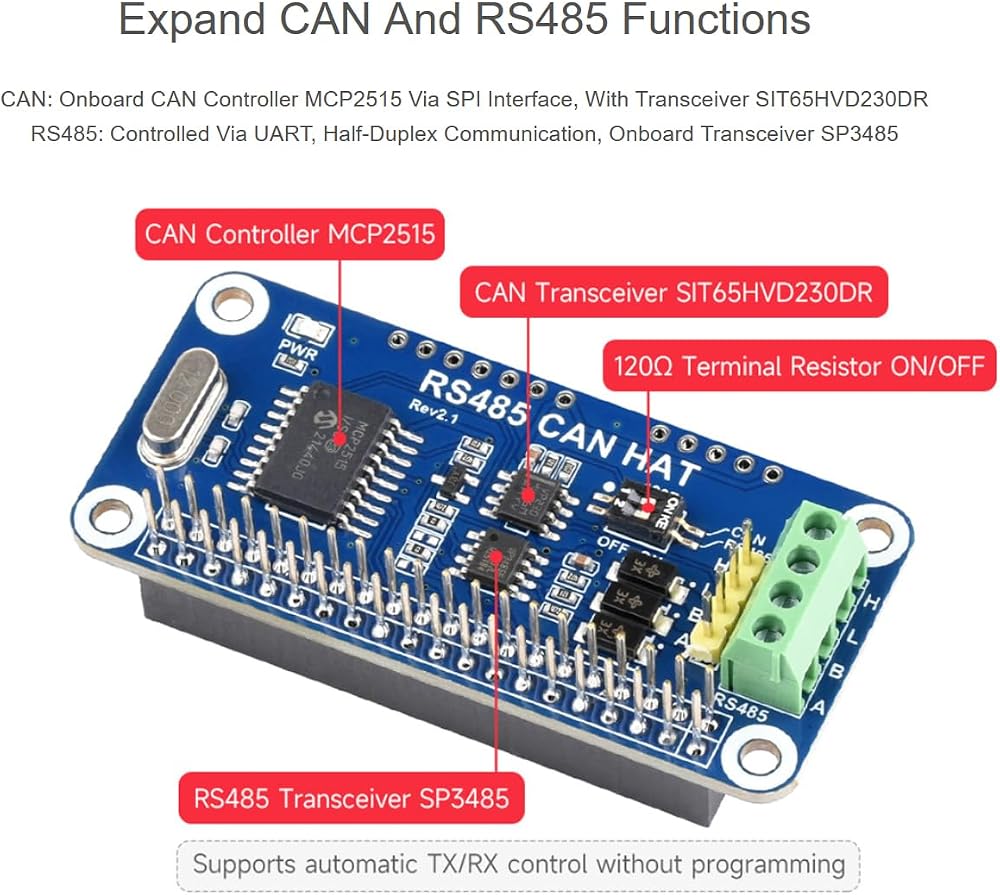

2. CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SN65HVD230
3. RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485

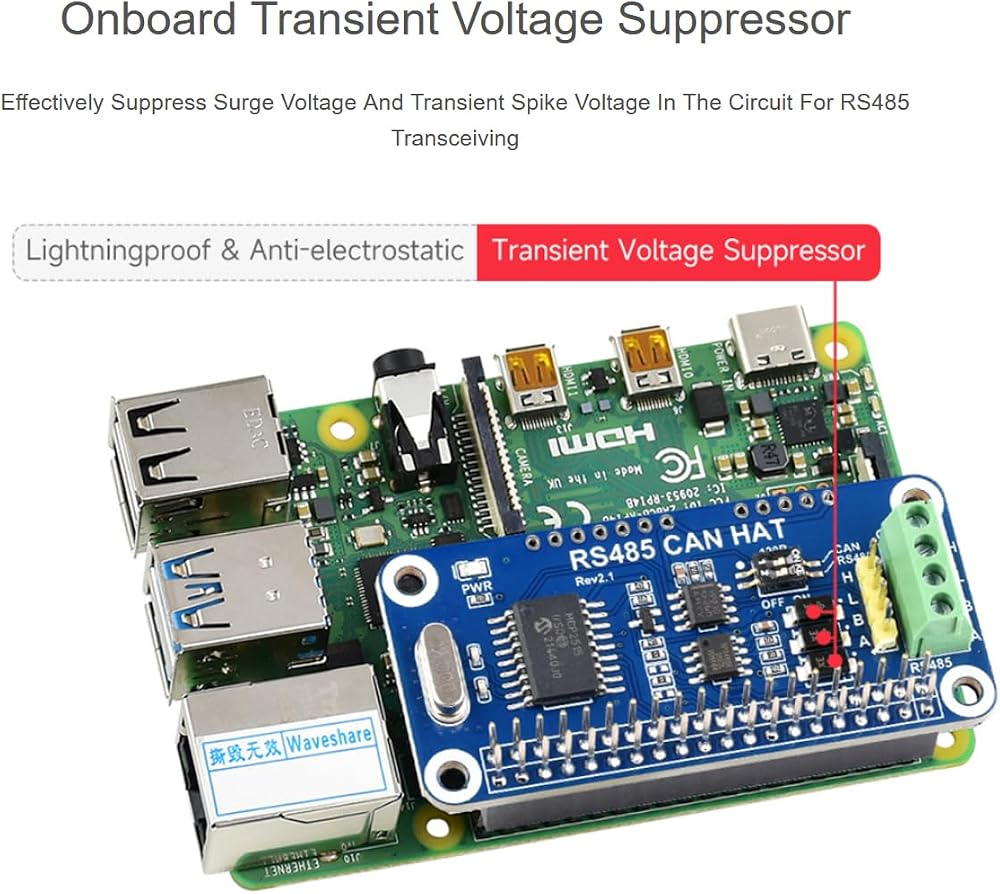

4. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
5. Reserved control pins, allows to work with other control boards
6. Comes with online development resources and manual (examples in wiringPi/python)

Specifications
Operating voltage: 3.3V
CAN controller: MCP2515
CAN transceiver: SN65HVD230
485 transceiver: SP3485

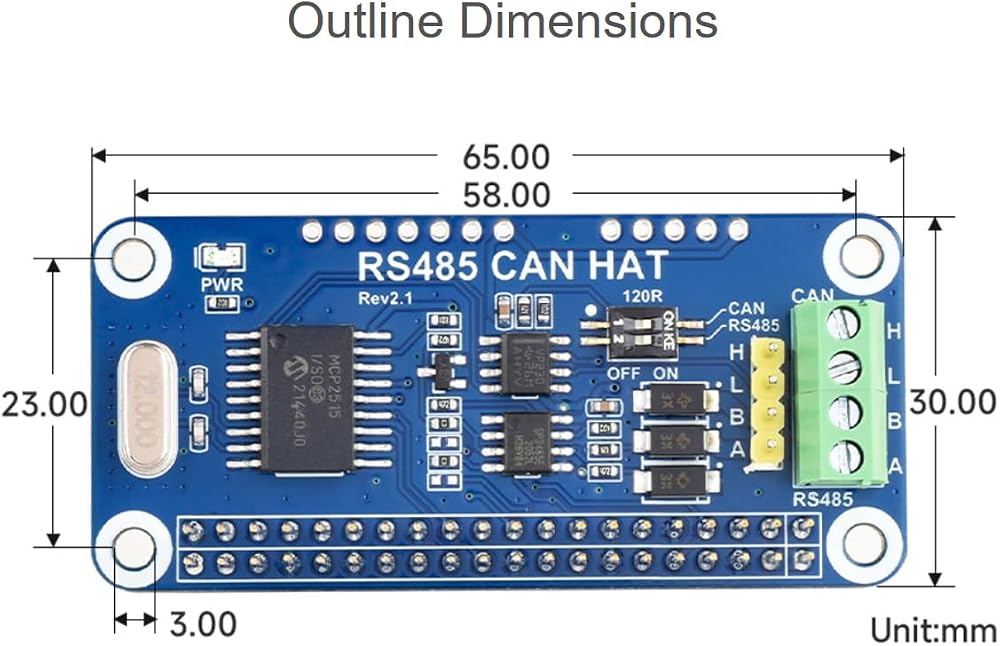

Dimension: 65mm x 30mm
Mounting hole size: 3.0mm

Package Content
RS485 CAN HAT x1
RPi screws pack (2pcs) x1

Note
Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
