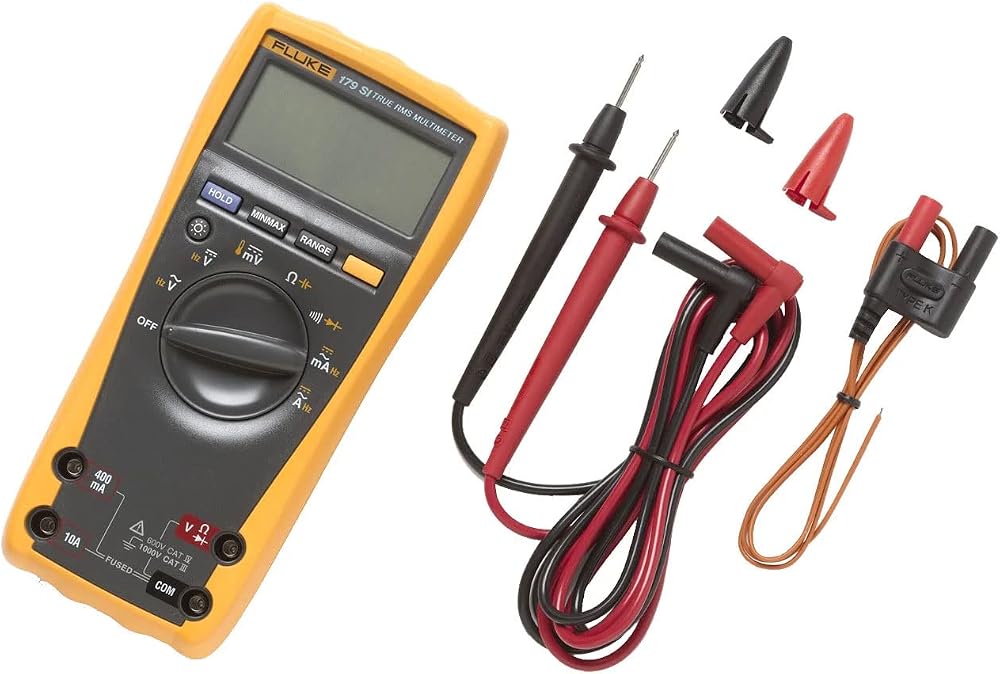

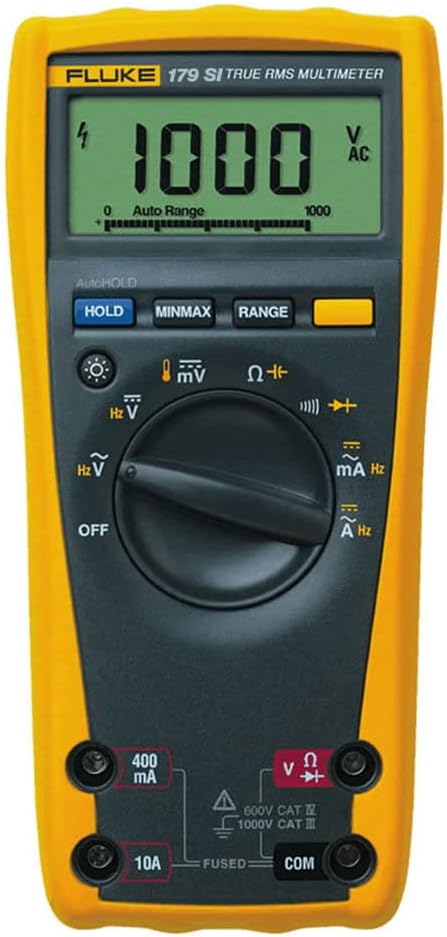

The Fluke 170 Series True-rms Digital Multimeter is selected by experts around the world for precision, reliability and ease of use. This product is an industry standard and has all the features you need to troubleshoot and repair a number of problems found in electrical and electronic equipment.
The Fluke 170 Series Digital Multimeter has True-rms voltage and current measurement, 6000 count resolution, manual and automatic range settings. It can also measure frequency, capacitance, resistance, conduction, and diodes. Furthermore, Fluke 177 and 179 have a backlit digital display with higher basics of 0.09% accuracy, and an analog bar graph display. It can also measure temperature with the Fluke 179.
The Fluke 170 Series Multimeter is independently tested for safe use: CAT IV 600 V/CAT III 1000 V Environment
Features:
Automatic range and manual range
Display and hold automatically.
Frequency measurement and capacitance measurement
Resistance, conduction, and diode measurement
Temperature measurement (179)
Records the minimum value, maximum and average values
Calibration from the front panel without having to open the case.
Ergonomic case with integrated protective holster
Specifications:
[DC Voltage] Accuracy: ± (0.09 % + 2), Maximum Resolution: 0.1 mV, Maximum Value: 1000 V
AC Voltage: Accuracy: ± (1.0 % + 3), Maximum Resolution: 0.1 mV, Maximum Value: 1000 V
DC Current: Accuracy: ± (1.0 % + 3), Maximum Resolution: 0.01 mA, Maximum Value: 10 A
AC Current: Accuracy: ± (1.5 % + 3), Maximum Resolution: 0.01 mA, Maximum Value: 10 A
[Most Resistant] Accuracy: ± (0.9 % + 1), Maximum Resolution: 0.1 Ω, Maximum Value: 50 MΩ
Capacitance: Accuracy: ± (1.2 % + 2), Maximum Resolution: 1 nF, Maximum Value: 10,000 μF
Frequency: Accuracy: ± (0.1 % + 1), Maximum Resolution: 0.01 Hz, Maximum Value: 100 kHz
Temperature Degree: Accuracy: ± (1.0 % + 10), Maximum Resolution: 0.1 °C, Range: -40 °C / +400 °C
NOTE*: Accuracy is the highest accuracy of each function.
Operating Temperature: 14°F to 122°F (-10°C to 50°C).
Storage Temperature: -30°C to +60°C
Humidity (no condensation): 0% ~ 90% (0°C ~ 35°C), 0% ~ 70% (35°C ~ 50°C).
【Over Voltage Category】EN 61010-1 ~ 1000V CAT III Up to EN 61010-1, 600V CAT IV
Certifications: UL, CSA, TUV certified, and VDE screening
Size: 1.7 x 3.5 x 7.3 inches (43 x 90 x 185 mm).
Weight: 14.2 oz (420 g).
